LC SC FC ST Fiber Optical Adapters SM SX duplex Quad female to male MPO MU SMA UPC PC APC Hybrid optical adapters & connectors
- Category: >>>
- Supplier: JFOPT CO. LTD.
Share on (1600549257219):
Product Overview
Description
LC SC FC ST Fiber Optical Adapters SM SX duplex Quad female to male MPO MU SMA UPC PC APC Hybrid optical adapters & connectors
REFERENCE PICTURES

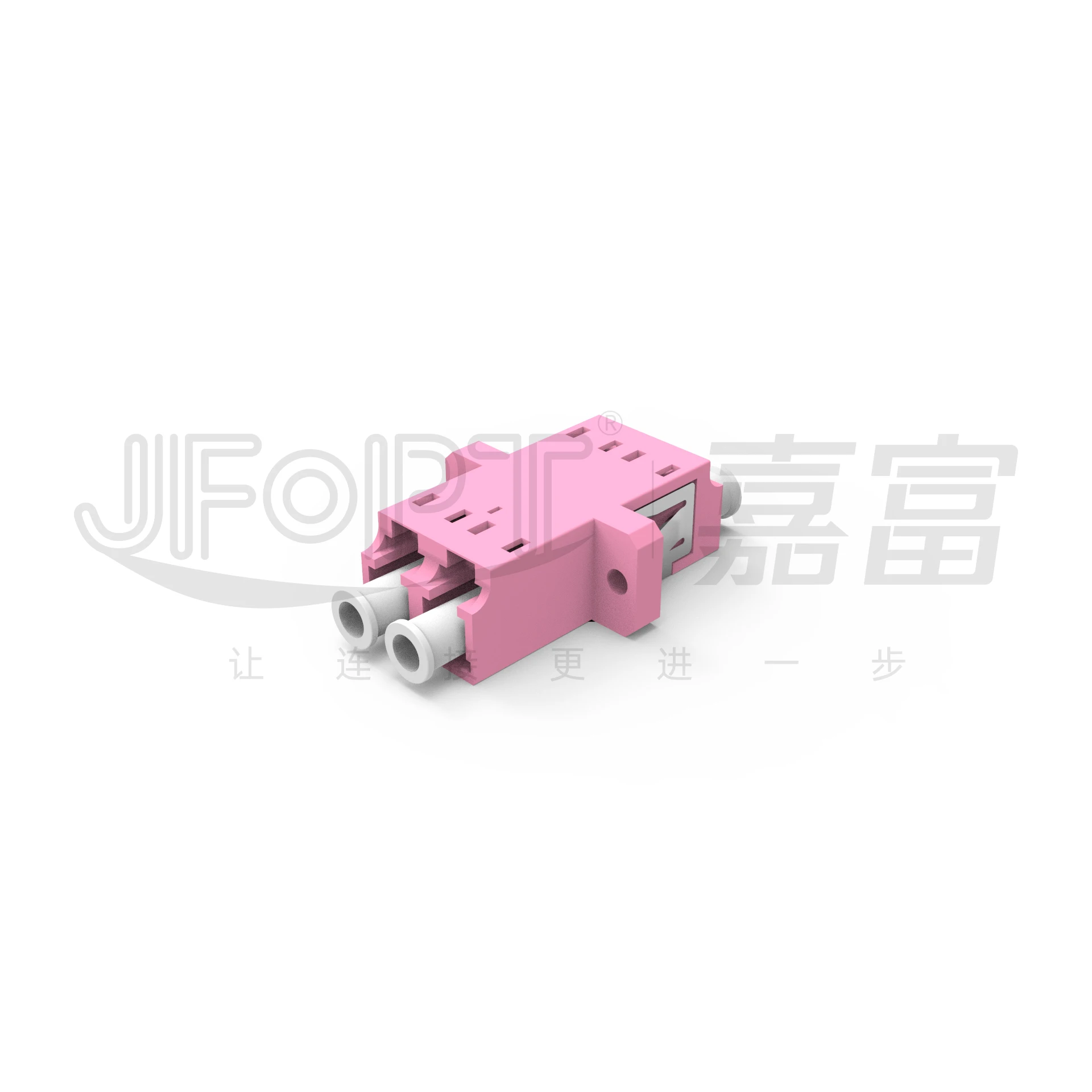

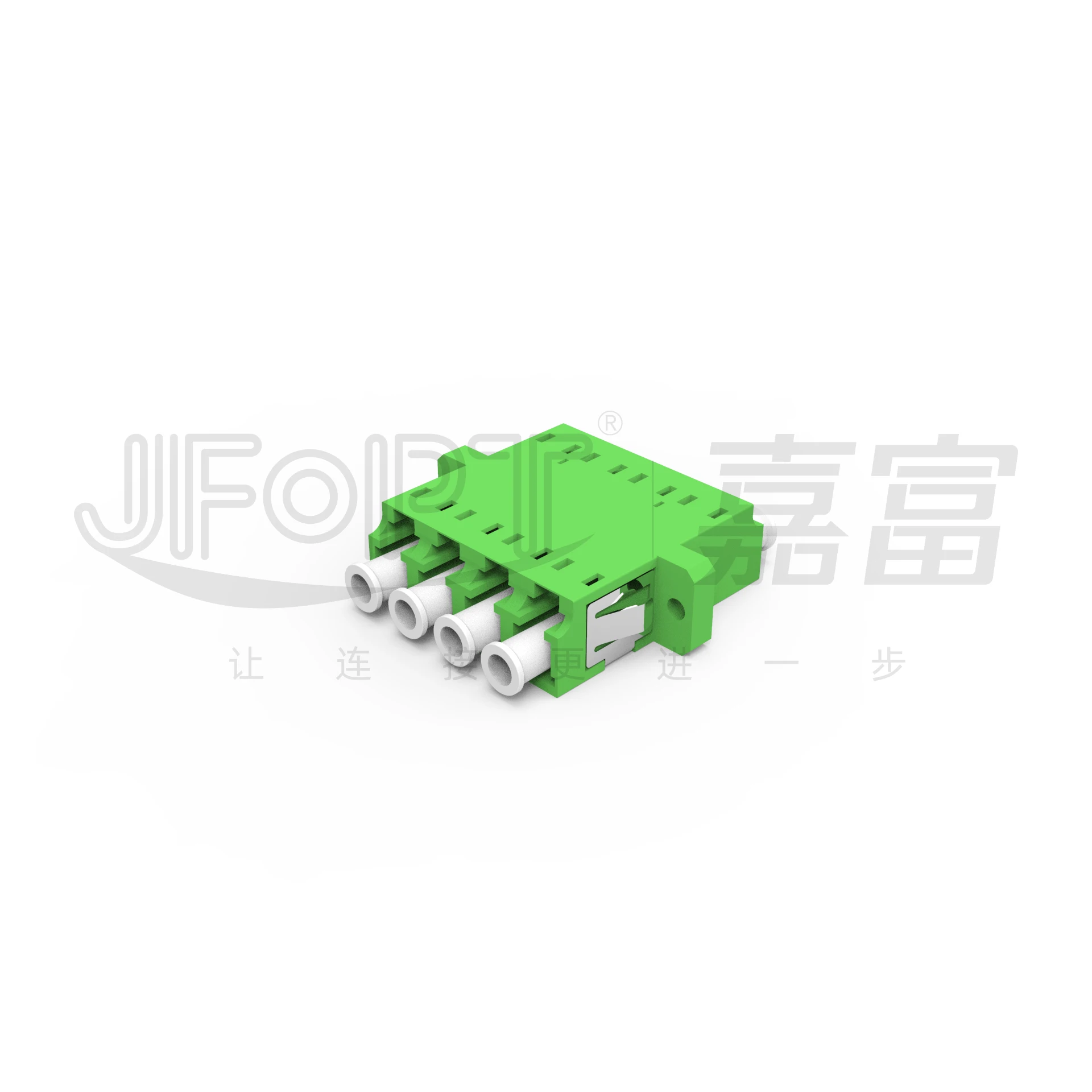

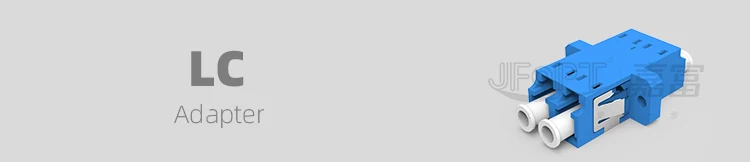

LC Adapter
LC adapter JFOAD-SFF-LC is used for the connection between LC connectors, to minimize the optical power loss in coupling. It is coupled with LC connector by leading the flexible clip on connector into the guide groove on the inner wall of its housing.

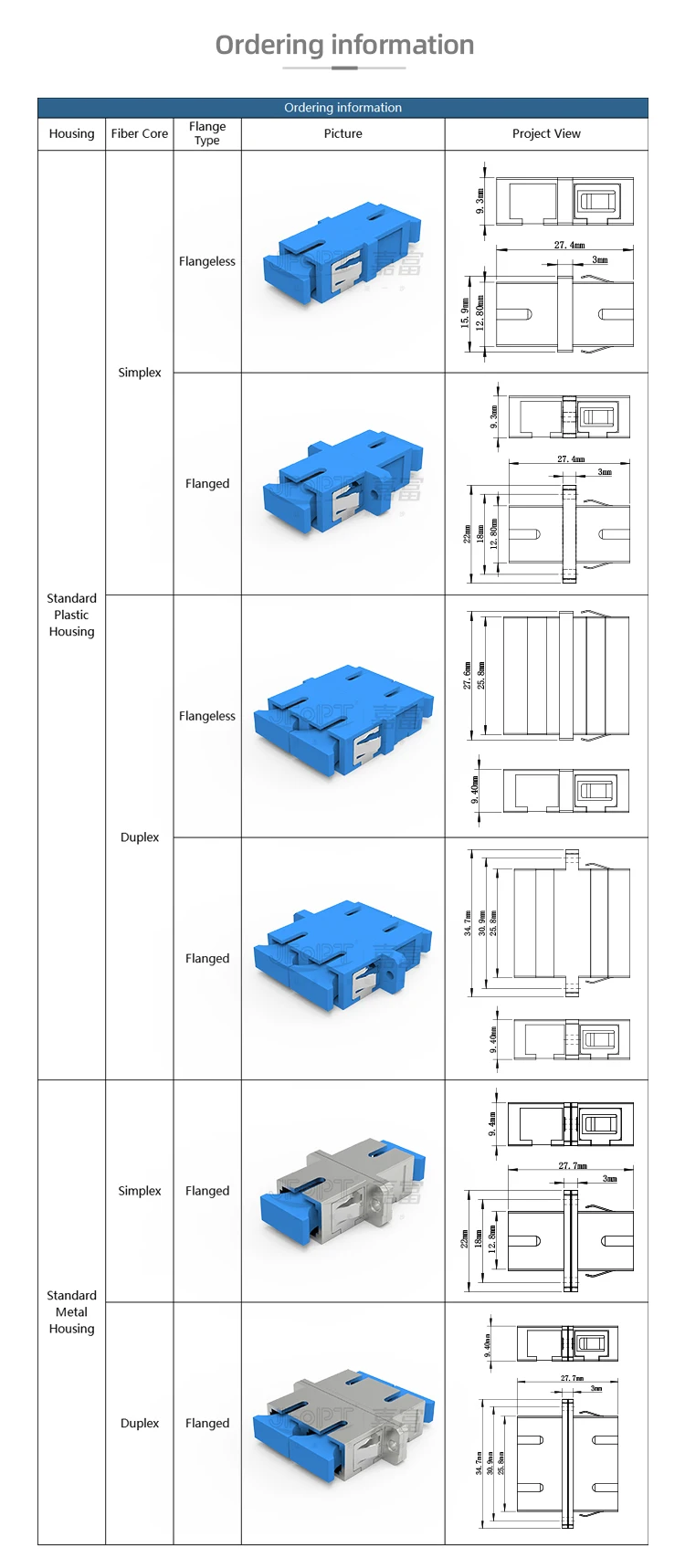

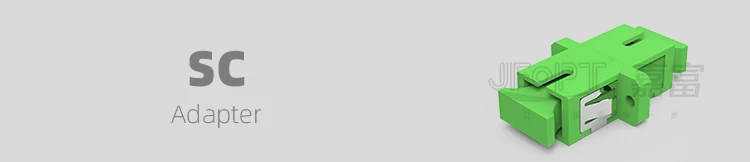

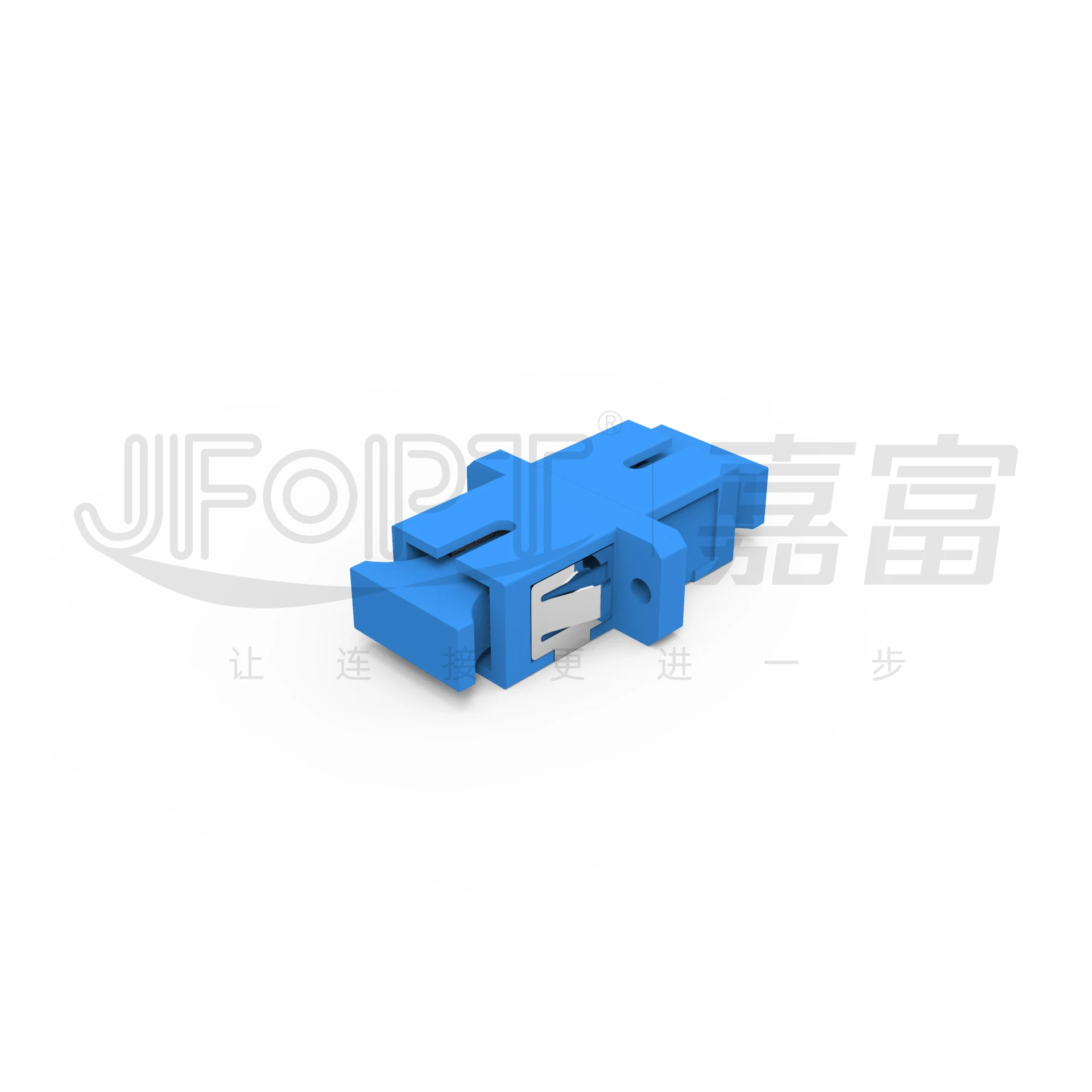

SC Adapter
SC adapter JFOAD-SFF-SC is used for the connection between SC connectors, to minimize the optical power loss in coupling. It is coupled with SC connector by leading the guide key of SC connector into the guide groove on the inner wall of its housing.

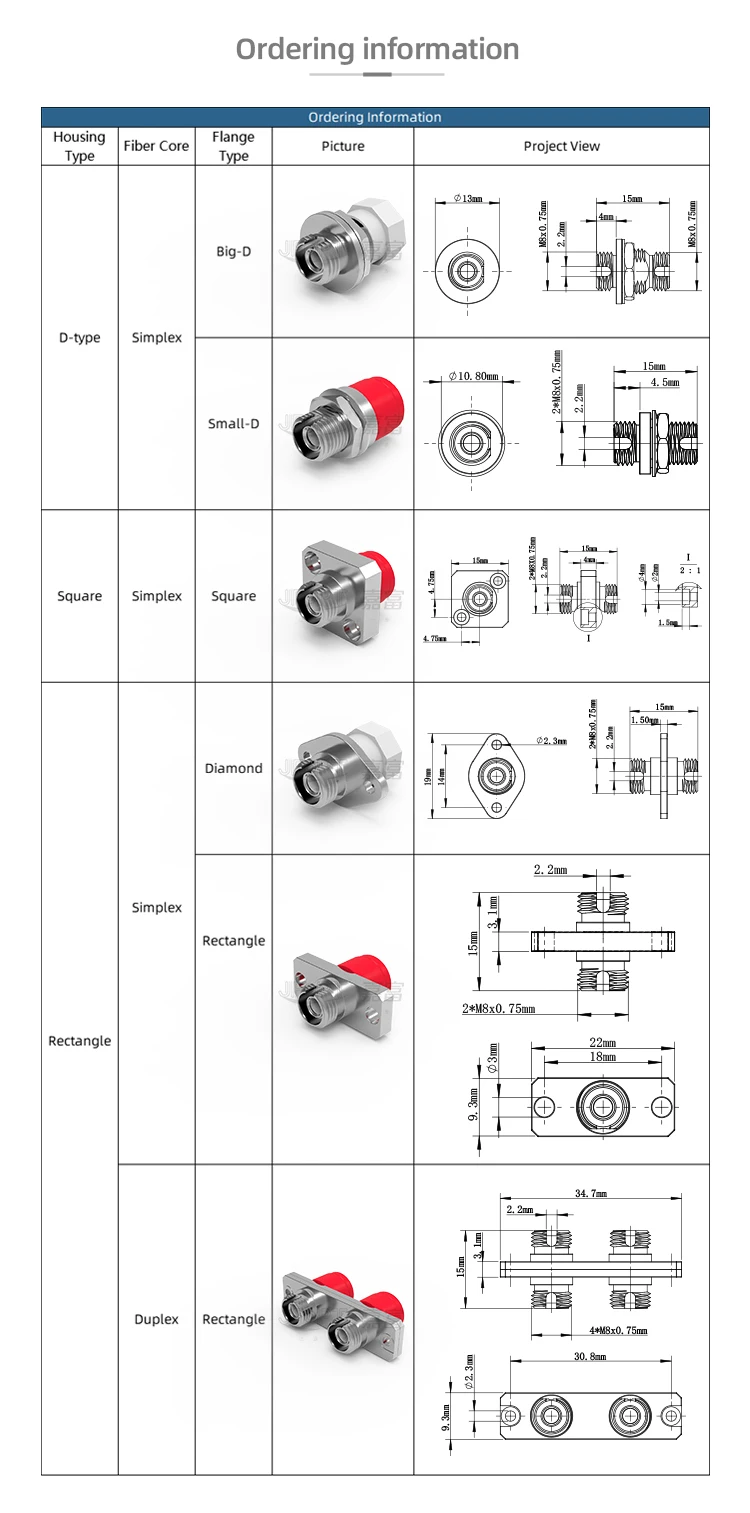

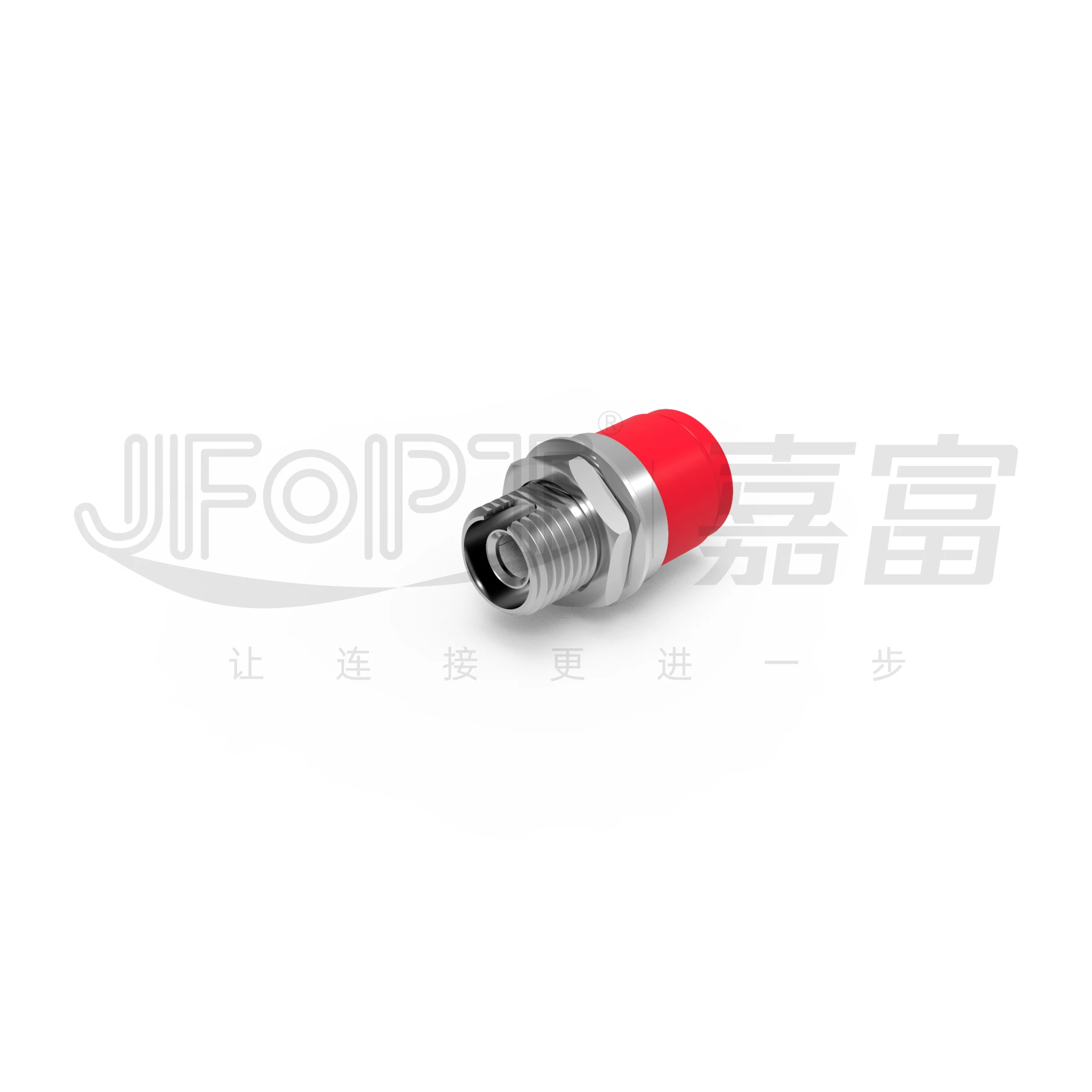

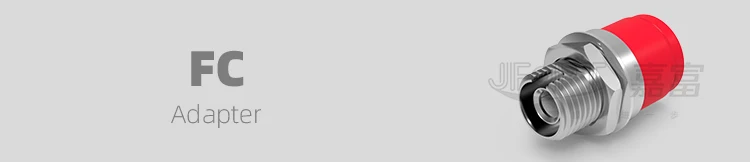

FC Adapter
FC adapter JFOAD-SFF-FC is used for the connection between FC connectors, to minimize the optical power loss in coupling. It is aligned with FC connector by leading the guide key of FC connector into the guide groove of its housing, and fixed by screw threads.

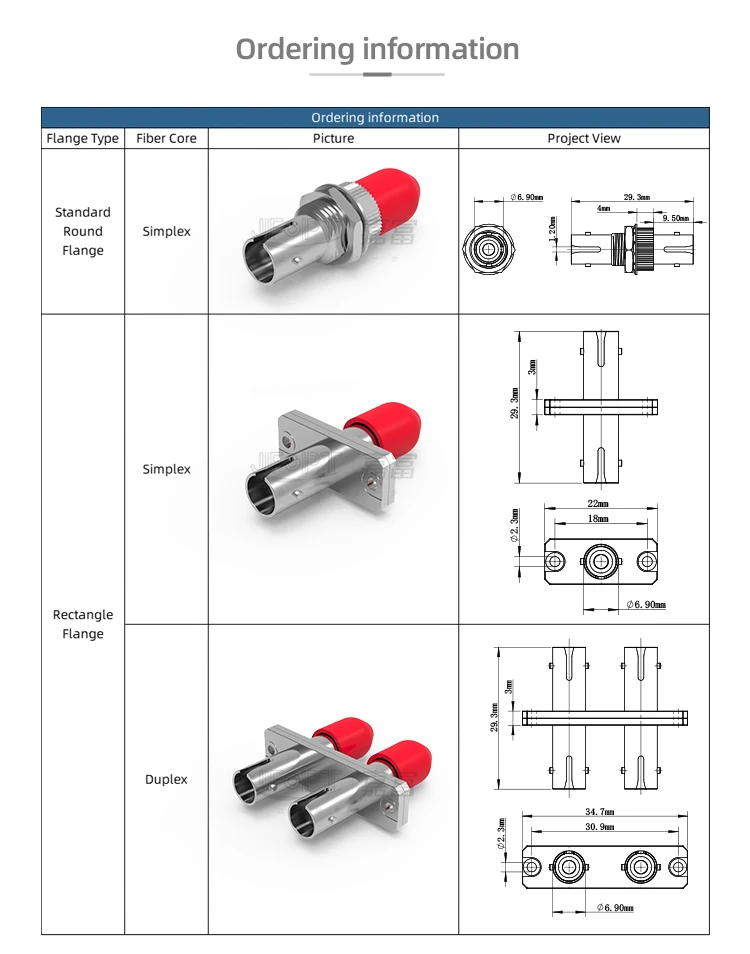

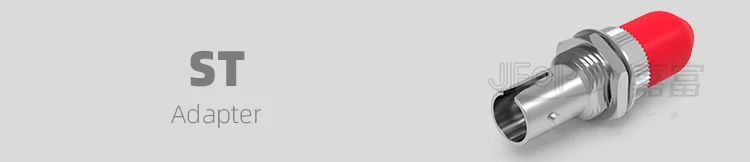

ST Adapter
ST adapter JFOAD-SFF-ST is used for the connection between ST connectors, to minimize the optical power loss in coupling. It is coupled with ST connector by leading the guide key of ST connector into the guide groove on the inner wall of its housing, and locked by the grip of the adapter positioning point and the connector slot.

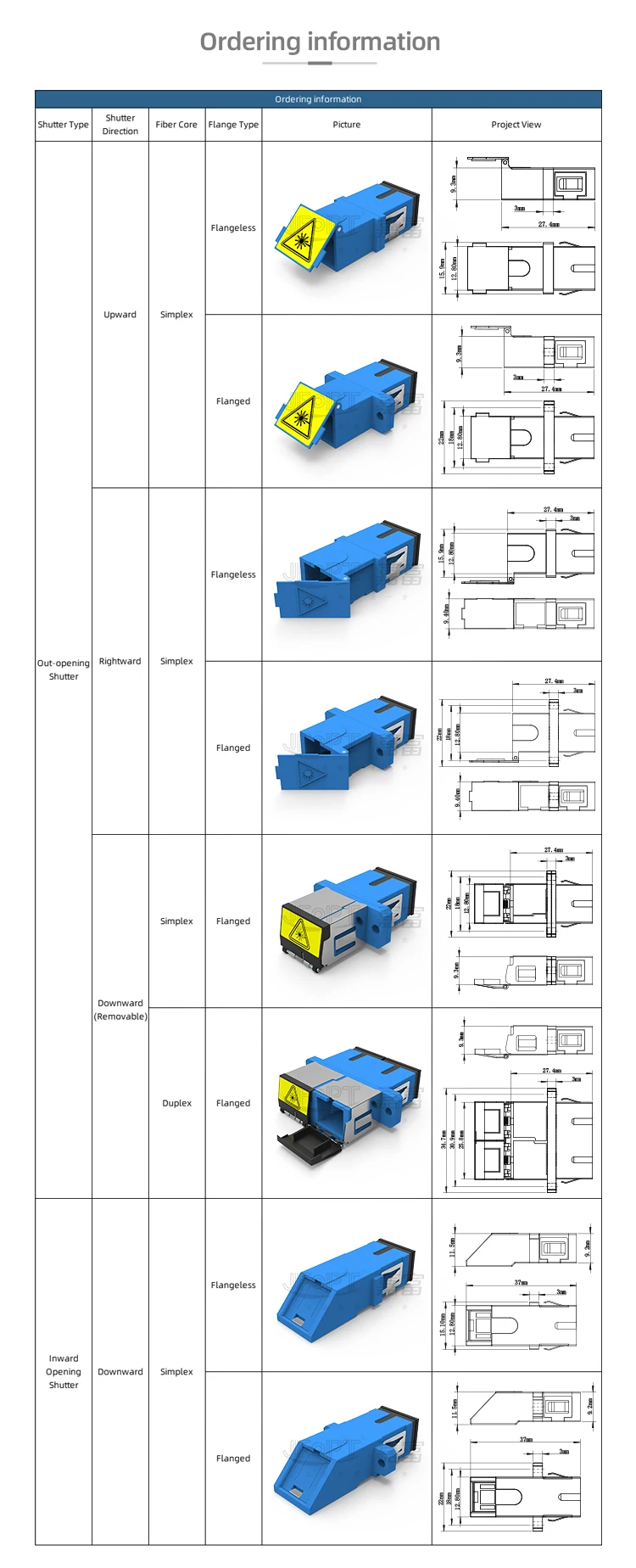

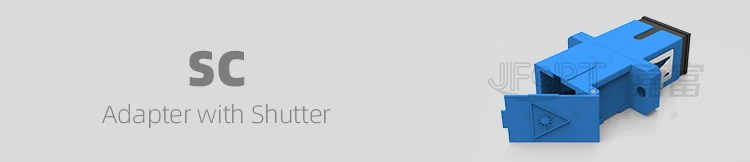

SC Adapter with Shutter
SC adapter is used for the connection between SC connectors, to minimize the optical power loss in coupling. JFOAD-SFF-SC-S adapter is designed with a shutter, which can protect the operator from the harmful laser in optical fiber, and proof the dust into the ceramic sleeve.

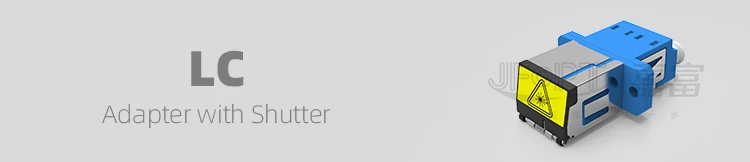

LC Adapter with Shutter
LC adapter is used for the connection between LC connectors, to minimize the optical power loss in coupling. JFOAD-SFF-LC-S adapter is designed with a shutter, which can protect the operator from the harmful laser in optical fiber, and proof the dust into the ceramic sleeve.

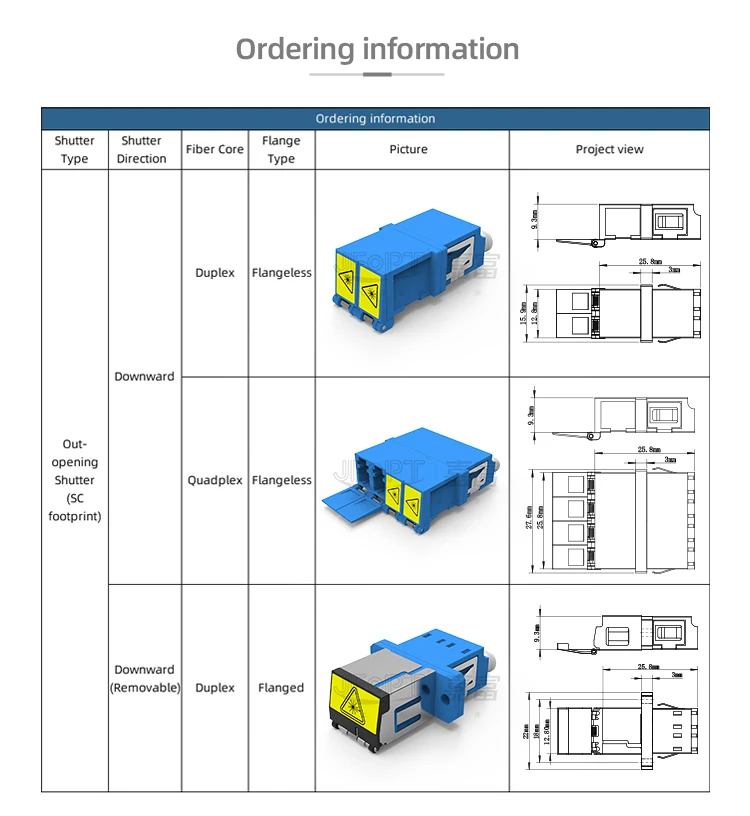

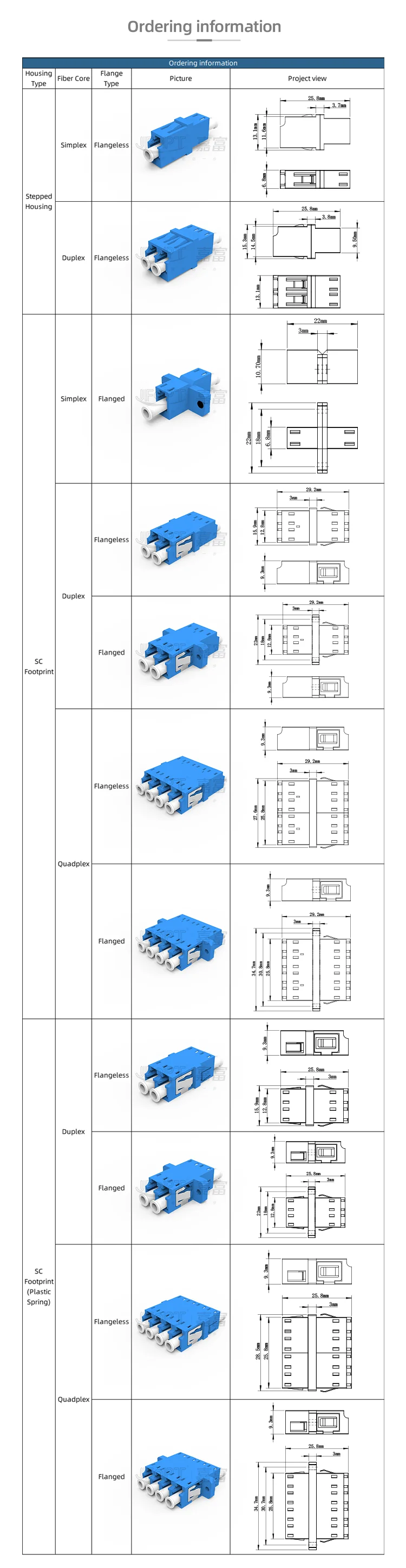

ORDERING INFORMATION
Item | Parameter |
Type | LC/SC/FC/ST/LC with Shutter/SC with Shutter |
Fiber Core | LC：SX/DX/QX SC：SX/DX FC：SX/DX ST：SX/DX LC with Shutter：SX/DX/QX SC with Shutter：SX/DX |
Adapter color | LC：Blue/Green/Beige/Aqua/Violet/Lime green SC：Blue/Green/Beige/Aqua/Violet/Lime green LC with Shutter：Blue/Green/Beige/Aqua/Violet/Lime green SC with Shutter：Blue/Green/Beige/Aqua/Violet/Lime green |
Dust Cap | LC：Round cap/High cap SC：Flat cap/Gourd cap FC：Around cap/White octagonal cap LC with Shutter：Round cap/High cap SC with Shutter：Flat cap/Gourd cap |
Operating Temperature | -40℃~＋75℃ |
PRODUCT DETAILS
Easy coupling
Coupled with connector by leading the flexible clip on connector into the guide groove on the inner wall of its housing.
Ceramic sleeve
High-precision ceramic sleeve adopted for high-precision alignment and stable optical performance.
Simple mounting
The adapter can be mounted on panel by direct plug-in or fiexed by screws, easy to operate.
Performance | ||
Item | Parameter | |
Adapter color | Blue/Green/Beige/Aqua/Violet/Lime green | |
Dust Cap | Round cap,High cap | |
Insertion Loss | ≤0.2dB | |
Repeatablity | ≤0.2dB | |
Operating Temperature | -40℃~＋75℃ | |
Easy coupling
Coupled with connector by leading the flexible clip on connector into the guide groove on the inner wall of its housing.
Ceramic sleeve
High-precision ceramic sleeve adopted for high-precision alignment and stable optical performance.
Simple mounting
The adapter can be mounted on panel by direct plug-in or fiexed by screws, easy to operate.
Performance | ||
Item | Parameter | |
Adapter Color | Blue/Green/Beige/Aqua/Violet/Lime green | |
Dust Cap | Flat cap,Gourd cap | |
Insertion Loss | ≤0.2dB | |
Repeatablity | ≤0.2dB | |
Operating Temperature | -40℃~＋75℃ | |
Metal housing
Corrosion resistance, durable and reli-
-able
Ceramic sleeve
High-precision ceramic sleeve adopted for high-precision alignment and stable optical performance.
Firm coupling
Locked the adapter and connector by the screw threads,unlikely to drop off.
Performance | ||
Item | Parameter | |
Type of dust cap | Around cap,White octagonal cap | |
Insertion Loss | ≤0.2dB | |
Repeatablity | ≤0.2dB | |
Operating Temperature | -40℃~＋75℃ | |
Metal housing
Corrosion resistance, durable and reli-
-able
Ceramic sleeve
High-precision ceramic sleeve adopted for high-precision alignment and stable optical performance.
Firm coupling
Locked the adapter and connector by the two stop points of adapter housing and the connector slot, and the spring in the connector is stress to ensure the connection between the connector and the adapter.
Performance | ||
Item | Parameter | |
Insertion Loss | ≤0.2dB | |
Repeatablity | ≤0.2dB | |
Operating Temperature | -40℃~＋75℃ | |
Protective shutter
The shutter can protect the operator from the harmful laser in optical fiber,
and proof the dust into the ceramic sleeve.
Ceramic sleeve
High-precision ceramic sleeve adopted for high-precision alignment and stable optical performance.
Simple mounting
The adapter can be mounted on panel by direct plug-in or fiexed by screws, easy to operate.
Performance | ||
Item | Parameter | |
Dust Cap | Flat cap,Gourd cap | |
Insertion Loss | ≤0.2dB | |
Repeatablity | ≤0.2dB | |
Operating Temperature | -40℃~＋75℃ | |
Protective shutter
The shutter can protect the operator from the harmful laser in optical fiber,
and proof the dust into the ceramic sleeve.
Ceramic sleeve
High-precision ceramic sleeve adopted for high-precision alignment and stable optical performance.
Simple mounting
The adapter can be mounted on panel by direct plug-in or fiexed by screws, easy to operate.
Performance | ||
Item | Parameter | |
Dust Cap | Round cap,High cap | |
Insertion Loss | ≤0.2dB | |
Repeatablity | ≤0.2dB | |
Operating Temperature | -40℃~＋75℃ | |
