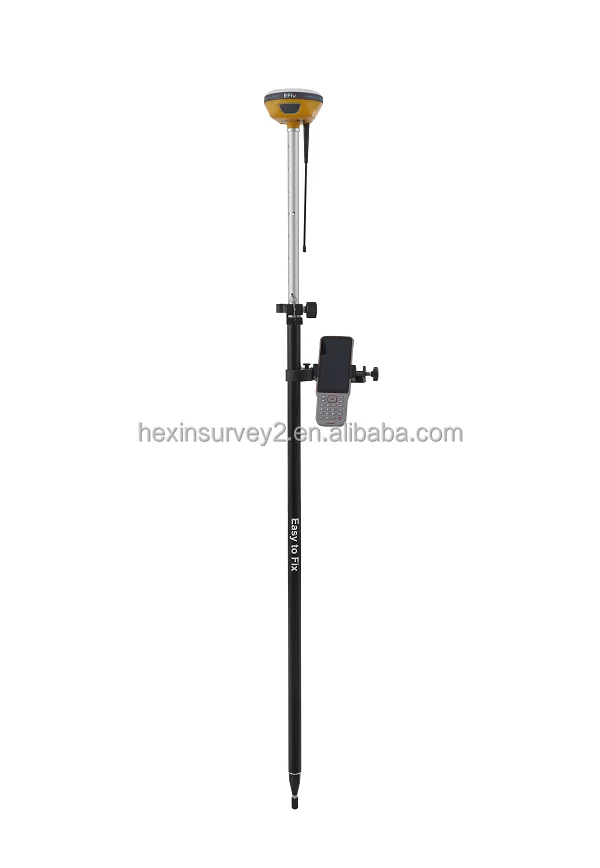

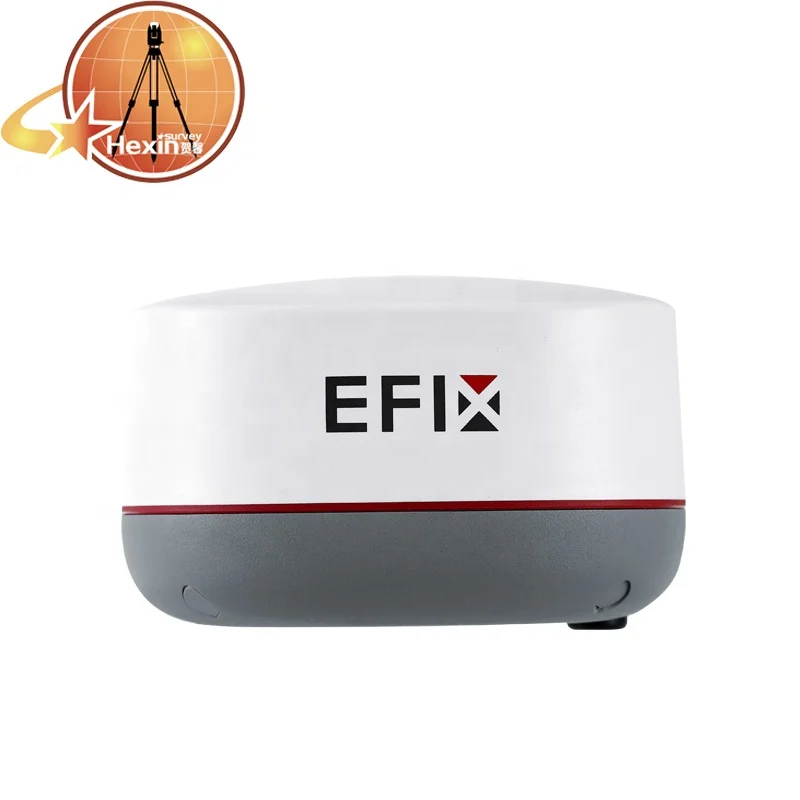

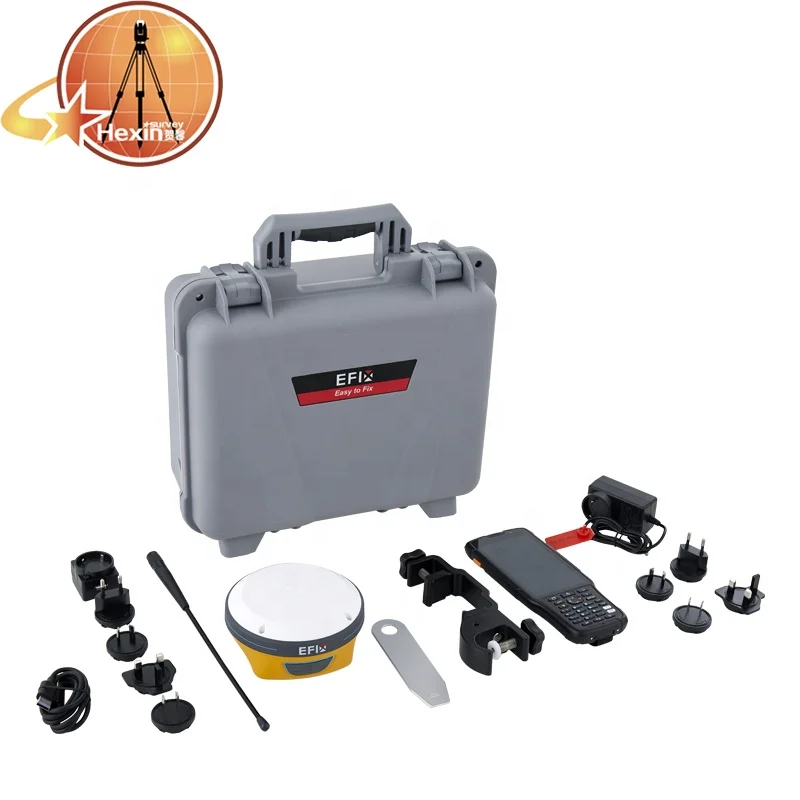

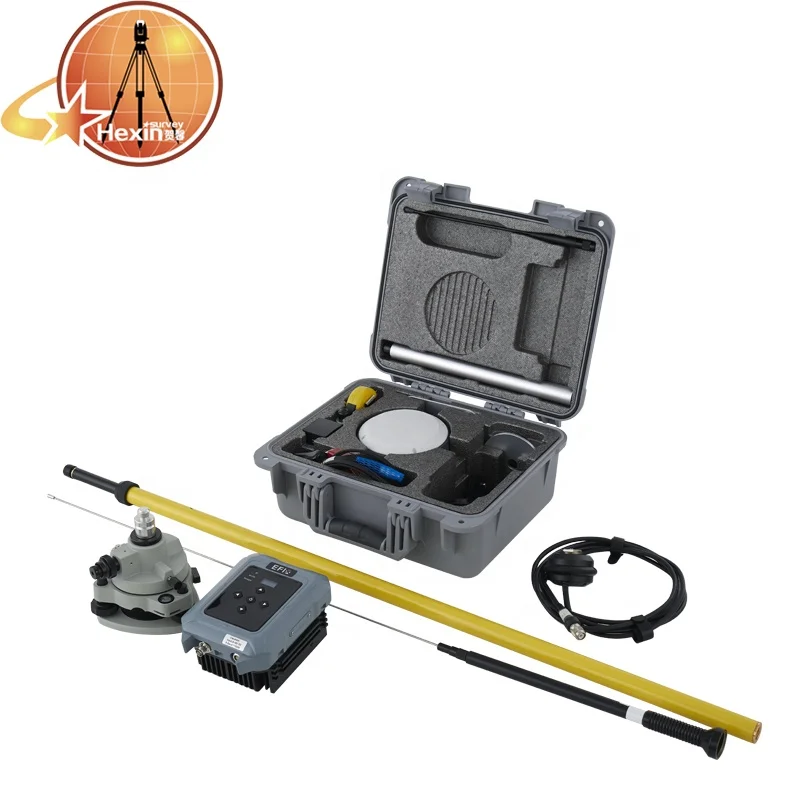

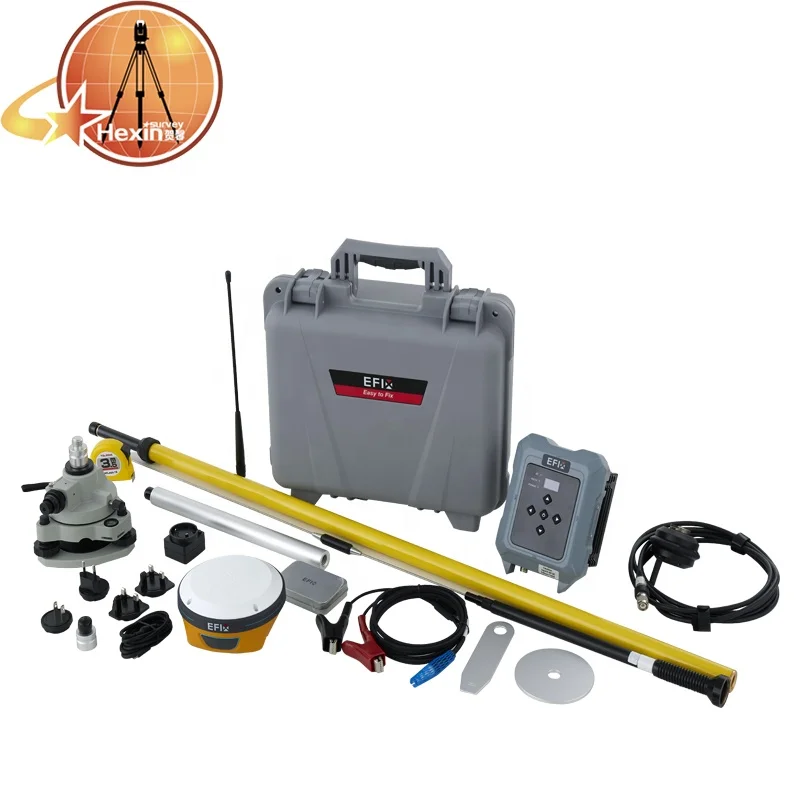

New EFIX C3 C5 gps gnss rtk base and rover station and external radio 35W Dual battery work up to 15 hours
- Category: >>>
- Supplier: Shanghai Hexin Survey Instrument Company Ltd.
Share on (1600549260297):
Product Overview
Description
New EFIX C3 C5 gps gnss rtk base and rover station and external radio 35W Dual battery work up to 15 hours
NEW EFIX IMU RTK Product Overview
- 100% MORE EFFICIENT TO DO SURVEYING AND STAKING-OUT
- 1008 channels, full support of all GNSS constellations.
- Advanced Full Start technology, to maximize the use of all the satellite signals.
- 4D IMU.
- Ekeeping technology, maintain fixed positioning when real-time corrections are lost.
 | FL3 ♦ Long-distance transmission of RTK corrections. ♦ Easily adjustable transmission power rate to suit ♦ Optimized user interface for easy configuration and control of the data link. ♦ Rugged industral design suitable for various challenging working enviroments |
 | FC2 ♦ High visibility screen. ♦ Fast and powerful processor ♦ Robust industrial design. ♦ Integrated versatile features ♦ Extended productivity |
 | eField ♦ Comprehensive and intuitive for surveying and engineering. ♦ Strong graphic engine enables rich GIS and mapping features. ♦ Intuitive user interface makes the frofessional software easy to learn and easy to use. |
Product Description
| GNSS | Channel | 1008 channels |
| Signals | BDS: B1l/B2l/B3l/B1C/B2a GPS: L1/L2/L5 GLONASS: L1/L2 Galileo: E1/E5a/E5b QZSS: L1/L2/L5 | |
Accuracy | Post-processing Static | Horizontal 2.5mm±0.5ppm RMS Vertical 5mm±0.5ppm RMS |
| RTK | Horizontal 8mm±1ppm RMS Vertical 15mm±1ppm RMS Initialization time:<10s Initialization reliability:>99.9% | |
| PPK | Horizontal 3mm±1ppm RMS Vertical 5mm±1ppm RMS | |
| Code differential | Horizontal 0.4m RMS Vertical 0.8m RMS | |
| Autonomous | Horizontal 1.5m RMS Vertical 3.0m RMS | |
| Positioning rate | Up to 20 Hz | |
| Time to first fix | Code start: <45s Hot Start: <10s Signal re-acquistion:<1s | |
| Hardware | Size(L×W×H) | 121 mm × 121 mm × 74 mm |
| Weight | 0.87KG | |
| Humidity | 95% condensation | |
| Work Temperature | -40℃~+65℃ (-40℉~+149℉) | |
| Storage Temperature | -40℃~+75℃ (-40℉~+167℉) | |
| Tilt Sensor | E-Bubble leveling | |
| Ingress Protection | IP67 waterproof and dustproof, protected from temporary immersion to depth of 1m | |
| Shock | survive a 2-meter pole drop | |
| Front Panel | 4 status LED 2 buttons | |
| Communications & Data Recording | UHF Radio | Standard internal Rx/Tx: 410MHz to 470MHz; Transmit Power: 1W; Protocol: CHC, transparent, TT450; Range: 5km optional conditions |
| WIFI | 802.11b/g/n, access point mode | |
| Network modem | integrated 4G modem LTE(FDD): B1, B2, B3, B4, B5, B7, B8, B20. DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8. EDGE/GPRS/GSM850/900/1800/1900MHz | |
| Blue tooth | V4.1 | |
| Others | NFC | |
| Ports | 1 x USB Type-C port (data download, firmware update) 1 x UHF antenna port (TNC female) | |
Data Formats | CMR input and out put; RTCM2.x. RTCM3.x input and output; NMEA 0183 output; HCN, HRC and RINEX2.11, RINEX 3.02 NTRIP Client, NTRIP Caster | |
| Data Storage | 8GB high-speed memory | |
| Electrical | Battery Capacity | Rechargeable and built-in Lithium-ion battery, 6,800 mAh |
| Operating time on internal battery | UHF receive/transmit (1W): up to 7 hours cellular receive only: up to 15 h Static: up to 15 h | |
| External Power | 9VDC to 28VDC |
