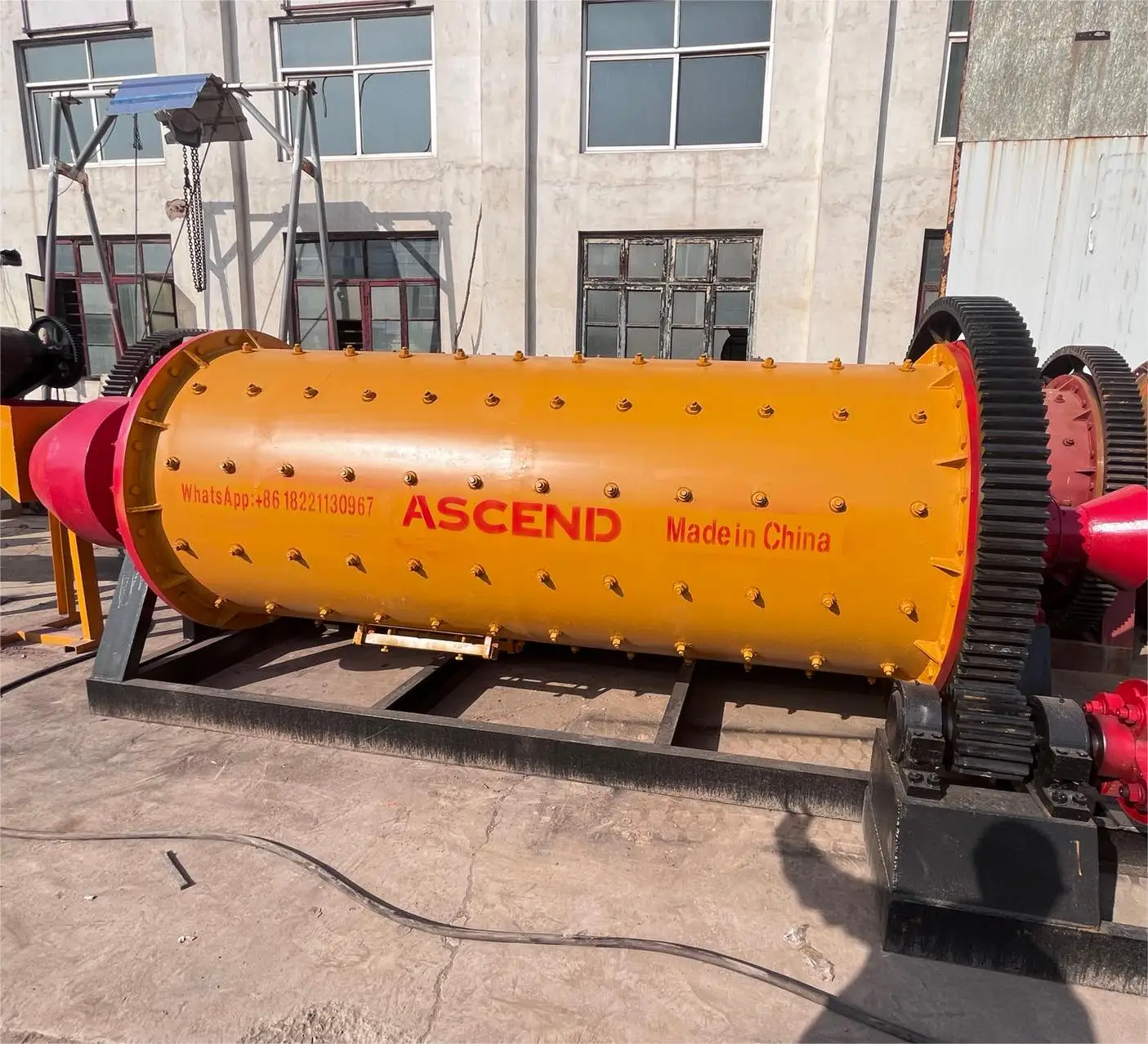

China ball mill FOB Shanghai price 3 5 10tph tons per hour gold ore ball mill with rubber liner steel balls
China ball mill FOB Shanghai price 3 5 10tph tons per hour gold ore ball mill with rubber liner steel balls
China ball mill FOB Shanghai price 3 5 10tph tons per hour gold ore ball mill with rubber liner steel balls
China ball mill FOB Shanghai price 3 5 10tph tons per hour gold ore ball mill with rubber liner steel balls
China ball mill FOB Shanghai price 3 5 10tph tons per hour gold ore ball mill with rubber liner steel balls
China ball mill FOB Shanghai price 3 5 10tph tons per hour gold ore ball mill with rubber liner steel balls
China ball mill FOB Shanghai price 3 5 10tph tons per hour gold ore ball mill with rubber liner steel balls

China ball mill FOB Shanghai price 3 5 10tph tons per hour gold ore ball mill with rubber liner steel balls

Share on (1600549261243):


Price:$6,699.00 - $7,699.00

Quantity:


Product Overview

Description



Products Introduction

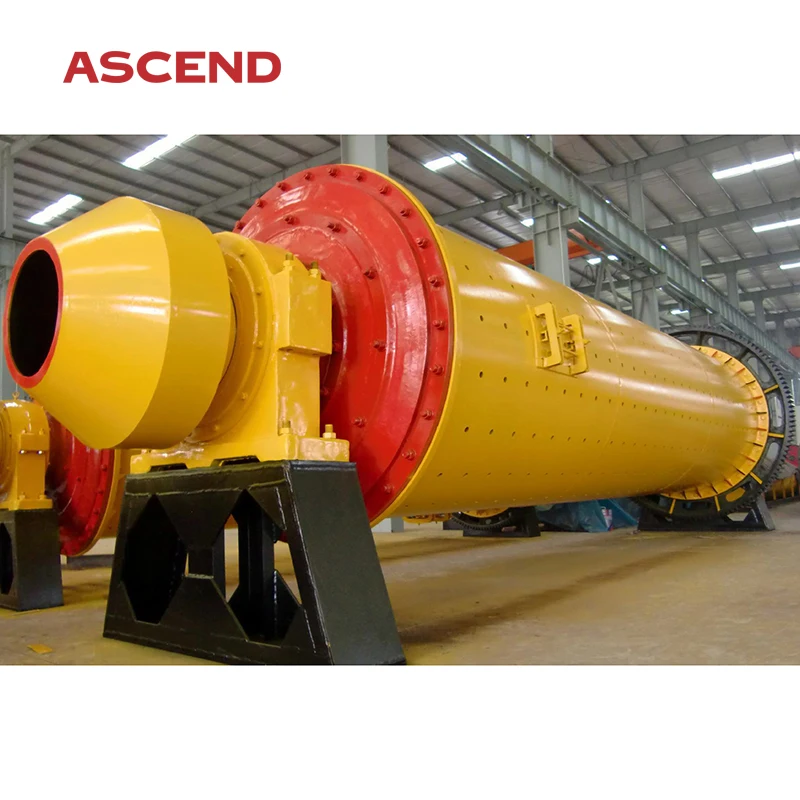

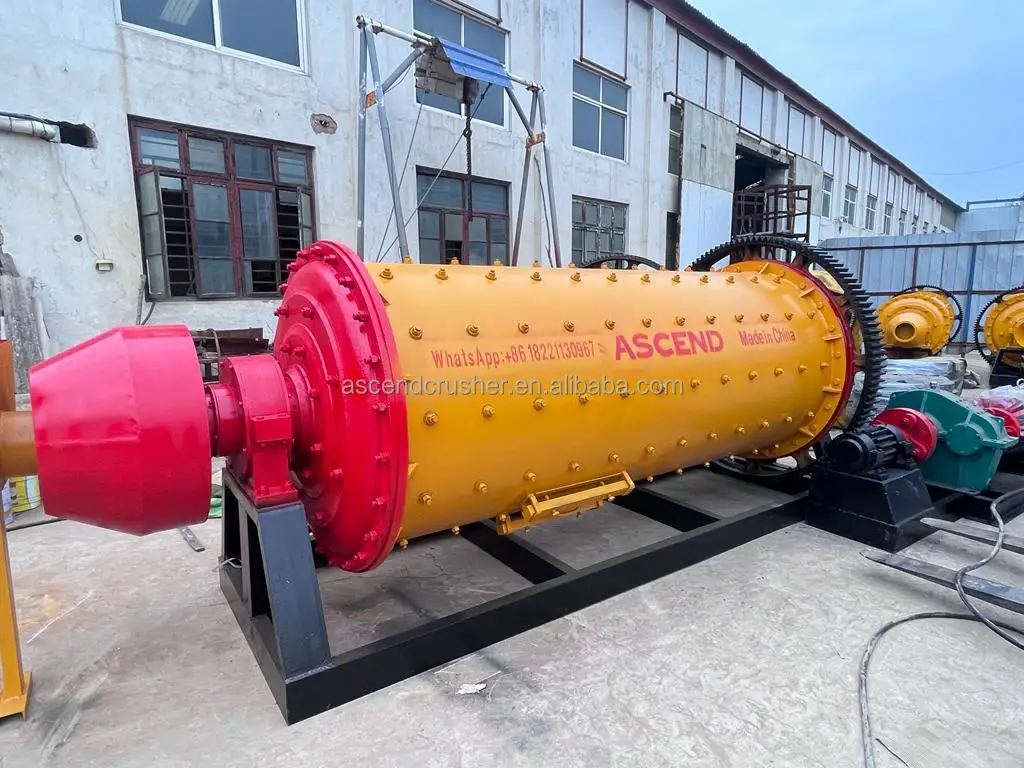

Mineral ball mill
Ball mill, also called grinding mill, ball grinding mill, is the key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, with medium hardness.








Working Principle


According to different milling modes, the ball mills can be divided into dry and wet types. Due to different dishcarging methods, there are two types of ball mills: into-lattice type and over-flow type, or center-discharging type and side-discharging type. According to the different kinds of support, they can be devided into two types: bearing mill and bushing mill.




Specifications


Model
Rotation
speed(r/m)
Grind
Media(ton)
Feed size
(mm)
Discharge
size(mm)
Capacity
(t/h)
Motor
(KW)
Weight
(ton)
900x1200
36
1.0
0-25
0.074-0.4
0.5-1.5
18.5
4
900x1800
36
1.5
0.5-2
22
4.8
900x2100
38
1.5





















0.5-2
22
4.8
900x2400
38
1.8
0.7-2.8
22
4.8
900x3000
38
2.5
0.8-3.5
30
5.0
1200x2400
32
3.8
0.9-4.8
30
9.2
1200x3000
32
4.5
1.2-5.6
37
11.5
1200x4500
30
5.5
1.5-6.0
55
13.6
1500x3000
27
7.0
2.5-6.5
75
15.0
1500x3500
27
8.5
3.0-8.2
75
15.6
1500x4500
27
11
4-10
95
21.0
1500x5700
27
12
4-13
110
23.5
1830x3000
24
12
5-15
130
31.0
1830x3600
24
13
5-16
130
32.0
1830x4500
24
14
5-18
155
33.5
1830x7000
24
21
6-20
210
36.0
2100x3000
24
18
7-26
210
38.0
2100x3600
24
21
7-35
215
39.5
2100x4500
24
26
8-42
245
43.5
2400x3000
21
23
8-60
285
55.0

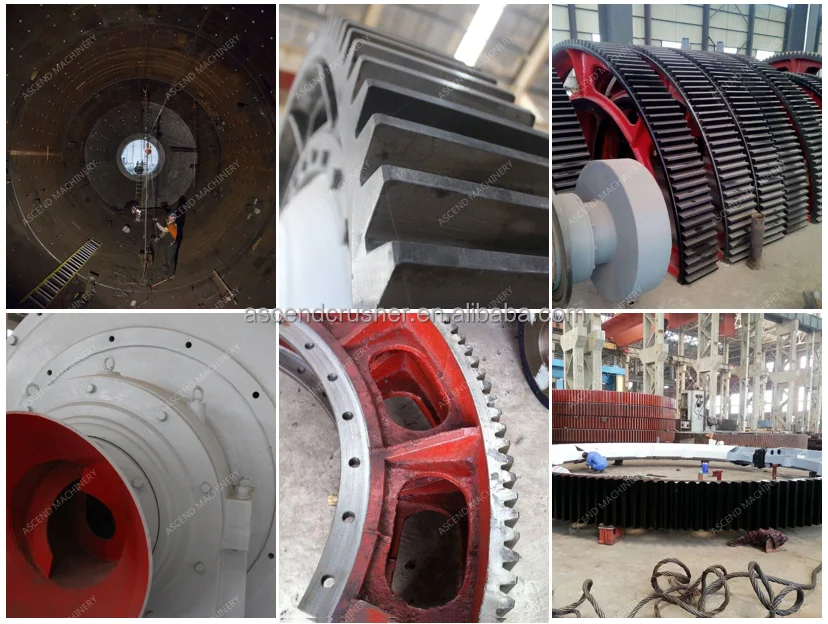

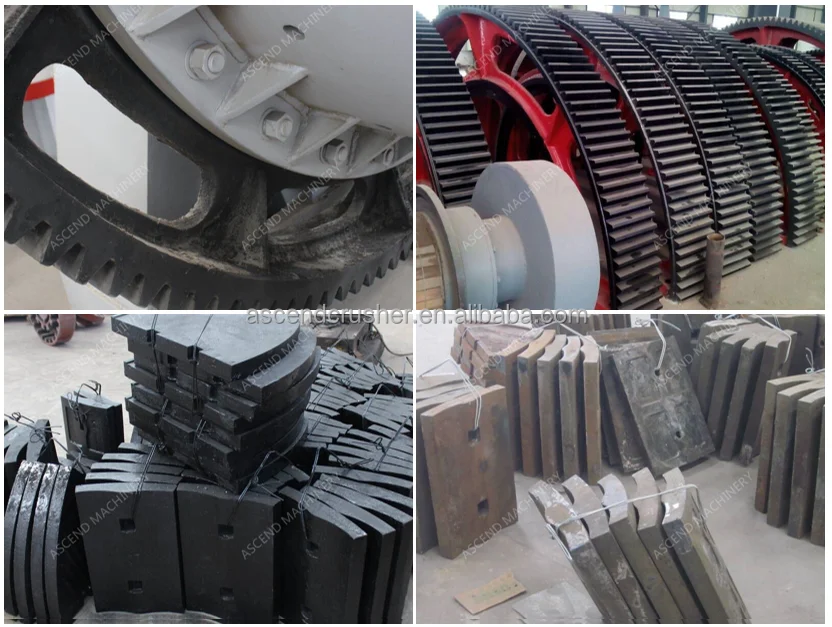

Main parts & Spare parts

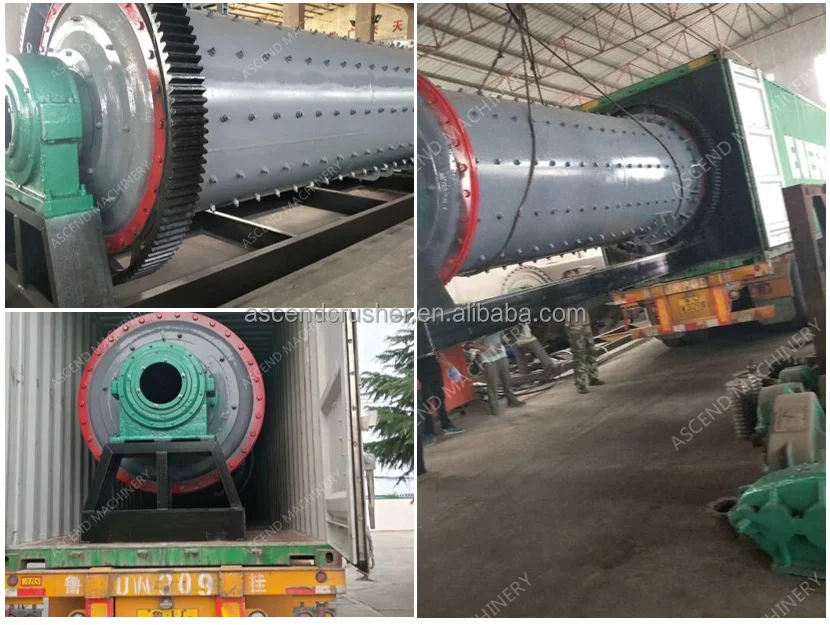

Packing & Shipping

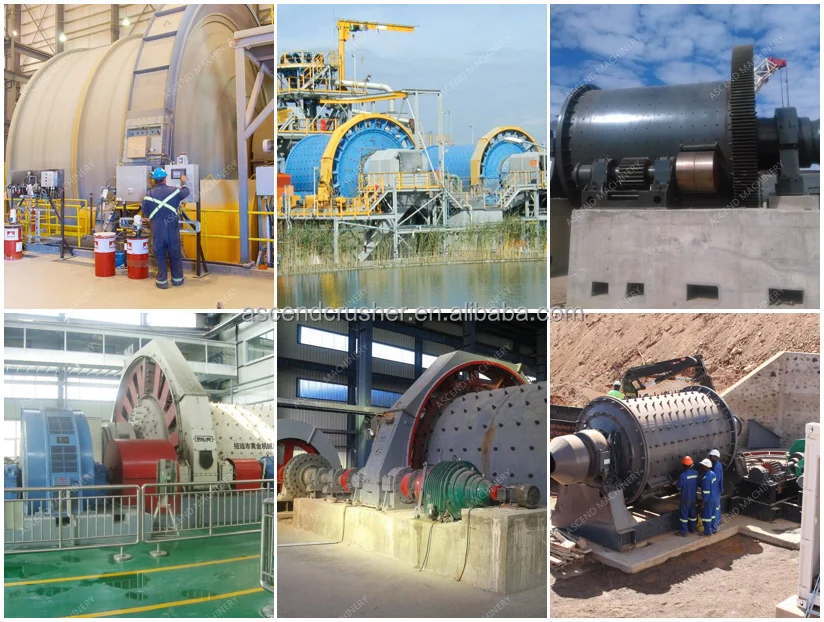

ASCEND working sites




We also supply




About Us


Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.

The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.

Focused on product quality and after-sales service, Ascend has won widespread praise and trust of international customers. We have a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers can purchase and use equipment with peace of mind.
