wholesale TPSA 4950 1U RX 950Mhz 2150Mhz L Band satellite over fiber receiver for Radar
- Category: >>>
- Supplier: Shenzhen HYC Electronics Technology Limited
Share on (1600549350146):
Product Overview
Description

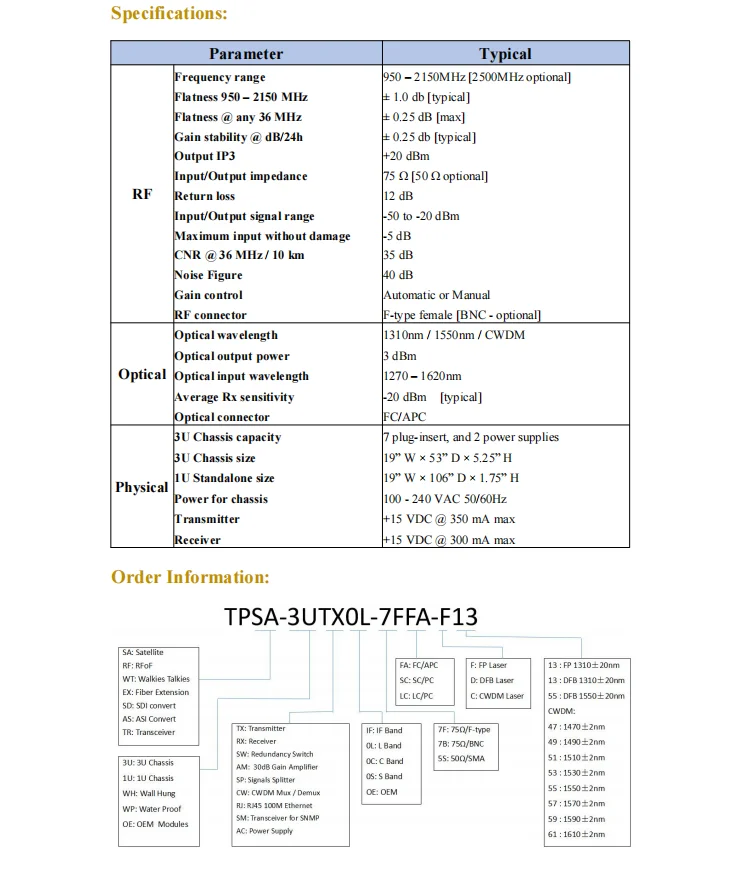

Specification
Product name | Satellite over fiber module |

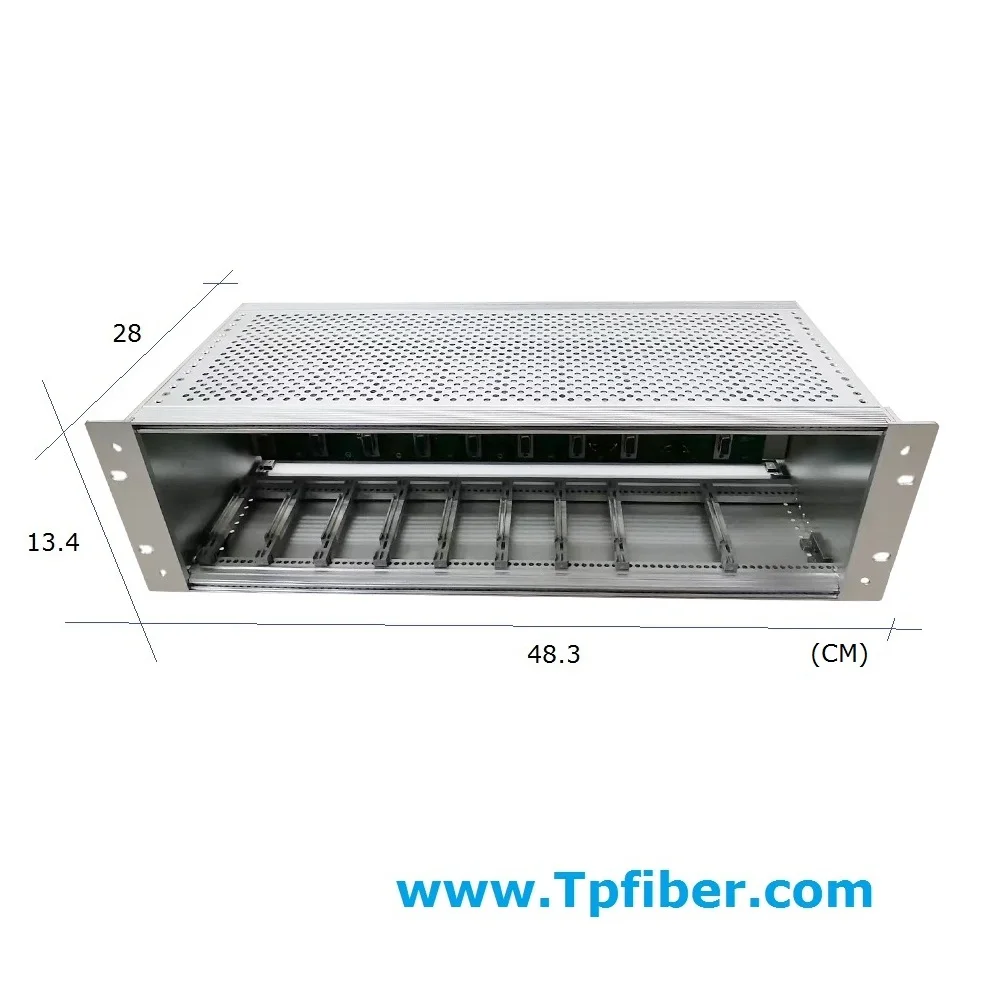

General Description | The TPFiber TPSA series fiber optic links are providing transparent signal transportation for satellite antenna applications. The unit features Automatic Gain Control (AGC) on the satellite input to ensure optimum operation over a wide range of input signal levels. The TPSA is a completely module hot-swap platform, available in 1U and 3U chassis versions, support up to 7 insert cards. Accessories include the dual-redundant power supply, the redundant switch, the RF amplifier, the RF splitter, the CWDM Mux/Demux. The transmitter is equipped with three LED indicators (optional LCD screen) on the front panel, include the power alarm, the laser alarm, the RF alarm. |
Features & Benefits | • 50-3000 MHz Bandwidth for IF and L-Band • High Dynamic Range, low Noise • Adjustable RF Gains • RF Power Monitors • LNB Powering • Hot swap redundant power supplies • Uncooled DFB laser Diode • Single Fiber Unidirectional Operation • 1550nm and CWDM versions are available • Fiber lengths up to 40Km • Weatherproof housing |
Model | TPSA-4000 Series |
Material | Aluminium |
Product Description
Company Profile
Tpfiber founded in 1999, is a leading designer and manufacturer of the RF over fiber communication products, convert analog RF signals to fiber optic signals links on both transmitter and receiver units. Our products are deployed worldwide in many network environments, applications include: Satcom, Telecom, Broadcast, Walkies talkies, CATV. Customers include: China Mobile, China Unicom, China Telecom, PCCW, SZTV, SHTV.
Iconic moments in Tpfiber history:
Apr, 2002: Announces the GSM/CDMA over fiber transport modules;
Dec, 2005: Announces the first satellite IF/L-band over fiber transport modules;
Oct, 2008: Announces the WCDMA/CDMA2000/3G over fiber transport modules;
Jul, 20012: Announces the 2G/3G/4G/LTE over fiber transport modules;
Sep, 2014: Announces the SDI/ASI over fiber converter;
Nov, 2015: Announces the 10G SFP and 40G QSFP transceiver.
Nov, 2017: Announces the 100G QSFP transceiver.
May, 2019: Announces the Audio over fiber transport modules;
Apr, 2020: Announces the GPS over fiber transport modules;
Our professional personnel from Beijing University of Posts and Telecommunications, they are dedicated to provide world class RF over Fiber designs and products, more than 20 years of experience in the development and manufacture in a wide range of products.
Iconic moments in Tpfiber history:
Apr, 2002: Announces the GSM/CDMA over fiber transport modules;
Dec, 2005: Announces the first satellite IF/L-band over fiber transport modules;
Oct, 2008: Announces the WCDMA/CDMA2000/3G over fiber transport modules;
Jul, 20012: Announces the 2G/3G/4G/LTE over fiber transport modules;
Sep, 2014: Announces the SDI/ASI over fiber converter;
Nov, 2015: Announces the 10G SFP and 40G QSFP transceiver.
Nov, 2017: Announces the 100G QSFP transceiver.
May, 2019: Announces the Audio over fiber transport modules;
Apr, 2020: Announces the GPS over fiber transport modules;
Our professional personnel from Beijing University of Posts and Telecommunications, they are dedicated to provide world class RF over Fiber designs and products, more than 20 years of experience in the development and manufacture in a wide range of products.
Products Show
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. Why choose us?
A. We have been producing optical transceiver for over 20 years. What we offer is a good product at a reasonably price.
A. We have been producing optical transceiver for over 20 years. What we offer is a good product at a reasonably price.
Q2. Can I customize the product?
A. Abosolutely. We can customize optical transceivers according to your design and make your own brand logo. Also we can the package the products according to your request. We can also accept OEM orders.
A. Abosolutely. We can customize optical transceivers according to your design and make your own brand logo. Also we can the package the products according to your request. We can also accept OEM orders.
Q3. Can I have free samples?
A. We can offer samples for free, but the shipping cost shall be negotiated by both sides.
Q4. What's the delivery time?
A. 15~30 days after deposit.
Q5.How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book
Space → Balance/Deliver → Further.
A. We can offer samples for free, but the shipping cost shall be negotiated by both sides.
Q4. What's the delivery time?
A. 15~30 days after deposit.
Q5.How to order?
A. Inquiry → Quotation → Negotiation → Samples → PO/PI → Mass production →Book
Space → Balance/Deliver → Further.
