2022 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System
2022 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System
2022 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System
2022 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System
2022 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System
2022 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System
2022 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System

2022 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System

Share on (1600549387871):


Price:$65.00 - $75.00

Quantity:


Product Overview

Description


2021 ETFE Semi Flexible Solar Panel Price for RV Marine Caravan Solar Energy System


Could be customized made with kinds of size and Voltage as customers' requirement


KEY SALIENT FEATURES



 Monocrystalline Module Product renderings



  • Ultra-light: weighs as 60% less than conventional PV panels.



  •  Flexible: The bendable product characteristics make it more fit when installed on all kinds

    of curved surfaces.



  • Easy Installation: Can reduce installation cost by up to 50% through the use of re-engineered

    components, ease of handling and faster installation



  • Transportation: low weight, will very significantly reduce the cost of transportation.

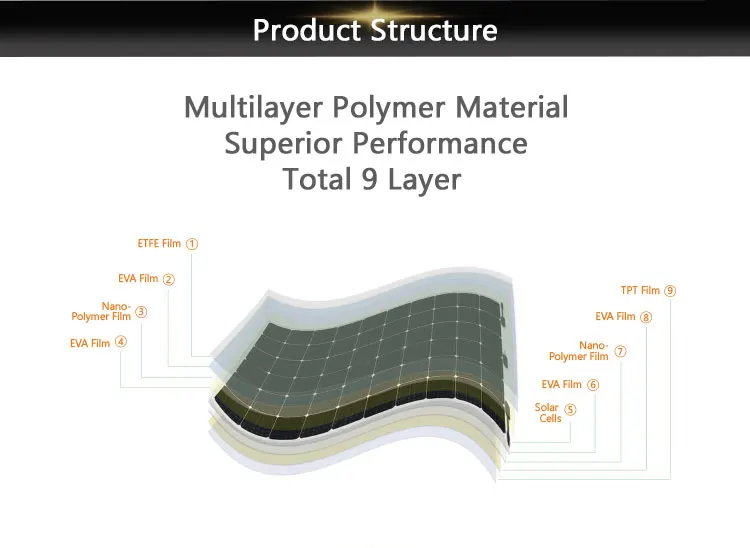

  •  Durable:The use of multi-layer nano polymer film materials enables the product to have better

    solar cell protection, longer service life, and greatly reduce power loss caused by external shocks





  • Advanced polymers have good performance and long life


    Excellent optical properties, high and low temperature resistance, high structural strength, resistance to chemical corrosion.

    Using advanced polymer materials, nearly 60% lighter than traditional solar panels, but much more longer service life, and also easily for transportation & installation






Specification:








































































Model



TP-90MF


TP-100MF


TP-105MF


TP-110MF


TP-120MF



Max Power(pm)




90w




100w




105w




110w




120w




Power Tolerance




0~+5W




Max Power Voltage-(Vm)




17.8




18.0




18.2




18.4




18.6




Max Power Current(A)




5.45




5.55




5.65




5.75




5.85




Open-Circuit Voltage(Voc)




21.22




21.24




21.26




21.28




21.30




Short -circuit Current(lsc)




6.09




6.11




6.13




6.15




6.18




Effective Module Effciency




16.6




16.8




17.0




17.2




17.4




STC:AM=1.5,Irradiation 1000w/m²,Module Temperature 25°

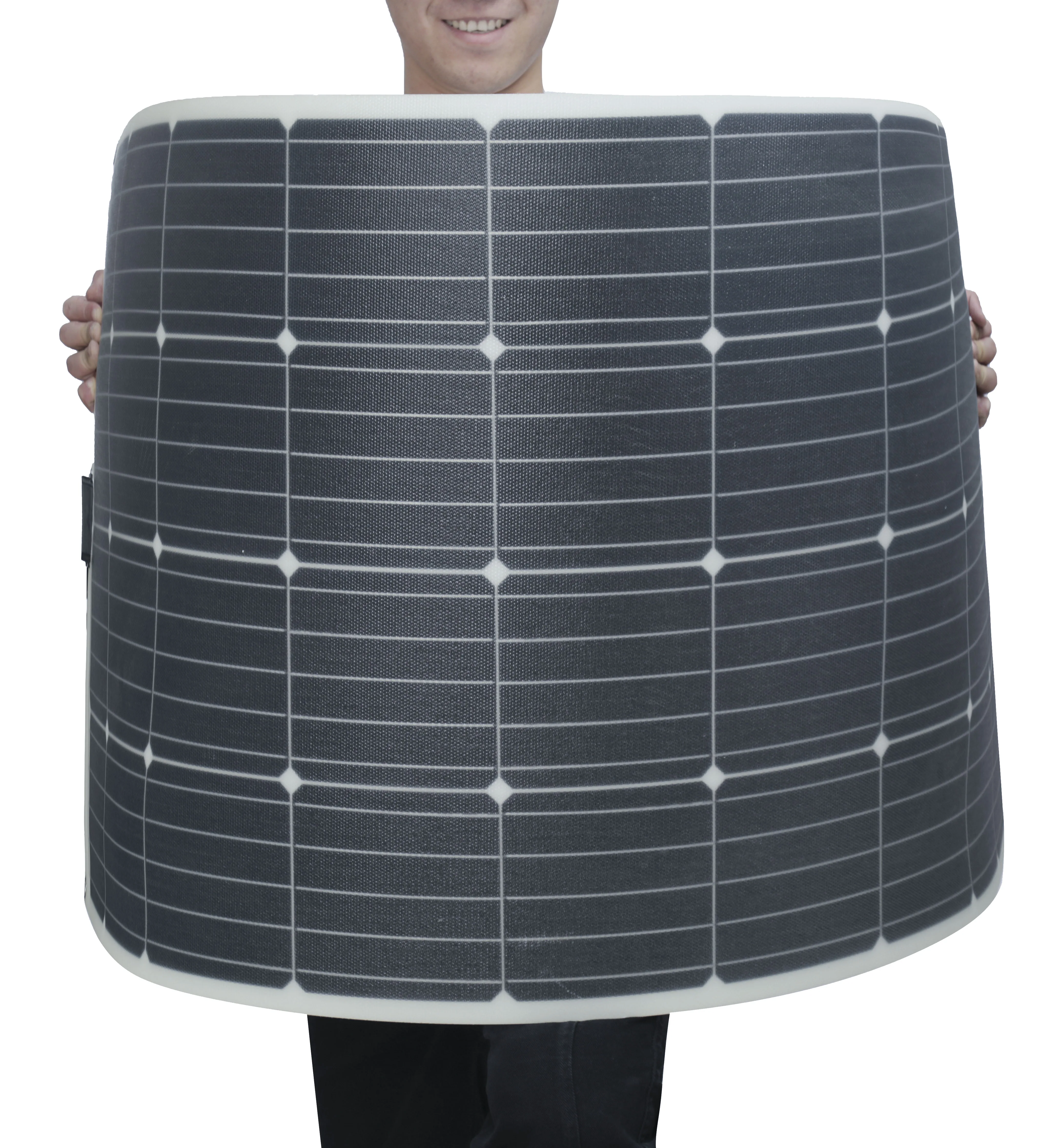

Semi-Flexible Solar panel


--High Efficiency Pv Cells


--Anti PID


--Ultra Flexible


--Bipv Application


--Lead Free


--Light,Thin design


--High Reliability

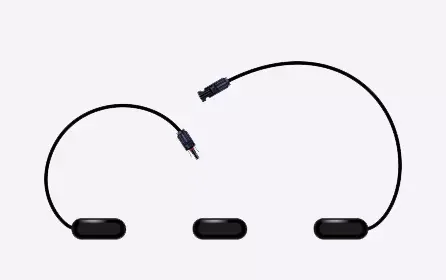

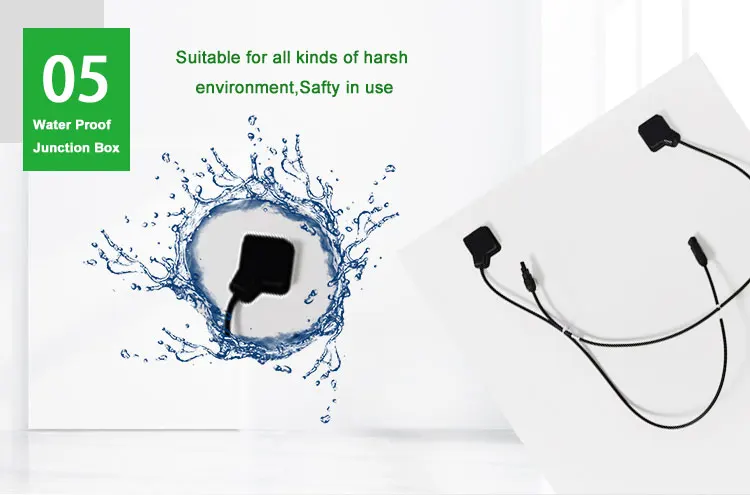

Junction box



--Long service life

--Heat dissipation

-- IP68 protection level

--Conventional standalone edition and engineering custom edition

--Quality diode ensures module running safety

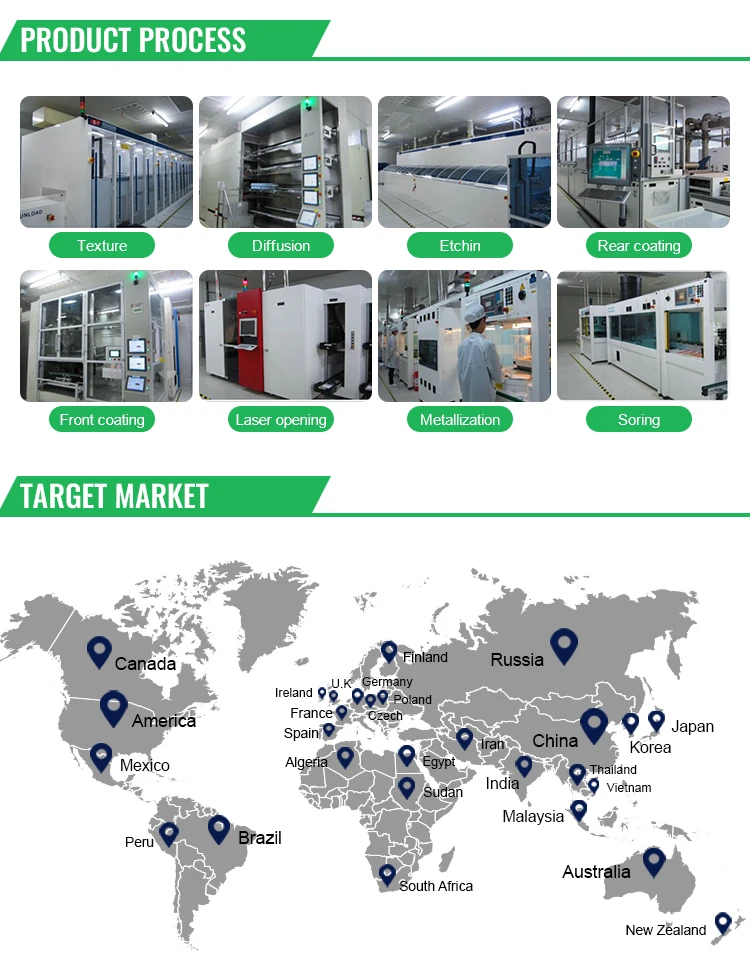

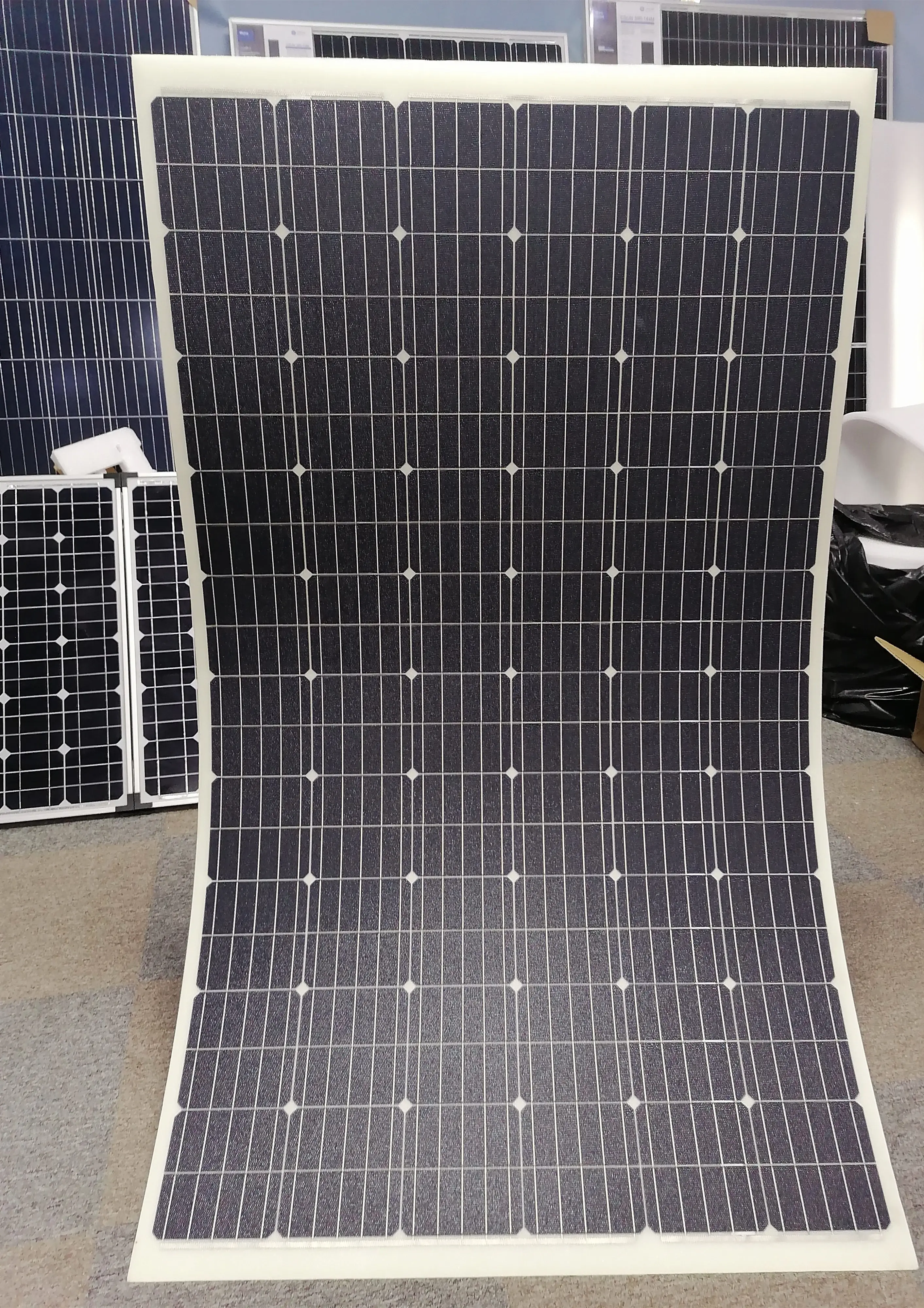

 Production photo:

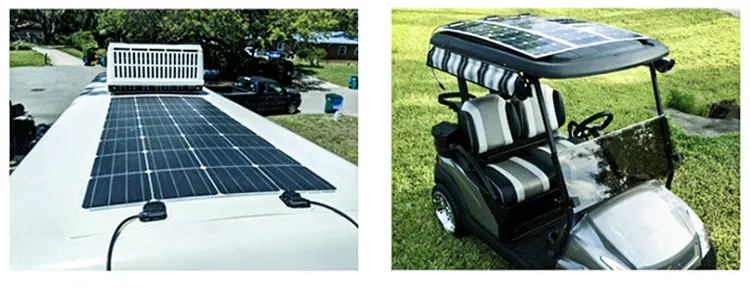

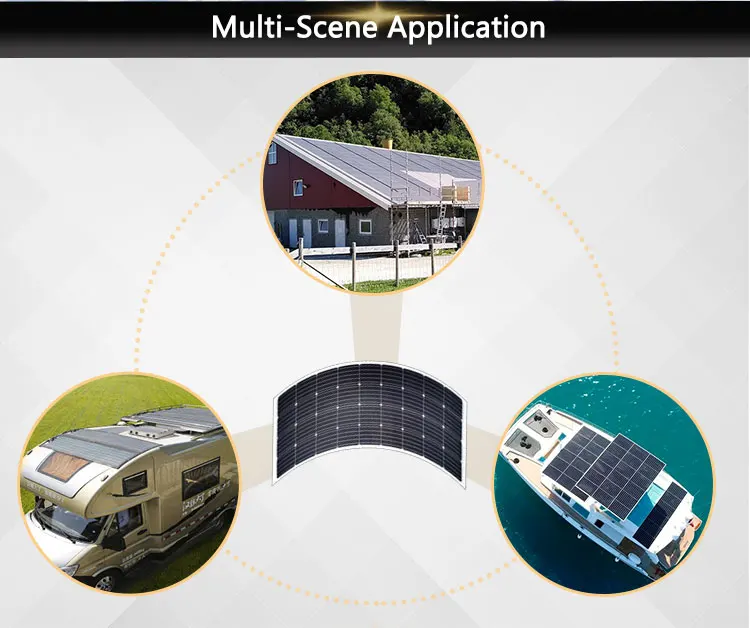

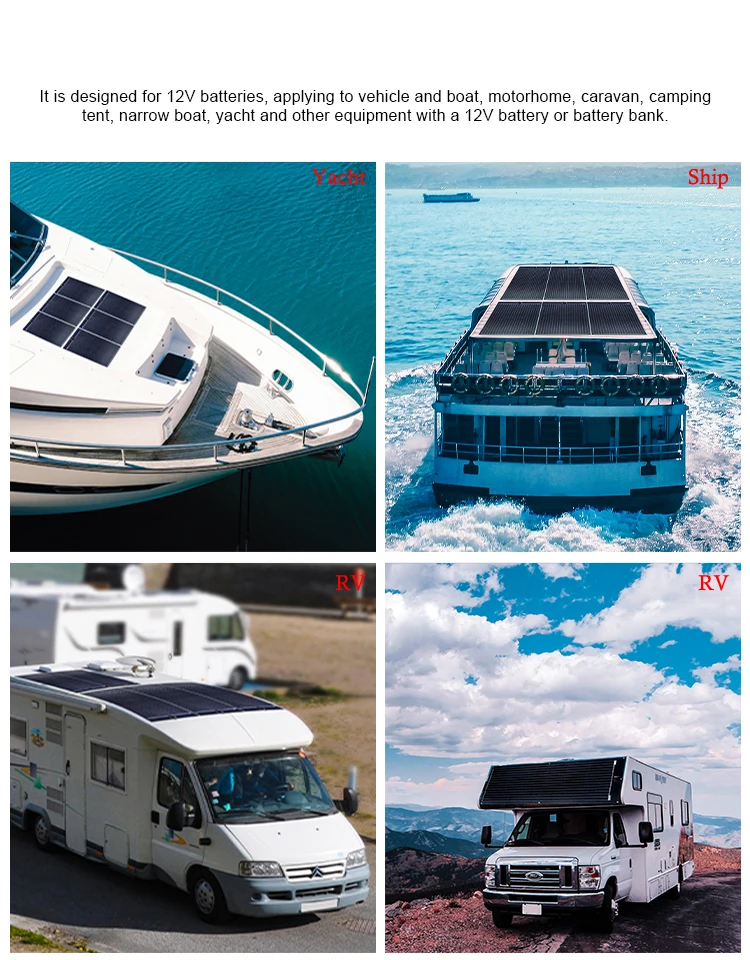

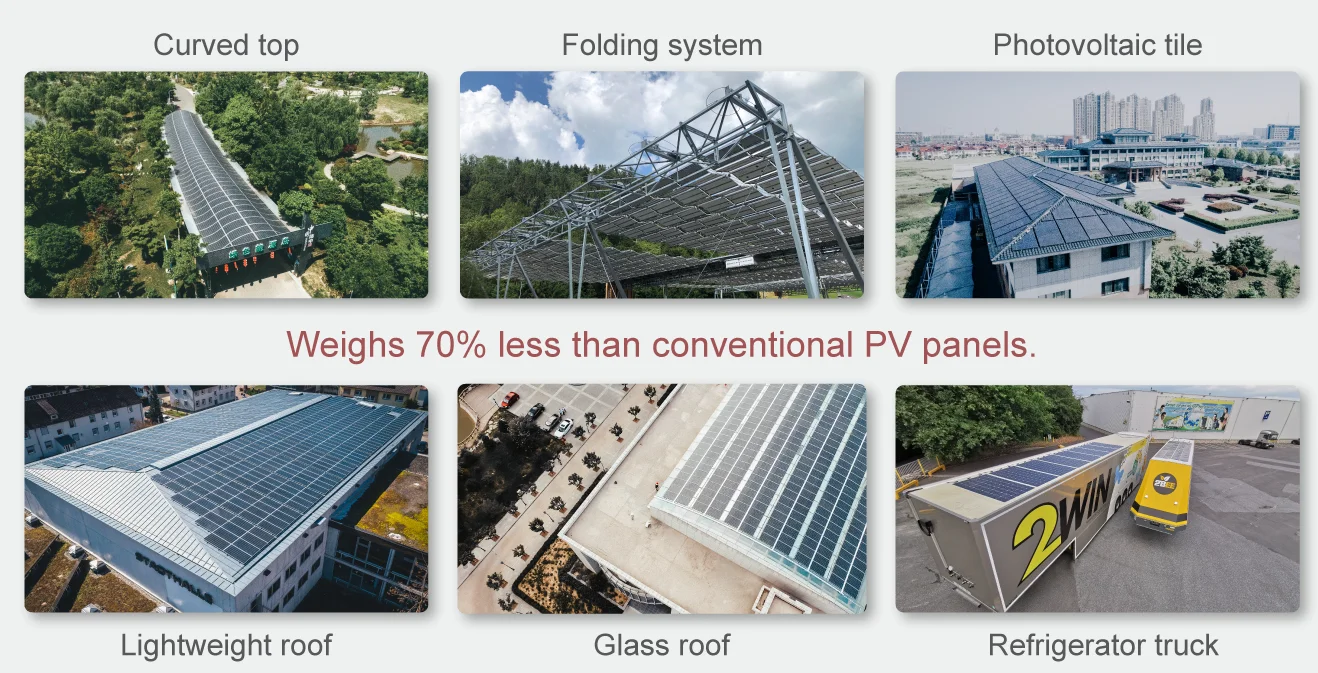

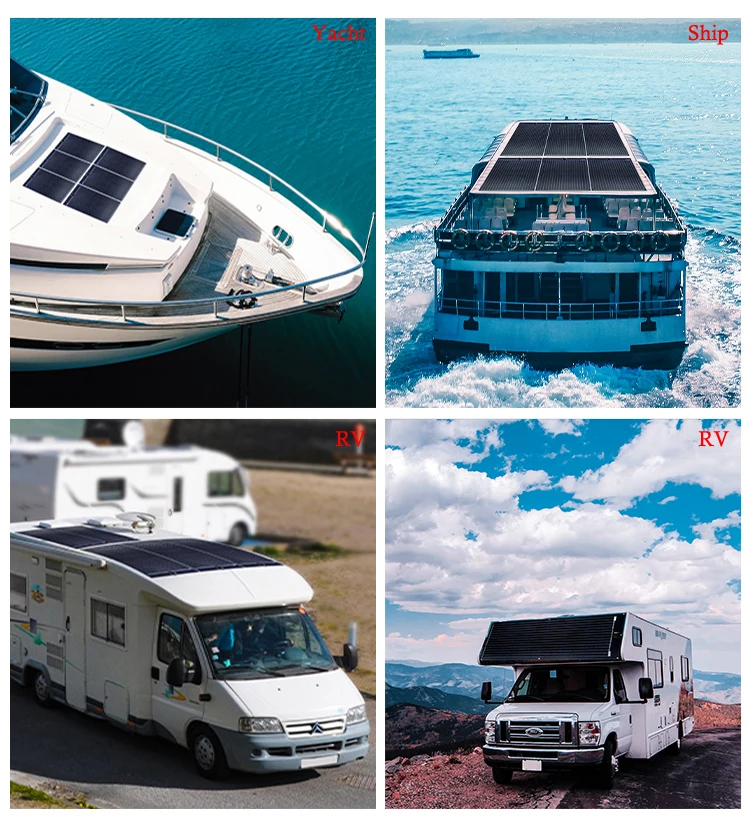

 Application:

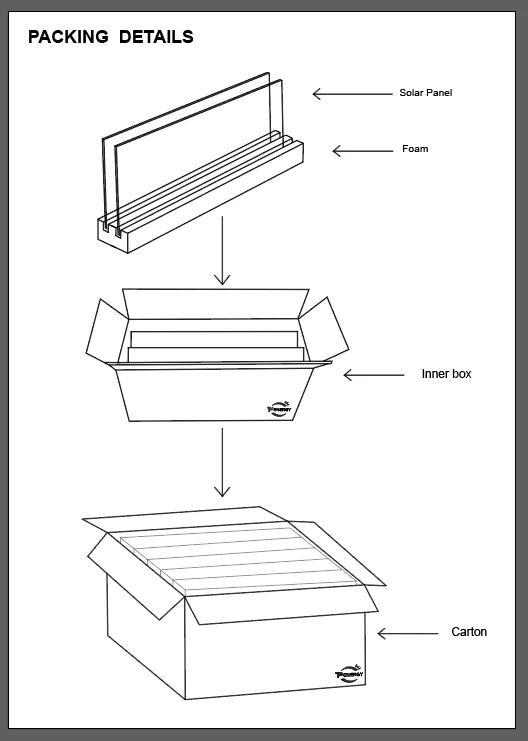

 Package:



Company profile:
