Q CELLS 460W 455W 450W 445W 440W Mono Solar Panel Half Cell Solar PV Module
- Category: >>>
- Supplier: Suzhou Kunkuang Clothing Co. Ltd.
Share on (1600549472131):
Product Overview
Description
Product Description
Typical Mechanical Characteristics | ||
Dimension | 2163 x 1030 x 35 mm | |
Weight | 25.5 KG | |
Frame | Anodized Aluminum Alloy | |
Front Cover | 3.2mm thermally pre-stressed glass with anti-reflection technology | |
Back Cover | Composite film | |
Cells | 6x26 Monocrystalline Solar Cells | |

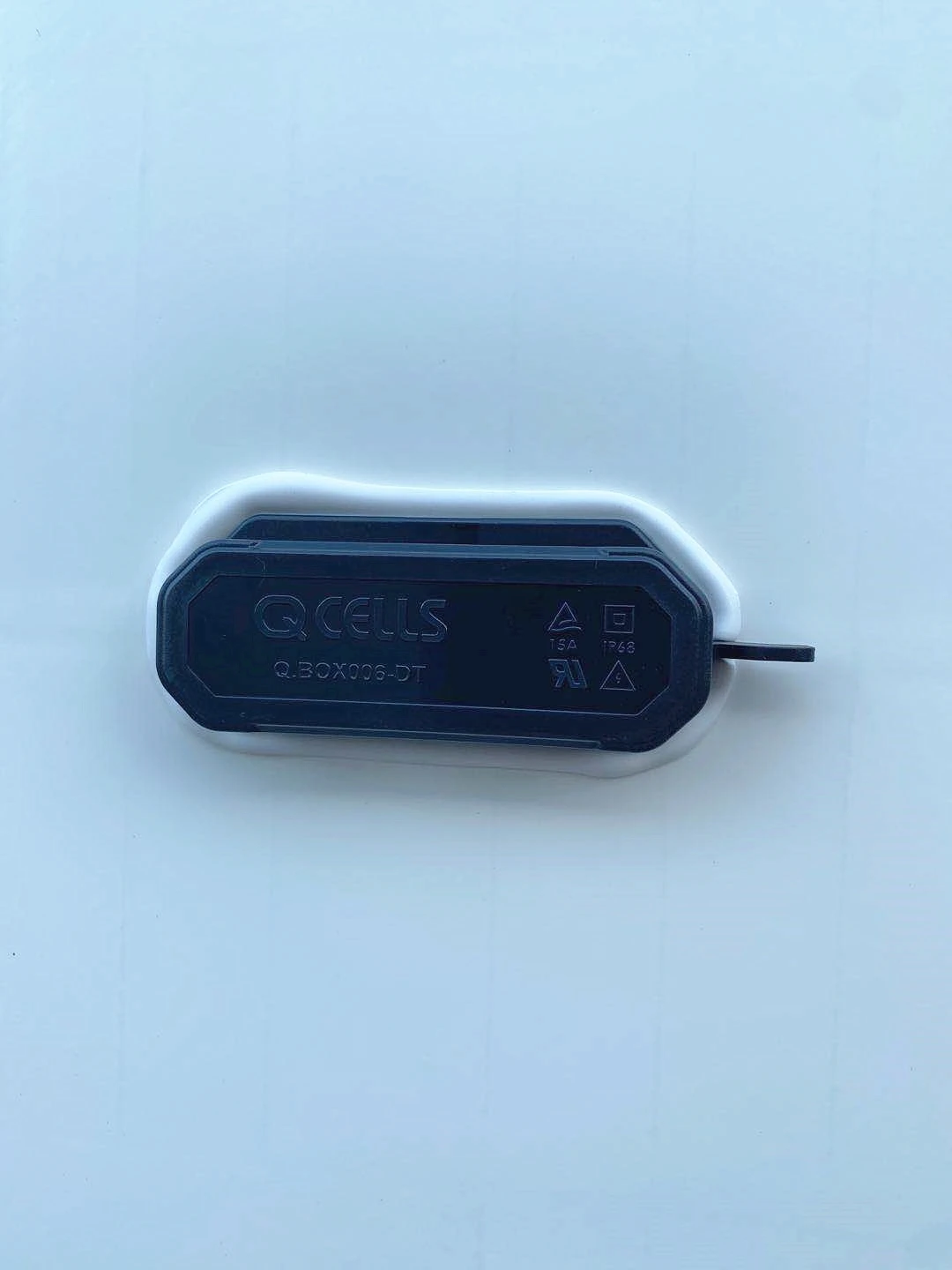

Junction Box | IP67 | |
Cable | Length 1450 mm, 1 x 4 mm² | |
Connector | MC4/MC4 Compatible, IP68 | |
Electrical Characteristics at Standard Test Conditions (STC) | ||||||||||
Type | Q.PEAK_DUO_XL-G9.3 440 | Q.PEAK_DUO_XL-G9.3 445 | Q.PEAK_DUO_XL-G9.3 450 | Q.PEAK_DUO_XL-G9.3 455 | Q.PEAK_DUO_XL-G9.3 460 | |||||
Maximum Power - Pmpp (W) | 440 | 445 | 450 | 455 | 460 | |||||
Positive Power Tolerance | 0~3% | 0~3% | 0~3% | 0~3% | 0~3% | |||||
Open Circuit Voltage - Voc (V) | 53.11 | 53.15 | 53.18 | 53.22 | 53.25 | |||||
Short Circuit Current - Isc (A) | 10.59 | 10.62 | 10.65 | 10.67 | 10.70 | |||||
Maximum Power Voltage - Vmpp (V) | 43.77 | 44.06 | 44.34 | 44.61 | 44.89 | |||||
Maximum Power Current - Impp (A) | 10.05 | 10.10 | 10.15 | 10.20 | 10.25 | |||||
Module Efficiency | 19.7% | 20.0% | 20.2% | 20.4% | 20.6% | |||||
Electrical data relates to standard test conditions (STC) : irradiance 1000W /㎡ ; AM 1.5 ; cell temperature 25℃ measuring uncertainty of power is within ±3%. Certified in accordance with IEC61215, IEC 61730-1/2 and UL 1703 | ||||||||||
Electrical Characteristics at Normal Operating Cell Temperature (NOCT) | ||||||||||
Module Type | Q.PEAK_DUO_XL-G9.3 440 | Q.PEAK_DUO_XL-G9.3 445 | Q.PEAK_DUO_XL-G9.3 450 | Q.PEAK_DUO_XL-G9.3 455 | Q.PEAK_DUO_XL-G9.3 460 | |||||
Maximum Power - Pmpp (W) | 329.5 | 333.2 | 337.0 | 340.7 | 344.5 | |||||
Maximum Power Voltage - Vmpp (V) | 41.69 | 41.93 | 42.17 | 42.41 | 42.64 | |||||
Maximum Power Current - Impp (A) | 8.54 | 8.56 | 8.58 | 8.60 | 8.62 | |||||
Open Circuit Voltage - Voc (V) | 350.08 | 50.12 | 50.15 | 50.18 | 50.22 | |||||
Short Circuit Current - Isc (A) | 7.90 | 7.95 | 7.99 | 8.03 | 8.08 | |||||
Electrical data relates to normal operating cell temperature (NOCT) : irradiance 800W /㎡ ; wind speed 1 m/s ; cell temperature 45℃; ambient temperature 20℃ measuring uncertainty of power is within ±3% | ||||||||||
Temperature Characteristics | Maximum Ratings | ||||
Voltage Temperature Coefficient | -0.27%/K | Maximum System Voltage (V) | 1500V | ||
Current Temperature Coefficient | +0.04%/K | Series Fuse Rating (A) | 20 | ||
Power Temperature Coefficient | -0.35%/K | Reverse Current Overload (A) | 20 | ||

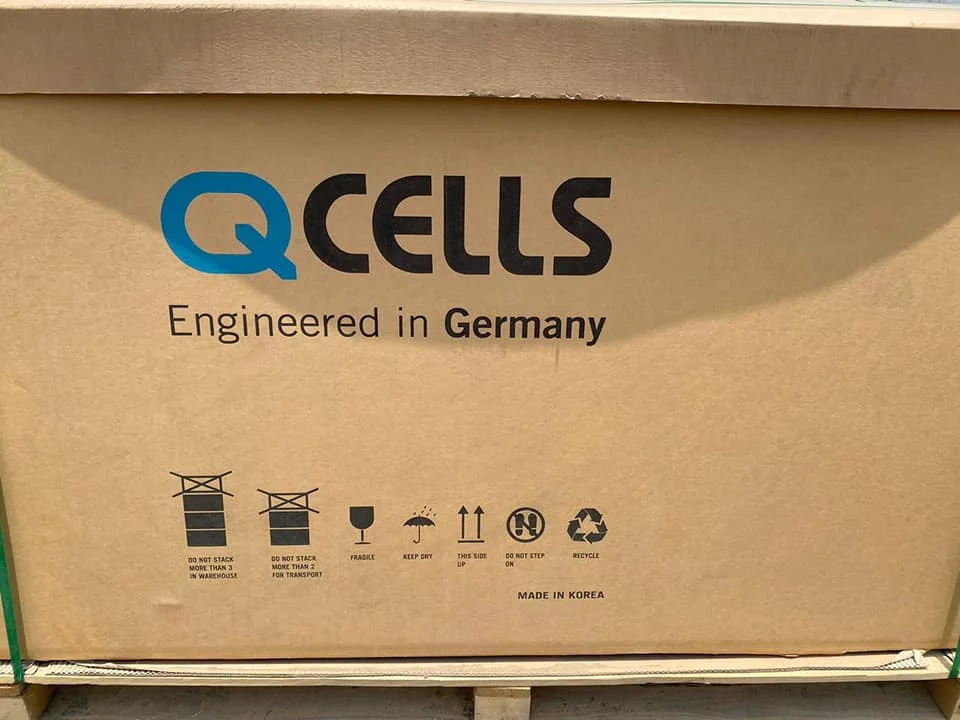

Packaging | System Design | ||||
Container 20' | 290 pcs. | Temp. Range | -40℃ to +85℃ | ||
Container 40' | 638 pcs. | Hail | Max. diameter of 25mm with impact speed of 23m/s | ||
Container 40'HC | 696 pcs. | Max. Capacity | Snow 5400 Pa, wind 2400 Pa | ||
Application Class | A | ||||
Safety Class | Ⅱ | ||||

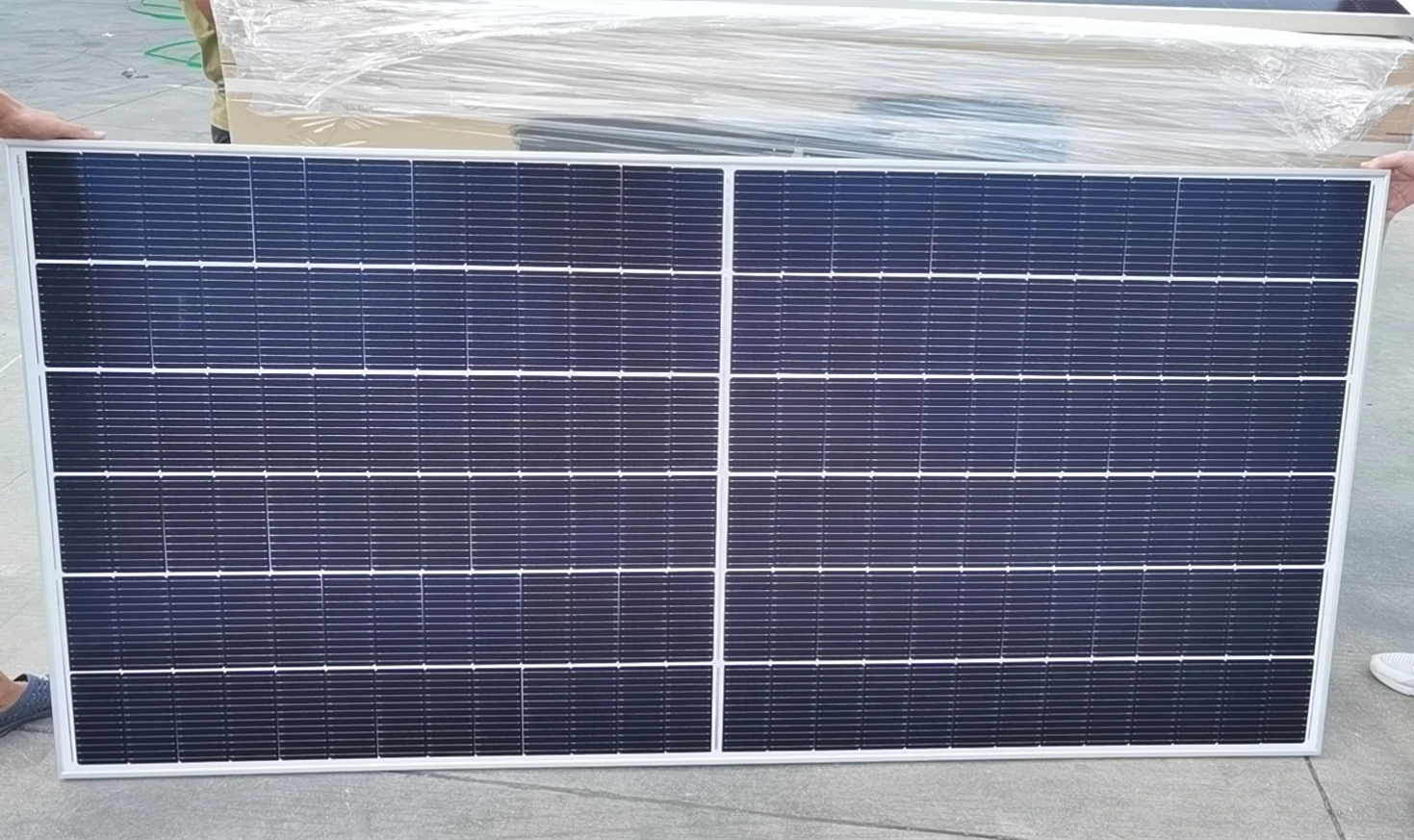

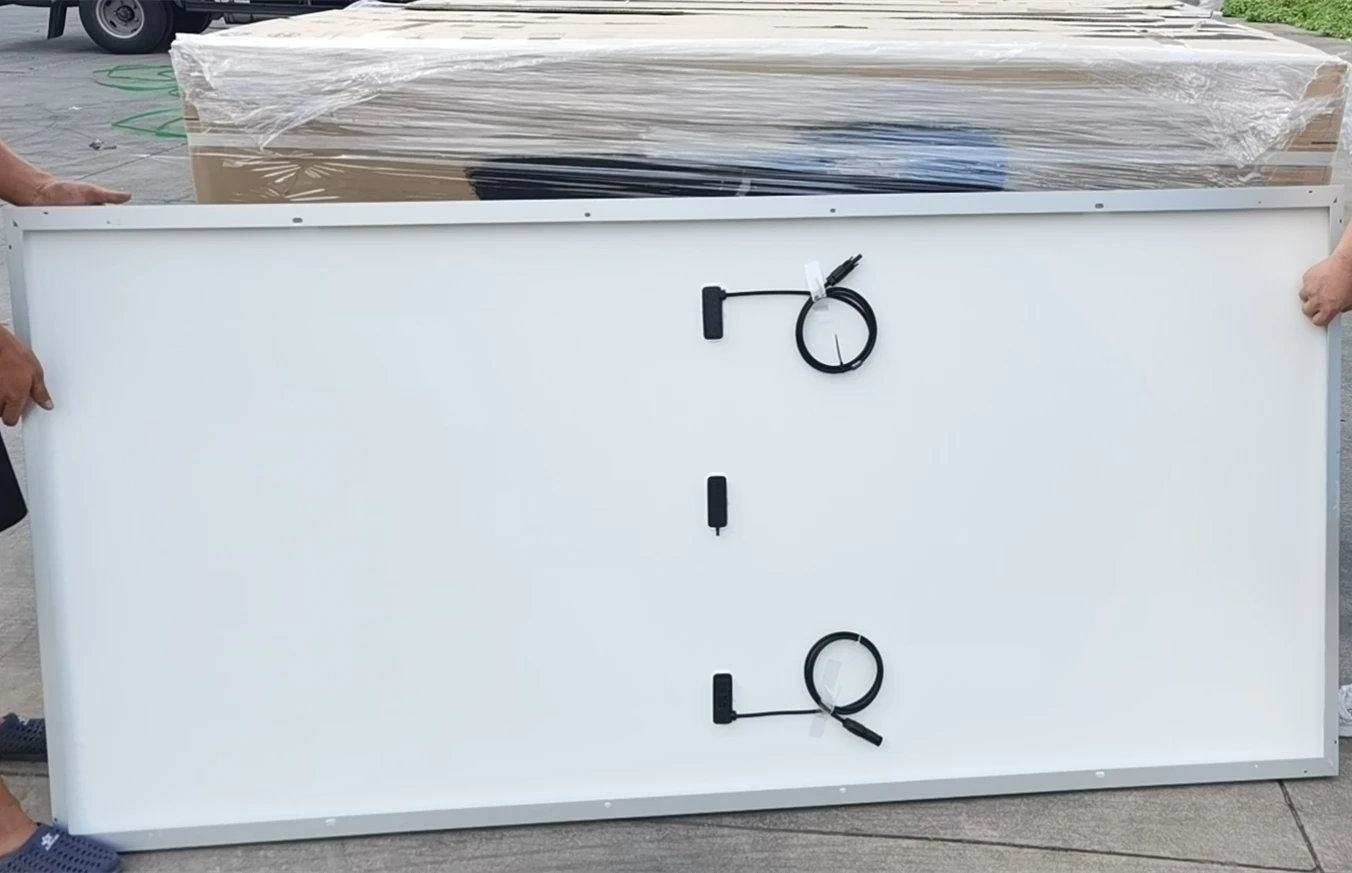

Details Images
