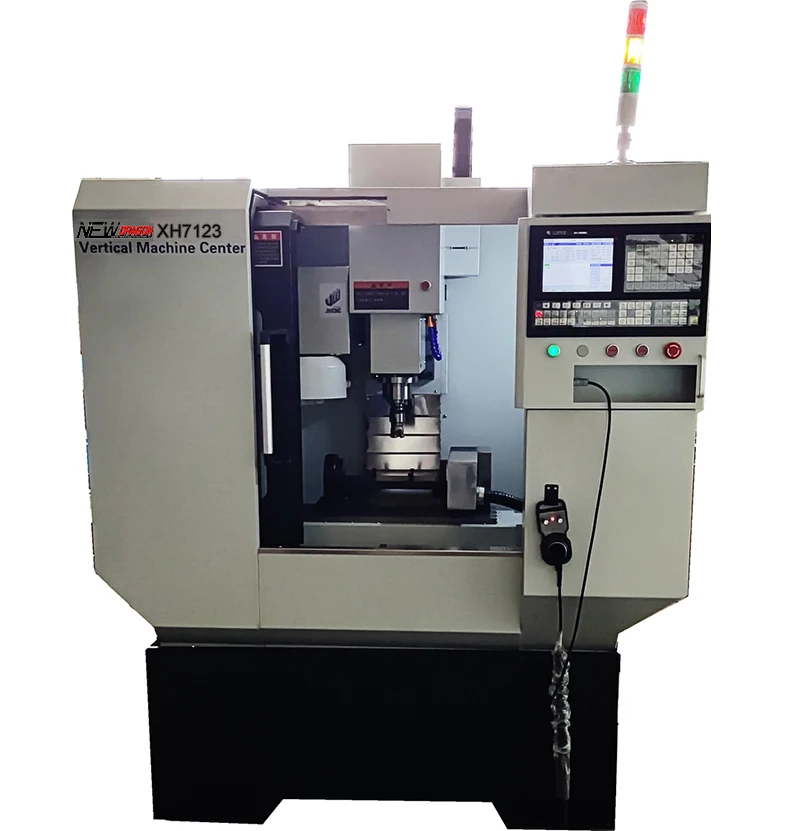

XH7123 8000rpm cnc milling machine 3/4 axis BT30 spindle small machine center

MODEL

XH7123

X/Y/Z axis motor

XY 750W,Z 1.5KW Servo motor

CNC Controller

KYCNC 1000MC

Spindle motor

2.2KW 14N

Spindle speed

8000r/min

Spindle

BT30 ATC tool change

Tool magazine

12pcs disc tool changer

XYZ stroke

X400 Y250 Z400

XYZ Guide rail

X20 YZ25 guide rail

XYZ Ball screw

XY2005 Z2505

N.W./G.W.

1100/1200KG

DIMENSION

1600x1200x1900mm

PACKING SIZE

1650x1350x2100mm

Voltage

220V

Table Flatness

0.01/200mm

XY verticality

0.01/200mm

ZY verticality

0.01/200mm

XZ verticality

0.01/200mm

G0 SPEED

20000mm/min

Positioning accuracy

0.015mm

Repeatability accuracy

0.01mm

Working table size

630x230mm
