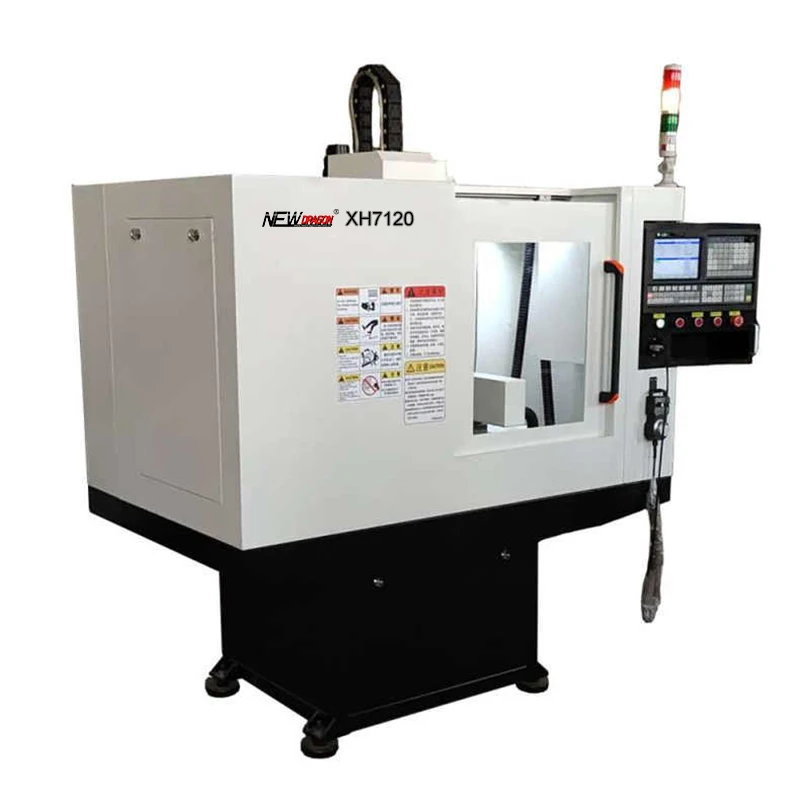

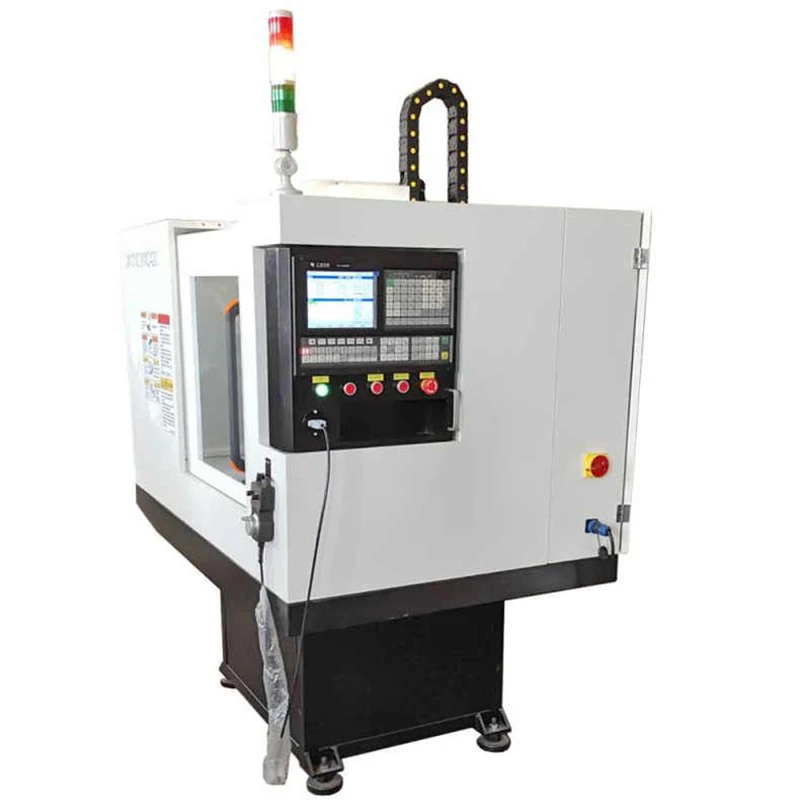

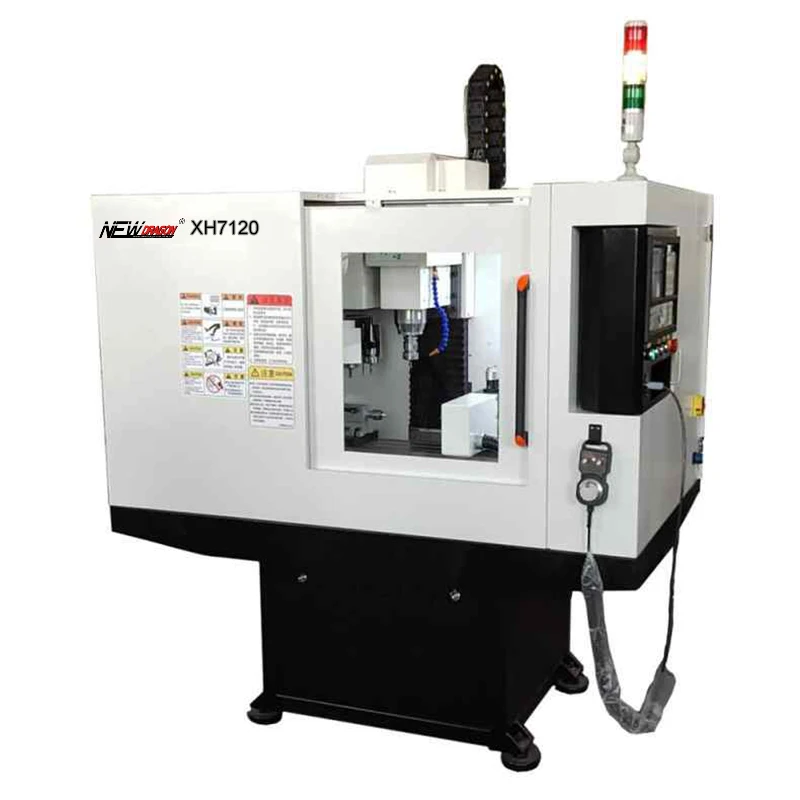

XH7120 8000rpm cnc milling machine 3/4 axis BT30 spindle small machine center

MODEL

XH7120

X/Y/Z axis motor

XY 750W,Z 1.5KW Servo motor

CNC Controller

KYCNC 1000MC

Spindle motor

2.2KW 14N

Spindle speed

8000r/min

Spindle

BT30 ATC tool change

Tool magazine

12pcs disc tool changer

XYZ stroke

X360 Y200 Z350

XYZ Guide rail

X20 YZ25 guide rail

XYZ Ball screw

XY2005 Z2505

N.W.

680KG

Dimension

1500x1100x1900mm

Voltage

220V

Table Flatness

0.01/200mm

XY verticality

0.01/200mm

ZY verticality

0.01/200mm

XZ verticality

0.01/200mm

G0 SPEED

15000mm/min

Positioning accuracy

0.015mm

Repeatability accuracy

0.01mm

Working table size

550x200mm
