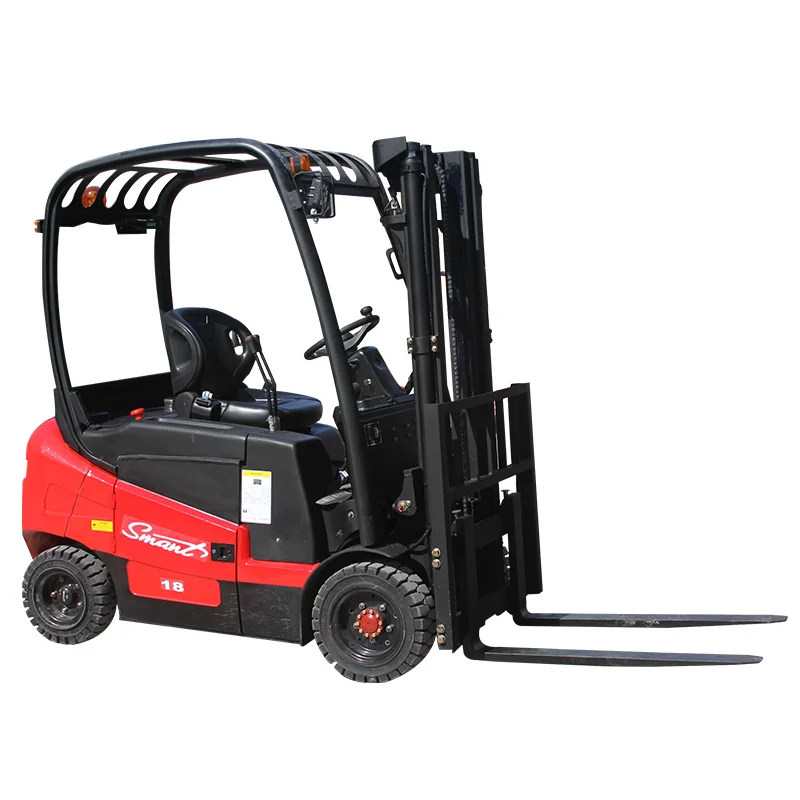

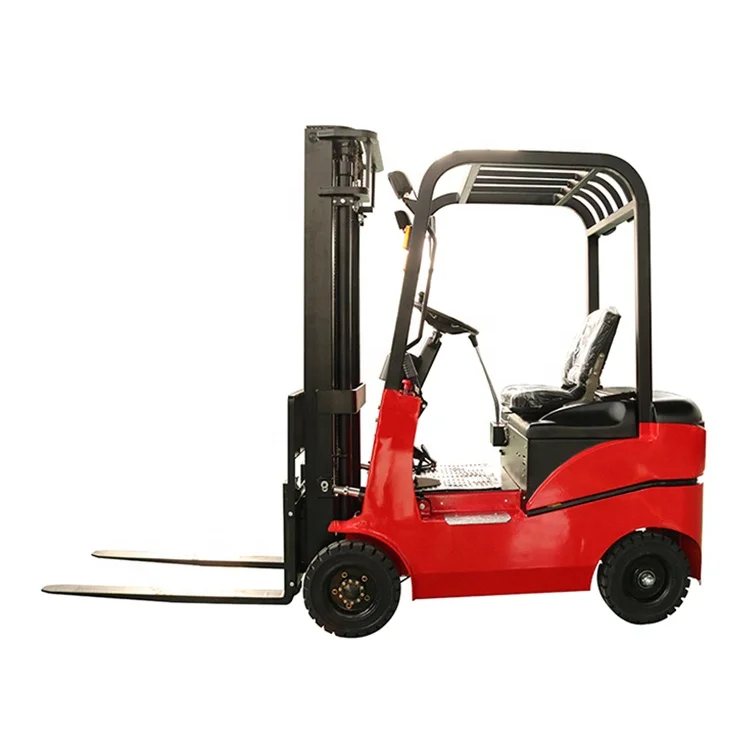

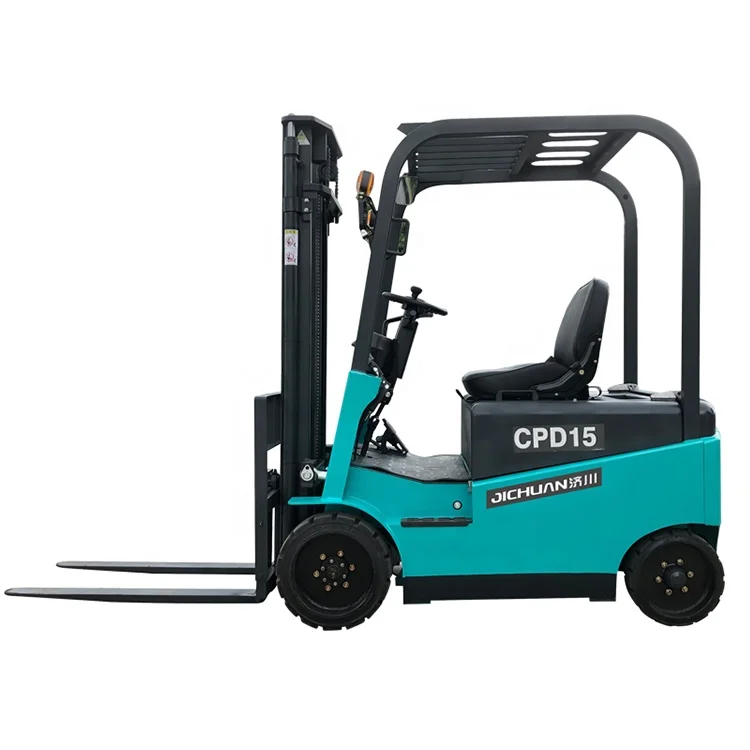

1.5 ton 2 ton electric forklift forklift truck electric batteries for 5 m height price

Product Overview

Description

1.5 ton 2 ton electric forklift forklift truck electric batteries for 5 m height price

Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.

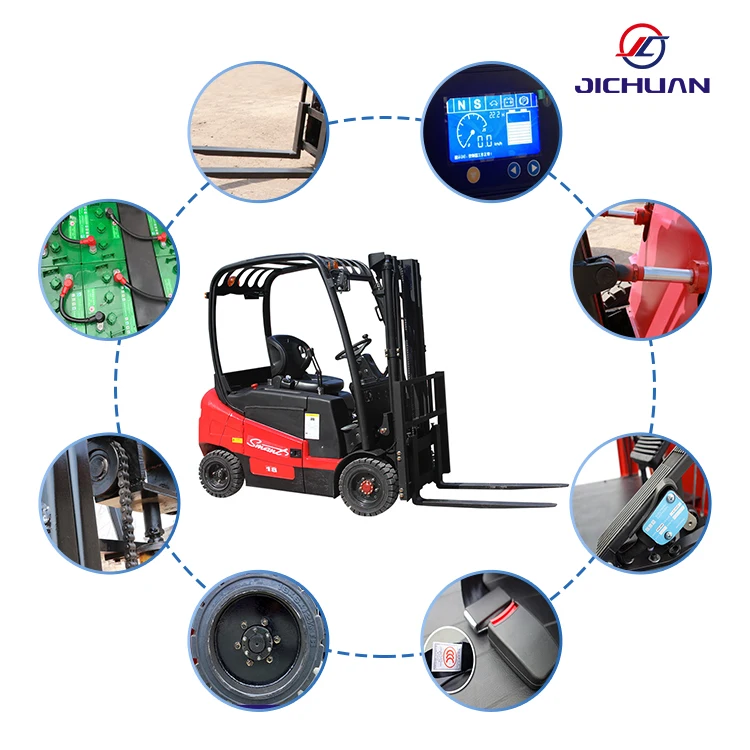

Our Advantage

• The door frame is made of thickened steel, which has high strength and is not easy to be deformed. The lifting and lowering is stable and the noise is low.


• Strong pull, easy lifting, thickening to prevent safety accidents.Safe and durable, large load-bearing, freely adjustable width according to the size of the cargo.


• Large-capacity battery combination for more than 6 hours of continuous use, with better operator efficiency.


• User-friendly design, equipped with seat belts, more comfortable driving, less fatigue, greatly improving comfort and work efficiency.


• Solid and thick rubber rings are used before and after, which greatly increases the ability of forklifts to adapt to different roads and grades.


• User-friendly design of the steering wheel to improve driving comfort, correct operation can reduce the abnormal wear of steering parts and tires.

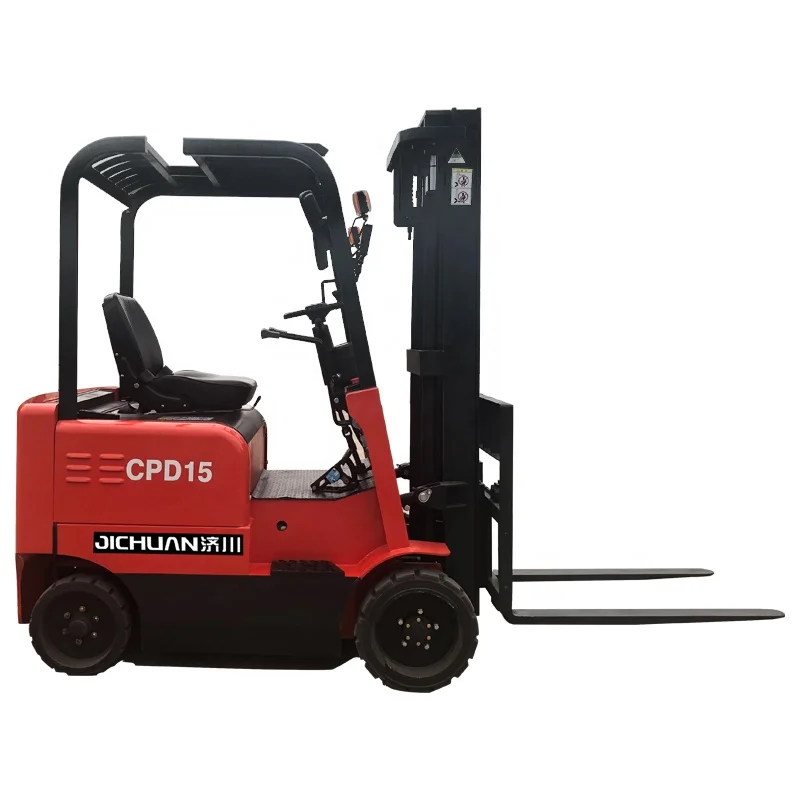

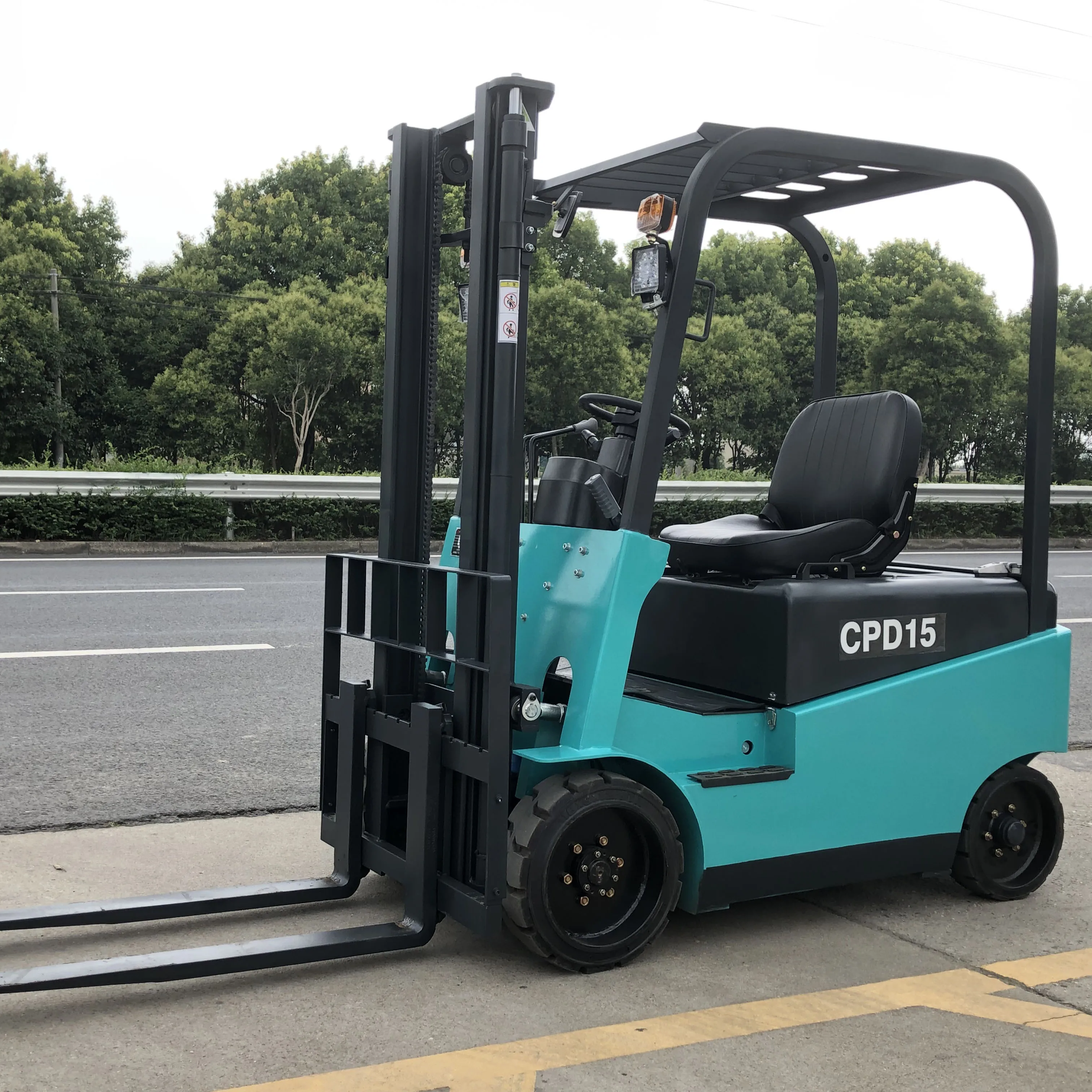

Model		CPD10	CPD15A	CPD20A	CPD25B	CPD30A	CPD50
Power type		Storage  battery	Storage  battery	Storage  battery	Storage  battery	Storage  battery	Storage  battery
Rated load	kg	1000	1500	2000	2500	3000	5000
Load center distance	mm	480	500	500	500	500	600
Lifting height	mm	3000	3000	3000	3000	3000	3000
Free lifting height	mm	150	150	150	150	150	150
Fork size	mm	920×100×30	1070×100×35	1070×100×40	1070×120×40	1070×120×45	1220×150×55
Door frame dip angle		6/12	6/12	6/12	6/12	6/12	6/12
Min.turning radius	mm	1300	2000	2300	2300	2500	2750
Minimum right channel width	mm	2000	2300	2500	2500	2800	4290
Min .height off the ground	mm	90	90	90	90	90	150
Height of retaining feame	mm	1950	2000	2170	2170	2170	2350
Distance from seat surface to top shieid	mm	970	1000	1005	1005	1005	1400
Maximum travel speed	km/h	14/12	14/12	14/12	12/10	14/12	14/13
Max.lifting speed	mm/s	340/280	340/280	340/280	340/280	390/360	410/250
Maximum climbing ability	%	12	12	12	15	12	15
overall no fork	mm	1700	2080	2380	2380	2600	2950
overall width	mm	1000	1050	1150	1200	1250	1510
Maximum lifting height of forklift	mm	4000	4000	4000	4000	4000	4180
Gantry height	mm	2020	1990	2080	2080	2080	2180
Front tyre		18×6×121/8	18*6	6.50-10	23×9-10	23×9-15	8.25-5
Rear tyre		15×5×111/4	15*5	5.00-8	18×7-8	18×7-8	7.00-12
Wheelbase	mm	1020	1080	1380	1380	1680	1940
Wheel distance front / back	mm	740/800	890/920	900/960	900/960	1000/980	1250/1200
Self-weight without load, battery	kg	1410	2050	2610	2800	2980	5800
Storage Battey VOltage /Capacity	V/Ah	48	48	48	48	72	80
Motor walking	KW	4	5.5	5.5	10	10	17
Motor lift	KW	3	5.5	5.5	12	7.5	20
Controller		Curtis	TF	TF	FJ	TF	SZ
control method		AC+DC	AC+DC	DC	AC	DC	AC
battery		160AH	6V×8 240AH	6V×8 240AH	2V×24 500AH	6V×8 240AH	2V×40 500AH

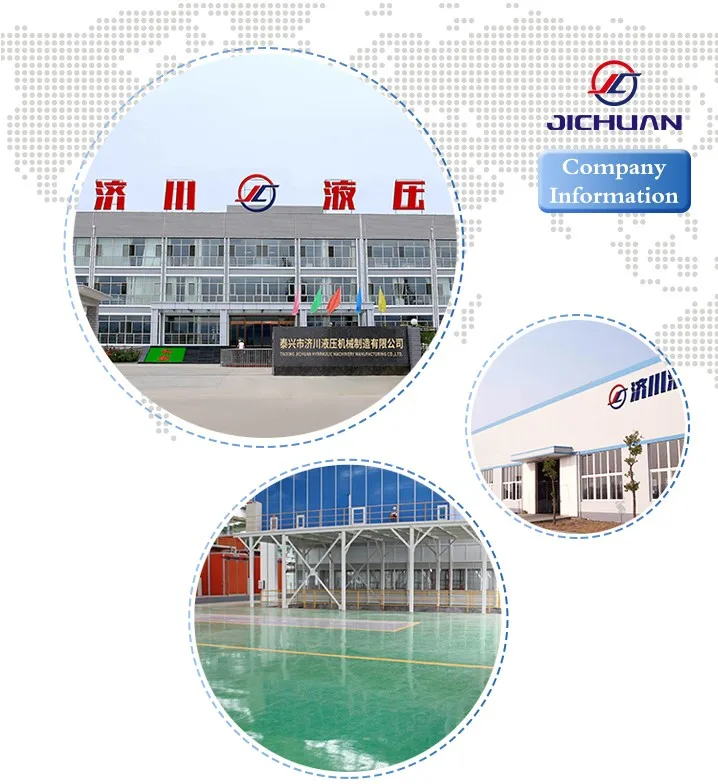

Jichuan Machinery Manufacturing Co., Ltd. covers an area of 25,000 square meters, with modern standardized production rooms and office buildings of 12,000 square meters, and more than 100 advanced production and testing equipment. Jichuan is a professional and experienced warehousing equipment manufacturer in China. It specializes in all kinds of manual hydraulic pallet trucks, manual hydraulic lift trucks, oil drum lift trucks, platform trucks, forklift truck scales, semi-electric all-electric stackers, and semi-electric all. Electric truck, four-wheel large electric forklift. In 2003, it passed the ISO9001 international quality system certification. The series of storage and handling equipments such as manual hydraulic pallet trucks produced by Jichuan have been unanimously praised by domestic and foreign customers, and some products are exported to Europe, Southeast Asia and other countries and regions. Our company promises to meet the needs of customers with excellent quality, competitive price and perfect design.

• Let customers know all the details related to machines and transactions.


• Provide professional advice for each customer's questions, consult the sea freight and other related fees for the designated port. Let customers know every detail before placing an order.


• We are all thinking for customers, through customer visits, telephone and fax to customers to understand our company's product features and service functions, to grasp the customer's current situation and needs as much as possible, rational use of resources to guide customers, feasibility analysis and positioning according to customer needs and Investment plans to provide the best equipment configuration.

We provide high quality machines and genuine low price after-sales service.

1.All machines can be installed by the customer. If you need an overseas engineer, please notify our staff 2 weeks before delivery. Customers are required to pay for round-trip airfare, interpreter and accommodation, and the necessary service fees.

2. Any part that proves that the process material is defective will be provided free of charge for one (1) year from the date of original purchase. This warranty is void if the device is misused or negligent. Labor or other related fees are not included.

3. We provide free installation, commissioning and training for our customers.

4. Before shipment, a thorough and rigorous inspection must be carried out to ensure that each component is in good condition.

5. Carefully pack all the machines according to the different loading methods.

6. Provide customers with free warranty and maintenance within the contracted time limit and within the scope of repair.

7. We regularly visit users to help solve problems and requirements when users use the device.

8. We have professional overseas agents, we can provide professional home repair service.
