Cnc Automatic Coil Winding Machine Cnc Spring Forming Machine
- Category: >>>
- Supplier: Taizhou Hitech Nc Machine Tool Co. Ltd.
Share on (1600549670800):
Product Overview
Description
Products Description
Main Technical Parameters
Modle | HT-8208 | HT-8212 | HT-8320 | HT-8322 | HT-8335 | HT-8345 | HT-8350 |
Wire diameter of coiled material | ɸ0.15-ɸ0.8mm | ɸ0.2-ɸ1.2mm | ɸ0.4-ɸ2.0mm | ɸ0.2-ɸ2.5mm | ɸ0.5-ɸ3.5mm | ɸ1.0-ɸ4.5mm | ɸ1.0-ɸ5.0mm |
Number of Axles | 2 Axles | 2 Axles | 3 Axles | 3 Axles | 3 Axles | 3 Axles | 3 Axles |
Wire feed instruction value | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 |
Cam instruction value | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° |
Max outer diameter of coiled spring | Maxɸ20mm | Maxɸ20mm | Maxɸ60mm | Maxɸ60mm | Maxɸ80mm | Maxɸ80m | Maxɸ80m |
Wire feed servo power | 1.0KW | 1.2KW | 2.7KW | 2.7KW | 4.5KW | 5.5KW | 7.0KW |
Cam servo motor | 1.0KW | 1.0KW | 2.7KW | 2.7KW | 4.5KW | 5.5KW | 7.0KW |
Power supply | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ |
Size | 1000*950*1600mm | 1000*1000*1600mm | 900*900*1300mm | 1500*900*1900mm | 1700*1300*2000mm | 1700*1300*2000mm | 1700*1300*2000mm |
Weight | 350kg | 400kg | 460kg | 880kg | 1500kg | 1800kg | 1950kg |
Product Introduction
The HT series CNC spring machine computer has an English interface, which is easy to operate and accurate in positioning. The computer can control three to eight servo motors. All motors can operate synchronously or independently. It is equipped with precision detection and tracking equipment. If there are unqualified products, it can automatically stop. According to the working conditions on the evaluation screen, the external diameter angle of the products can be maintained at any time. The automatic mechanical parts are designed with automatic lubrication and oil supply to ensure the long-term operation of the equipment. The automatic stop design and automatic acceleration function of the wire rack make the production easier and more effective when wireless, broken or entangled. It is applicable to the production of double torsion springs, straight springs, pagoda springs, tension springs, rectangular springs, wire forming, steel sheet vortex springs, spring springs and various fancy springs, as well as miscellaneous and difficult special-shaped springs.

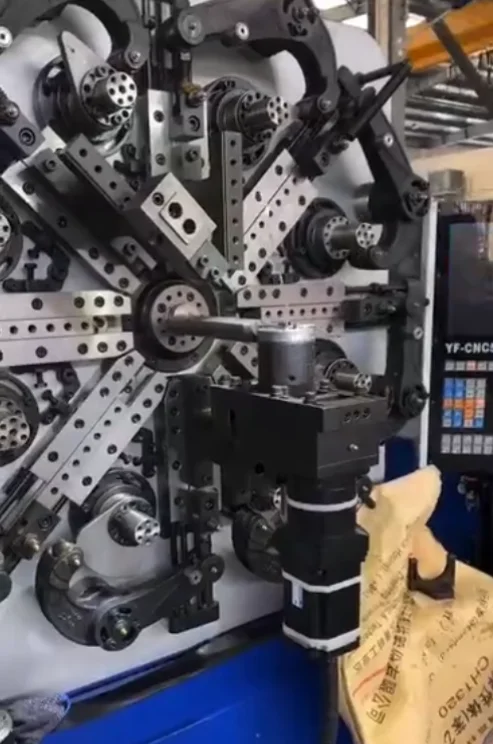

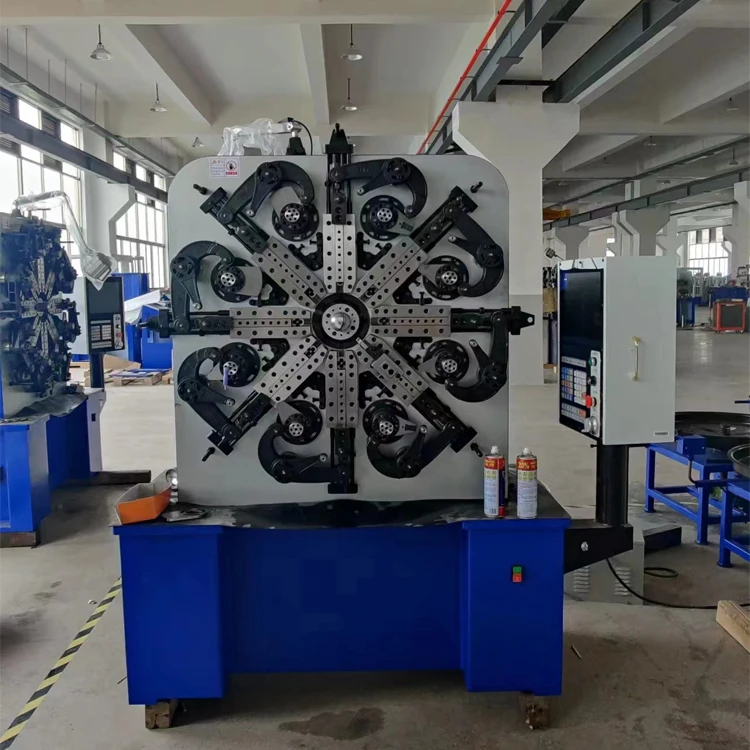

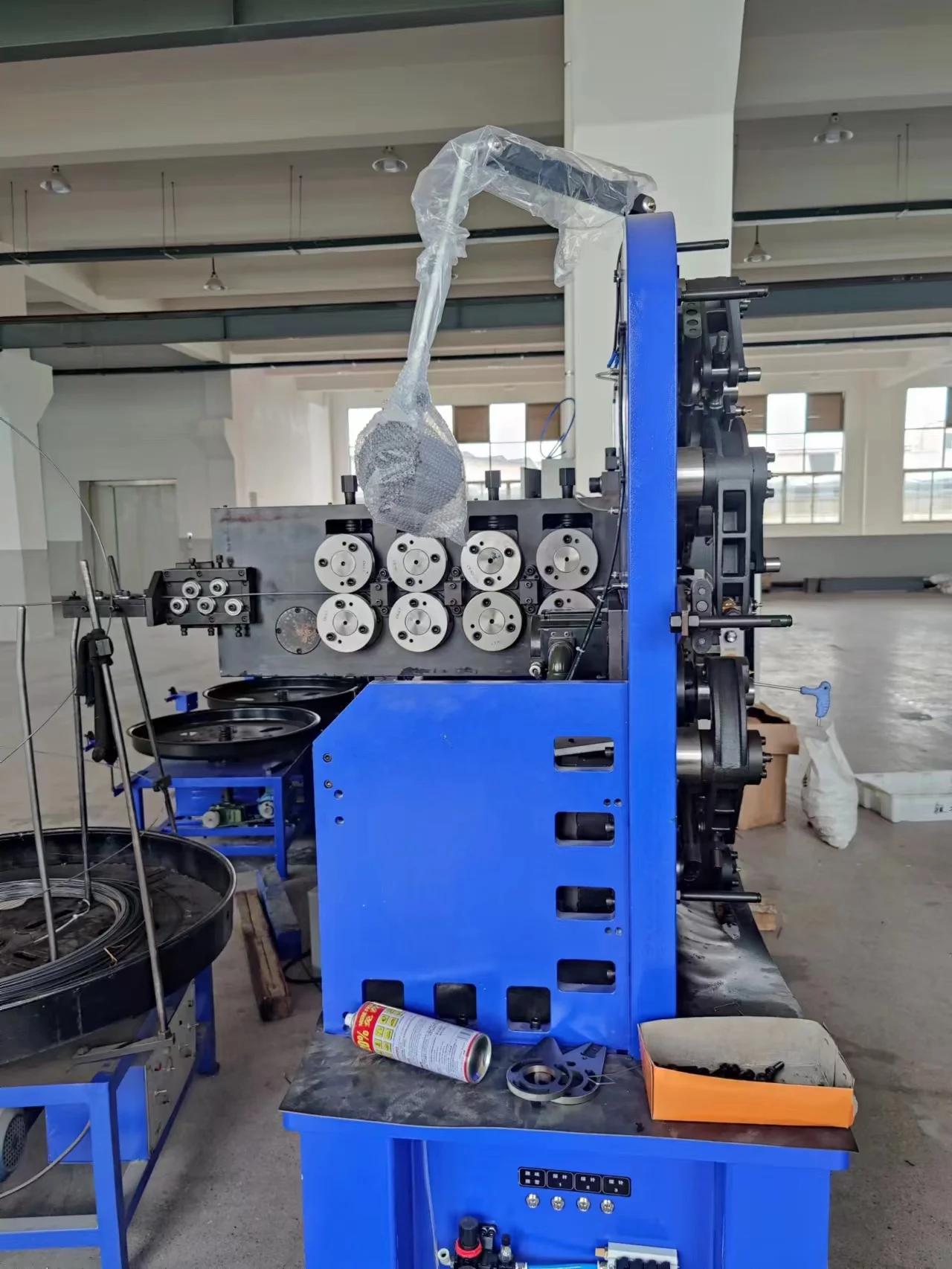

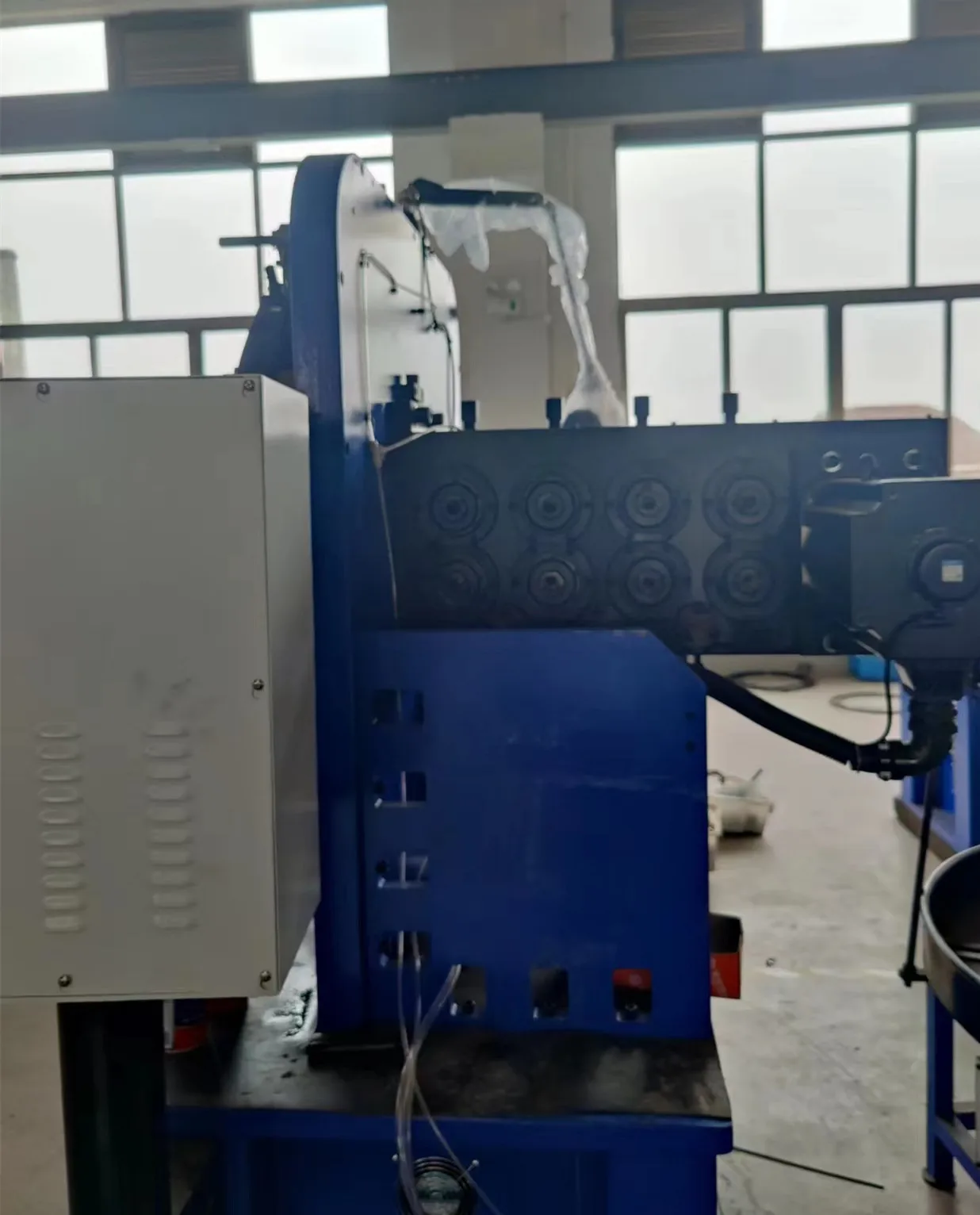

Details Images
Features:
1. Various cam with heat treat
2. Japanese servo drive and motor
3. Taiwanese controller system
4. Customized tooling for flat wire
5. Option for anneal device
6. Option for peeling device
Samples
Company Profile

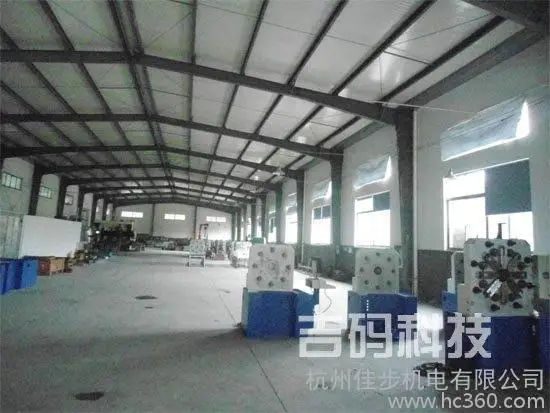

Taizhou HITECH NC Machine Tool Co., Ltd. is located in Hi-tech Science and Technology Industry Zone of Taizhou City, Jiangsu Province, China, with a number of research and development and manufacturing bases. Our company specializes in researching,manufacturing and selling precision machines.Taizhou Hitech NC Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development. Our company established in 2004, has 96 employs, and sold about 200sets about the deep hole machines all of the world. We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.
