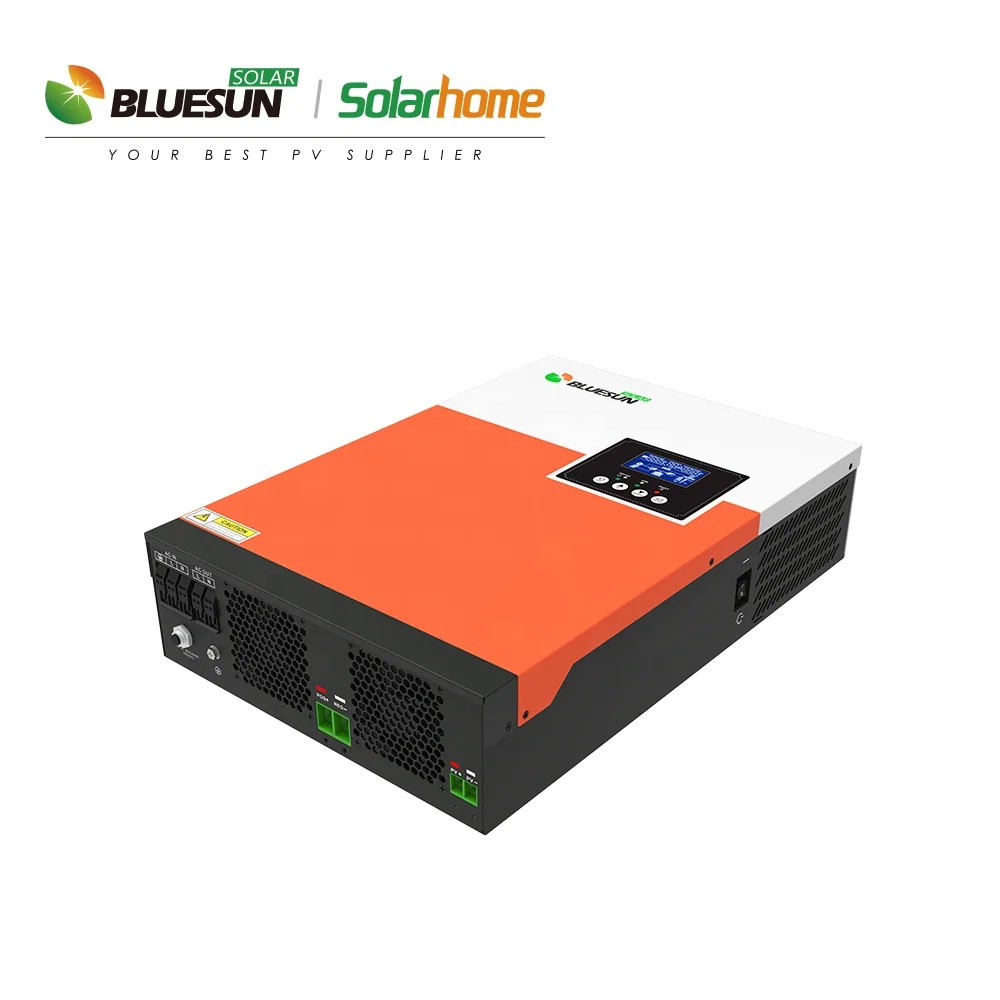

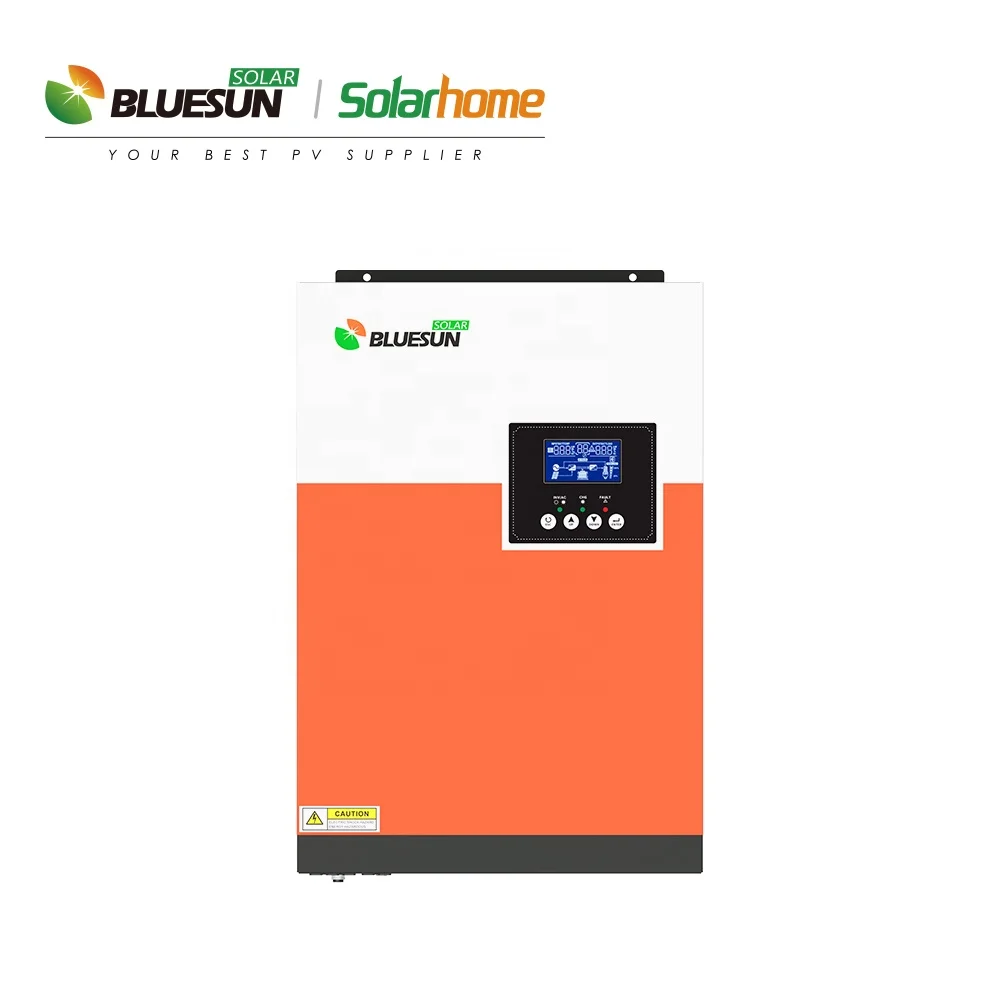

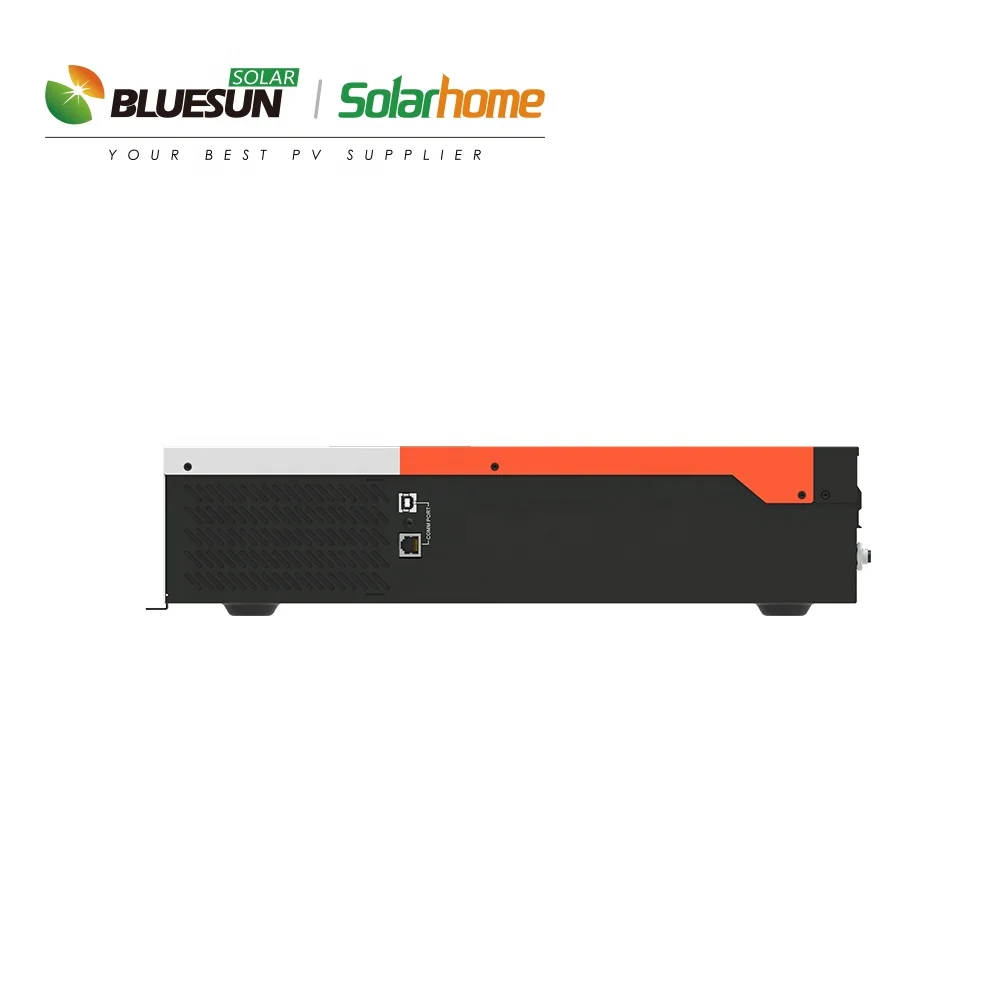

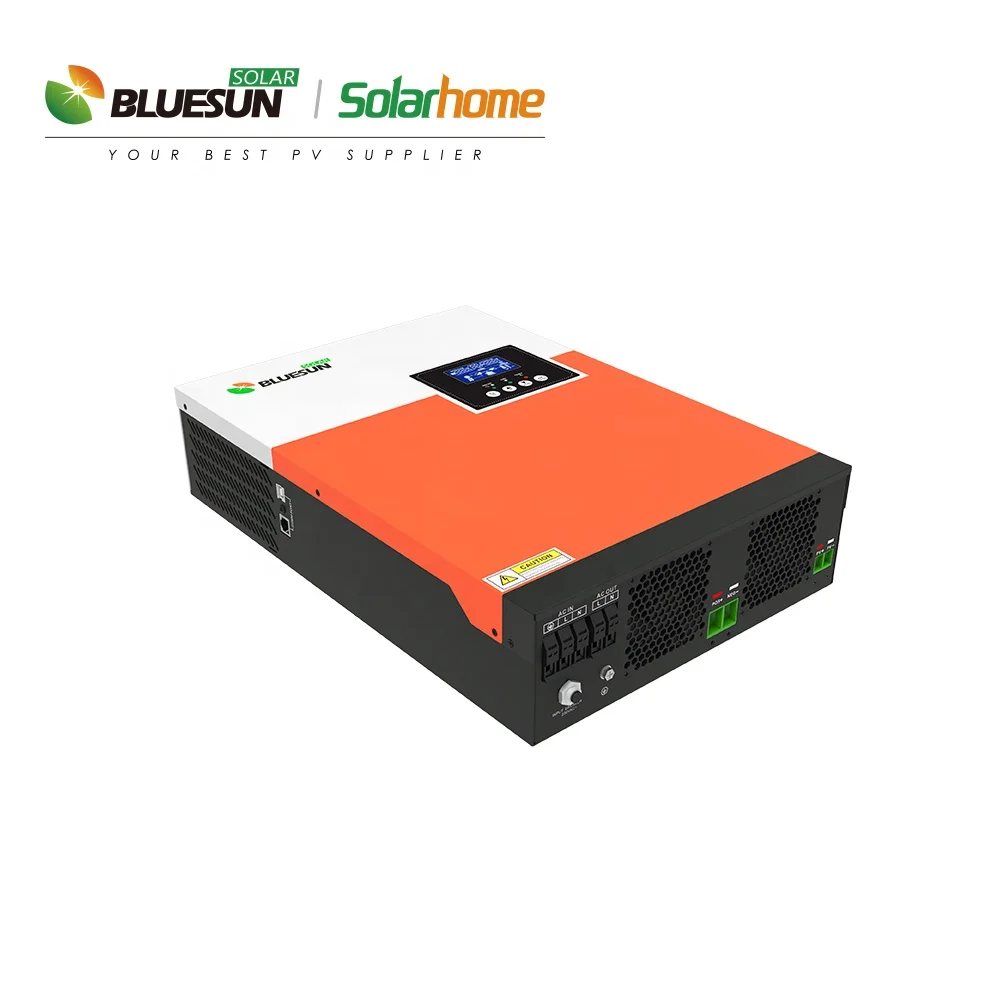

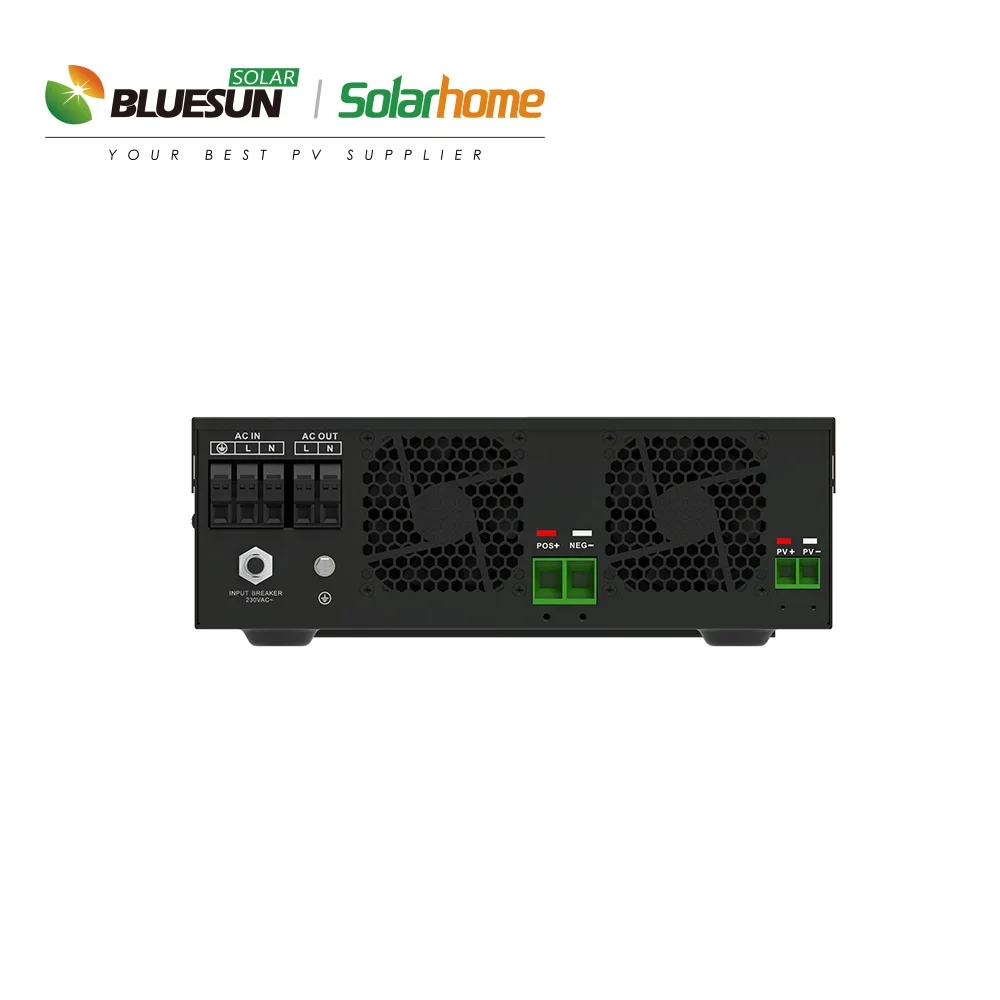

Bluesun 3.5kw solar inverter off grid solar hybrid inverter 3.5kw mppt inverter battery solar 3.5kva
- Category: >>>
- Supplier: Bluesun Solar Parts Co. Ltd.
Share on (1600549684140):
Product Overview
Description
Advantages of Bluesun
Product Description
MODEL | BSM-3500LV-24 | BSM-5500LV-48 | ||
Rated Power | 3500VA/3500W | 5500VA/5500W | ||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
Surge power | 7000VA | 11000VA | ||
Efficiency(Peak) PV to INV | 97% | |||
Efficiency(Peak) BAT to INV | 94% | |||
Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |||
Wave form | Pure Sine Wave | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
Maximum charge current | 80A | 80A | ||
SOLAR CHARGER | ||||
MAX.PV Array Power | 5000W | 6000W | ||
MPPT Range@ Operating Voltage | 120-450VDC | |||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
Maximum Charging Current | 100A | |||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension.D*W*H(mm) | 440*300*100 | |||
Net Weight (kgs) | 11kg | 12kg | ||
Communication Interface | USB/RS232(Standard) GPRS/WIFI(Optional) | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature Storage | 0°C to 55°C | |||
Temperature | -15°C to 60°C | |||

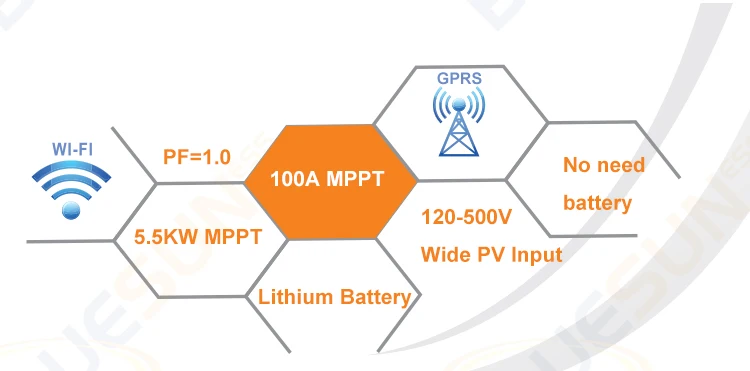

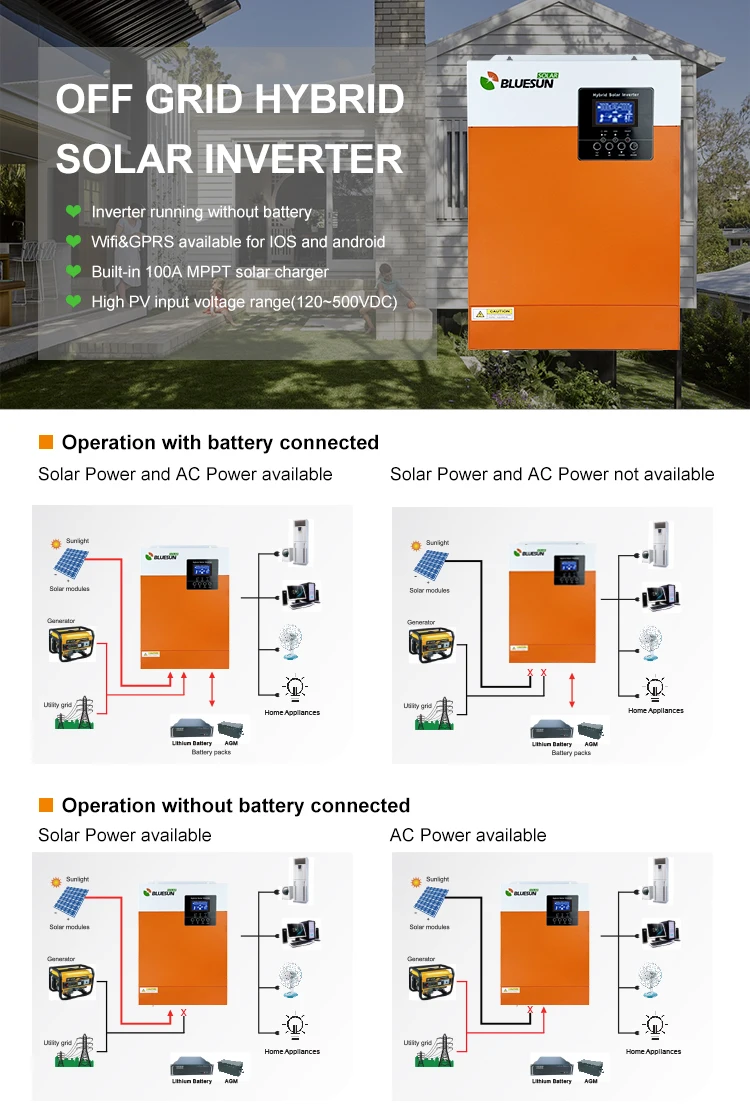

Key Feature
Packing & Delivery
Certifications
