food grade centrifugal pump stainless steel sanitary centrifugal pump manufacturers stainless steel centrifugal pump
- Category: >>>
- Supplier: Wenzhou Jienuo Valve Co. Ltd.
Share on (1600549693075):
Product Overview
Description
Recommend Products
Products Description

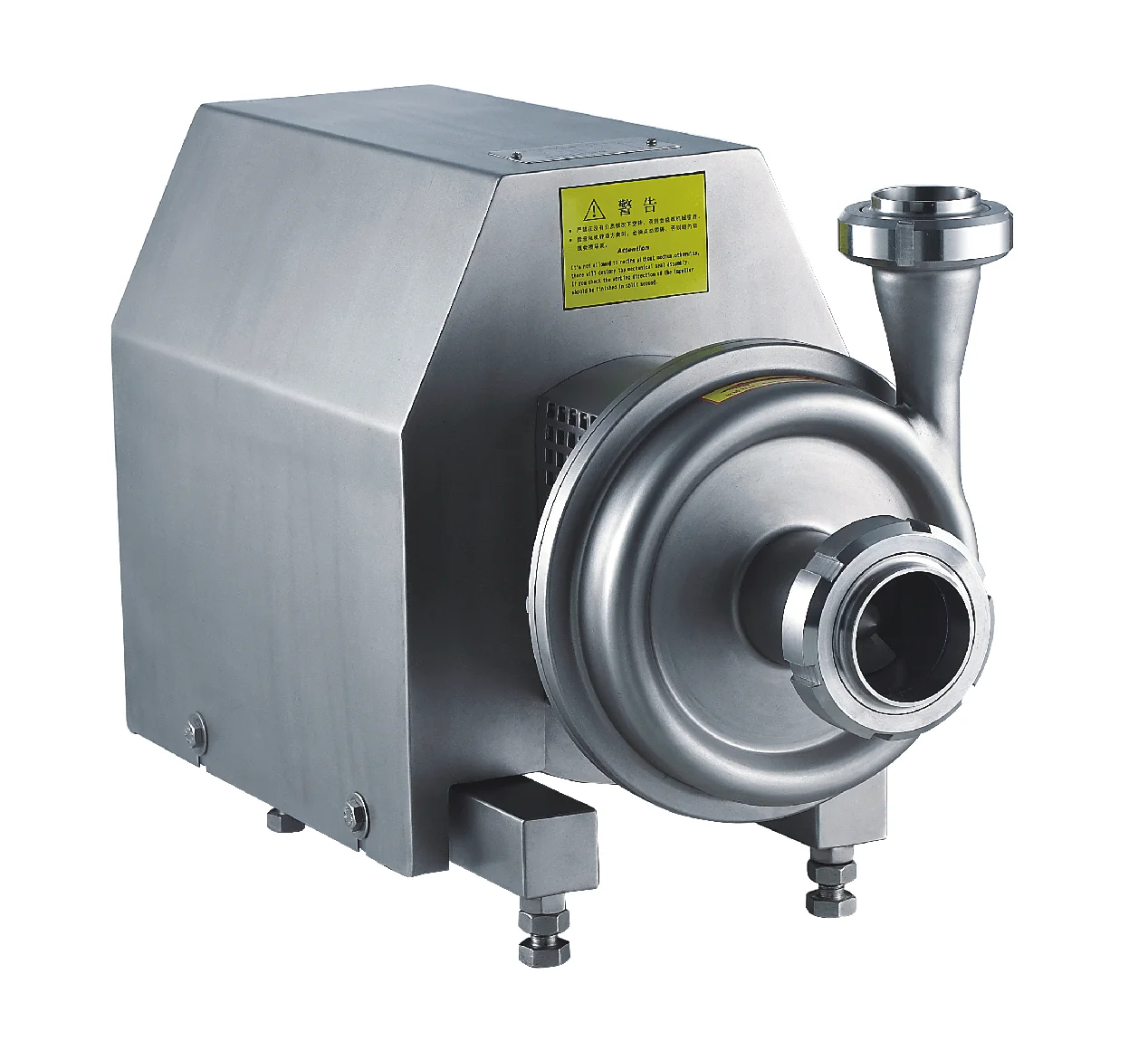

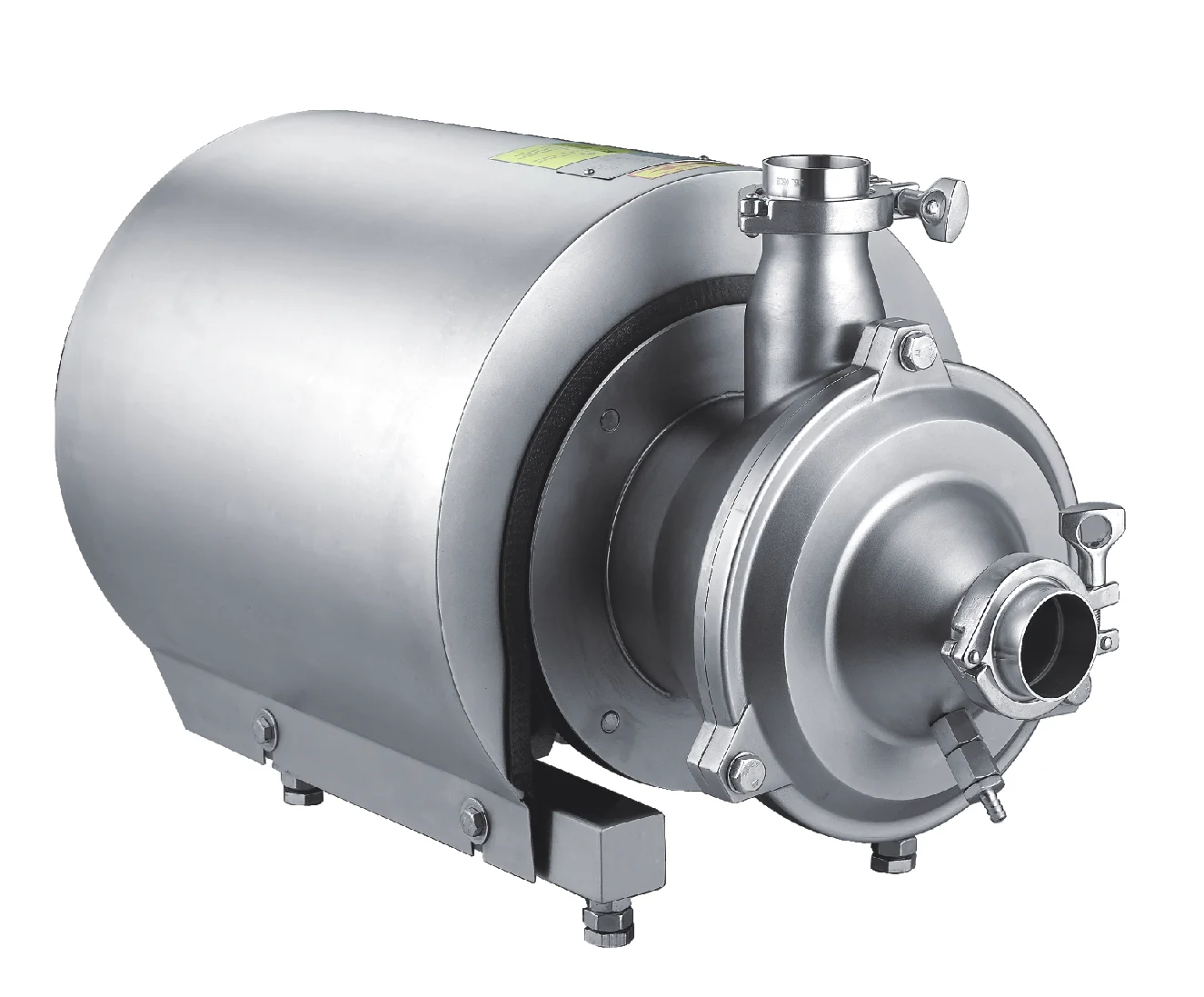

Sanitary Centrifugal Pump
Sanitary Centrifugal Pump is made of stainless steel and with a shrouded motor. Sanitary and cost-efficient design makes it perfect for the dairies, beverages, food-processing, pharmaceutical and fine-chemicals industries.
● High-lift, low noise, high flow, no dead ends, high-performance characteristics
● Pure stainless-steel design, cGMP compliant
● 3 A sanitary standards, IEC or NEMA B34 motors, IP55, F-class insulation, 50HZ/60HZ.
● Flushed single or double mechanical seal
● Pressure relief valve available internal or external
● Surface heat jacket; complete heat jacket.
● Horizontal or vertical direction
● With stainless steel base plate & adjustable feet
● Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable – frequency motor adjustment
3) Fixed speed output transmission
● Pure stainless-steel design, cGMP compliant
● 3 A sanitary standards, IEC or NEMA B34 motors, IP55, F-class insulation, 50HZ/60HZ.
● Flushed single or double mechanical seal
● Pressure relief valve available internal or external
● Surface heat jacket; complete heat jacket.
● Horizontal or vertical direction
● With stainless steel base plate & adjustable feet
● Different drives and devices
1) Manual adjustment, continuously variable transmission
2) Variable – frequency motor adjustment
3) Fixed speed output transmission
Inlet & Outlet Sizes | 1 1/2″-3″ (DN40-DN80) |
End Connections | butt-weld, tri-clamp, thread, flange |
Body Material | AISI 304 (1.4301), AISI 316L (1.4404) |
Mechanisal Seal | single seal (standard), double mechanical seal (option), SIC/C, SIC/SIC |
Power Supply | 1.5KW-30KW |
Voltage | AC110V, 220-240V, 360-400V, 420-460V, 630-690V, 50/60Hz |
Maximum lift head | 70M |
Maximum flow | 150m³/h |
Maximum temperature | 130℃/266°F, (30min CIP/SIP) |
Internal Finish | Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin as default. |
External Finish | Sand blast or mirror polish as request |
