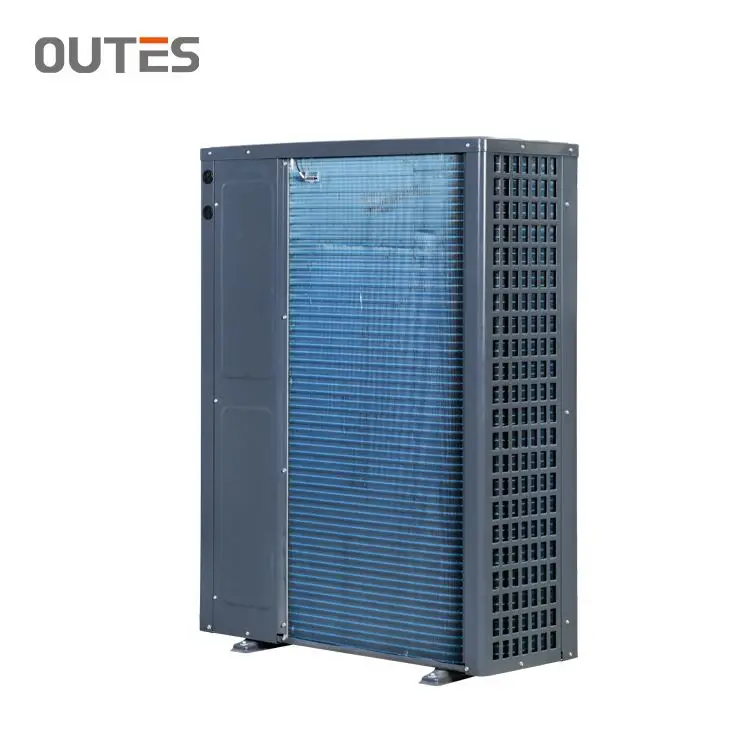

OUTES Air Source heat pump split type DC Inverter heat pump water heaters inverter heat pump
- Category: >>>
- Supplier: Zhejiang Zhongguang Electrical Co. Ltd.
Share on (1600549697078):
Product Overview
Description
Recommend Products
PRODUCT DETAILS

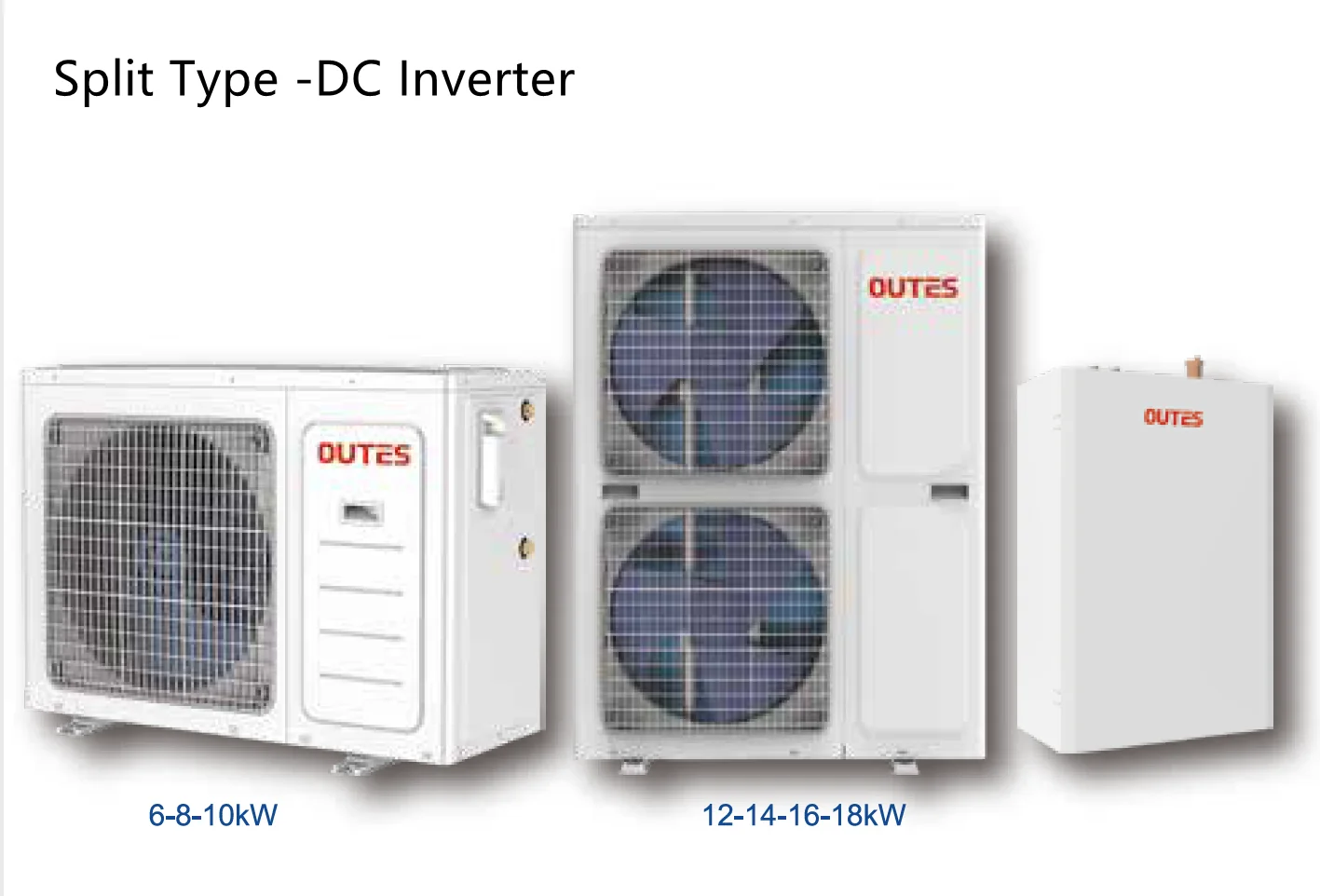

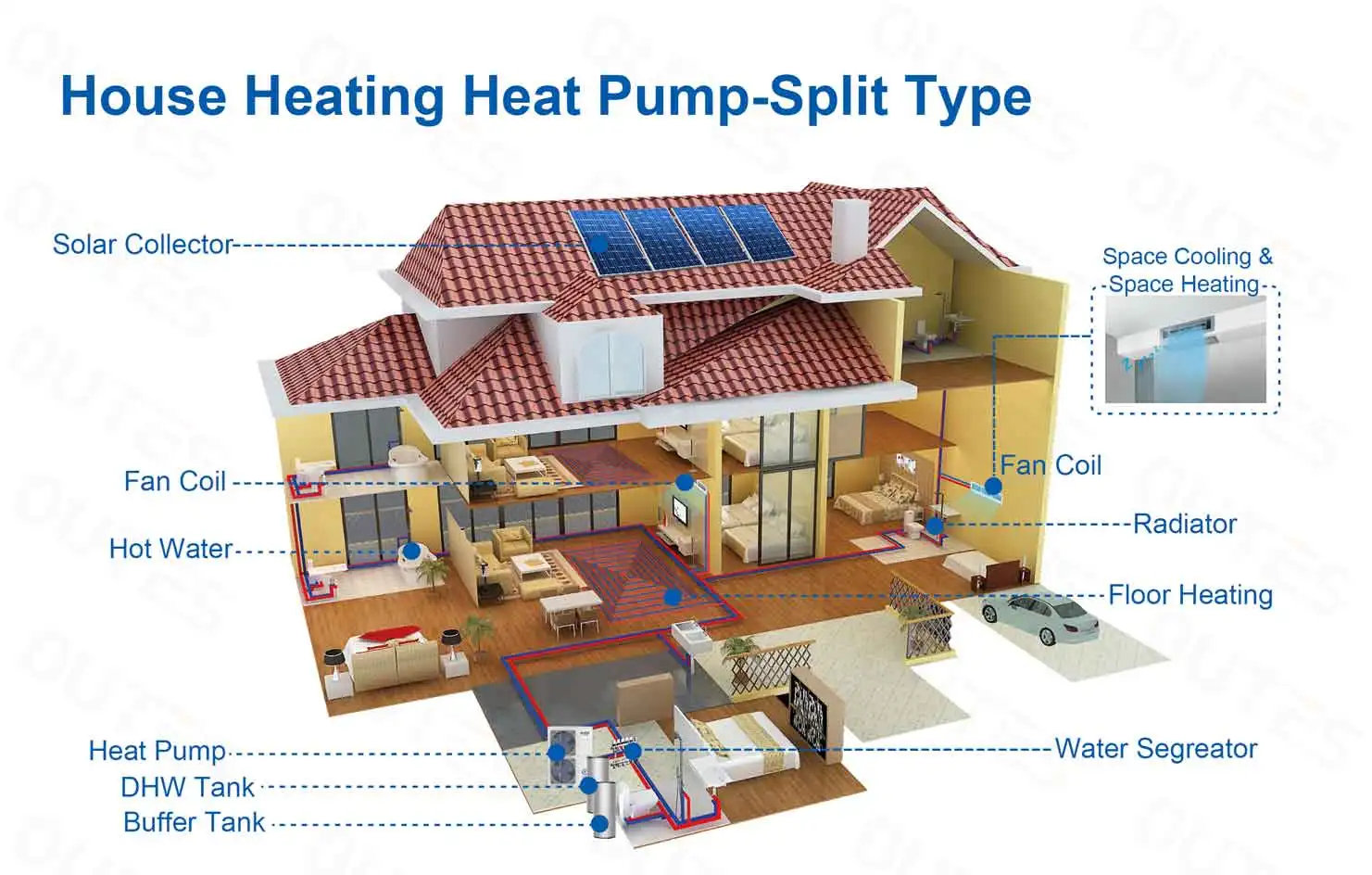

AIR SOURCE HEAT PUMP SPLIT TYPE
DC Inverter EVI Compressor workable at -25℃

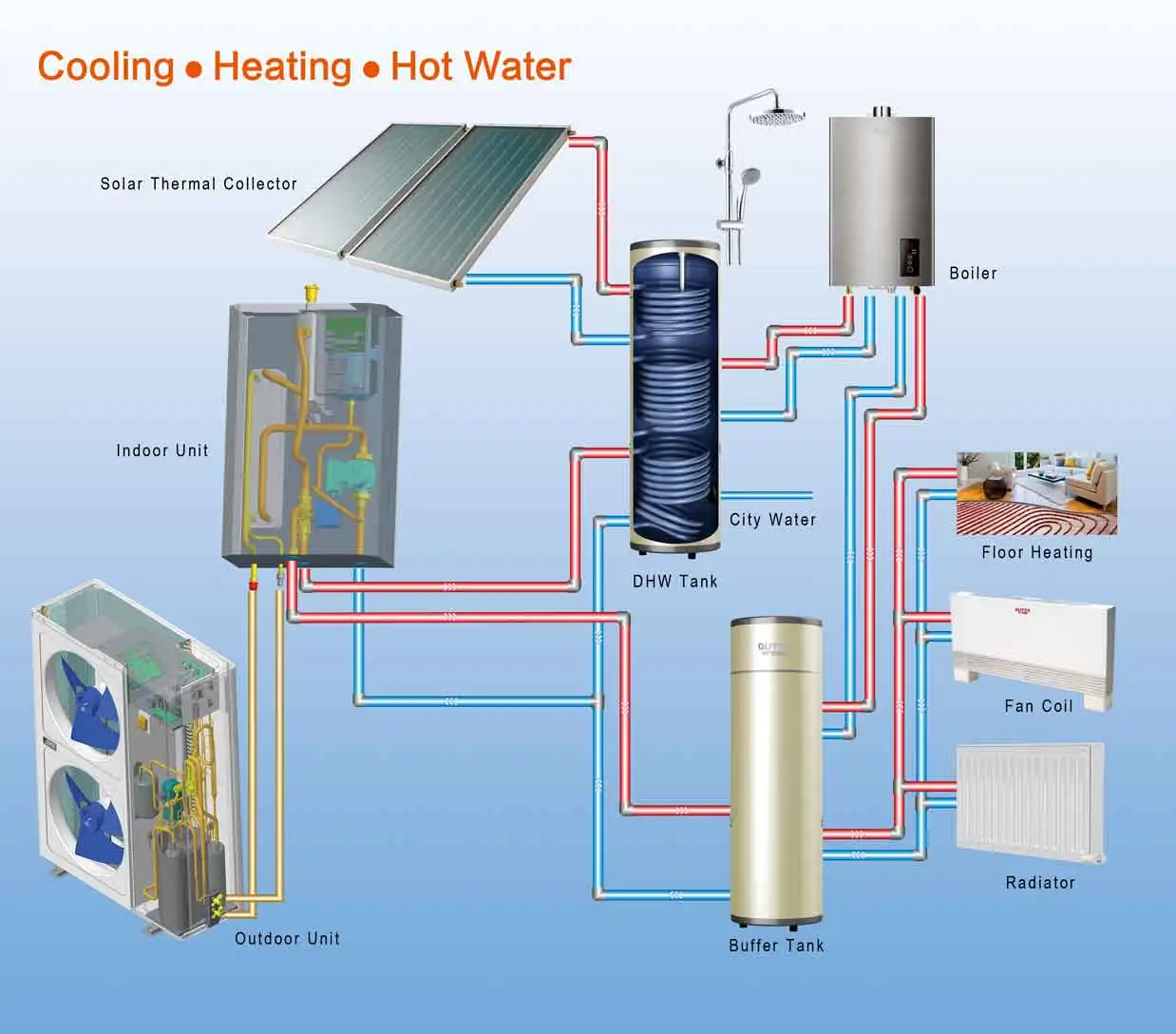

Domestic Sanitary Hot Water
Cooling
Heating
Cooling +DHW
Heating +DHW
DC INVERTER R410A
PRODUCT OVERVIEW
PRODUCT SPEC
Model | AHbS06D/IOP | AHbS08D/IOP | AHbS10D/IOP | AHbS12D/IOP | AHbS14D/IOP | AHbS16D/IOP | AHbS18D/IOP | |||
Power Supply | / | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | 220V~240V/50Hz | ||
Heating (A7℃/W35℃) | Heating Capacity Range | kW | 2.4/6 | 3.2/8 | 4.2/10 | 5.0/12 | 5.4/14 | 6.3/16 | 7.31/17.5 | |
Heating Power Input Range | kW | 1.48 | 2.02 | 2.43 | 2.73 | 3.33 | 3.95 | 4.43 | ||
Cooling(A35℃/W7℃) | Cooling Capacity Range | kW | 1.8/4.5 | 2.4/6.0 | 3/7.5 | 3.6/9 | 4.11/10 | 5.1/12 | 5.8/14 | |
Cooling Input Power Range | kW | 1.48 | 2.32 | 2.90 | 3.25 | 3.80 | 4.60 | 5.76 | ||
ERP Level (35℃) | / | A++ | A++ | A++ | A++ | A++ | A++ | A++ | ||
SCOP(35℃) | W/W | 4.0 | 4.05 | 3.9 | 4.07 | 4.05 | 3.95 | 4.26 | ||
Water Flow | m3/h | 1.03 | 1.38 | 1.72 | 2.06 | 2.41 | 2.75 | 3.01 | ||
Refrigerant/Proper Input | / | R410A/1.7kg | R410A/2.1kg | R410A/2.1kg | R410A/3.5kg | R410A/3.5kg | R410A/4.2kg | R410A/4.2kg | ||
Operating Ambient Temperature | ℃ | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | -25~43 | ||
Water Connection | inch | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||

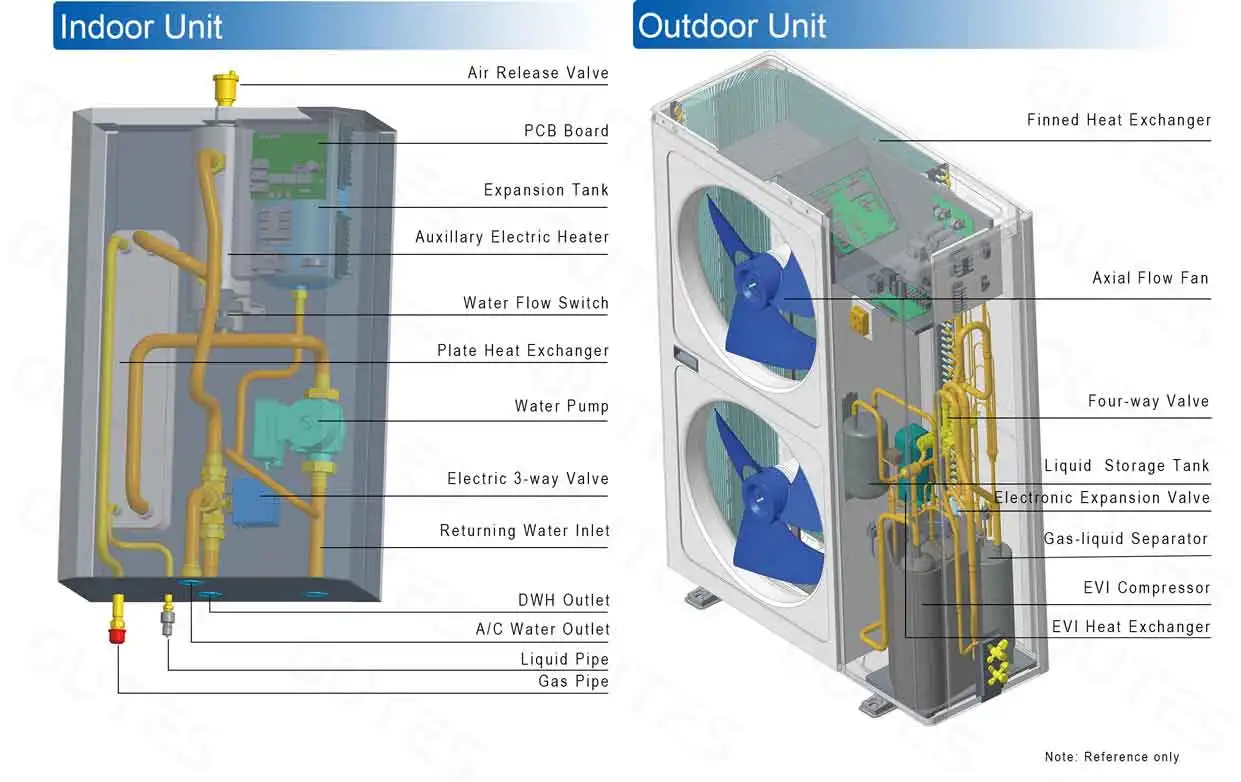

Outdoor Unit | Net Dimension((L×W×H) | mm | 1090×485×770 | 1090×485×770 | 1090×485×770 | 1095×485×1410 | 1095×485×1410 | 1095×485×1410 | 1095×485×1410 | |
Packing Dimension(L×W×H) | mm | 1155×505×800 | 1155×505×800 | 1155×505×800 | 1086×500×1540 | 1086×500×1540 | 1086×500×1540 | 1086×500×1540 | ||

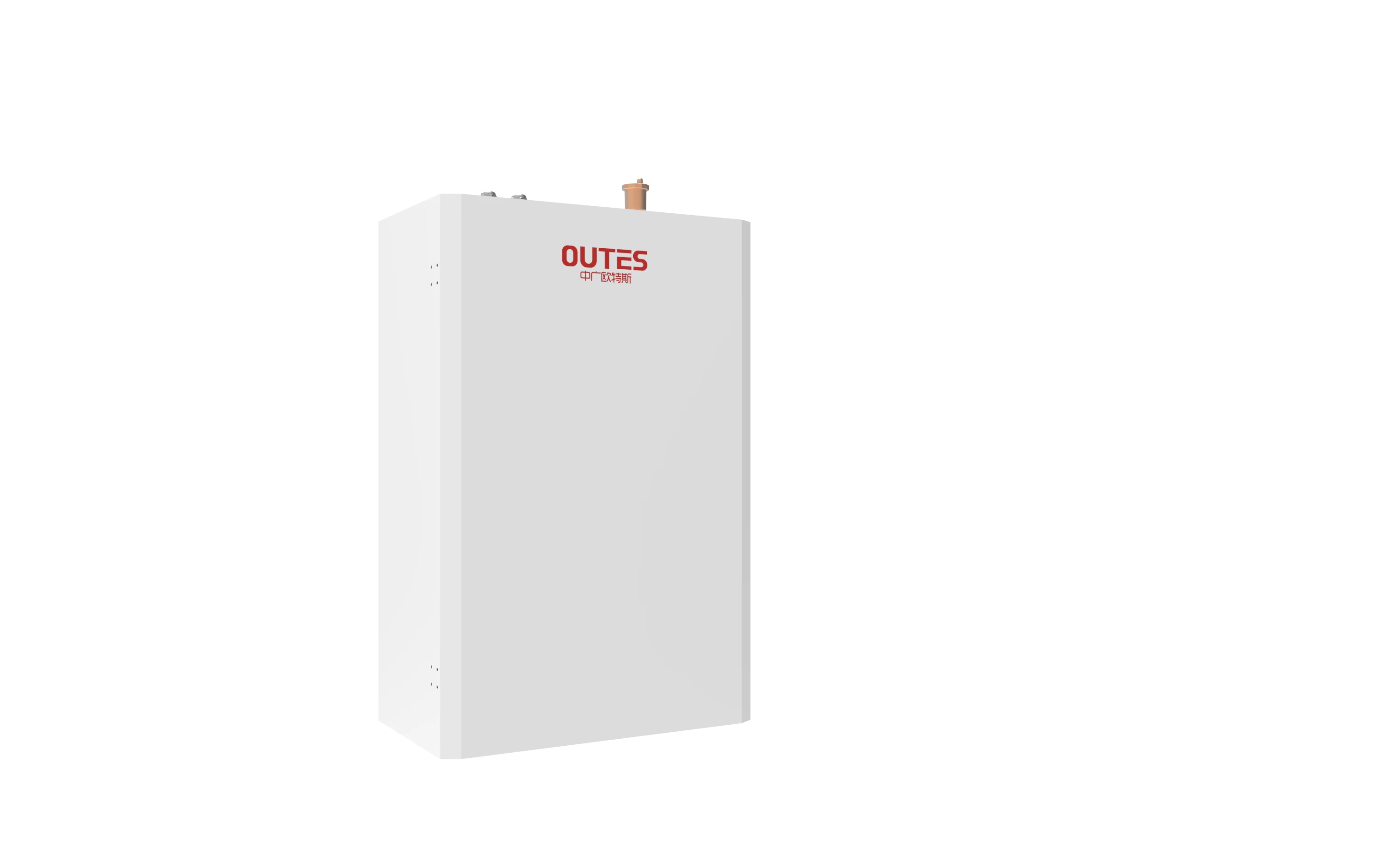

Indoor Unit | Net Dimension(L×W×H) | mm | 1015×527×297 | 1015×527×297 | 1015×527×297 | 1015×527×297 | 1015×527×297 | 1015×527×297 | 1015×527×297 | |
Packing Dimension(L×W×H) | mm | 1210×638×456 | 1210×638×456 | 1210×638×456 | 1210×638×456 | 1210×638×456 | 1210×638×456 | 1210×638×456 | ||
Max. Water Outlet Temperature | ℃ | 55 | 55 | 55 | 55 | 55 | 55 | 55 | ||
Container Loading（20'/40‘H） | Sets | 54/162 | 54/162 | 54/162 | 27/54 | 27/54 | 27/54 | 27/54 | ||
Remark：
1、Testing Condition：
Heating condition : Ambient Temp.(DB/WB):7℃/6℃，Water Temp.(In/Out):30℃/35℃.
Cooling condition :Ambient Temp.(DB/WB):35℃/24℃，Water Temp.(In/Out):12℃/7℃.
Hot water condition : Ambient Temp.(DB/WB):20℃/15℃，WaterTemp.(In/Out):15℃/55℃.
2、The above data test reference EN14825:2016
3、The data above is for reference only, Specific data is subject to the nameplate
