Price:$600.00 - $760.00

Quantity:


Product Overview

Description





Products Description




The 600W power supply and 1200W power supply from PCL series are compact adjustable programmable power supply in half 2U 19-inch rack mount size.

 The compact high voltage programmable power supply is available with variable power supply 30V, 60V, 100V, 100V, 150V, 200V, 300V, 400V, 500V and 600V DC power supply.

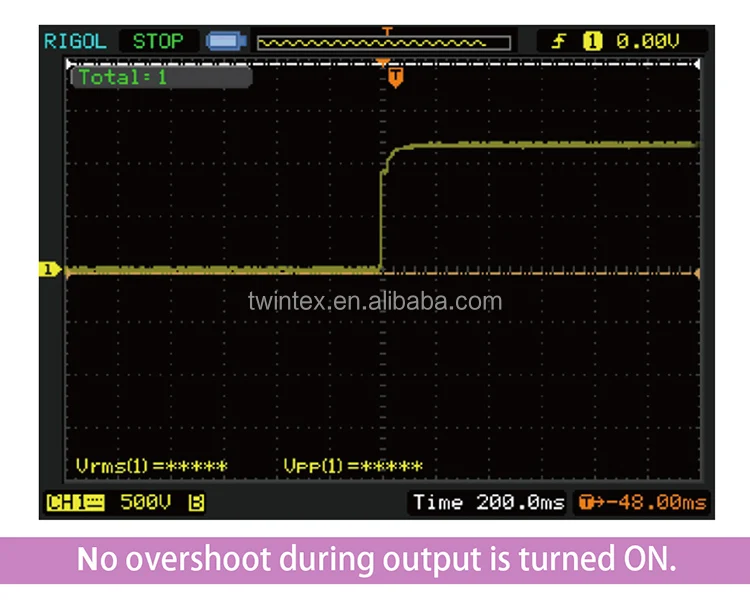

The precision power supply has no overshoot when output turned on. The programmable power supply has RS232 and RS485 interface for power supply control and for automatic power supply programmable.

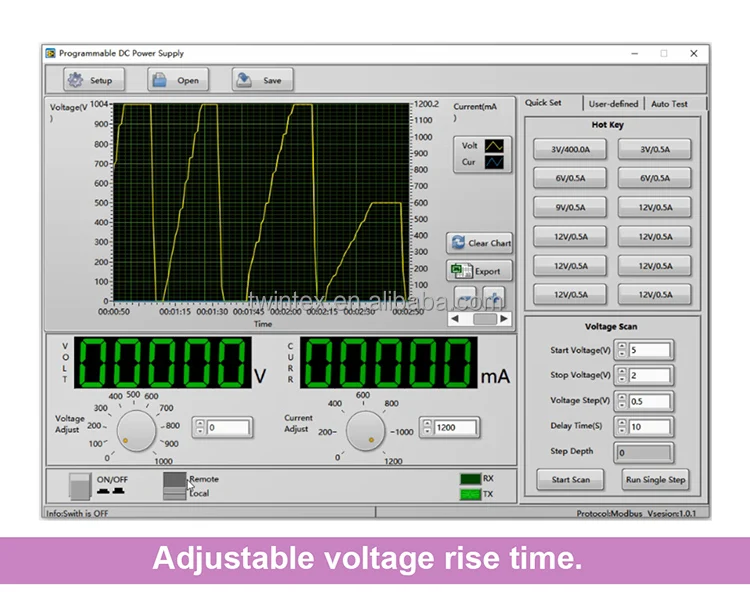

The variable voltage rise time can be set through programmable DC power supply software.

Features
>>> Adopting ZVZCS PWM technology, high efficiency and high stability
>>> 4 1/2 digits LED display for voltage and current
>>> Max.rated output 600W to 9KW
>>> Max.rated voltage from 6V to 600V, max.rated current from 2A to 300A
>>> Constant voltage and constant current operations, auto CV/CC switch
>>> Built into 19-inch standard chassis: 2U chassis for 600W~5KW, 3U chassis for 6KW~9KW
>>> Thermostatic control fan, low noise
>>> Low ripple, high stability
>>> No overshoot during startup
>>> List mode function, Auto Run function
>>> Preset function, setting of voltage and current with output open circuit

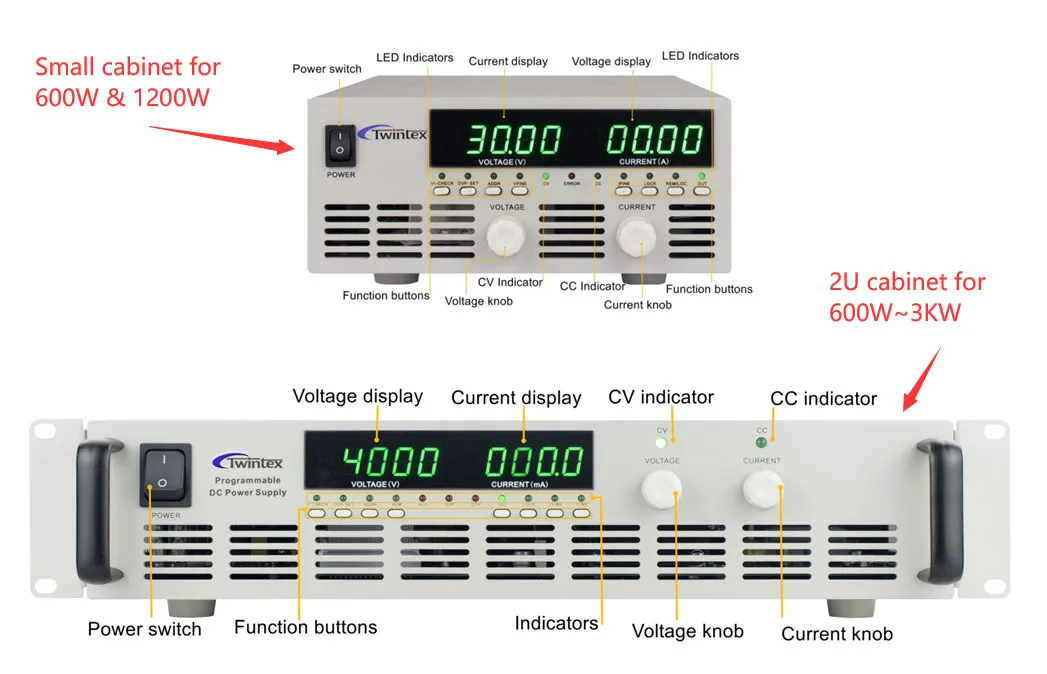

>>> Front panel operation: preset voltage and current, output ON/OFF
>>> Multiple protections: OVP, OTP, UVP and current limit protections

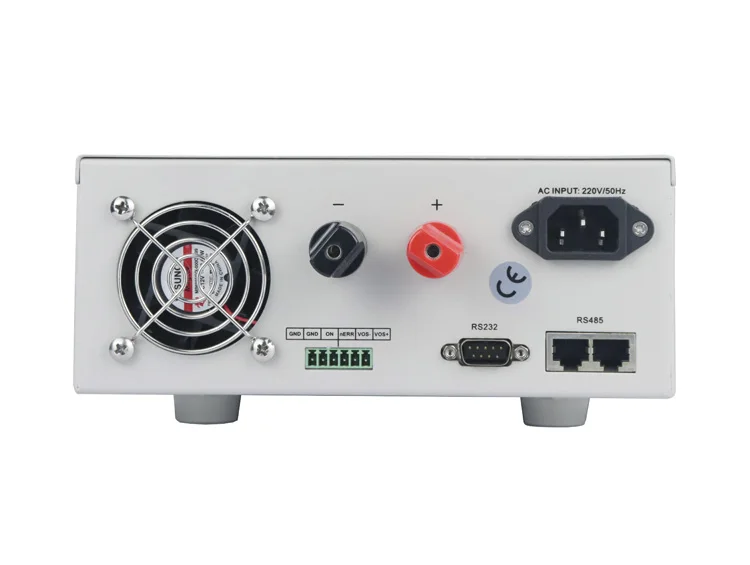

>>> Multiple programming interfaces: RS232, RS485
>>> Support ModBus-RTU commands


 Model
(600W)
Rated Output
Voltage Ripple
Programming Resolution
Display Resolution
V
A
OVP
V
A
OVP
V
A
PCL600-1H
0~100V
0~6A
0~105V
≤100mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL600-150
0~150V
0~4A
0~157.5V
≤100mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL600-2H
0~200V
0~3A
0~210V
≤200mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL600-3H
0~300V
0~2A
0~315V
≤200mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL600-4H
0~400V
0~1.5A
0~420V
≤200mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL600-5H
0~500V
0~1.2A
0~525V
≤200mV
0.1V
0.001A
0.1V
0.1V
0.001A
Dimensions
213Wx88Hx340D mm (1/2 2U)
Weight
Approx 5kg
AC Input
1φ3W (L, N, PE), 220V±10% 47~63Hz


 Model
(1200W)
Rated Output
Voltage Ripple
Programming Resolution
Display Resolution
V
A
OVP
V
A
OVP
V
A
PCL1200-20S
0~20V
0~60A
0~21V
≤50mV
0.01V
0.01A
0.01V
0.01V
0.01A
PCL1200-30S
0~30V
0~40A
0~31.5V
≤50mV
0.01V
0.01A
0.01V
0.01V
0.01A
PCL1200-60S
0~60V
0~20A
0~63V
≤50mV
0.01V
0.01A
0.01V
0.01V
0.01A
PCL1200-1HS
0~100V
0~12A
0~105V
≤100mV
0.1V
0.01A
0.1V
0.1V
0.01A
PCL1200-150S
0~150V
0~8A
0~157.5V
≤100mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL1200-2HS
0~200V
0~6A
0~210V
≤100mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL1200-3HS
0~300V
0~4A
0~315V
≤100mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL1200-4HS
0~400V
0~3A
0~420V
≤100mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL1200-5HS
0~500V
0~2.4A
0~525V
≤200mV
0.1V
0.001A
0.1V
0.1V
0.001A
PCL1200-6HS
0~600V
0~2A
0~630V
≤200mV
0.1V
0.001A
0.1V
0.1V
0.001A
Dimensions
213Wx88Hx340D mm (1/2 2U)
Weight
Approx 6kg
AC Input
1φ3W (L, N, PE), 220V±10% 47~63Hz


 Specifications
Output
Rated Voltage
DC 0~100% full range adjustable
Rated Current
DC 0~100% full range adjustable
OVP Range
DC 0~105% of rated voltage adjustable
Line Regulation
CV≤0.1%+2LSB, CC≤0.2%+2LSB
Load Regulation
CV≤0.1%+2LSB, CC≤0.1%+2LSB
Ripple & Noise
≤50mV / 100mV / 200mV
Programming Resolution
Voltage
0.001V / 0.01V/ 0.1V
Current
0.001A / 0.01A/ 0.1A
OVP
0.001V / 0.01V/ 0.1V
Interface
RS232, RS485
Commands
ModBus-RTU
Display
Meter
4 1/2 digits LED display for voltage and current
Display Resolution
Voltage
0.001V / 0.01V/ 0.1V
Current
0.001A / 0.01A/ 0.1A
Display Accuracy
Voltage
≤0.2%FS+2LSB
Current
≤0.5%FS+2LSB
Protection
Over Voltage Protection
(O.V.P .)
Built-in OVP protection with limit of 105% rated output voltage
The output will be shut down when OVP is activated
Over Temperature
Protection (O.T.P.)
 Built-in OTP protection with heat sink temperature limit of 50℃±5%.
The output will be shut down when OTP is activated
 Under Voltage Protection
(U.V.P.)
 Built-in UVP protection with limit of 165Vac.
The output will be shut down when UVP is activated.
General
Cooling method
Cooling fan
Operating environment
0℃~40℃, 10%~80%RH
Storage environment
-20℃~70℃, 10%~90%RH
