Multifunctional Customized Design New Vibratory Screening Separator Vibration Separation Machine Vibratory Separator
- Category: >>>
- Supplier: Huzhou Lucky Bridge Polishing Co. Ltd.
Share on (1600549708044):
Product Overview
Description
Products Description

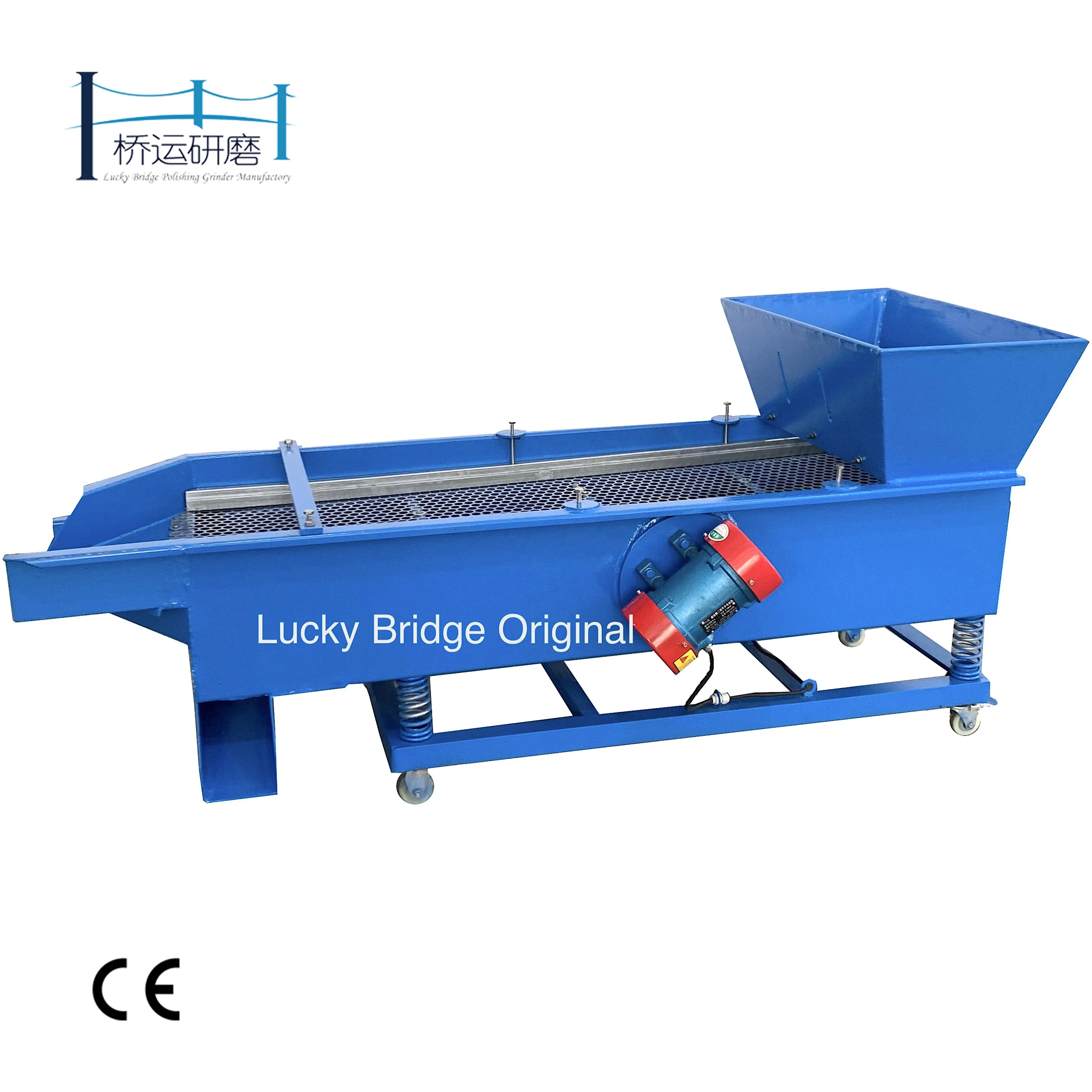

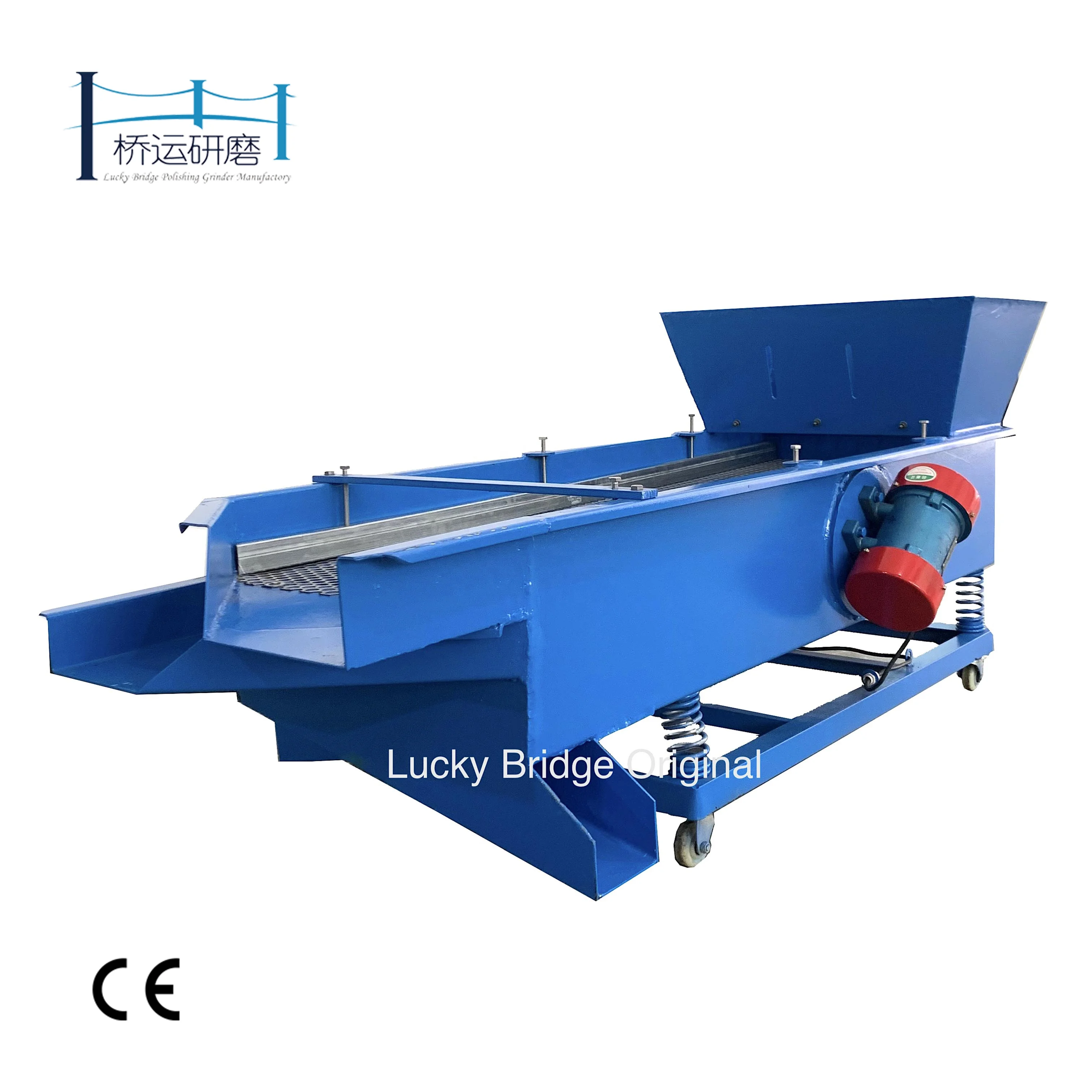

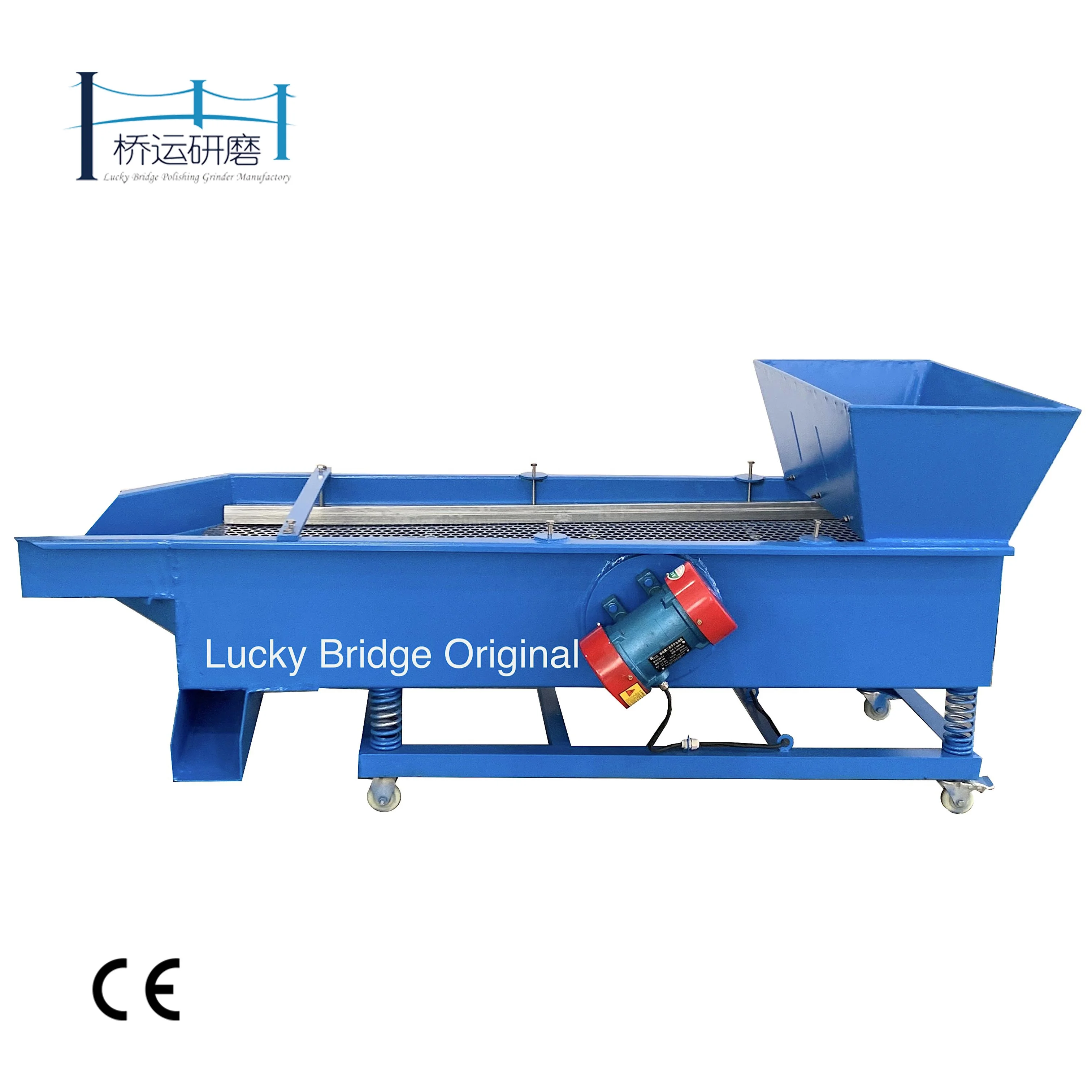

Lucky Bridge Vibratory Separator
Parts - Media Separating
Vibratory Separator
Vibrating Sieve
Separation Equipment
Vibratory separators are an integral part of any mass finishing product line, because they are the most effective way of separation. In the mass finishing industry, vibratory separator, are used for multiple reasons.
First, they provide a very large screening area for separating parts and finishing media from each other, which is typically being fed from a batch vibratory finisher. This offers a much larger surface area to screen parts and media that are closer in size than a typical vibratory finisher can allow.
Secondly, they can be used to classify finishing media, removing unwanted sizes, to help ensure the future processes will not allow media to lodge in your parts.
Lastly, vibratory separator can provide extra screening for parts that come off of a standard vibratory finisher, but may still possibly have some media in them (whether it is from a cup shaped part or parts that may blind the finisher screen deck) that needs to be removed before going downstream in their processing. If your customer demands no foreign material in your parts and you are having a hard time achieving that, a vibratory separator will give you that extra “screen deck time” to achieve the result.
As with all VibeTech equipment we construct our separator out of heavy duty steel to ensure a long life. Twin motors create the linear motion and vibration required to transfer the mass forward and generate enough vertical action to aid in separation.

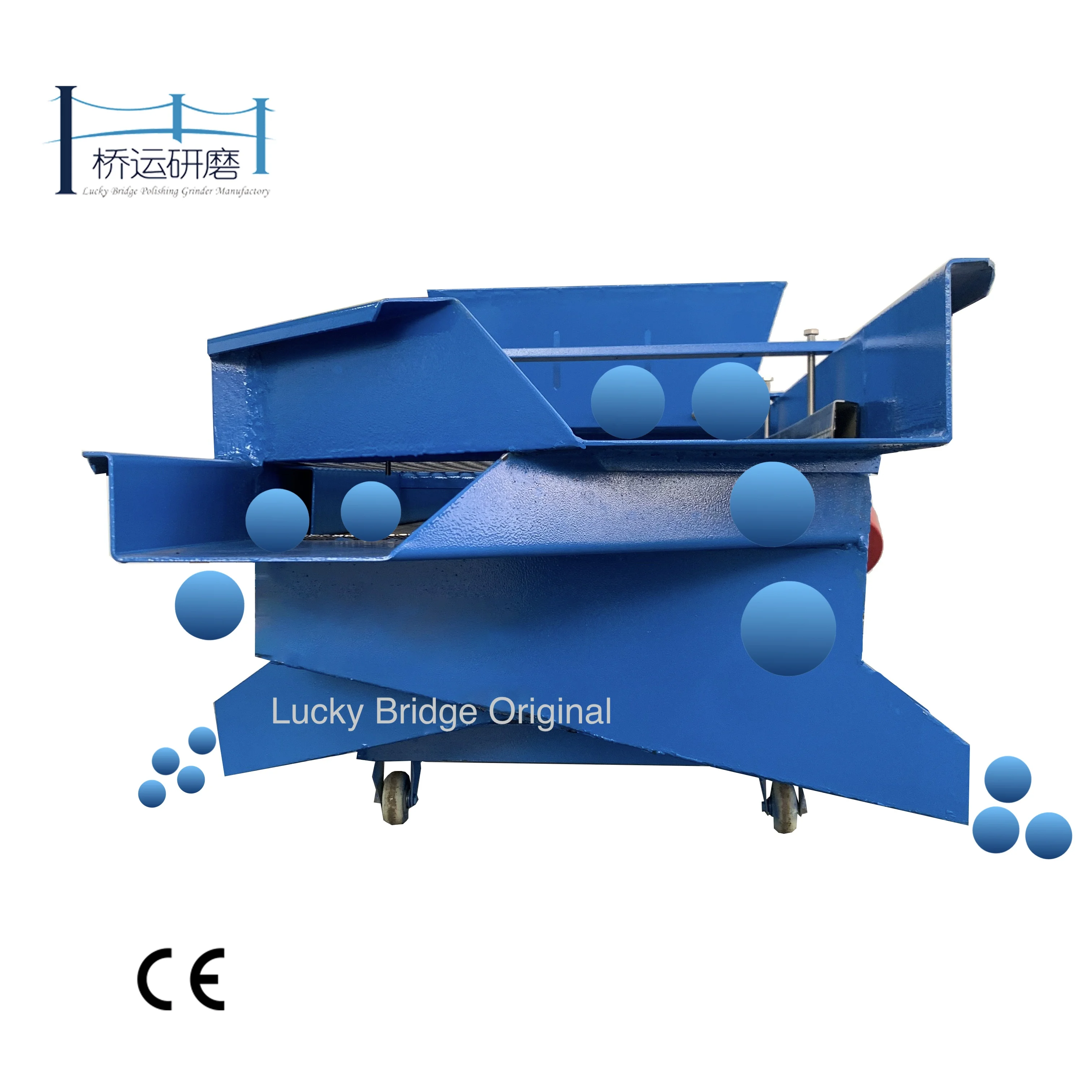

In most applications, the media or screened material is dropped to a lower level, moved to the end of the machine, and then discharged to the side where the customer’s media hopper would be located. With the dual deck design, we are not only able to screen media from parts, but once the media drops to the lower level (in most applications) we can also classify the media and remove any unwanted chips, small media fines, or waste water.
The specifications listed are our standard machines, but many customizations are available and heights can be changed to suit your needs.
Technical Details
Before & After
Related Tumbling Media
Our Valued Clients
Our Clients Saying
Why Lucky Bridge
Huzhou Lucky Bridge Polishing Co., Ltd
Lucky Bridge provides a complete and perfect solution when solving product surface treatment problems for our customers. We make the most reasonable choices for finishing machine, finishing media and finishing compound based on the material performance, structural shape, size, surface state and final surface requirement of the products. Mass Polishing will meet the customer’s requirements for the surface treatment of different products and the technology provided can fully enable customers to obtain various processing effects.
Lucky Bridge Company has always been committed to providing customers with high-quality surface treatment products and advanced surface treatment processes. Over 25 years’ surface treatment experience in the area, we have the lowest cost and best technology to our customers. We are proud of our professional advice, quality machine, fast technical delivery, and trusted after- sales service.
Lucky Bridge Company has always been committed to providing customers with high-quality surface treatment products and advanced surface treatment processes. Over 25 years’ surface treatment experience in the area, we have the lowest cost and best technology to our customers. We are proud of our professional advice, quality machine, fast technical delivery, and trusted after- sales service.
FAQ
[Q1] How Do You Control the Quality of Mass Finishing Machines?
[A1] Laser Cutting → Welding → Shot Blasting → PU Casting → Painting → Testing. We use high-quality raw materials and control every production step strictly. After production, we will test all parts, especially the running of motor and PU quality. We promise that the machine has excellent performance. The warranty period of our machine is two years, in case of non-human damage.
[Q2] How Do You Control the Quality of Consumables?
[A2] Starting with the mixing ratio of raw materials, until the sorting of impurities. We have mastered the points that need attention in each step. The low loss, high grinding capacity and high polishing ability of media are our advantages.
[Q3] How Long is Your Lead Time?
[A3] We will arrange shipment within 12 days after payment. 15 days ready to leave at Shanghai port or Ningbo port.
[Q4] Can You Provide Sample Finishing Process?
[A4] Yes, we provide FREE sample finishing process. Lucky Bridge does not charge any service fee for sample trial. Please contact us!
[Q5] Can You Provide Cleaning System?
[A5] Yes, we also make the cleaning system, it is also named waste water treatment.
[Q6] Can You OEM the Tumbling Media?
[A6] Yes, we offer OEM solutions for tumbling media. You just send us the media sample, we will make a testing report then we talk it.
[Q7] Can I Reduce the Noise of Vibratory Finishing Machine?
[A7] Yes, we can make a soundproof cover to reduce the noise.
[Q8] Is Easy to Operate Your Mass Finishing Machine?
[A8] Yes, the machine is very easy to operate, and we also guide you how to use at first time.
[Q9] What is Your Mass Finishing Machine Finishing Process Method?
[A9] Deburring, Polishing, Radiusing, Degreasing, Cleaning, Smoothing, Fine Polishing, Mirror Polishing, Super Finishing, Isotropic Finishing, Ball Burnishing, Derusting, Descaling, Pickling, etc.
[Q10] What is Your Packaging Way?
[A10] About machine, strong plywood for only one set. About media, 25kgs per woven bag, 1000kgs per pallet. About compound, 50kgs or 25kgs per plastic barrel.
[Q11] What are Your Price Terms?
[A11] FOB, CFR, CIF, EXW, DDU, DAP Price mainly. If you need delivered price (DDU, DAP), you may have to wait 1-2 days.
[Q12] What is the Nearest Port?
[A12] Shanghai port, Ningbo port.
[Q13] What is Your Payment Method?
[A13] T/T usually, we also accept Paypal. We provide all customers with Trade Assurance Order. “PQS” Protection. (Payment Protection, Quality Protection, Shipping Protection)
[Q14] Which Certificates do You Have?
[A14] ISO9001:2015, CE, SGS, Safe Transportation Report, etc.
[A1] Laser Cutting → Welding → Shot Blasting → PU Casting → Painting → Testing. We use high-quality raw materials and control every production step strictly. After production, we will test all parts, especially the running of motor and PU quality. We promise that the machine has excellent performance. The warranty period of our machine is two years, in case of non-human damage.
[Q2] How Do You Control the Quality of Consumables?
[A2] Starting with the mixing ratio of raw materials, until the sorting of impurities. We have mastered the points that need attention in each step. The low loss, high grinding capacity and high polishing ability of media are our advantages.
[Q3] How Long is Your Lead Time?
[A3] We will arrange shipment within 12 days after payment. 15 days ready to leave at Shanghai port or Ningbo port.
[Q4] Can You Provide Sample Finishing Process?
[A4] Yes, we provide FREE sample finishing process. Lucky Bridge does not charge any service fee for sample trial. Please contact us!
[Q5] Can You Provide Cleaning System?
[A5] Yes, we also make the cleaning system, it is also named waste water treatment.
[Q6] Can You OEM the Tumbling Media?
[A6] Yes, we offer OEM solutions for tumbling media. You just send us the media sample, we will make a testing report then we talk it.
[Q7] Can I Reduce the Noise of Vibratory Finishing Machine?
[A7] Yes, we can make a soundproof cover to reduce the noise.
[Q8] Is Easy to Operate Your Mass Finishing Machine?
[A8] Yes, the machine is very easy to operate, and we also guide you how to use at first time.
[Q9] What is Your Mass Finishing Machine Finishing Process Method?
[A9] Deburring, Polishing, Radiusing, Degreasing, Cleaning, Smoothing, Fine Polishing, Mirror Polishing, Super Finishing, Isotropic Finishing, Ball Burnishing, Derusting, Descaling, Pickling, etc.
[Q10] What is Your Packaging Way?
[A10] About machine, strong plywood for only one set. About media, 25kgs per woven bag, 1000kgs per pallet. About compound, 50kgs or 25kgs per plastic barrel.
[Q11] What are Your Price Terms?
[A11] FOB, CFR, CIF, EXW, DDU, DAP Price mainly. If you need delivered price (DDU, DAP), you may have to wait 1-2 days.
[Q12] What is the Nearest Port?
[A12] Shanghai port, Ningbo port.
[Q13] What is Your Payment Method?
[A13] T/T usually, we also accept Paypal. We provide all customers with Trade Assurance Order. “PQS” Protection. (Payment Protection, Quality Protection, Shipping Protection)
[Q14] Which Certificates do You Have?
[A14] ISO9001:2015, CE, SGS, Safe Transportation Report, etc.
