High CRI 80/90/95 16W 20w 24W 30w 50W 1919 2700K 3000K 4000K 6000K led cob lamp bead for LED underwater lamp
- Category: >>>
- Supplier: Shenzhen Learnew Industrial Co. Ltd.
Share on (1600549722675):
Product Overview
Description

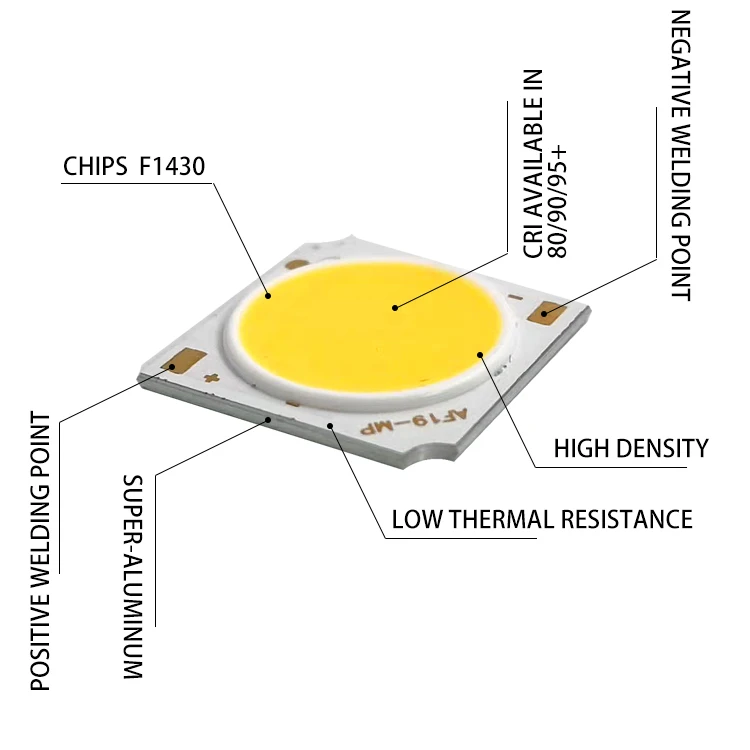

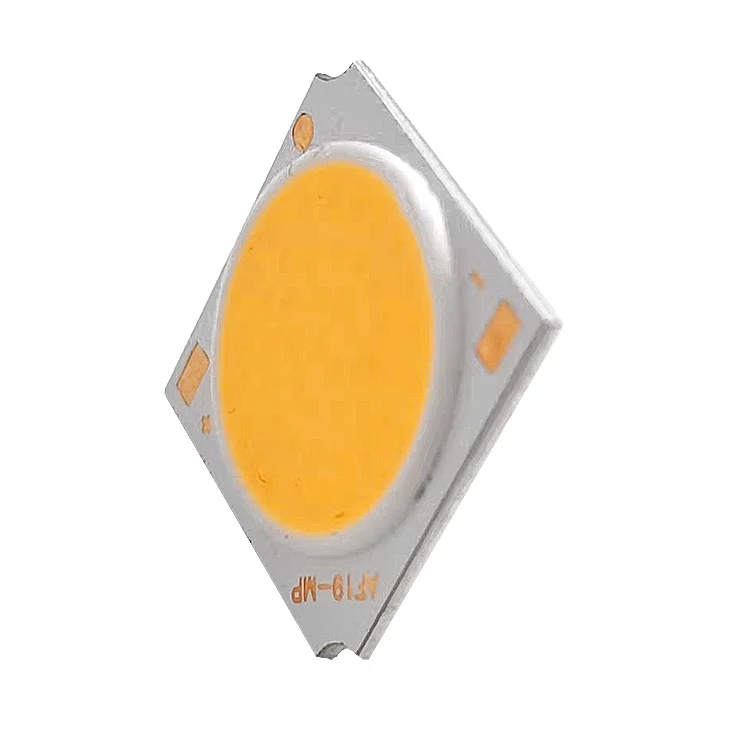

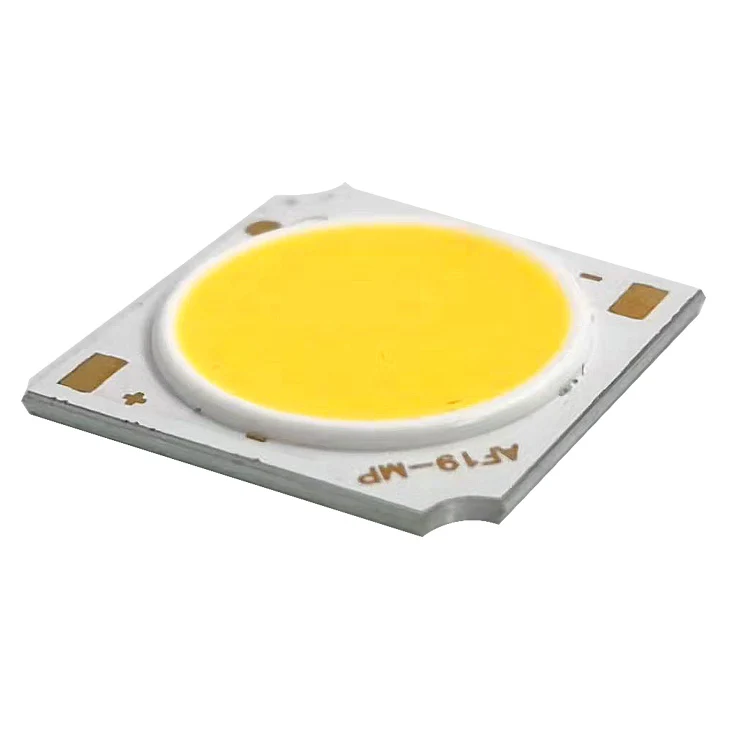

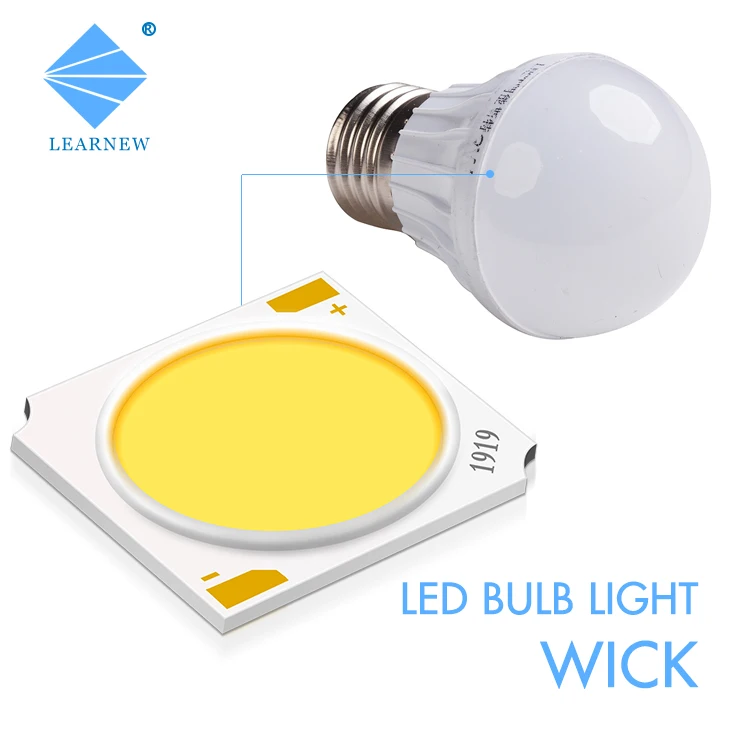

High CRI 80/90/95+ 16W 20w 24W 30w 50W 1919 2700K 3000K 4000K 6000K led cob lamp bead for LED underwater lamp
Specification

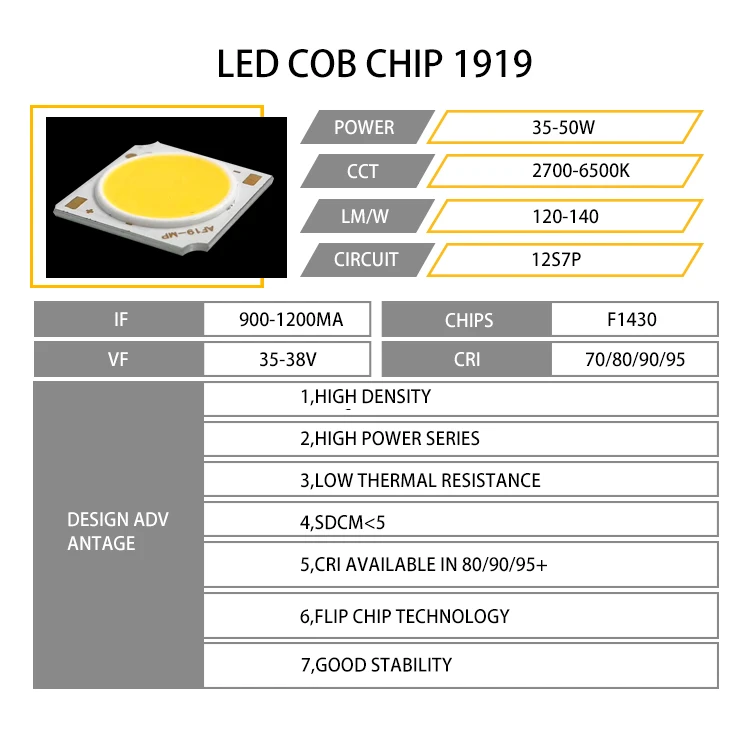

Product name | High efficiency high power COB LED chip | ||||||||
Model name | 1414 series | 1919 series | 2828 series | 4046series | |||||
Consume power | 5-20w | 20-50w | 40-80w | 45-110w | |||||
Input voltage | 15-17v @ 5w 21-24v @ 7w 30-34v @ 10w 34-38v @ 20w | 30-34v 34-38v | 30-34v 34-38v | 30-33v | |||||

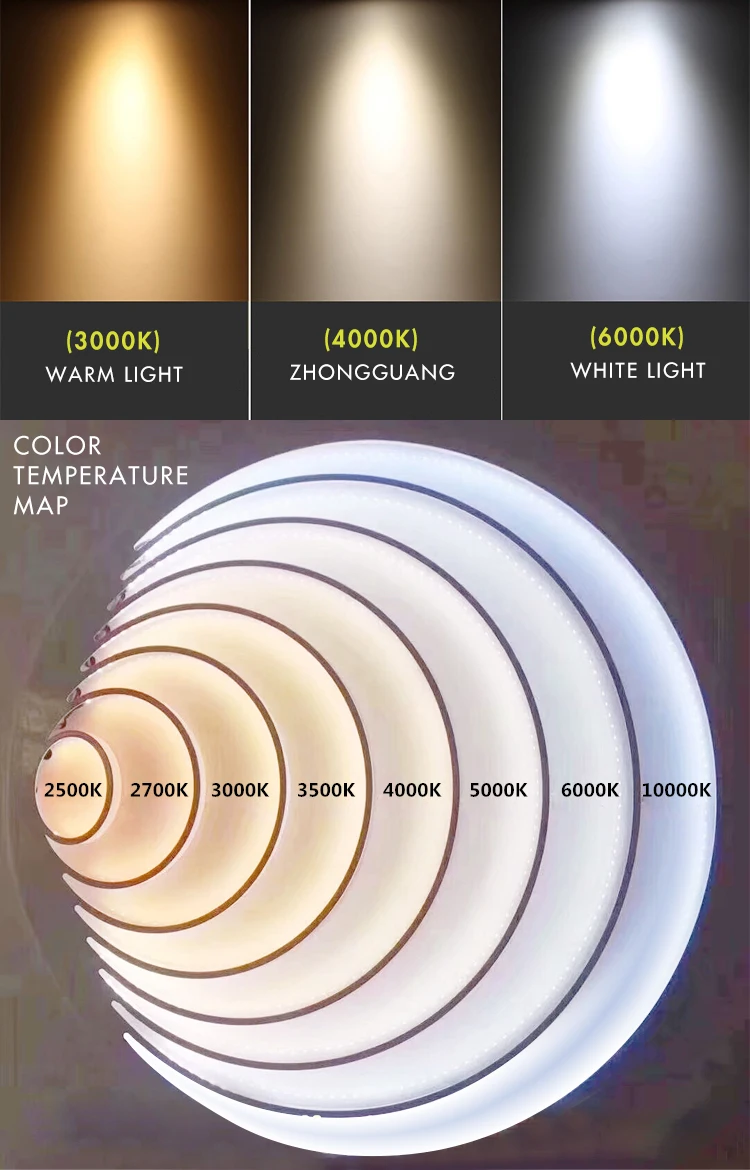

Color temperature | 2700-6500K or customized | ||||||||
Luminous efficiency | 100-140lm/w | ||||||||
Current flow | 280-600mA | 700-1200mA | 1100-2200mA | 1350-3200mA | |||||
Circuit | 5S2P 7S2P 12S2P 12S4P | 12S4P 12S8P | 12S8P 12S12P | 10S10P 10S21P | |||||
Chips | Sanan,HC,Bridgelux or Epistar flip chip | ||||||||
CRI | Ra80 or high CRI Ra90 Ra95 Ra98 for option | ||||||||

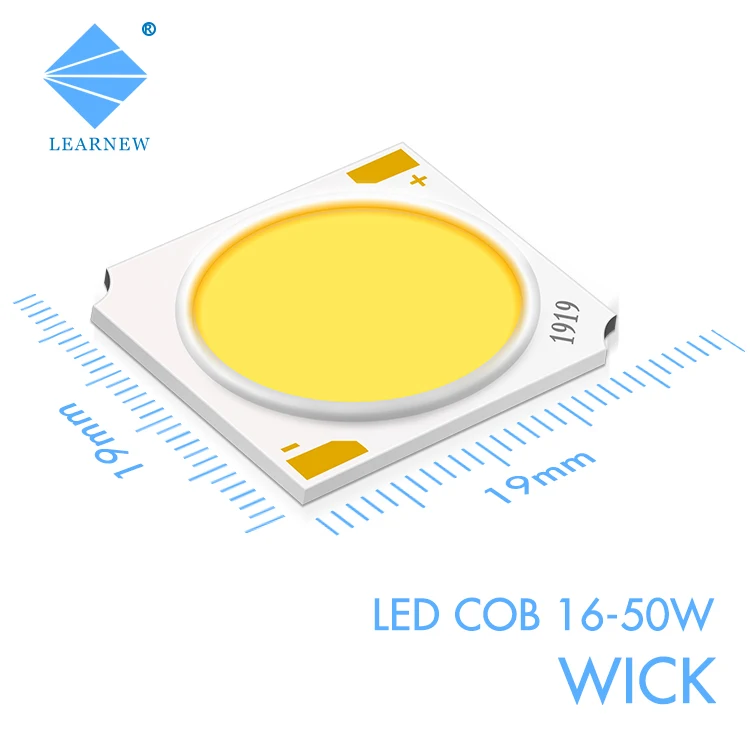

Whole size | 13.5*13.5mm | 19*19mm | 28*28mm | 40*46mm | |||||
LES size | R10.5mm | R17mm | R23mm | 25*25mm | |||||
View angle | 120DEG | ||||||||
Substrate | Mirro aluminum or super aluminum or ceramic | ||||||||
Working temp | <=80C | ||||||||
Warranty | 3-5 years | ||||||||

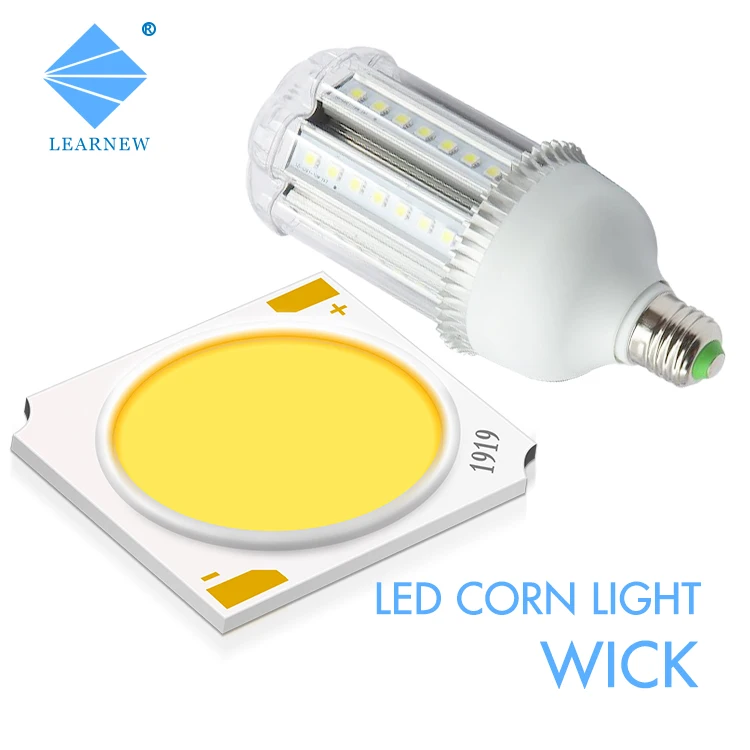

Application | LED spotlight, LED downlight, LED growlight, LED tracking light, LED bulb, LED streetlight | ||||||||
Lighting LED COB

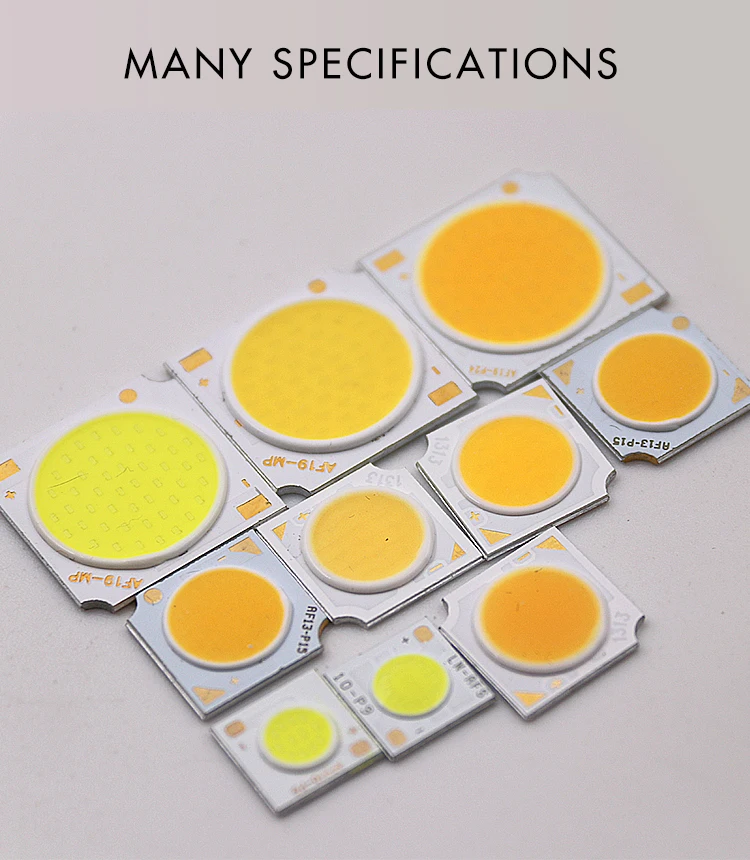

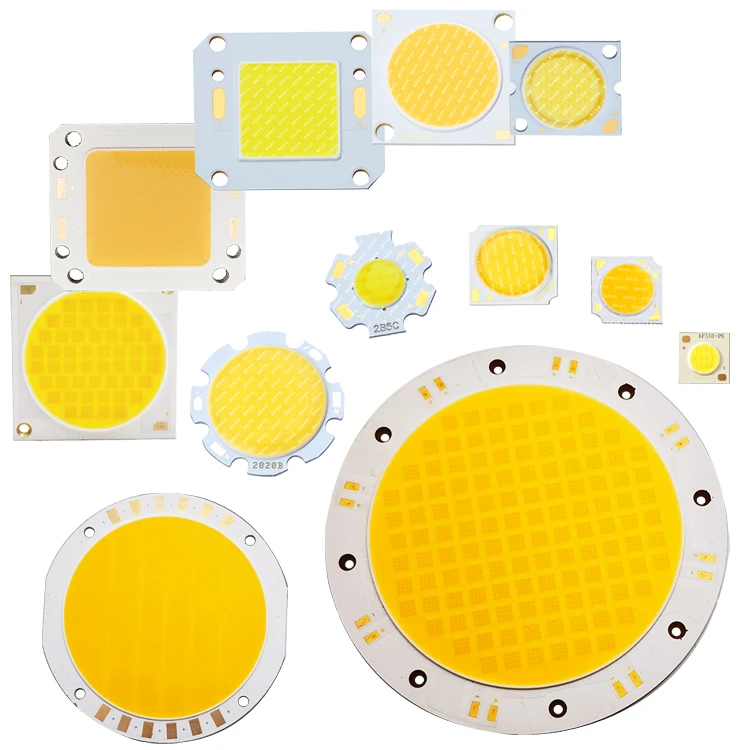

》》1010 1919 2828 3838 4060 4642 different size COB LED available
》》Small power COB 3W 5W 7W 9W 12W 24W 30W 35W 40W
》》Midble Power COB 50W 60W 80W 100W
》》High Power COb 200W 300W 500W 1000W 2000W 4000W 6000W
》》Cri with Ra80 Ra90 Ra95 Ra98, customer made voltage,CCT
Products Description
Product packaging
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
