WTL SR6 5.0 x 3.5mm SMD 75kHz 1.5dB saw resonator 433.92mhz
- Category: Resonators >>>
- Supplier: WTL International Limited
Share on (1600549740410):
Product Overview
Description
Product Description

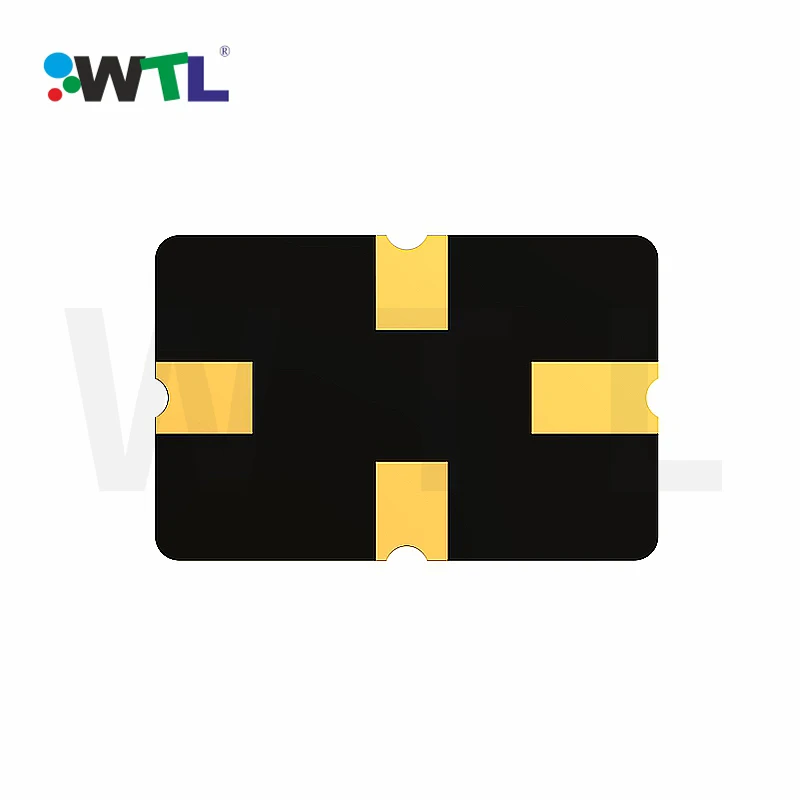

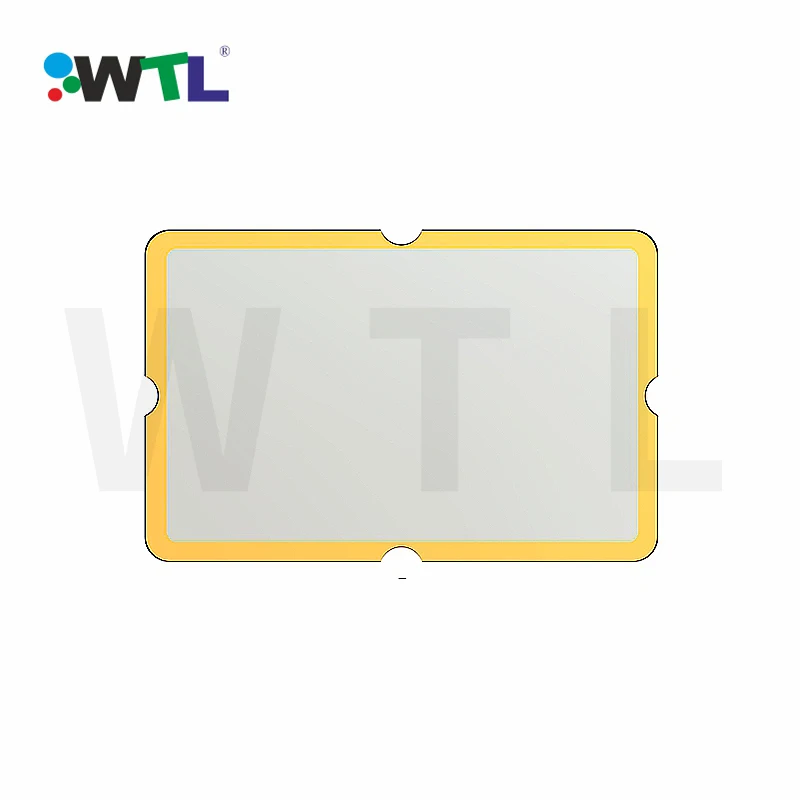

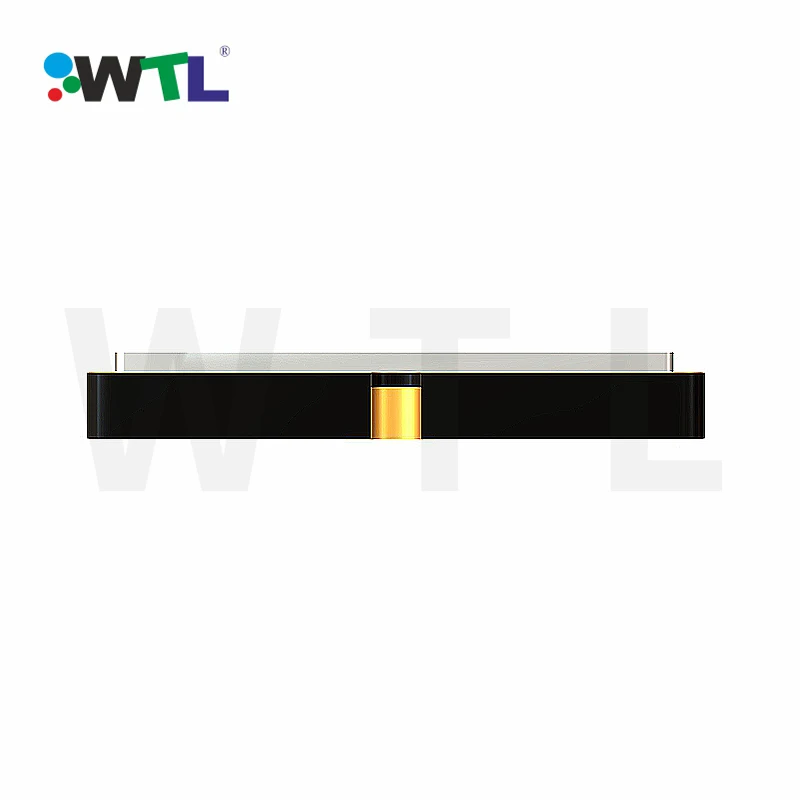

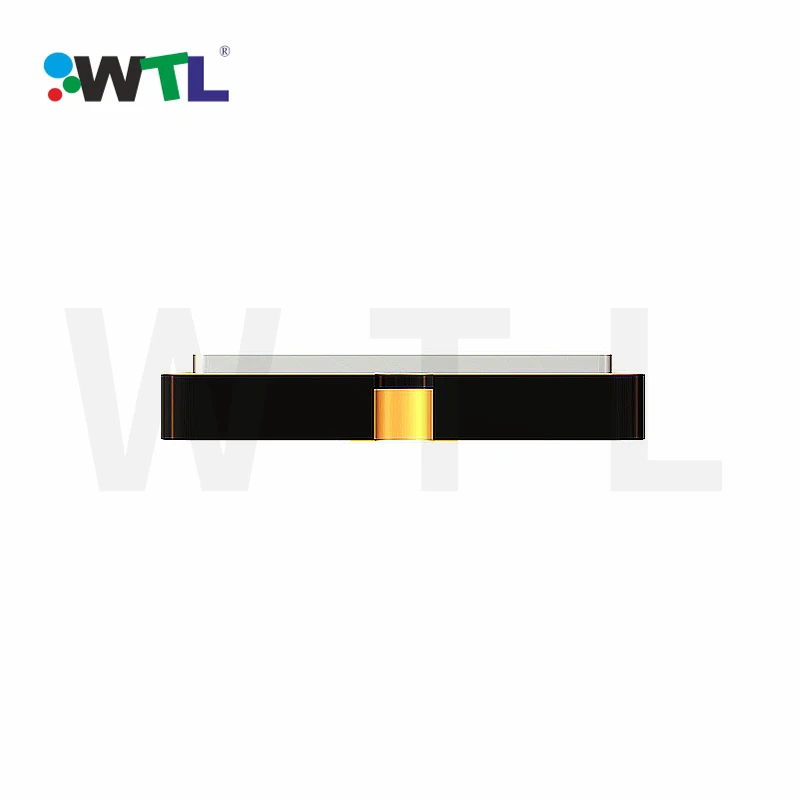

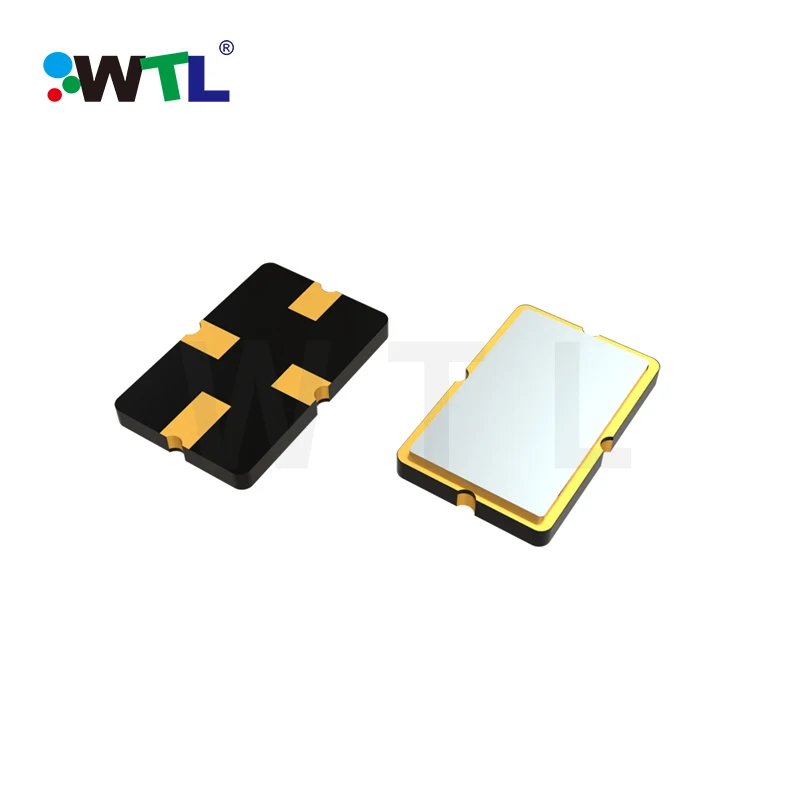

SAW Resonator, Series SR6

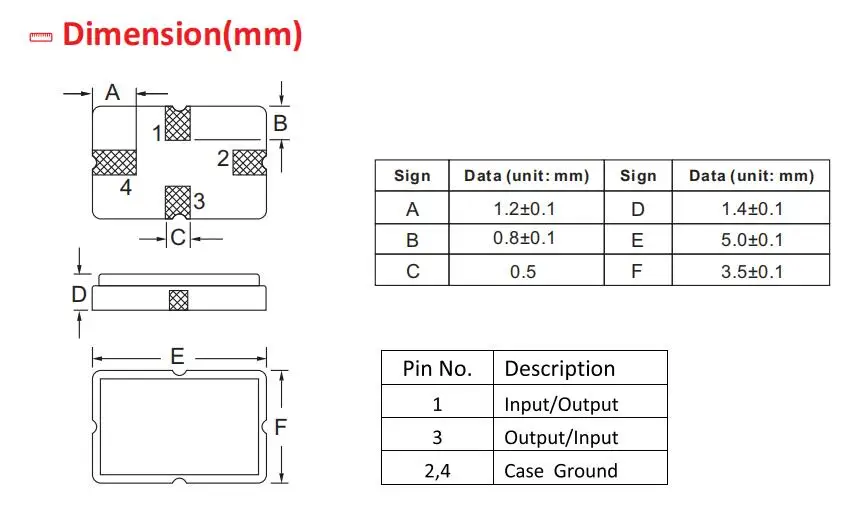

SMD 5.0×3.5×1.5mm
Feature
1.Small size 5.0×3.5x1.5mm
2.The optional frequency can be customized
3.High transmit and receive sensitivity
4.High temperature resistance and impact resistance
5.Good power and reliability
6.RoHS compliant
Electrical Specifications
| Item | Specifications |
| Frequency(MHz) | 433.92 MHz |
| Frequency Tolerance( at 25°C ) | ±75 kHz |
| Insertion loss | 1.5 dB |
| Operating Temperature Range | -20~+70°C |
| Storage Temperature Range | -55~+125°C |
| Aging @25 °C 1st Year (Max) | ±10ppm |
Our Advantages
1.Established: Year 2012.
2.Full range of frequency components including:
Quartz Crystal, Watch Crystal, Saw(ceramic) Resonator&Filter, Oscillator, TCXO,VCXO,VC-TCXO,OCXO and Dielectric Antenna etc.
3. Complete quality system including:
a)IQC,IPQC,FQC,OQC,QA
b)Whole ERP system control
c)ISO9001,ISO14001
d)RoHS &SGS,meet the export standards of EU
4. The professional team Such as:
a)365 days online serivce
b)Solid knowledge of English language,support you solving quality problems
c)Professional operating global courier
d)Salesman graduated from the domestic or overseas foreign trade university
e)Perfect training system,all team members have to be trained before working
5.Over 100+ Countries and Regions, 30+ Distributors.
Benefits for you if we cooperate
1.PCB VS Crystal Matching Test for Free
2.FAE Support
3.Provide A Full Set of Reliability Lab
4.Door to Door Service
5.Global 180 Days Return
6.Custom-made Frequencies Due to we have our own Wafer Production Line
