Product Overview
Description
Summarize
Port ethernet MIMO IP MESH Video Data Transfer Web management
Shenzhen Safe Guard Co., Ltd
www.hksfgt.com

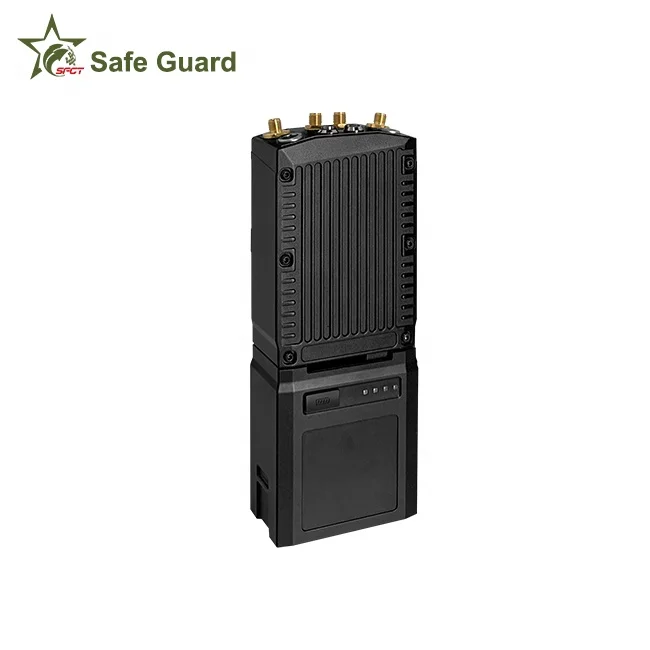

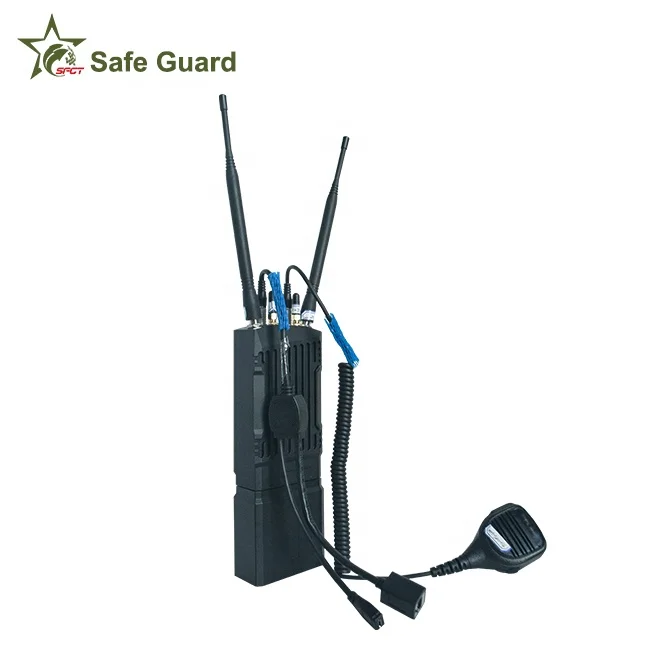

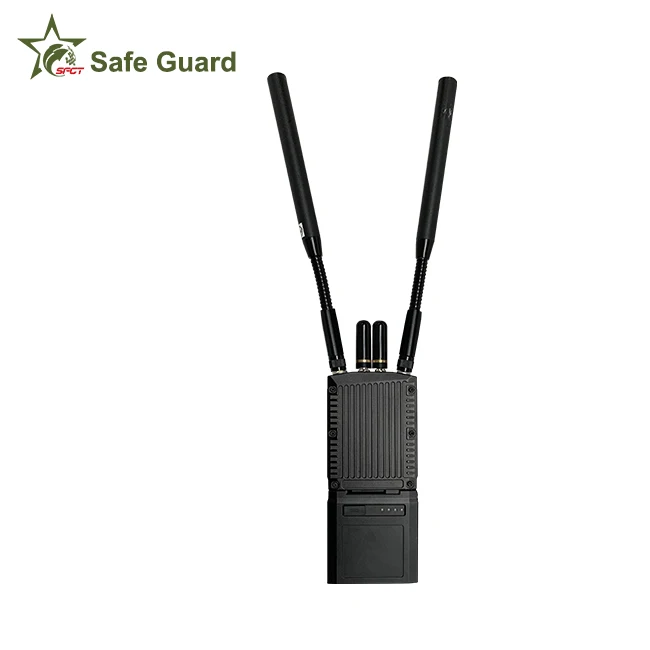

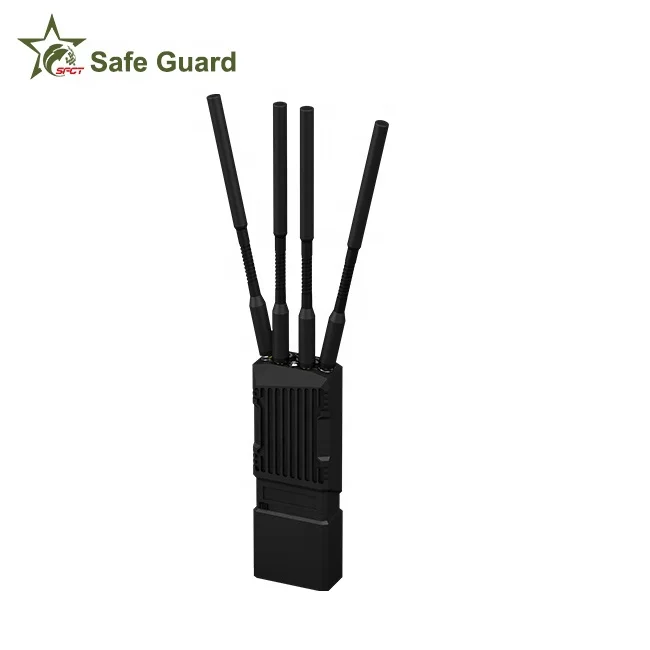

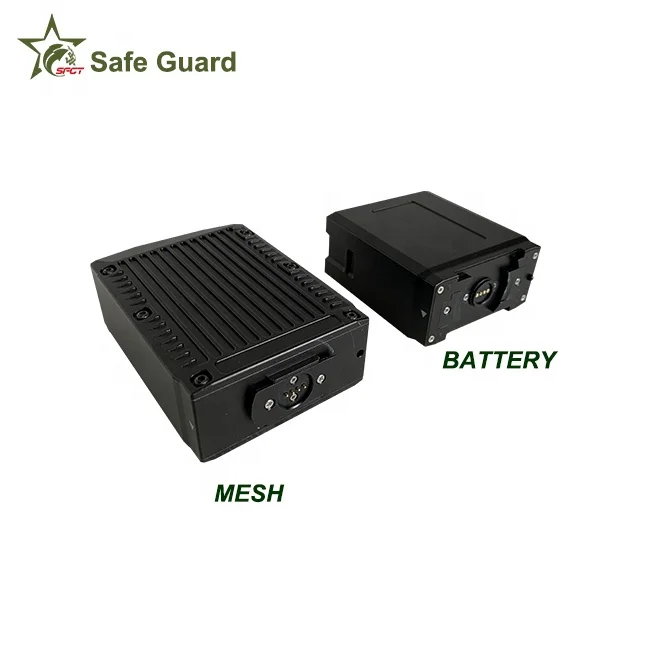

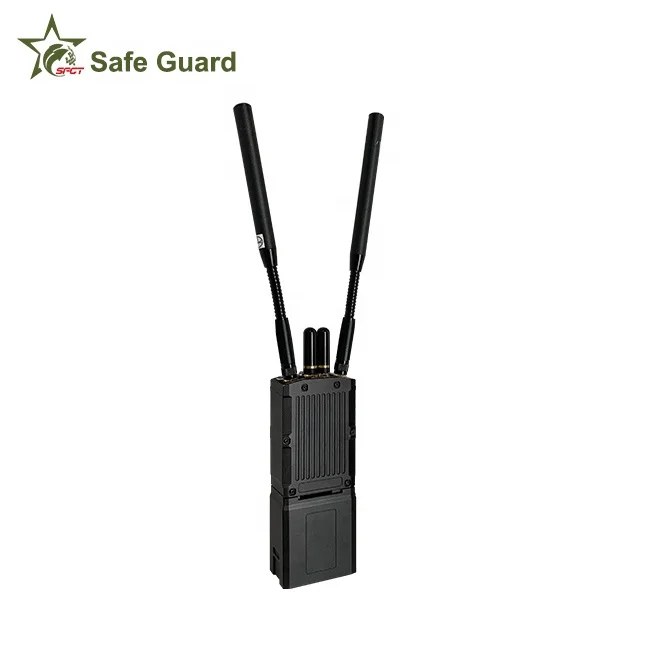

Based on the growing demand of the proprietary communications market, our newest Mesh product model SFGT-MS0202MP can able to deliver video, voice, and data signals over IP networks in a complex environment with a Longer distance, stronger diffraction ability, higher transfer rate and self-defined security encryption.The Mesh is suitable not only for PTP communication, but also centerless multi-hop ad hoc network.
As Mesh self-organizing/self-healing features make it very suitable for motion surveillance with high quality image and emergency communication.
Features
Port ethernet MIMO IP MESH Video Data Transfer Web management is
- Non-line-of- sight communication
- Self-organizing network
- Self-encrypting security algorithm
- Frequency can be customized at rang of 100~4400MHz
- High transmission rate: peak 11Mbps @ 10MHz
- Ultra-strong receiving sensitivity: -92dbm @ 10MHz
Application
Port ethernet MIMO IP MESH Video Data Transfer Web management is military grade machine design, lightweight, for portable. Shell-case of metal material, military level designed and lightweight to take full consider of heat dissipation, security, harsh working conditions and other factors, and easy for deployment and operation.
Port ethernet MIMO IP MESH Video Data Transfer Web management is widely used in public security, armed police, fire, disaster relief and other emergency communications systems; UAV aerial, electricity, water, waterway, border and other monitoring.
Parameter
Transmission characteristics | GPS | Optional external GPS module, support Beidou GPS module | |
Frequency | 340MHz/580MHz | 3G/4G module | support |
RF bandwidth | 5/10MHz (optional) | WIFI module | support |
RF output power | 5Watt (optional) | Encryption | AES 128 bit or custom |
Shoulder ratio | 30dBm>-45dbc | Electrical characteristics | |
Modulation | COFDM | Working voltage | DC12V |
Modulation constellation | BPSK/QPSK/16QAM/64QAM | Working current | ≤2A |
FEC | 1/2,2/3,3/4,5/6 | Power consumption | ≤20W |
sensitivity | -92dbm@10MHz | The built-in filter characteristics | |
Transfer rate | Peak 11Mbps@10MHz | Center frequency | 340MHz |
Cover distance | customized | bandwidth | 10MHz |
Networking capability | up to 32 nodes |
|
|
Data characteristics | |||
Video input format | Videoinput: CVBS, 1Vp-p@75Ω,PAL 720*576(D1) |
|
|
| IP video input: 1080P IP Camera | Physical characteristics | |
Audio input format | MIC | Protection grade | IP65 |
Audio output format | headphone | Working temperature | -20℃~+50℃ |
Video compress format | H.264/H.265 | Storage temperature | -40℃~+80℃ |
Video bit rate | 3Mbps Max | Dimension | 200×130×50mm |
RS232 data serial port | 150bps~38.4kbps | Weight | 1.4Kg |
