Product Description

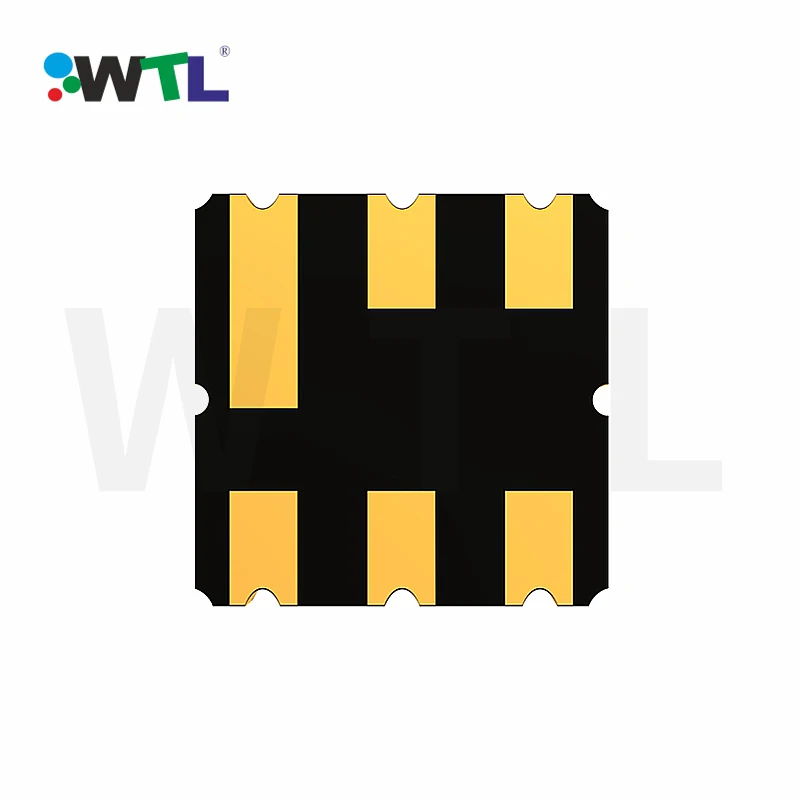

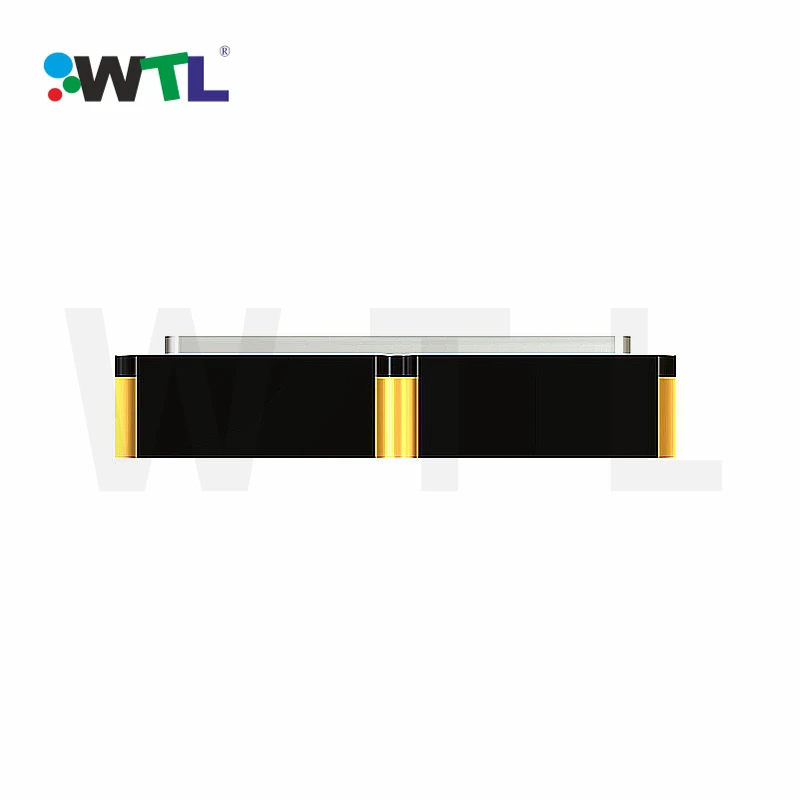

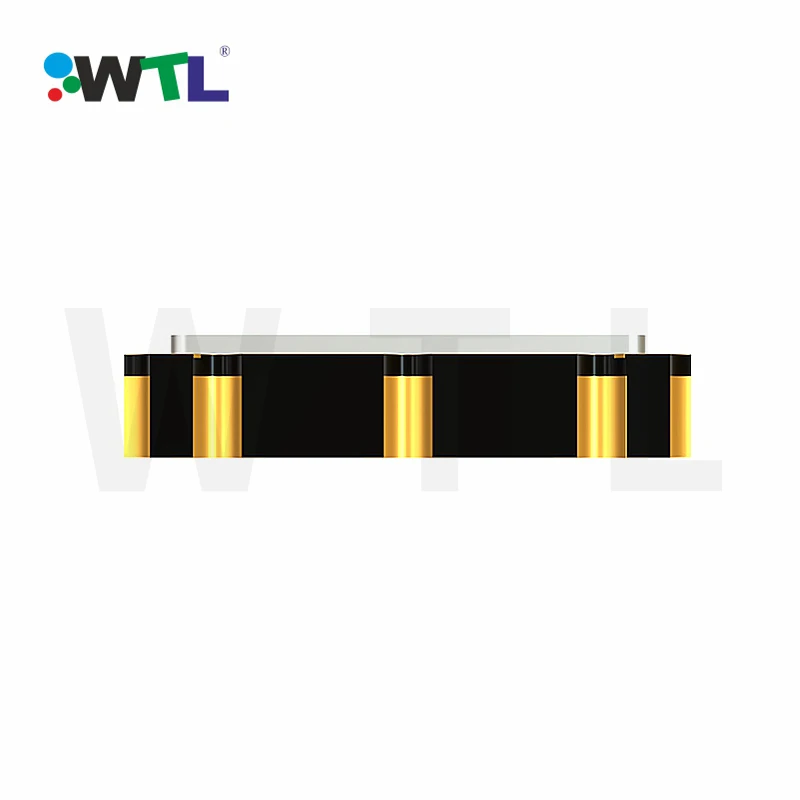

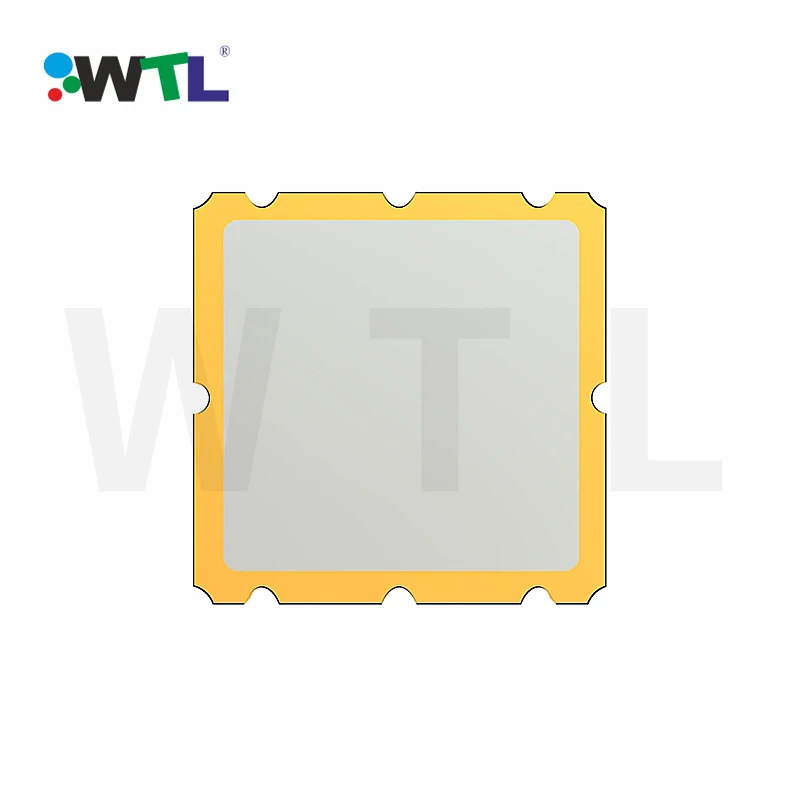

SAW Resonator, Series SR4
SMD 3.8×3.8×1.5mm








Feature




1.Small size 3.8×3.8x1.5mm


2.The optional frequency can be customized


3.High transmit and receive sensitivity


4.High temperature resistance and impact resistance


5.Good power and reliability


6.RoHS compliant




Electrical  Specifications





































ItemSpecifications
Frequency(MHz)315 MHz
Frequency Tolerance( at 25°C )±75 kHz
Insertion loss1.5 dB
Operating Temperature Range-40~+85°C
Storage Temperature Range-55~+125°C
Aging @25 °C 1st Year (Max)±10ppm
