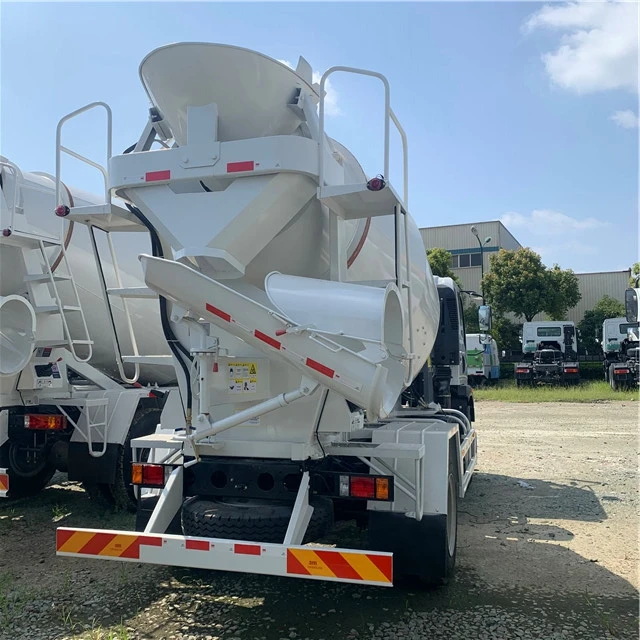

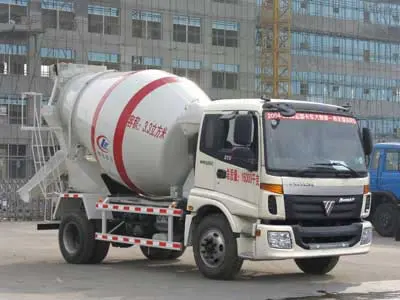

Foton Concrete Mixer Truck with pump 4 m3 factory price
- Category: >>>
- Supplier: Chengli Special Automobile Co. Ltd.
Share on (1600549773151):
Product Overview
Description
Product Description

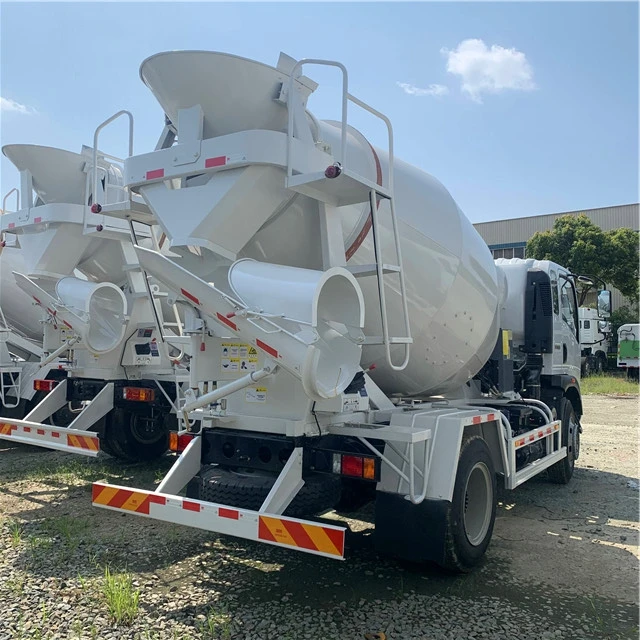

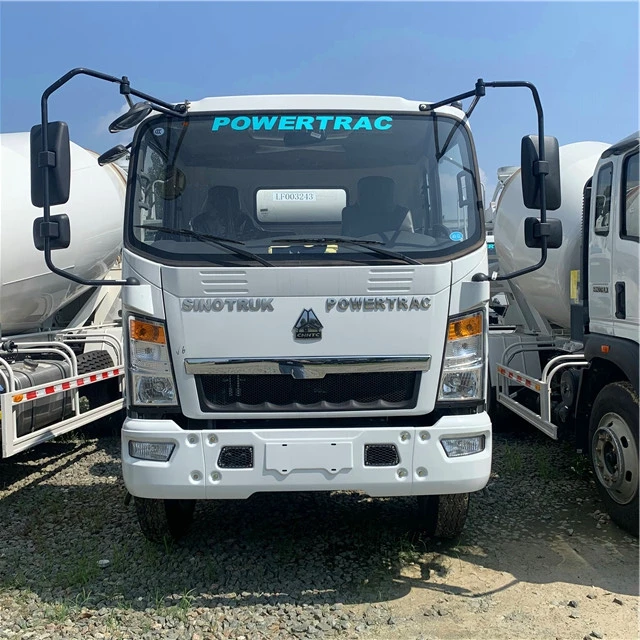

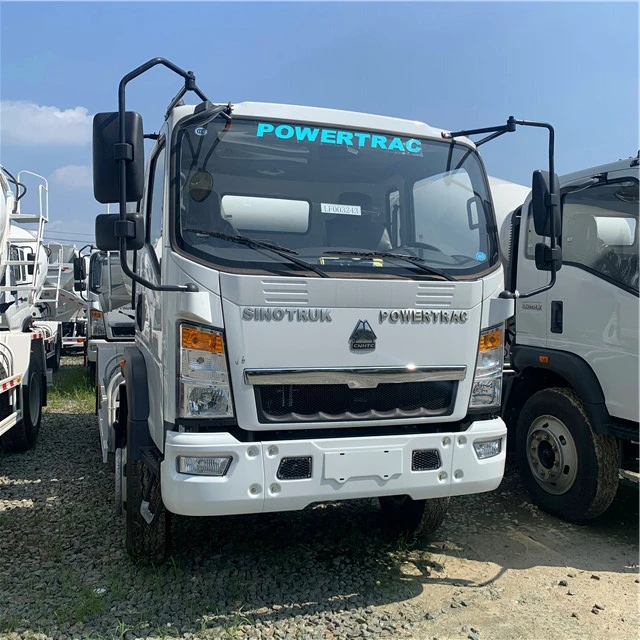

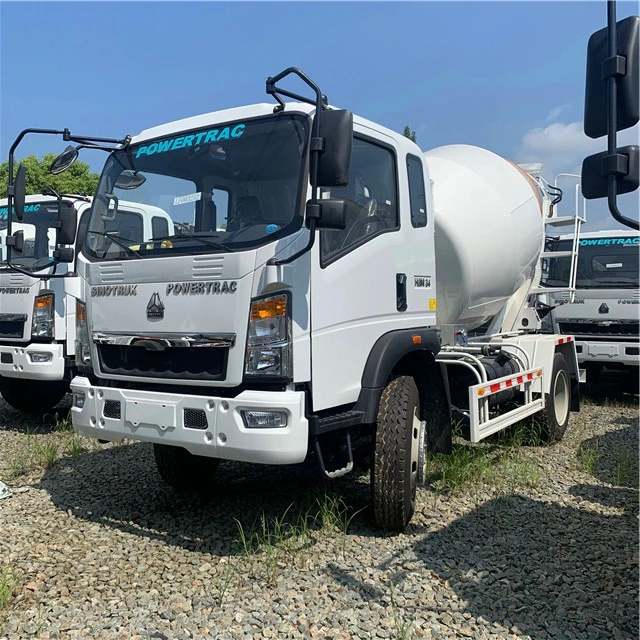

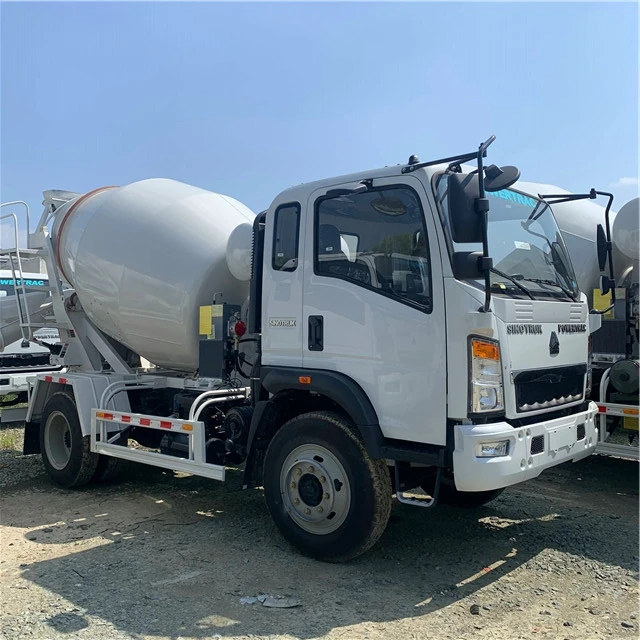

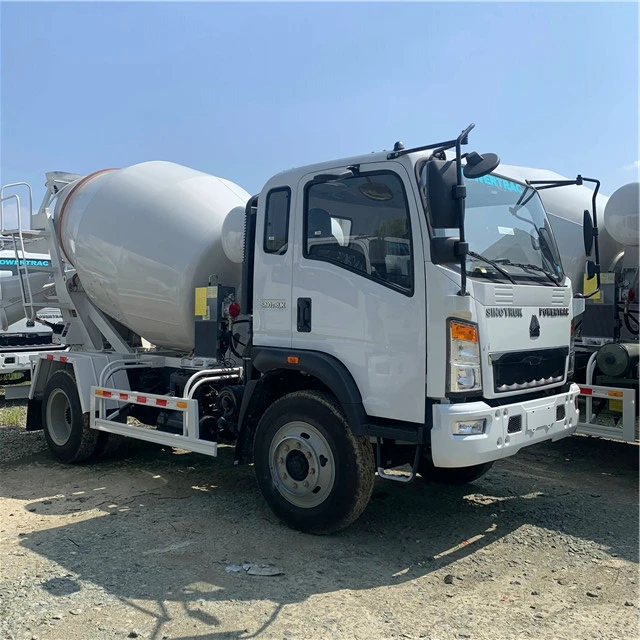

Foton Concrete Mixer Truck with pump 4 m3 factory priceConcrete Mixer Trucks are mainly used for mixing and carrying concrete in long distance. Then can delay concrete primary concretion, avoid concrete stratification and separation, ensure the concrete can be normal at work site.
General | |||
Truck Name | Concrete Mixer Truck | Overall Dimension (mm) | 7500*2300*3620 |
Chassis | |||
Wheel Base (mm) | 3800 | Tyre Model | 8.25-16 |
Engine (Motor) | |||
Brand | Yuchai | Type of Fuel | Diesel |
Model | YC4D130-41 | Displacement (ml) | 4214 |
Max. Power (KW/hp) | 96 / 130 | Emission Standard | Euro 4 |
Equipments | |||
Tanker Capacity (L) | 4000 | Filling Speed (m³/min) | ≥3.8 |
Tank Material | wear-resisting alloy steel Q345 | Unloading Speed (m³/min) | ≥2.5 |
Speed Reducer | ZF(German brand); Keyi(Chinese brand) | Filling Ratio (%) | about 0.58 |

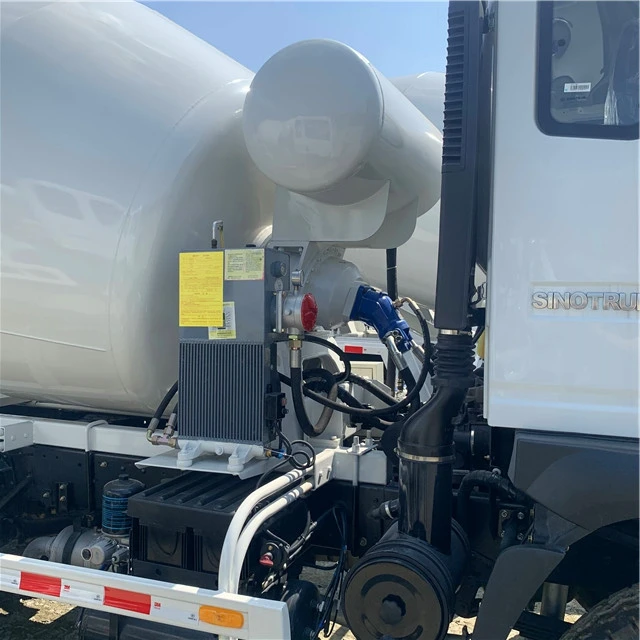

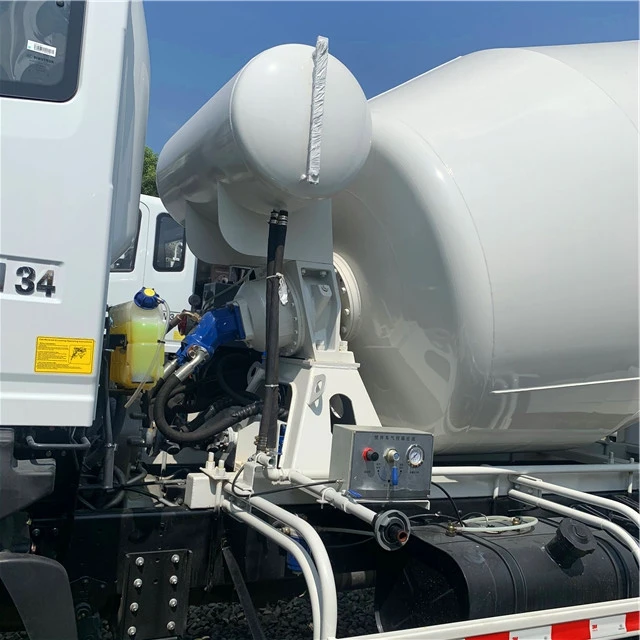

Motor | SUNNY (American brand); Rexroth(German brand); Italy M063; Dali(Chinese brand) | Residual Ratio (%) | ≤0.7 |
Hydraulic Pump | SUNNY (American brand); Rexroth(German brand); Italy P071; Changyuan(Chinese brand) | Collapsed Degree Range (mm) | 40-230 |
Heat-removal System | Xinxinag (Chinese brand) | Angel of Inclination of Mixing Tanker (°) | 13 |
Type of Water Supply | air pressure water supply | Water Tank Capacity (L) | 450 |
Related Products
,
Main Features
1.Control system
Adopt three-point control mode, by control bar on both rear sides and in-cab device to control the drum easily and conveniently.
2.Hydraulic driving system
Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure ,excellent performance, to meet customers’ various special need.
3.Water supply system
Have various volume water tanker, can feed the water mixing and cleaning, enlarged water pipe and various feeding solution. Can convenient customer, water feeding solution can use air pressure ,reducer pump ,electronic pump, etc, can meet different requirement.4.Blade anti-wear protection
Modified logarithmic helical curve type of blade .In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle life, but also synchronizing the wear of drum and blades.
5.Blade process
Blades are made of special cold-forming pressing molder, welded with drum body by new welding process without obvious trance.
6.Humanization design
Lighting device: human-oriented large power tail working lamp at rear part, not only meeting special requirement for night working ,but also ensuring safety of personnel and vehicle.
Step area: adopt pressed steel and attractive appearance, reasonable handrail ensuring safety.
Self-locking in cab, to prevent from mistake operation and ensure security.
Smart equipment: remote operation, water metering, tank mouth seal etc.
Adopt three-point control mode, by control bar on both rear sides and in-cab device to control the drum easily and conveniently.
2.Hydraulic driving system
Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure ,excellent performance, to meet customers’ various special need.
3.Water supply system
Have various volume water tanker, can feed the water mixing and cleaning, enlarged water pipe and various feeding solution. Can convenient customer, water feeding solution can use air pressure ,reducer pump ,electronic pump, etc, can meet different requirement.4.Blade anti-wear protection
Modified logarithmic helical curve type of blade .In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle life, but also synchronizing the wear of drum and blades.
5.Blade process
Blades are made of special cold-forming pressing molder, welded with drum body by new welding process without obvious trance.
6.Humanization design
Lighting device: human-oriented large power tail working lamp at rear part, not only meeting special requirement for night working ,but also ensuring safety of personnel and vehicle.
Step area: adopt pressed steel and attractive appearance, reasonable handrail ensuring safety.
Self-locking in cab, to prevent from mistake operation and ensure security.
Smart equipment: remote operation, water metering, tank mouth seal etc.
Company Information
CLW group is appointed by the Ministry of Industry and Information Technology of China, The company covers an area of 166000 square meters, which is the first domestic private enterprise entering the special automobile industry. The company has focused on all kinds of special automobile R&D, manufacturing, sales and service, two special automobile production lines of the company are five series and 300 products, which are municipal engineering truck series, oil field chemical truck series, multi-function rescue fire truck series, sanitation special automobile series, semi-trailer trucks. The company is also the first pressure tank vehicle manufacturing private enterprise which has got the quarantine license from General administration of quality supervision of China.Our trucks have popular in more than 30 countries. And has many years of manufacturing experience and passed the certification of ISO9001, ISO16949, GJB9001 ,CCC, ISO and BV factory audit.
With high quality, wonderful package, perfect service and fame. Our products has been exported to Russia, Kazakhstan, Uzbekistan, Myanmar, Vietnam, Laos, Thailand, Pakistan, Sir Lanka, Philippine, Indonesia, , Argentina, Chili, Paraguay, Egypt, Morocco, Botswana, Algeria, South Africa, Kenya, Tunisia, Mozambique, Yemen, Ethiopia, Nigeria, Ghana, etc, more than thirty countries. Our company has established good and long term relationships with many foreign customers in Africa, Asia, South America, Middle East, Etc.
Also, we are willing to provide the high quality reasonable price and perfect service to you.
So, we hope to hear good news from you soon. Please do not hesitate to contact with Doreen directly if you have any questons on our products.That will be my honor to assist you in future.
