New model CS216 Medical cotton cloth adhesive tape roll making machine
- Category: >>>
- Supplier: Cissco Machinery Co. Ltd.
Share on (1600549794377):
Product Overview
Description
Production Specification
CS216 Air knife medical tape slitting machine
Used for Medical tape roll making
Zinc oxide tape， cotton cloth tape, non-woven tape, silk tape
Base materials: Non-woven fabric, cotton fabric, paper, silk fabric,
Liner Core: plastic, Aluminum, paper core
Semi auto slitting machine with paper core loading machine, used to slit medical adhesive tape jumbo roll into different small width then wind it on the rewinding shaft that with core.
Model | CS216-1000 | CS216-1300 | Customized |
Effective width | Max.1000mm | Max.1300mm | |
Slitting width | 12~1000mm | 12~1300mm | |
Machine speed | Max.80M/min | Max.80M/min | |
Mold size(Commonly used) | 20, 36, 48, 60mm | 20, 36, 48, 60mm | |
Unwinding diameter (mm) | Max.700mm | Max.700mm | |
Rewinding diameter (mm) | Max.150mm | Max.150mm | |
Paper core ID | 1", 1.5", 2",3" | 1", 1.5", 2", 3" | |
Power(kw) | 2.2kw | 3.7kw | |
Voltage | 380V/3P/50HZ | 380V/3P/50HZ | |
Air compressed | 0.6~0.8Mpa | 0.6~0.8Mpa | |
Machine size(L*W*H)mm | 2000*1350*1500 | 2300*1350*1500 | |
Machine weight (kg) | 900 | 1000 |

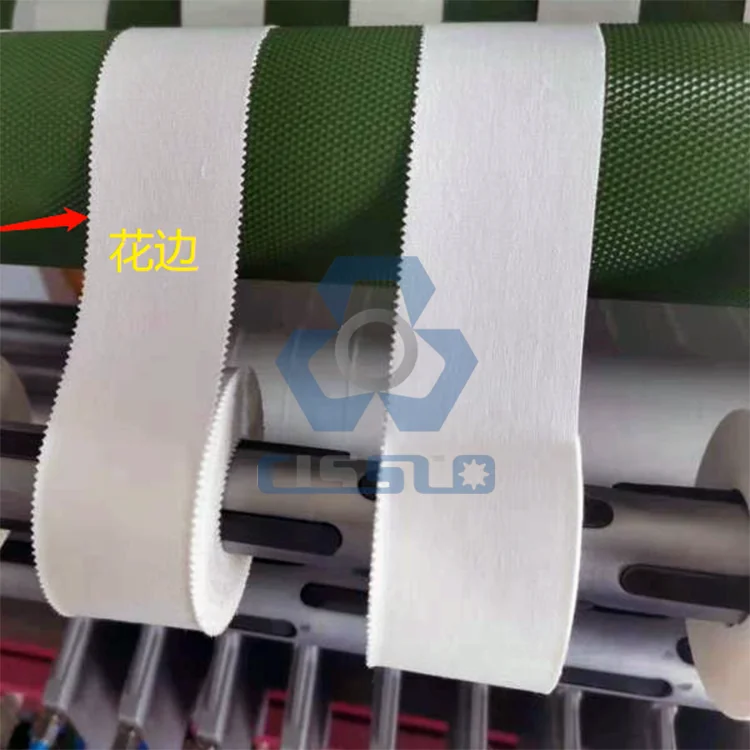

Product details Images

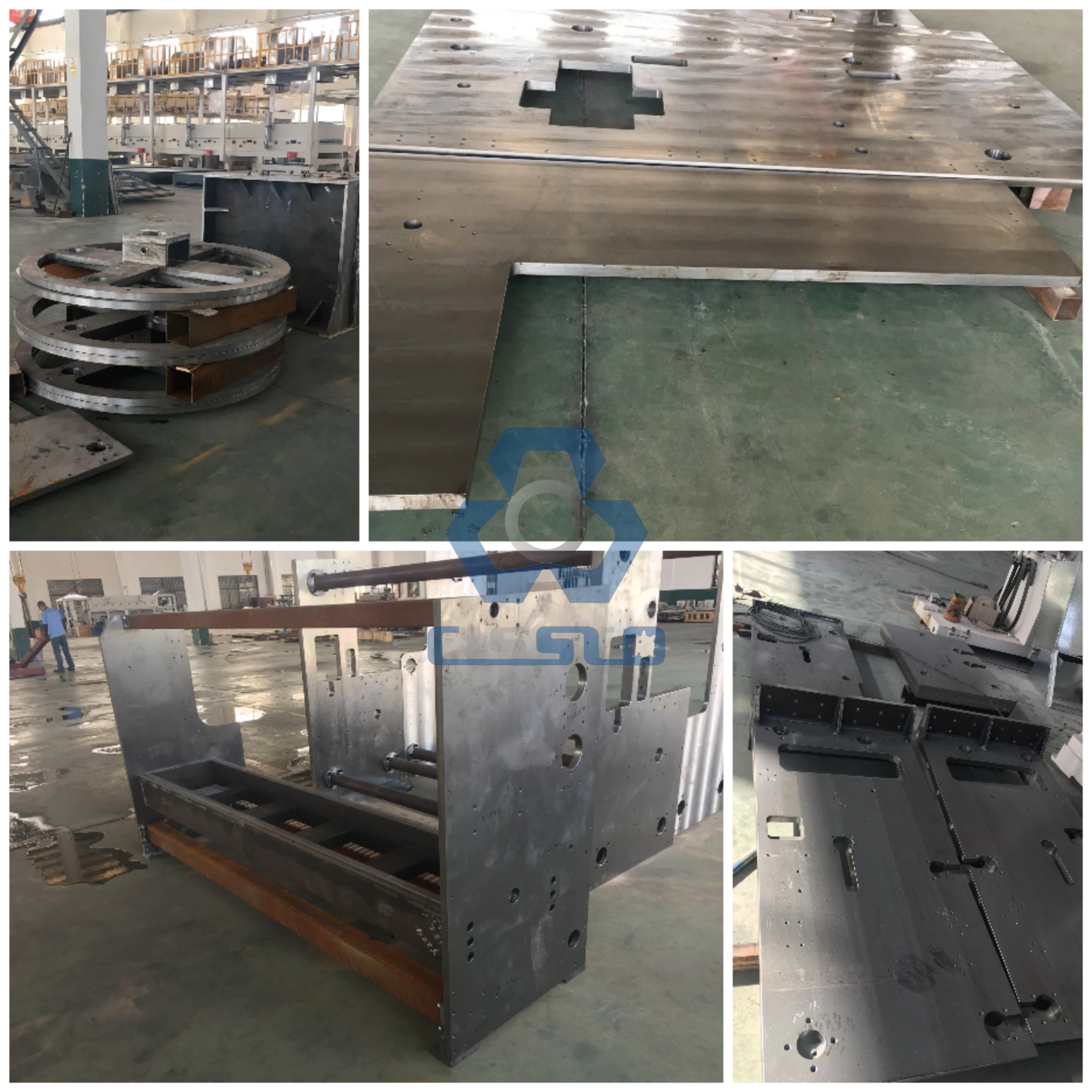

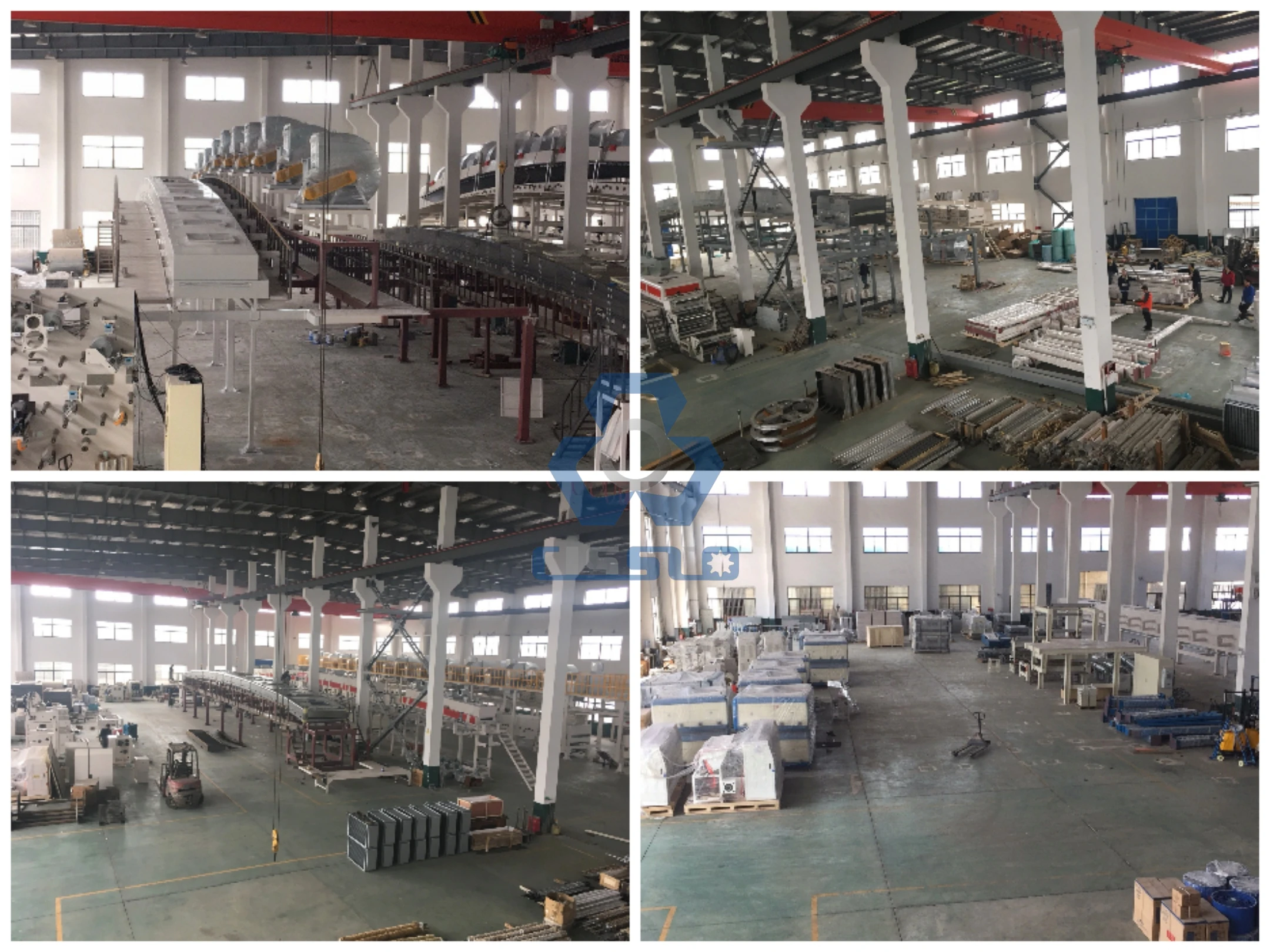

Factory workshop

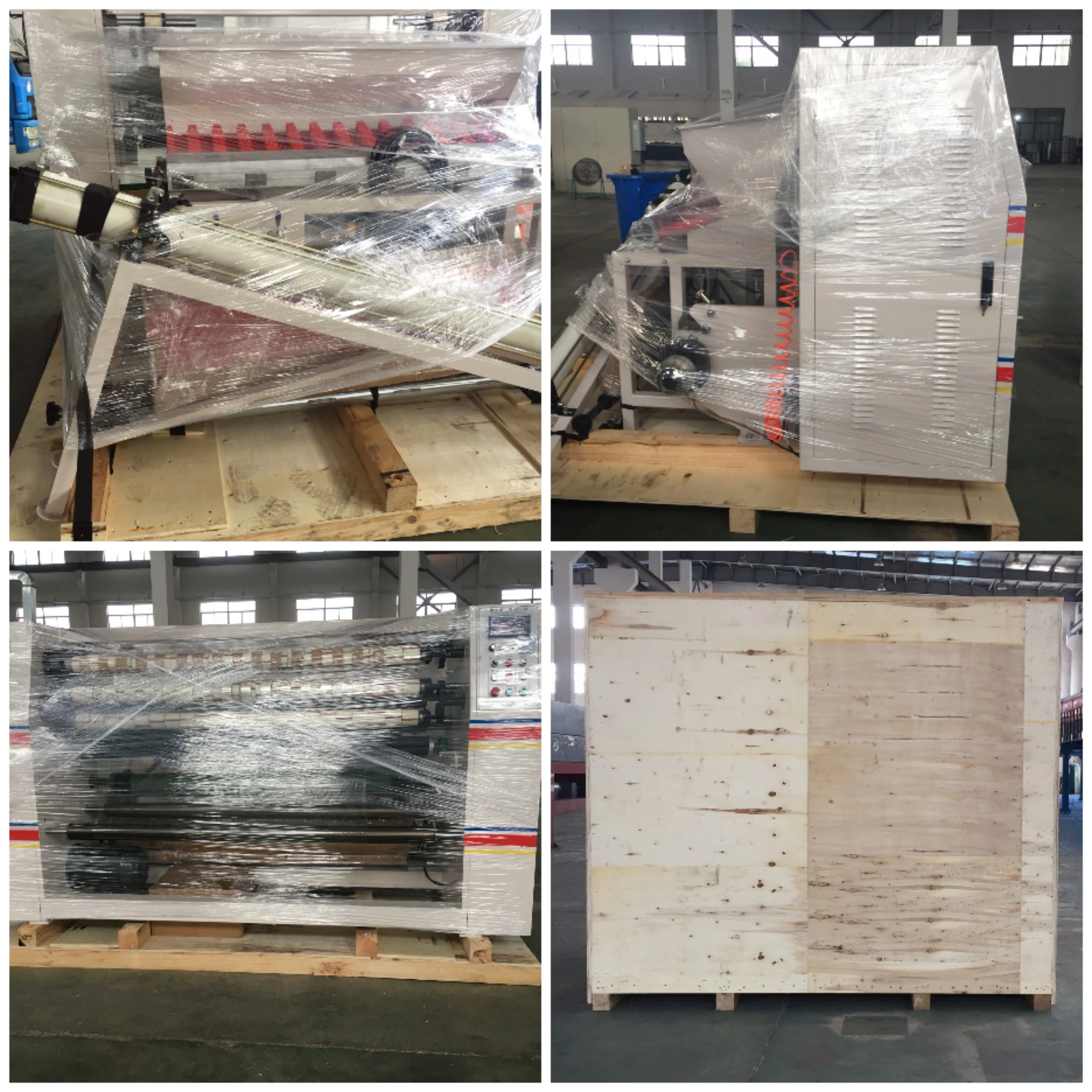

Packaging and delivery
FAQ
1. What kind of tapes can this machine produce？
BOPP tape, medical tape, masking tape,
2.What is width of tape jumbo roll for unwinding?
1000~1600mm
3. What the maximum diameter of tape jumbo roll?
Max.600~800mm
4. What is the maximum diameter of finished tape?
Max.150 ~300mm
5. What is the slitting width of machine?
12~1620mm
6. Operation
Easy to operate, 1~2 workers
7. Installation and after sales
We provide installation instructions by manual and video, respond within 48 hours after receiving the request.
8. Operation life of the machine
Normal 10~20years
9:The machine can be customized?
Yes
10:Is the equipment under warranty?
The equipment is guaranteed for one year, Outside the warranty period, we provide paid maintenance services.
11: How long is the delivery time？
30days.
BOPP tape, medical tape, masking tape,
2.What is width of tape jumbo roll for unwinding?
1000~1600mm
3. What the maximum diameter of tape jumbo roll?
Max.600~800mm
4. What is the maximum diameter of finished tape?
Max.150 ~300mm
5. What is the slitting width of machine?
12~1620mm
6. Operation
Easy to operate, 1~2 workers
7. Installation and after sales
We provide installation instructions by manual and video, respond within 48 hours after receiving the request.
8. Operation life of the machine
Normal 10~20years
9:The machine can be customized?
Yes
10:Is the equipment under warranty?
The equipment is guaranteed for one year, Outside the warranty period, we provide paid maintenance services.
11: How long is the delivery time？
30days.
