Nd YAG QCW laser Gain Modules for Amplifier

Product Overview

Description

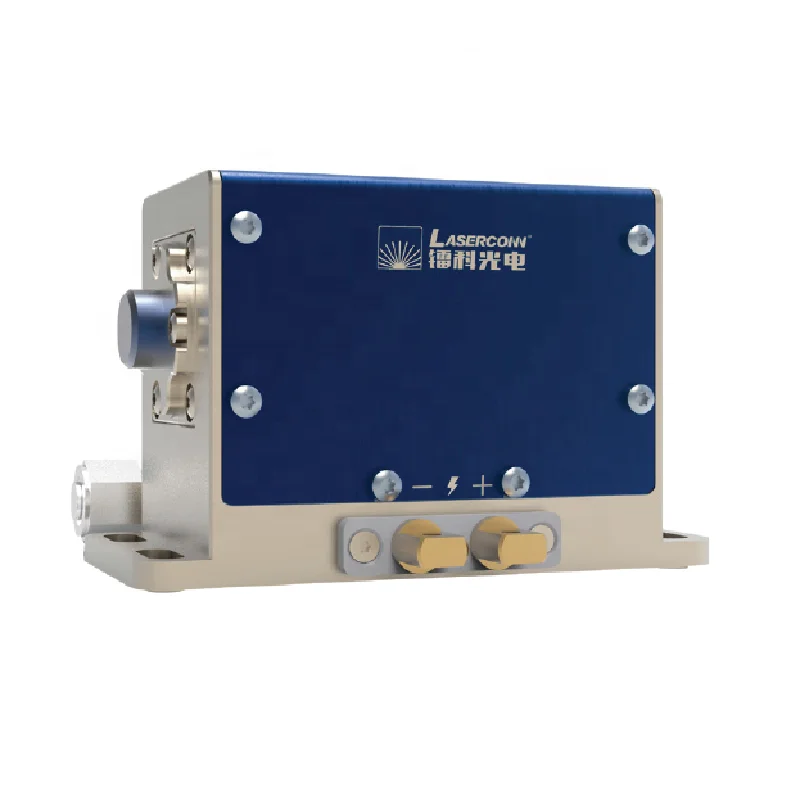

QCW laser Gain Modules for Amplifier



Laserconn's LD resonator laser module is the ideal building block for any DPSS Laser system.  Design flexibility allows for a variety rod lengths and diameters to be utilized in both resonator and amplifier designs.  QCW output energies range from 50mJ to >500mJ per pulse.



Wide Applications

With a variety of gain medium, rod diameter, rod length and diode bar count options, these gain modules have served as a work horse for important applications:

- Airborne LIDAR

- Laser Pulse Train Amplification

- Laser Peening

- Flow Diagnostics

- Pumping Ti:Sapphire Amplifiers

- OPCPA Pumping



Let us know your application. We may have a fit.



Specification
Output Power: 35-1000W (1064nm, CW)
Working Mode: CW
Wavelength: 1064nm
ND: YAG, doping at 0.6%

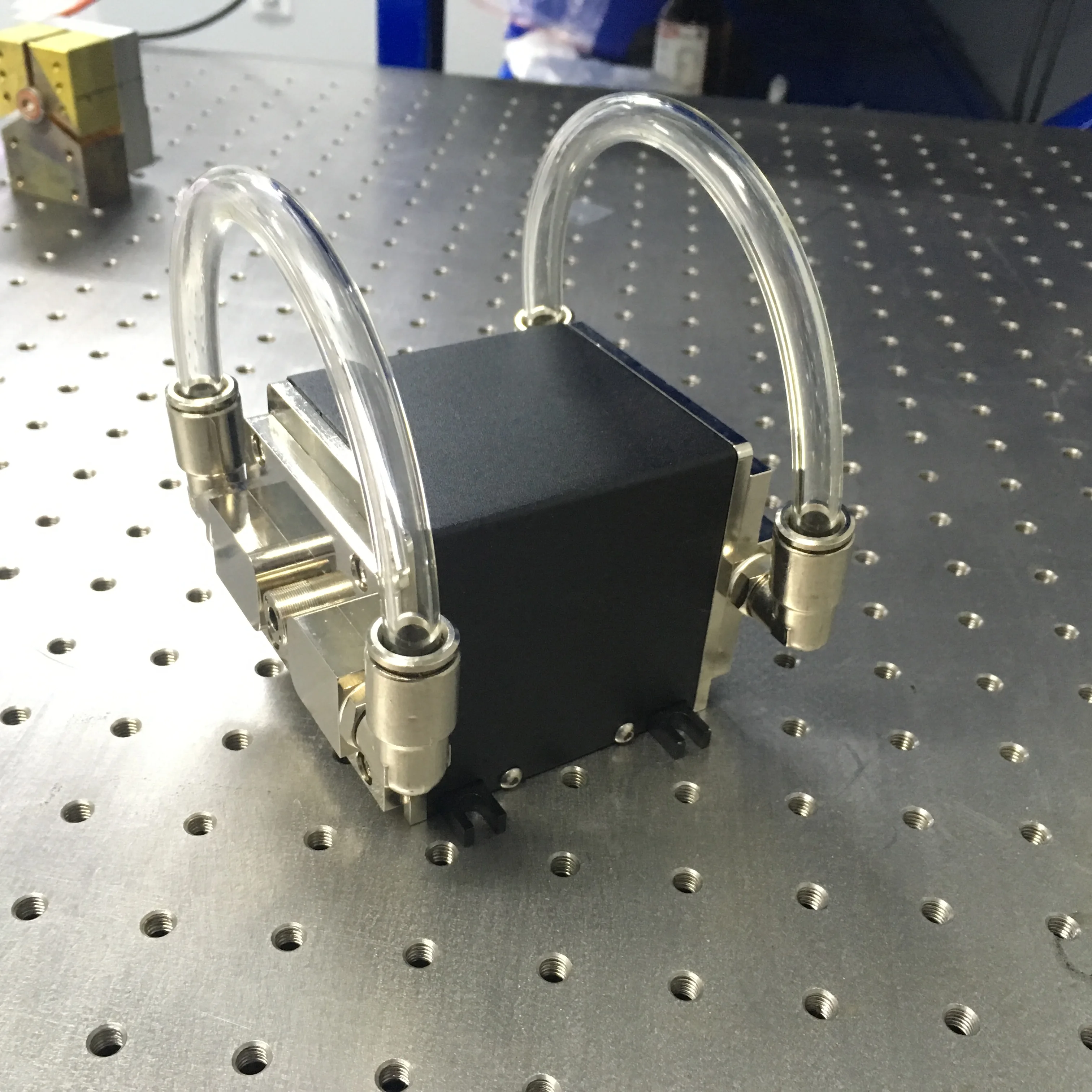

Water-cooled
Expected life: 10000 hours
Warranty: 12 months
Diode Provider: Jenoptik (Jena, Germany) 40W bars.



Typical Model: LD3X3-2

Number of Diode Bars	9
QCW Energy	160 mJ
Operation	QCW
Peak Power Per Bar	200 W
Peak Pump Power	1,800 W
Rod Material	Nd:YAG
Rod Diameter	2 mm
Rod Length	63mm

Remanrks:

Minimum 1064 nm multi-mode output in a short cavity (165 ± 5 mm, 0.75mCC HR/flat 40%R OC) QCW oscillator. Minimum pulse energy at 100Hz and 250µs.



Features:
 All laser modules based on side-pumping can be repaired
 Same performance as the original laser modules
 12 months warranty after repair
 Low cost and fast delivery







For laser heads from other manufacturers, please contact our sales engineer for support.
Please contact us directly to Request Quote For Custom Products.
