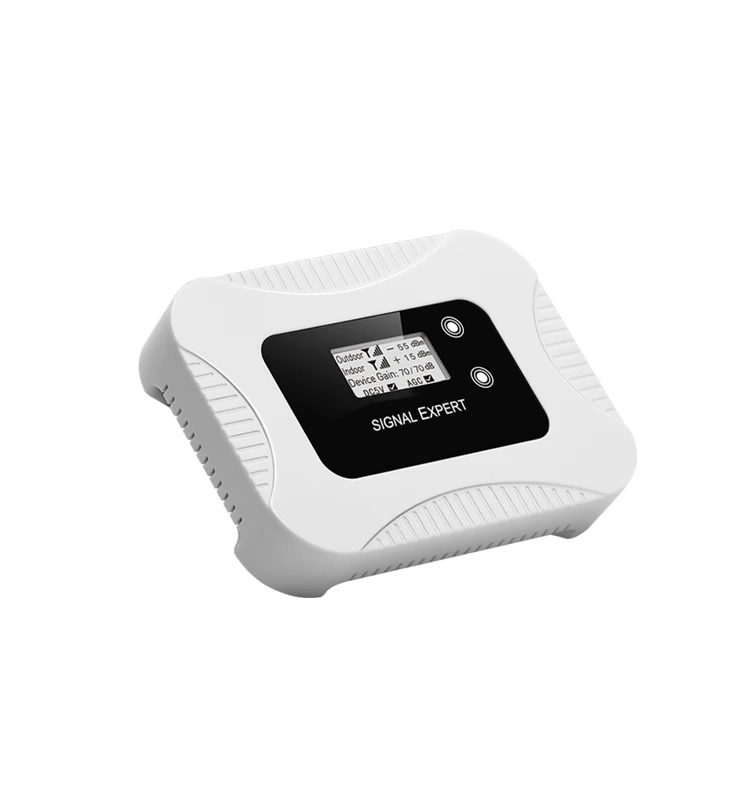

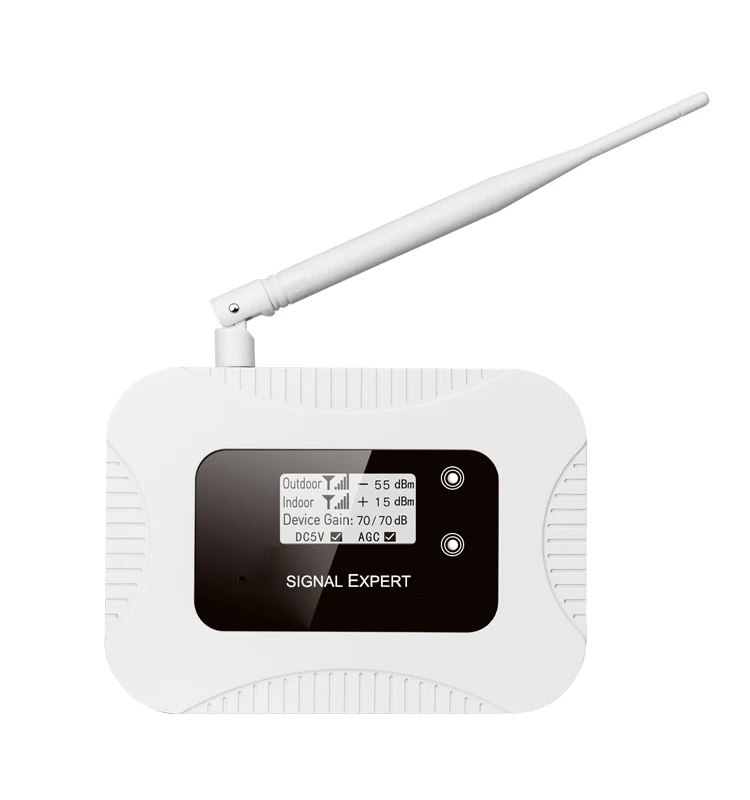

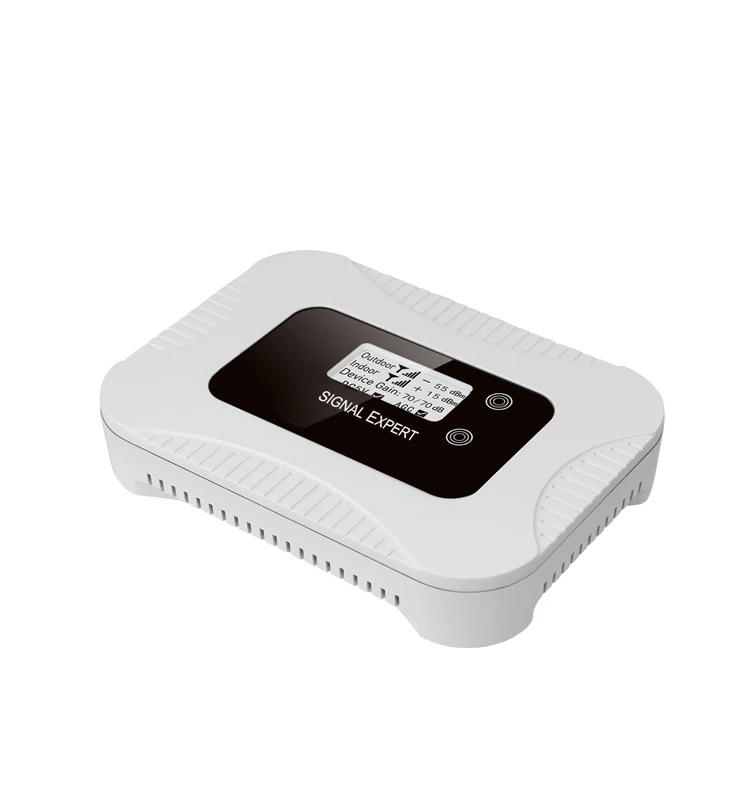

Special AWSmhz 4G mobile signal Booster cell phone repeater Amplifier
- Category: >>>
- Supplier: Guangzhou Chengpeng E-Commerce Co. Ltd.
Share on (1600549870542):
Product Overview
Description
Product feature
1,Intelligent to guide the installation with LCD
2,Real time display the signal strength.
3,Automatic dormancy when no user make the calling
4,Automatic remind the installation mistake and provide the corresponding solution with LCD
5,Automatic adjust the system gain to avoid the repeater self-excitation
6,initiative reminding when device damaged
Technical Specifications
| Specifications | Parameters | |
| Frequency Range (Customers to Choose) | Uplink | 1710-1755Mhz |
| Downlink | 2110-2155Mhz | |
| Frequency Bandwidth (3dB Bandwidth) | 45Mhz | |
| Gain | 70dB | |
| Automatic gain control (Step Attenuation) | 31dB @ 1dB/ Step | |
| Auto Gain Control | 20dB Min. | |
| Output Power(Customers to Choose) | 20dBm | |
| Spurious Emission | ≤ -15dBm/30kHz | |
| 9kHz~1GHz: ≤ -36dBm/30kHz | ||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz | ||
| Inter-Modulation Attenuation ACPR | ≤ -40dBc / 30kHz (measured under rated output power) | |
| In-band Ripple | ≤ 3dB | |
| VSWR | <=2 | |
| I/O Impedance | 50 Ω | |
| Noise Figure | ≤ 5dB | |
| System Delay | ≤ 5μs | |
| RF Connector(Customers to Choose) | SMA (Female) | |
| Operating Temperature | Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C | |
| Power Supply | AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) | |
| Dimensions | 165*130*40 (mm) | |
| Weight | ≤0.8 kg(Net) | |
| Alarm Monitoring System | Alarm for uplink self-oscillation | |
| Indication LED | Power supply | |
Product Description
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label? We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.
4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.
5. Please feel free to contact us if any other questions.
