Product Overview
Description
High Quality Public Facility Stainless Steel China HF Pipe Line
Product Advantage
1.High Precision 2.High Production efficiency,Line speed can be up to 120m/min
3.High Strength,The machine works stably at a high speed, which improves product quality
4.High Good product rate, reach to 96.5%
5.Low wastage, Low unit wastage and low production cost
Which kind of pipe can be produced by our Pipe mill ?
1.Oil & Gas Pipes
2.Wire and Cable Protection Pipe
3.Heating Pipe
4.Structural Support Steel Pipe
5.Low-pressure Process Pipeline
6.Industrial Steel Pipes
7. Low Pressure Fire Fighting Pipeline
2.Wire and Cable Protection Pipe
3.Heating Pipe
4.Structural Support Steel Pipe
5.Low-pressure Process Pipeline
6.Industrial Steel Pipes
7. Low Pressure Fire Fighting Pipeline
8. Decoration Pipe
9. Sewage Pipes
9. Sewage Pipes
10.Water Pipe
11.Steel Scaffolding Pipe
11.Steel Scaffolding Pipe
12. Building pip
Product Specification
Model | Round pipe | Data | Square&Rectangular Pipe | Speed (m/min) | |||
ERW32 | Dia(mm) | Thickness(mm) | Dia(mm) | Thickness(mm) | |||
ERW32 | 10-38 | 0.5-2.0 | 10*10-30*30 | 0.5-1.6 | Max.120 | ||
ERW50 | 15-51 | 0.5-2.5 | 15*15-40*40 | 0.5-2.0 | Max.120 | ||
ERW60 | 16-60.3 | 0.5-3.0 | 15*15-50*50 | 0.5-2.5 | Max.120 | ||
ERW76 | 20-76 | 1.0-4.0 | 20*20-60*60 | 1.0-3.0 | Max.120 | ||
ERW89 | 25-89 | 1.0-4.5 | 20*20-70*70 | 1.0-3.5 | Max.120 | ||
ERW114 | 38-114 | 1.0-5.0 | 40*40-90*90 | 1.0-4.0 | Max.80 | ||
ERW165 | 60-165 | 2.0-6.0 | 50*50-150*150 | 2.0-5.0 | Max.60 | ||
ERW219 | 89-219 | 3.0-8.0 | 80*80-200*200 | 3.0-8.0 | Max.50 | ||
ERW273 | 114-273 | 4.0-10.0 | 100*100-250*250 | 4.0-10.0 | Max.40 | ||
ERW325 | 165-325 | 4.0-12.7 | 100*100-300*300 | 4.0-12.0 | Max.30 | ||
ERW426 | 219-426 | 5.0-14.0 | 150*150-350*350 | 5.0-14.0 | Max.30 | ||
ERW508 | 219-508 | 6.0-16.0 | 200*200-400*400 | 6.0-16.0 | Max.25 | ||
ERW610 | 325-610 | 6.0-18.0 | 250*250-500*500 | 6.0-18.0 | Max.25 | ||
ERW720 | 355-720 | 6.0-20.0 | 300*300-600*600 | 6.0-20.0 | Max.25 | ||

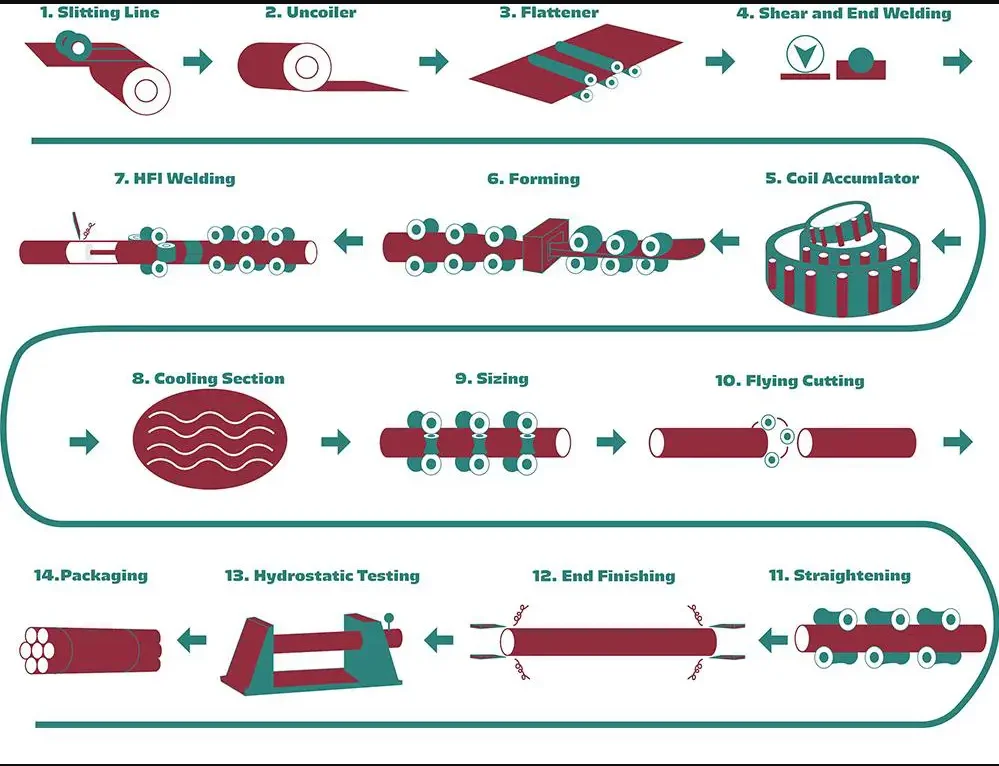

Process Flow
{Steel Coil}→→ Double-head uncoiler →→Strip-head shear & Butt welder station→→Vertical Spiral Accumulator →→ Forming Section（Main
driving unit + Flattening unit & Feeding guide + Forming Section) →→ Welding Section (Seam guide stand + High frequency induction
welding system+ Squeeze Roll welding stand + External bead scarfing + Seam Grinding stand）→→ Emulsion Water Cooling Section →→
Sizing mill (Main driving unit + Sizing Section + Speed testing unit + Turk Heads Straightener) →→ Cold Cutting Saw →→ Run-out
Table & Packing Device..
driving unit + Flattening unit & Feeding guide + Forming Section) →→ Welding Section (Seam guide stand + High frequency induction
welding system+ Squeeze Roll welding stand + External bead scarfing + Seam Grinding stand）→→ Emulsion Water Cooling Section →→
Sizing mill (Main driving unit + Sizing Section + Speed testing unit + Turk Heads Straightener) →→ Cold Cutting Saw →→ Run-out
Table & Packing Device..
Step 1: Uncoiler
Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum,
brake.
There are 3 types: pneumatic, hydraulic and manual.
brake.
There are 3 types: pneumatic, hydraulic and manual.
Step 2: Shearing butt welding
2 Types: Automatic & Manual
Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue
production.
Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue
production.

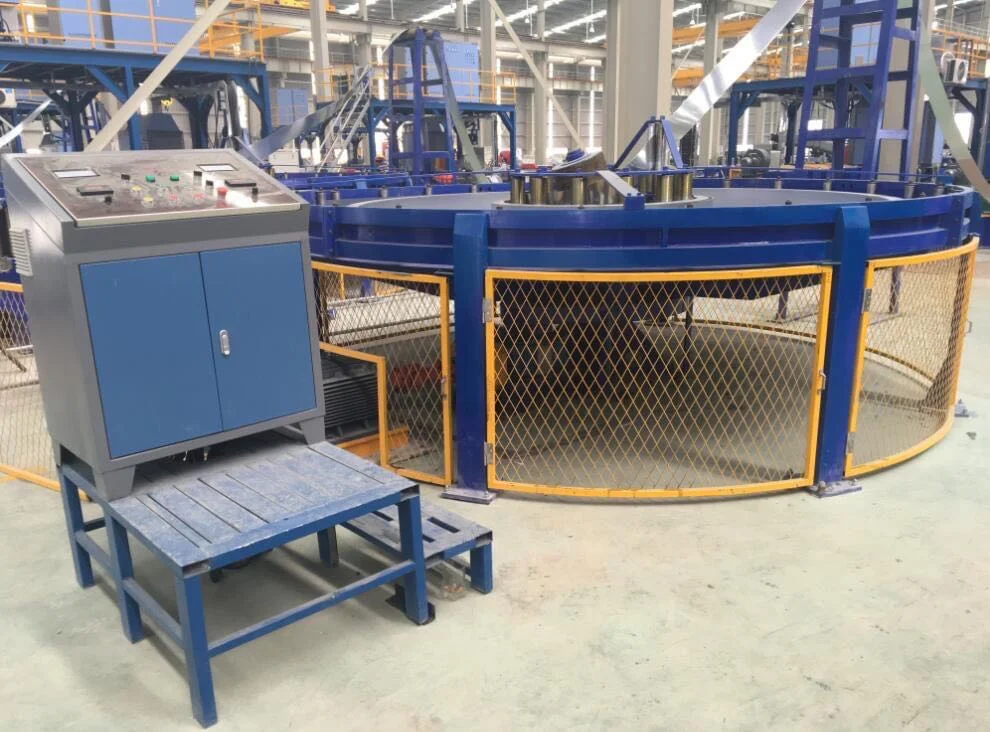

Step 3: Accumulator
Function: storage strip to keep continue production.
2 Types: Horizontal / Vertical
Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.
2 Types: Horizontal / Vertical
Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.
Step 4: Forming Section.
Function: forming the tube from strip
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor
Step 5: High Frequency Welding
Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder
Our advantage: We choose the China best welder
Our advantage: We choose the China best welder
Step 6: Sizing Section
Function: sizing the tube to precise size
Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size
Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size
Step 7: Flying saw / Cold Saw
Function: cutting the tube mill line tube to right length.
Fly saw: easy to operation, low investment.
Cold saw: no noise, no burr cutting precision and cross section.
Fly saw: easy to operation, low investment.
Cold saw: no noise, no burr cutting precision and cross section.
Step 8: Run Out Table & Stacking Machine
Function: For output and packaging of products
2 Types: Automatic,Manually
Successful Project
1.In 2020. Chongqi,China.
ERW300x300x16mm, Direct Square Forming Technology,
With cold roll forming producing function.
ERW300x300x16mm, Direct Square Forming Technology,
With cold roll forming producing function.
2.In 2020.Guangdong,China.
ERW300x300x14mm, Direct Square Forming Technology,
Motor Adjusting
ERW300x300x14mm, Direct Square Forming Technology,
Motor Adjusting
3.In 2020. Shandong,China.
ERW200x200x10mm,YS700MPa, Direct Square Forming Technology,
Motor Adjusting.
ERW200x200x10mm,YS700MPa, Direct Square Forming Technology,
Motor Adjusting.
4.In 2019,Argentina.
ERW203/160x160mm. FFX + Direct Square Technology.
Fully Siemens Automatic Size Changing System. The Best Roller Share-Use Technology for Round+Square pipes.
ERW203/160x160mm. FFX + Direct Square Technology.
Fully Siemens Automatic Size Changing System. The Best Roller Share-Use Technology for Round+Square pipes.
5.In 2020,Uzbekstan.
ERW76mmUpgrading for Forming,Welding,Sizing & Flying Saw.
ERW76mmUpgrading for Forming,Welding,Sizing & Flying Saw.
6.In 2020,Brazil.
ERW32x1.6x140m/min.
ERW32x1.6x140m/min.
7.In 2022,Jordan
ERW60x3mm Tube MillSpeed :95m/min
Cold saw
ERW60x3mm Tube MillSpeed :95m/min
Cold saw
8.in 2022 , Columbia
Automatic Packing Machine For ERW89 Tube Mill online
Automatic Packing Machine For ERW89 Tube Mill online

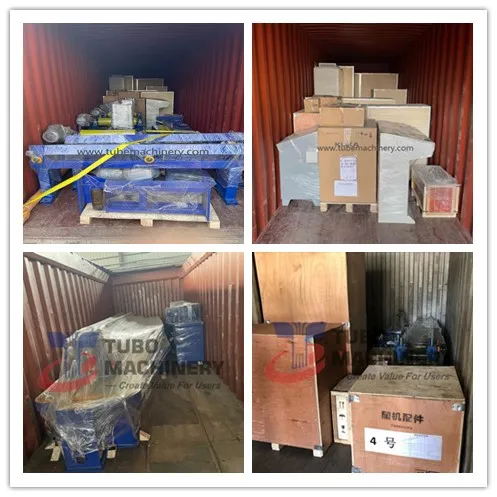

Packing&Shipping
Field Visits
FAQ
1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
4. Q: What is your advantages?
A: 1.Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3.130 CNC machining equipments to guarantee our products perfect.
4.More than 15 years R&D and Manufacturing Experience. 5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A: 1.One year’s warranty.
2.Providing spare parts for life time at cost price.
3. Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
4.Provide technical service for facility reforming, refurbishment.
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.
2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.
3. Q:What information do you need to supply a quotation?
A: 1.Maximum Yield Strength of the material
2.All pipe sizes needed (in mm)
A: 1.Maximum Yield Strength of the material
2.All pipe sizes needed (in mm)
3.Wall thickness (min-max)
4. Q: What is your advantages?
A: 1.Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3.130 CNC machining equipments to guarantee our products perfect.
4.More than 15 years R&D and Manufacturing Experience. 5. Customized According to Customer Requirements.
5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.
6.Q: How about your service?
A: 1.One year’s warranty.
2.Providing spare parts for life time at cost price.
3. Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
4.Provide technical service for facility reforming, refurbishment.
