AHD 720P 1080P MDVR GPS WiFi 3G 4G SD CARD Mobile DVR MDVR for Vehicle Surveillance and video recording
AHD 720P 1080P MDVR GPS WiFi 3G 4G SD CARD Mobile DVR MDVR for Vehicle Surveillance and video recording
AHD 720P 1080P MDVR GPS WiFi 3G 4G SD CARD Mobile DVR MDVR for Vehicle Surveillance and video recording
AHD 720P 1080P MDVR GPS WiFi 3G 4G SD CARD Mobile DVR MDVR for Vehicle Surveillance and video recording
AHD 720P 1080P MDVR GPS WiFi 3G 4G SD CARD Mobile DVR MDVR for Vehicle Surveillance and video recording
AHD 720P 1080P MDVR GPS WiFi 3G 4G SD CARD Mobile DVR MDVR for Vehicle Surveillance and video recording

AHD 720P 1080P MDVR GPS WiFi 3G 4G SD CARD Mobile DVR MDVR for Vehicle Surveillance and video recording

Share on (1600549897354):


Price:$325.00

Quantity:


Product Overview

Description



Product Description




Specification


Model NO.: AI-MVDR040
System
Operation System
Linux
Operation Interface
Graphical Interfaces, Chinese/English/Portuguese/Russian/French/Turkish optional
File System
Proprietary Format
System Privileges
User Password
Video
Video Input
4ch Independent Input: 1.0Vp-p，75Ω.Both B&W and Color Cameras
Video Output
1 Channel PAL/NTSC Output, 1.0Vp-p，75Ω, Composite Video Signal
1 Channel VGA Support 1920*1080, 1280*720, 1024*768 Resolution

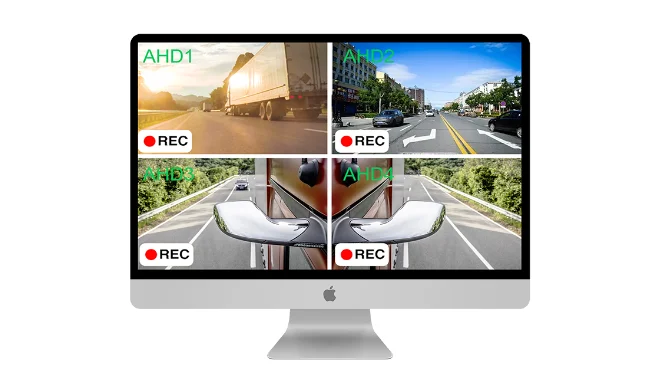

Video Display
1 or 4 Screen Display
Video Standard
PAL: 25fps/CH; NTSC: 30fps/CH
System Resources
PAL: 100 Frames; NTSC: 120 Frames
Active Safety Assisted Driving
DSM
Support 1CH DSM (Driver Status Monitor) video input, support safety alarm of yawning, calling, smoking, video blocked, Infrared
blocking sunglasses failure, device malfunction, etc
ADAS
Support 1CH ADAS (Advance Driving Assistance System) video input, support safety alarm of LDW,THW,PCW,FCW, etc
BSD (Optional)
Support 1CH BSD (Blind Spot Detection) video input, support safety alarm of people, non-motorized vehicles (bicycles, motorcycles, electric bicycles, tricycles, and other traffic participants that can be seen the contours of the human body), including front, side and back, etc.
Audio
Audio input
4 Channels Independent AHD Input 600Ω
Audio output
1 Channel (4 Channels Can Be Convert Freely) 600Ω, 1.0—2.2V
Distortion and Noise
≤-30dB
Recording Mode
Sound And Image Synchronization
Audio Compression
G711A
Digital Processing & Storage
Image Compression
H.264/265 Fixed Code Stream
Image Format
PAL: 4x1080P (1920x1080)
NTSC: 4x1080P (1920x1080)
Video Stream
92Kbps-8.0Mbit/s (channel)
Video Taking Up Of Hard Disk
1080P: 85M-3.6GByte/hour (H.265)
Playback Resolution
PAL: 1-4x720P(1280x720) or 1-2x1080P(1920x1080)
NTSC: 1-4x720P(1280x720) or 1-2x1080P(1920x1080)
Audio Bitrate
4KByte / s / channel
Audio Taking Up Of Hard Disk
14MByte / hour / channel
SD Storage
Double SD card storage, Support up to 256GB each
Image Quality
1-14 level adjustable
Alarm
Alarm in
4 Channels Independent Input. High Voltage Trigger
Alarm out
1 Channels dry contact output
Motion Detection
Support

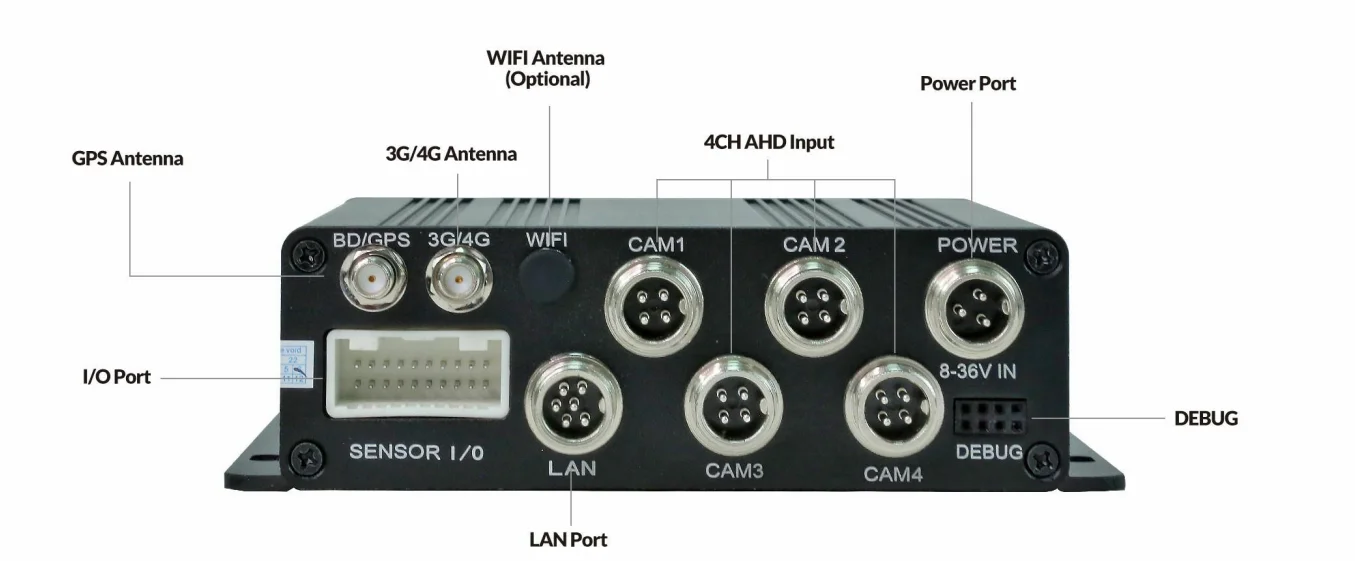

Communication
Wire line Access
1x 5pin Ethernet Port for optional, can be converted to RJ45 port
Wifi (Optional)
IEEE802.11 b/g/n
3G/4G
3G/4G (FDD-LTE/TD-LTE/WCDMA/CDMA2000)
GPS
GPS/BD/GLONASS
Extend Interface
RS232
RS232x1, it is convenient to connect with other vehicle equipment
RS485
RS485x1, it is convenient to connect with other vehicle equipment
G-Sensor
Build-in G-Sensor Module
CAN BUS
Not support, need to customize
Others
Power Consumption
DC9.5-36V 8W (without SD)
Working Temperature
-40°C ~ +70°C / ≤80%
Clock
Built-In Clock, Calendar
Dimensions
WxDxH
132x137x40mm
Weight
0.6KG (without SD)


Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile








3Rtablet is a technology based and market oriented innovative enterprise. Our R&D team has been deeply engaged in embedded technology for many years, mainly focusing on the development, manufacturing, marketing and delivery of IoV products.

3Rtablet follows innovative technologies, complete solutions, friendly products, excellent quality and professional services, in order to continuously improve product quality and customer satisfaction. 3Rtablet offers OEM/ODM service, products could be tailored to meet your needs.


FAQ


1. who are we?
We are based in Fujian, China, start from 2020,sell to North America(39.00%),Western Europe(21.00%),Eastern Asia(15.00%),Domestic Market(5.00%),Southeast Asia(3.00%),Oceania(3.00%),Southern Europe(3.00%),South America(2.00%),Eastern Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Africa(00.00%),Mid East(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Vehicle Tablet,Industrial PC,All-in-one PC,GPS Tracker,Embedded Computer

4. why should you buy from us not from other suppliers?
3Rtablet is a technology based and market oriented company.
The R&D team have many years experience in embedded technology.
We offers complete solution, high quality products and professional services,
and OEM/ODM services to meet customers needs.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian


VT-7 AHD Tablet
VT-7 AHD Tablet is the all in one solution, which integrate the display and MDVR functions in one tablet device. 4xAHD camera inputs as an Android APK integrated in Android Systems.
