GOOD QUALITY TPE HANDLE COATING GLUE PROCESS IN WRAP PLASTIC MOLD SECONDARY MOLDING

Product Overview

Description

Introduction



TPE coated materials

As the name implies, is the TPE soft adhesive material package adhesive to other materials. The general processing method is a two-color injection molding machine, or with a general injection molding machine, the use of plastic mold, divided into two injection molding.





Advantages



• TPE elastomer soft glue is used for secondary injection molding, wrapping glue shooting glue. Because TPE material has good skid resistance and elastic touch, it can improve the touch feeling of products and enhance the grip.

• TPE elastomer soft adhesive can be adjusted to the appropriate hardness (hardness range Shore 25-90A) according to the physical properties of the product, and the appropriate physical properties (such as abrasion resistance and scratch resistance, adhesion, melting index, etc.). It provides a variety of possible material applications for different products.

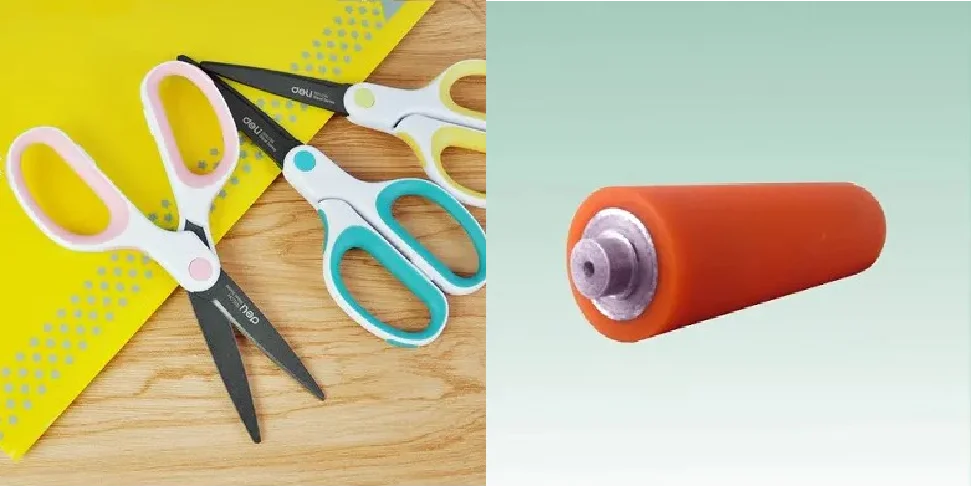

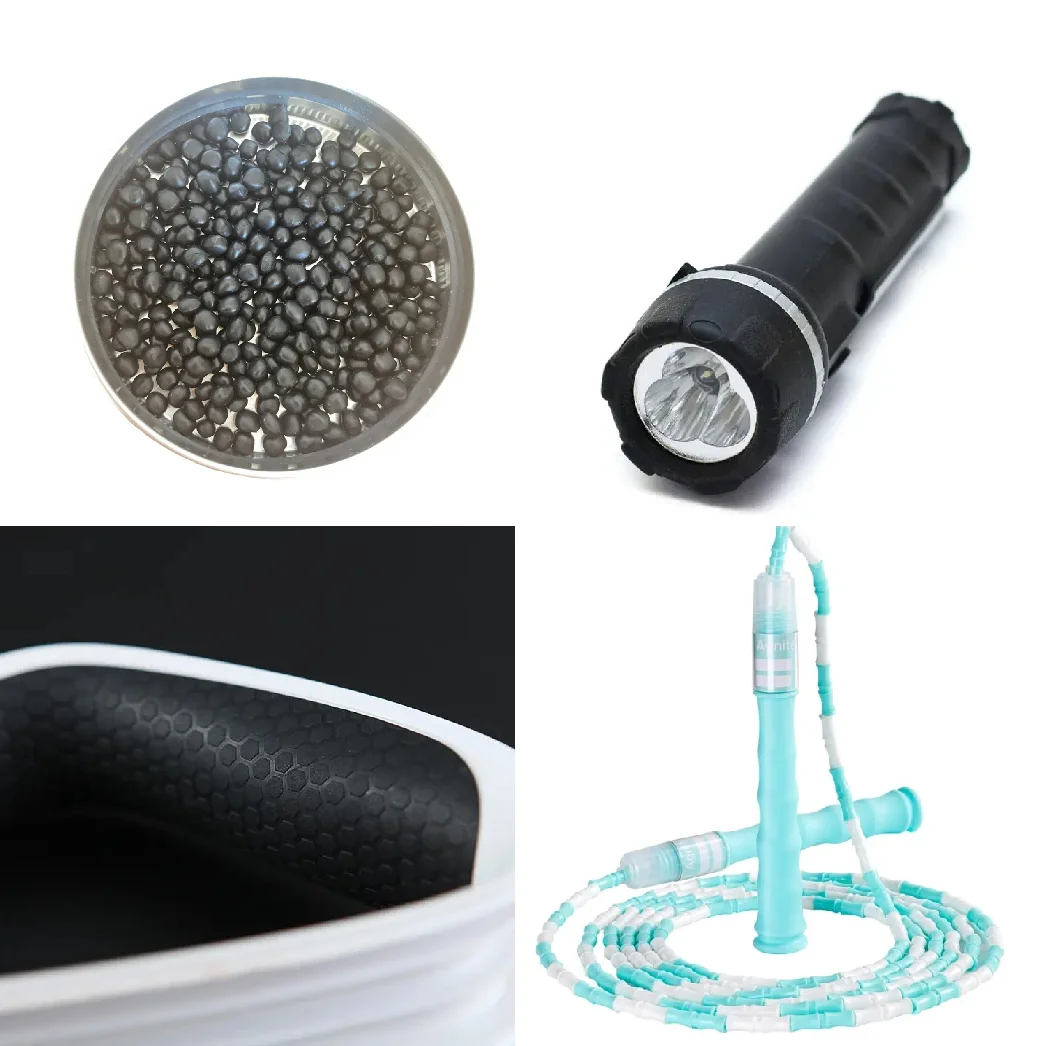

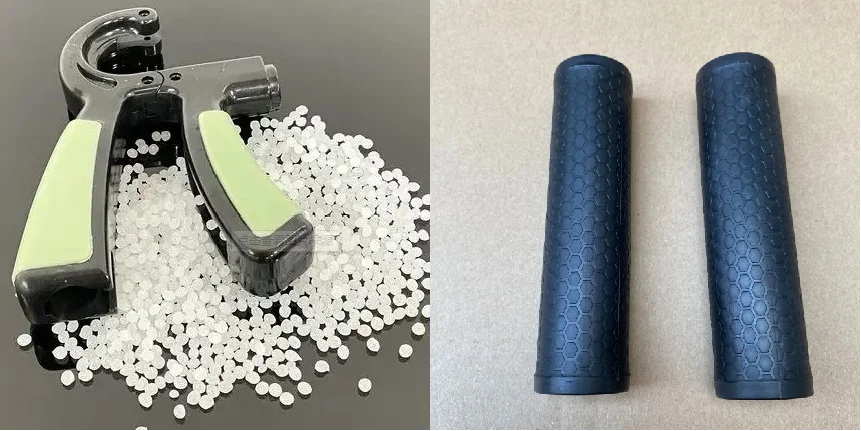

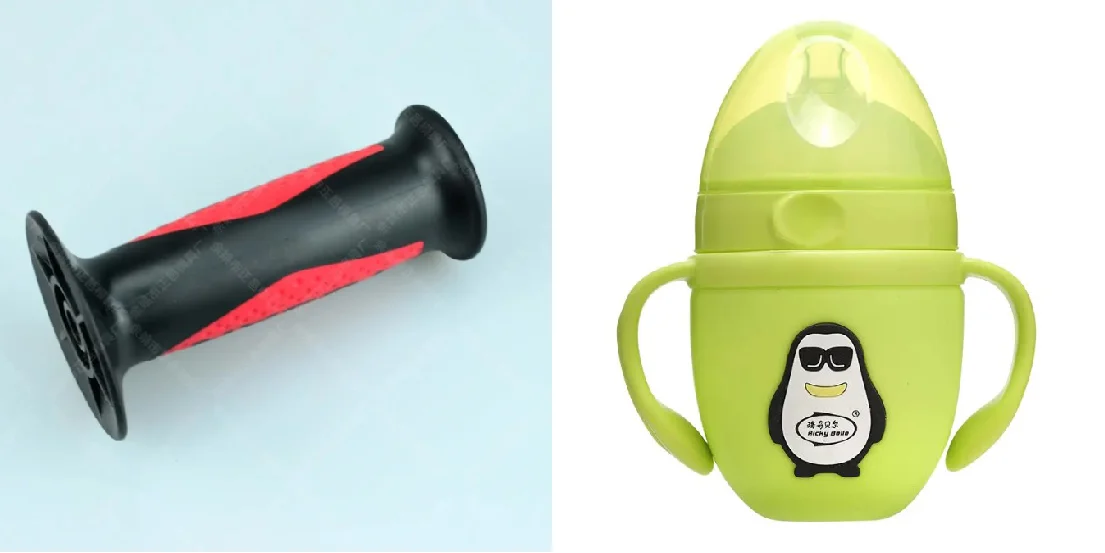

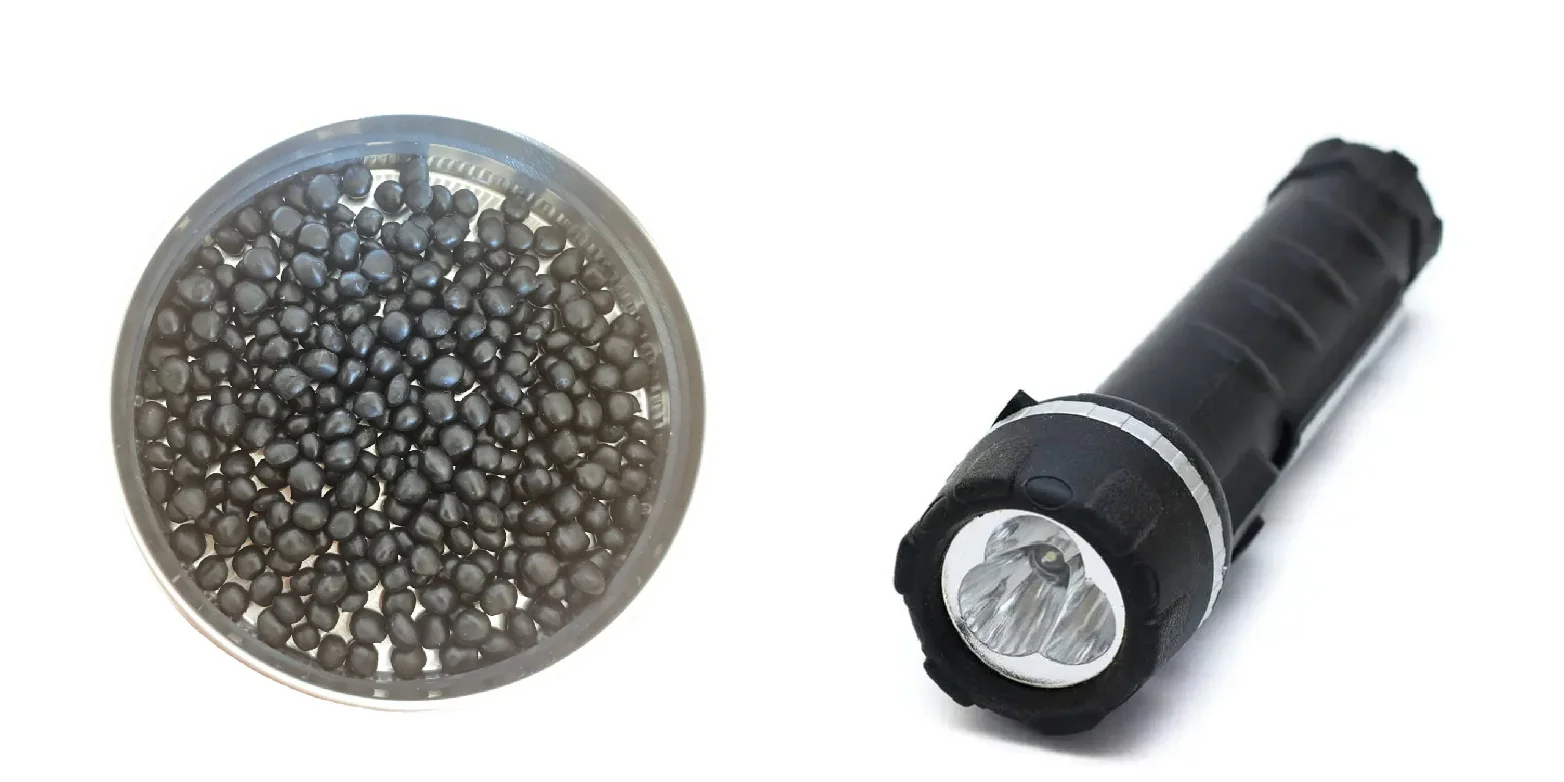

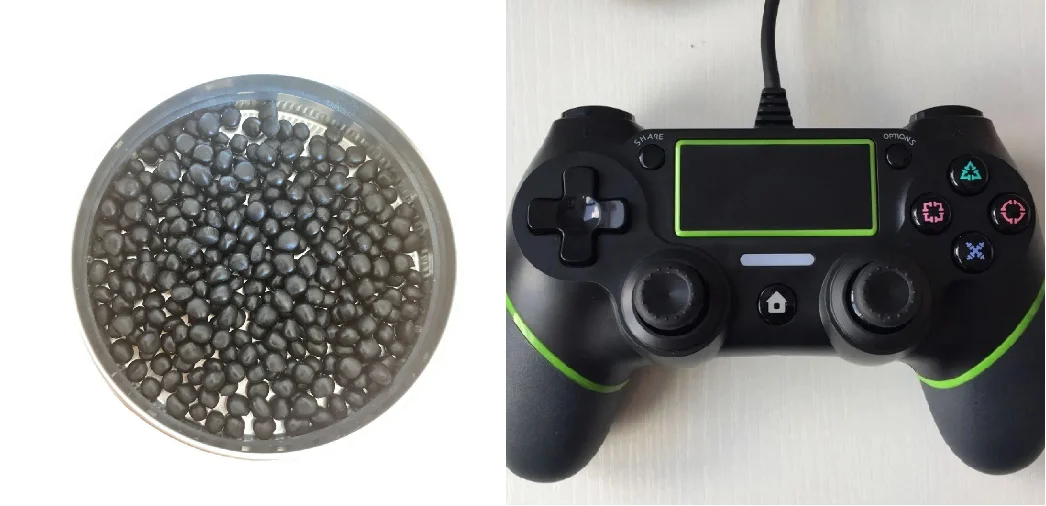

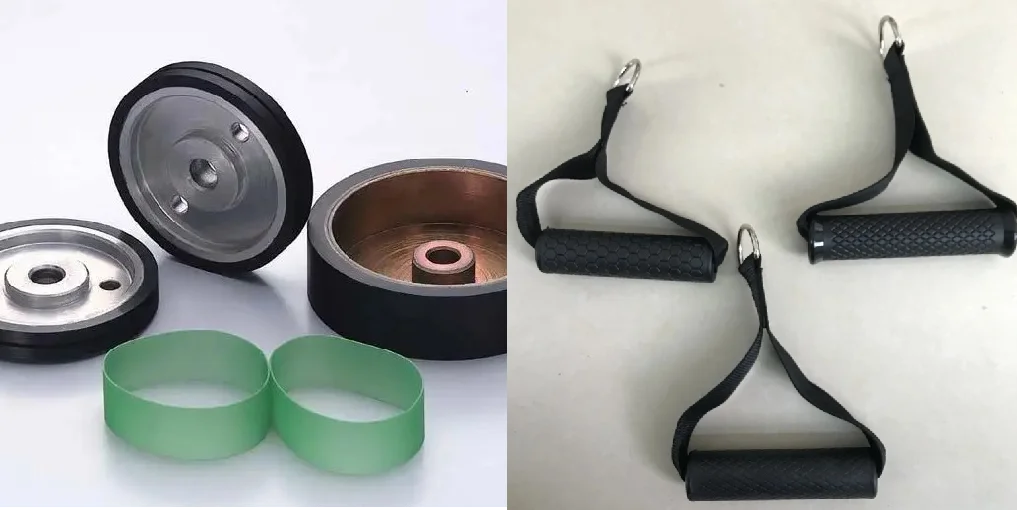

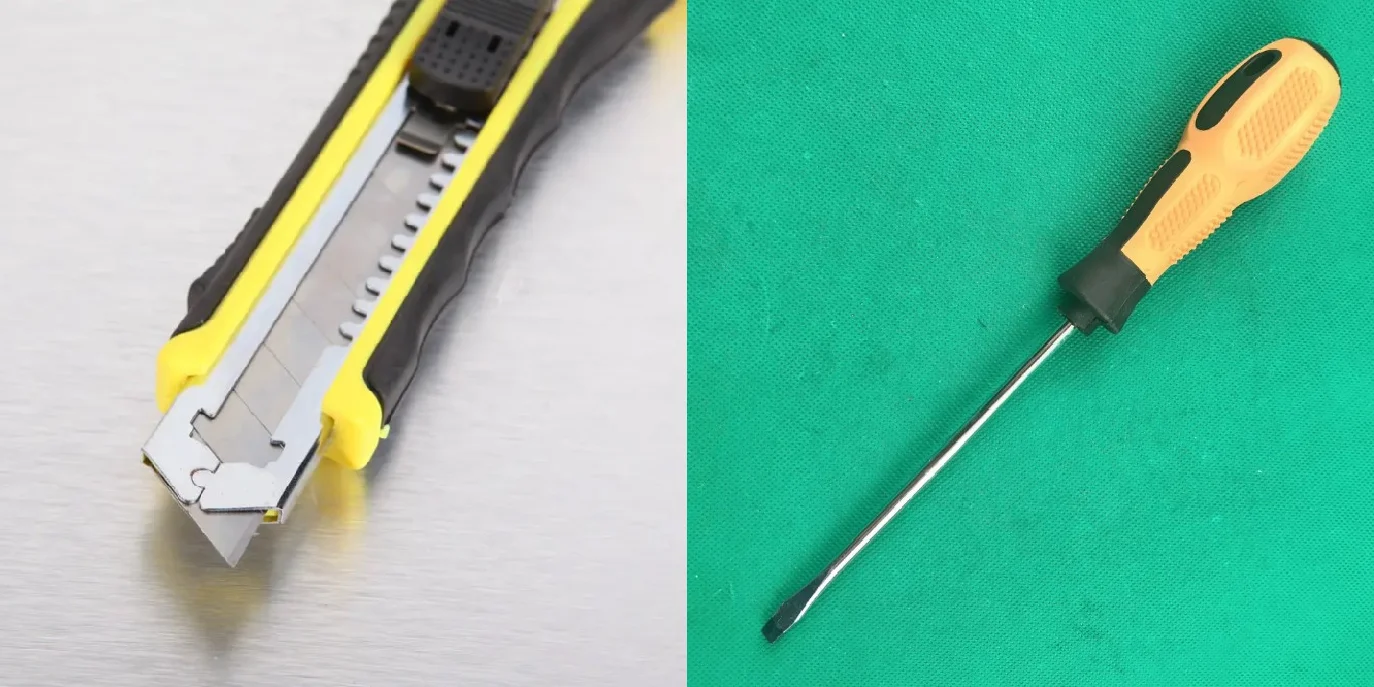

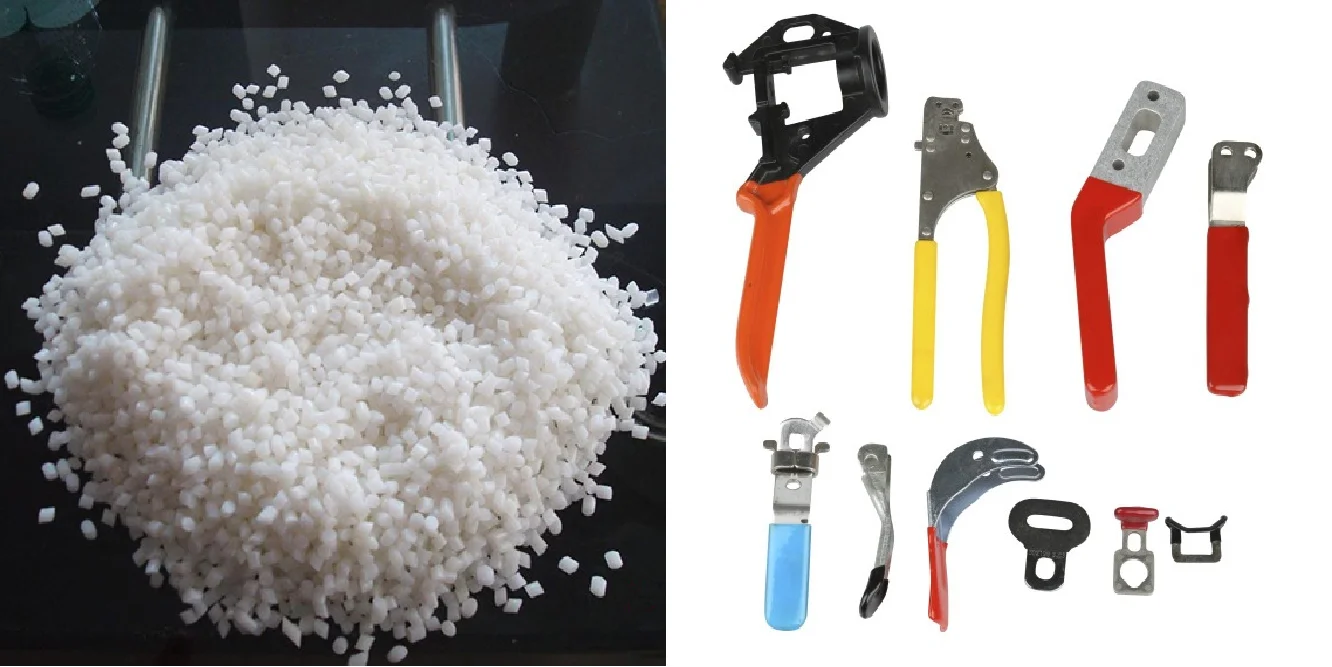

• TPE is made of coated plastic and shot adhesive processing, commonly used products such as handles, grips, electronic materials, etc. The material gives the product a comfortable touch, enhances the grip, enhances the beauty of the product and the added value of the product. Most of the products are exported to the United States, Japan and the European Union and other developed countries and regions. Because TPE elastomer soft adhesive is green environmental protection raw material, in line with ROHS,REACH,NP,EN71,PAHS environmental protection testing standards, can fully meet the environmental protection requirements of the United States, Japan, The European Union and other developed countries and regions.

Processing Technic



TPE wrapping glue shooting generally adopts the secondary injection molding process, that is, the hard plastic parts are fixed on the wrapping plastic mold, and then the TPE soft plastic is injected into the hard plastic parts at the appropriate temperature, and the products are cooled. The injection temperature varies according to the hard material of the coating. Usually TPE plastic PP material injection temperature in 170-190 degrees Celsius; Coated ABS material in 220-220 degrees Celsius; Plastic bag PC material temperature is slightly higher than plastic ABS injection temperature; PA nylon, the injection temperature should reach about 240 degrees Celsius.

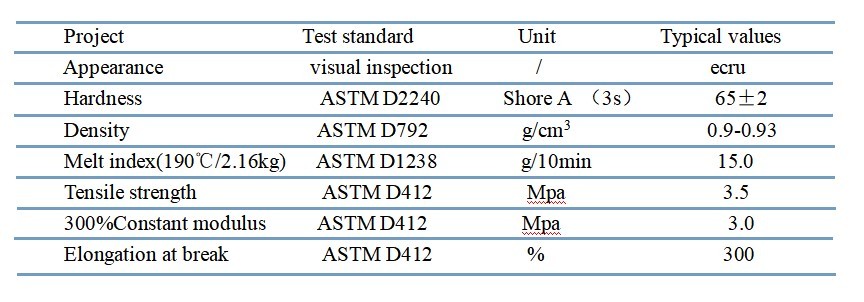

TPE CP65906 series is a kind of soft thermoplastic elastomer (TPS) based on styrene copolymer, which has good physical and chemical properties.



About us

  Lanboom is a 15-year experienced company in rubber & plastic raw materials, related extrude & injection products manufacturing, developing and marketing. Lanboom has been investing 30% of annual profit for products research and development.

  We have passed ISO9001 and TS16949 quality control system, with more than 60 test equipments of 24-hour monitoring as the ISO/ASTM standards. All products have been insured by China Taiping , and Lanboom products are sold to more than 20 countries across America and Europe.

  We will constantly pursuit "customer first" principle and provide customized products.





Testing Equipments



Main Certificates

Exhibition









FAQ

  Q : Are you a factory or trading company?
  A : We are a professional rubber & plastic raw materials manufacturer in Dongyang, Zhejiang, China.



  Q : Do you have laboratory in company?
  A: Yes, we have 2 laboratory centers which conduct all deferent tests as customer required, like properties, life time etc.



  Q : What's your factory's production capacity?
  A : 6,000 tons/year.



  Q: What is the shipping port?
  A: Ningbo port, China.



  Q: Do you support OEM /ODM?
  A: Yes, we can do customized products according to your request.



  Q: What about your after-sales services?
  A: 1 year warranty for all kinds of products.
