10/100/1000m 24 Port Full Gigabit POE Switch with 2 SFP 2 Ethernet Uplink used for Hikvision Dahua CCTV POE Camera
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600550106271):
Product Overview
Description
Products Description

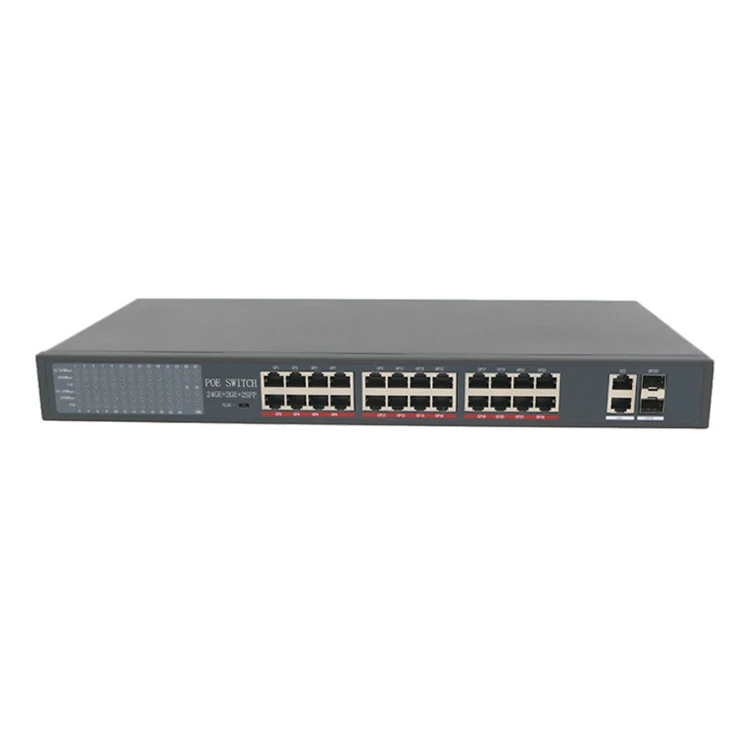

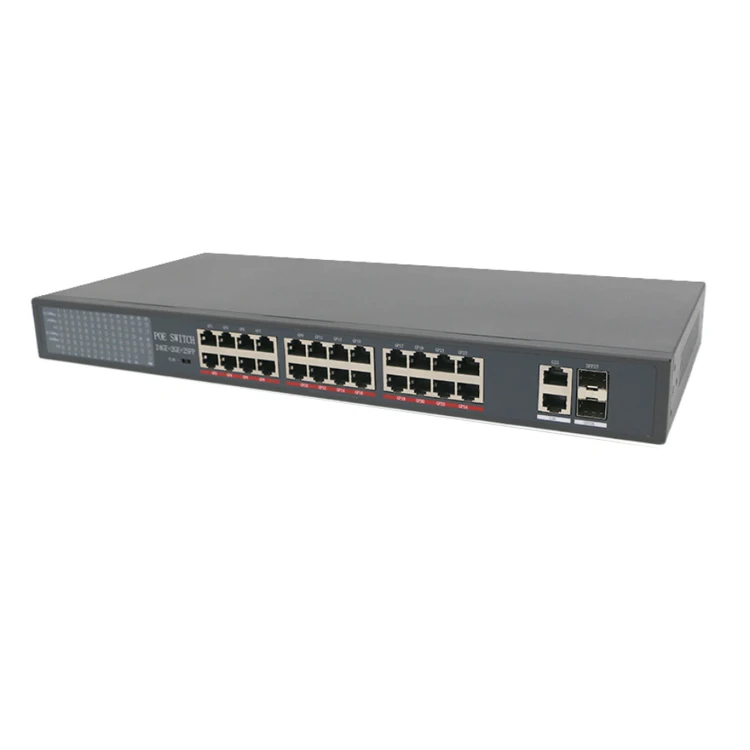

24 Port 10/100/1000M POE Switch With 2 Gigabit RJ45+2 Gigabit SFP Port Uplink
CREDEK 24Port Gigabit PoE Switch provides a network point for power supply and data transmission. All the 24 Ethernet ports can be connected with 10/100/1000Mbps quickly, and the uplink port is Ethernet interface, among which 1-24 port can provide standard IEEE 802.3af/at power supply. Due the advanced self-sensing algorithm supply power for IEEE802af/at terminal unit only, there is no need to worryabout damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected.
Features

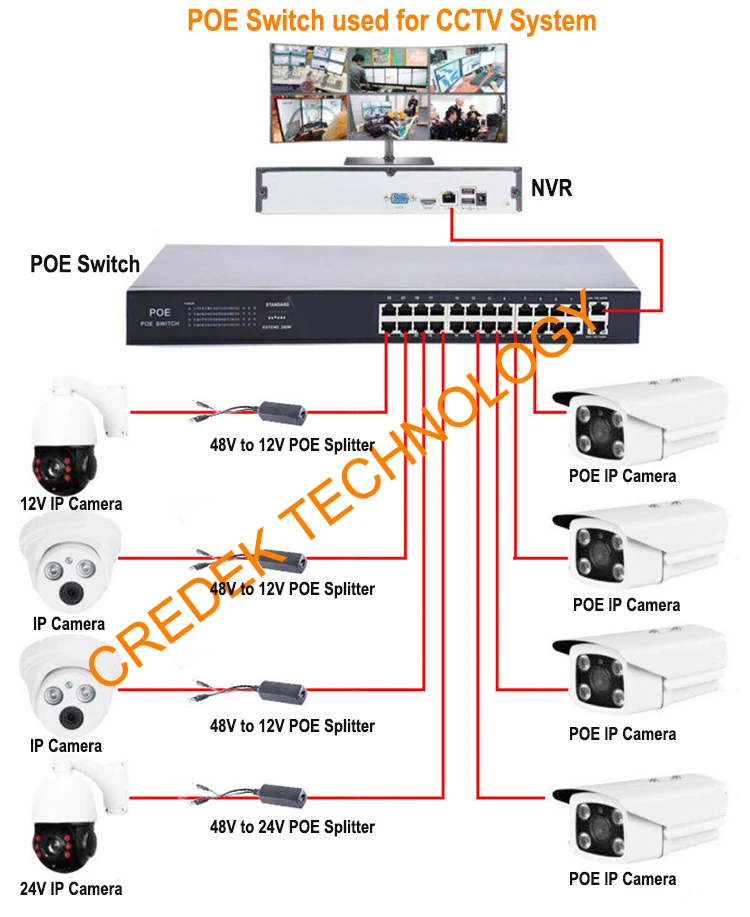

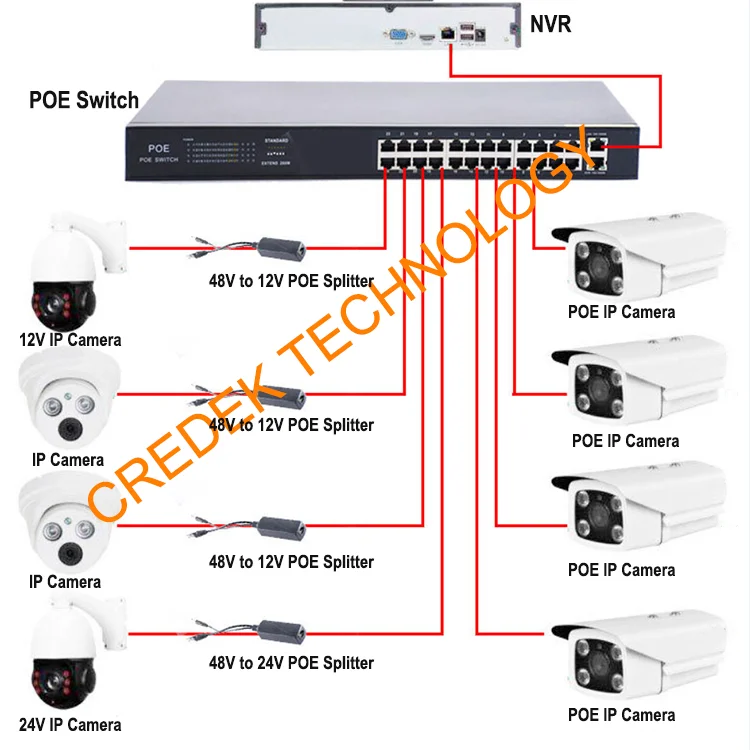

*Can supply power to network surveillance cameras that with PoE function
*24x10/100/10000Mbps PoE ports, 2x10/100/1000m+2xSFP uplink ports
*Standard: IEEE802.3af/at
*Supports port auto-flip (Auto MDI/ MDIX)
*Maximum power of single PoE port: 30W
*Power Consumption:400W
*Adopts store-and-forward architecture;
*Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
*Can supply power to network surveillance cameras that with PoE function
*24x10/100/10000Mbps PoE ports, 2x10/100/1000m+2xSFP uplink ports
*Standard: IEEE802.3af/at
*Supports port auto-flip (Auto MDI/ MDIX)
*Maximum power of single PoE port: 30W
*Power Consumption:400W
*Adopts store-and-forward architecture;
*Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
Product Paramenters
Product Name | 24+2+2 ports 10/100/1000Mbps PoE Switch |
Product Model | PS-60024 |
Connector | 24x 10/100/1000M copper cable RJ45 ports(all ports support MDI/MDIX) |
24x POE ports | |
PoE Power | Max output power (single port): 30W |
Total output power: 100W | |
PoE Pin assignment: 1/2(+),3/6(-); 4/5(+),7/8(-) for customization | |

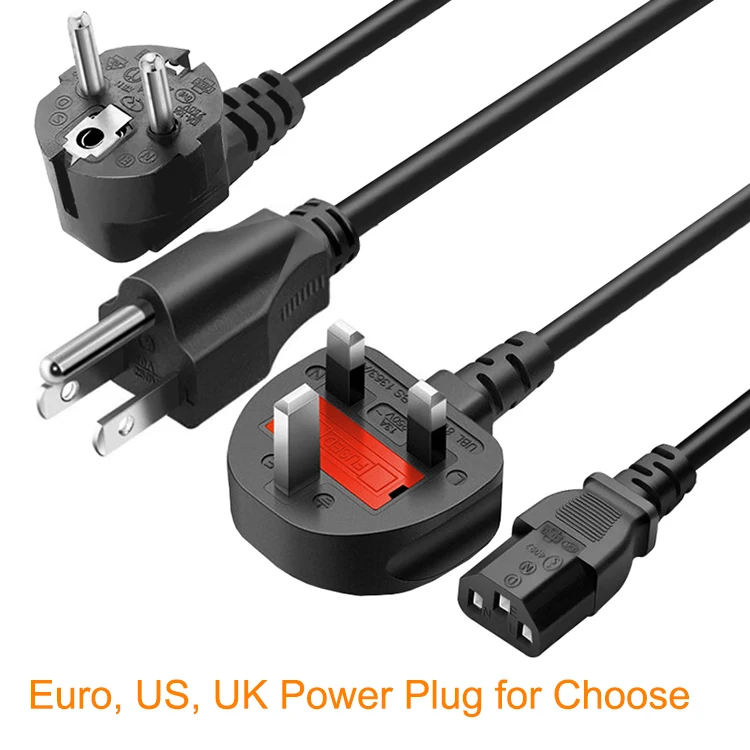

Input Power supply: AC100-240V 50/60Hz; | |
Transfer Mode | Store-And-Forward |
MTBF | 190,000 hours (about 21 years) |
Bandwidth | 52Gbps |
Packet Buffer Memory | 38.688Mpps |
MAC Address Table | UP to 8K MAC addresses |
Support auto-update, two-way learning | |
Port Flow Control | Back-pressure traffic control under Half-Duplex mode |
Network standard | IEEE 802.3x traffic control under Full-Duplex mode |
IEEE 802.3af, Power over Ethernet | |
IEEE 802.3at, Power over Ethernet | |
IEEE 802.3i, 10BASE-T | |
IEEE 802.3u, 100BASE-TX | |
IEEE 802.3x, Full-Duplex Flow Control | |
IEEE 802.1af DTE Power via MDI | |
LED Indicators | System: power supply |
Every Port: connecting, PoE working status | |
Environment | Operating Temperature: 0°C~55°C |
Storage Temperature: -20°C~75°C | |
Operating Humidity: 10%~90% non-condensing | |
Storage Humidity: 10%~95% non-condensing | |
Radiation | CE mark, commercial |
RoHS | |
Safety | CE Mark ,commercial |
CE/LVD EN60950, RoHS | |
Warranty | 2 Year warranty |
