95~240V WiFi Thermostat Touch Screen Tuya Smart Home Room Electric Underfloor Heating Boiler Controller Color Display

95~240V WiFi Thermostat Touch Screen Tuya Smart Home Room Electric Underfloor Heating Boiler Controller Color Display

Description

The M3H thermostat is developed to control electric underfloor or water heating or water/gas boiler system. These units are designed for use in commercial, industrial, civil and domestic properties.

Model Distinguish

M3H-GB WiFi: Electric floor heating with WiFi function, Voice control, 16A. M3H-GA WiFi: Water floor heating to control NO NC actuator or the electromagnetic valve with WiFi function, Voice control, 3A. M3H-GC WiFi: Gas boiler, Water floor heating to control NO NC actuator or the electromagnetic valve with WiFi function, Voice control, 3A.

Specifications

- Power Supply: AC90V-240V 50/60Hz

- Set temperature range: 5-95℃

- Limite Temp. Range: 5-65℃ (default 35℃)

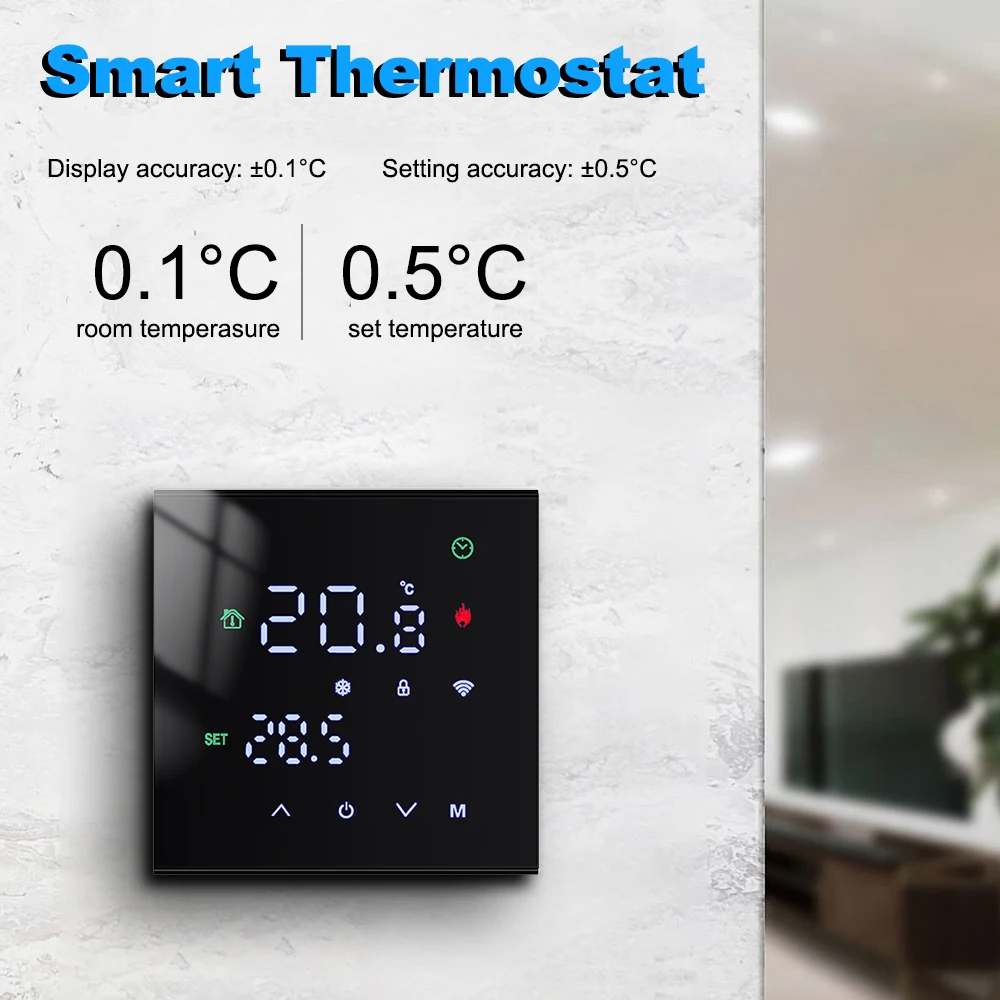

- Accuracy: ±0.5℃

- Unilateral return difference:1°C~9°C (default 1°C )

- Sensor: NTC 10K

- Power Consumption: < 2W

- Shell material: PC+ABS (flame retardant)

- Installation Hole distance: 60mm (Suit with EU standard round mounting box).

- Dimension: 86x86x43mm

- Protection Class: IP20

- Temperature hysteresis: 0.5 ~ 10 C degrees.

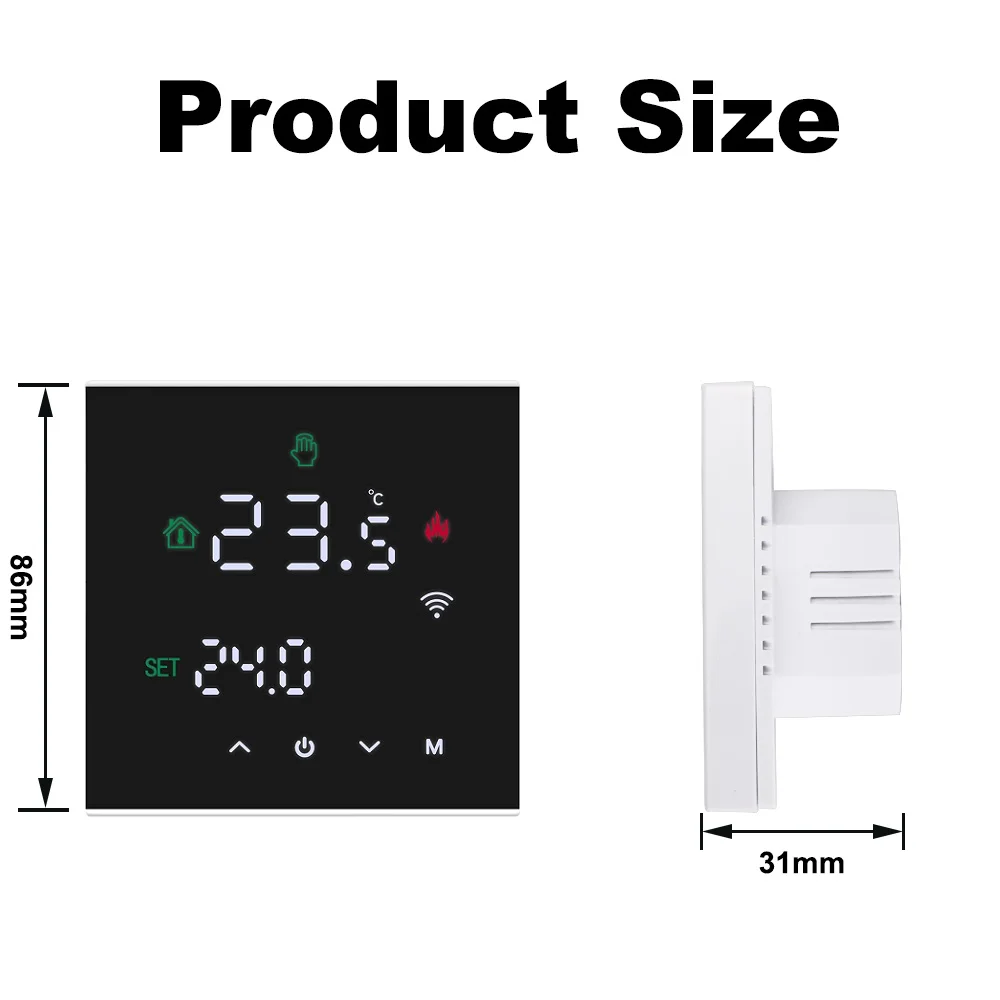

Dimension

Functions

1. Memory Function Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.

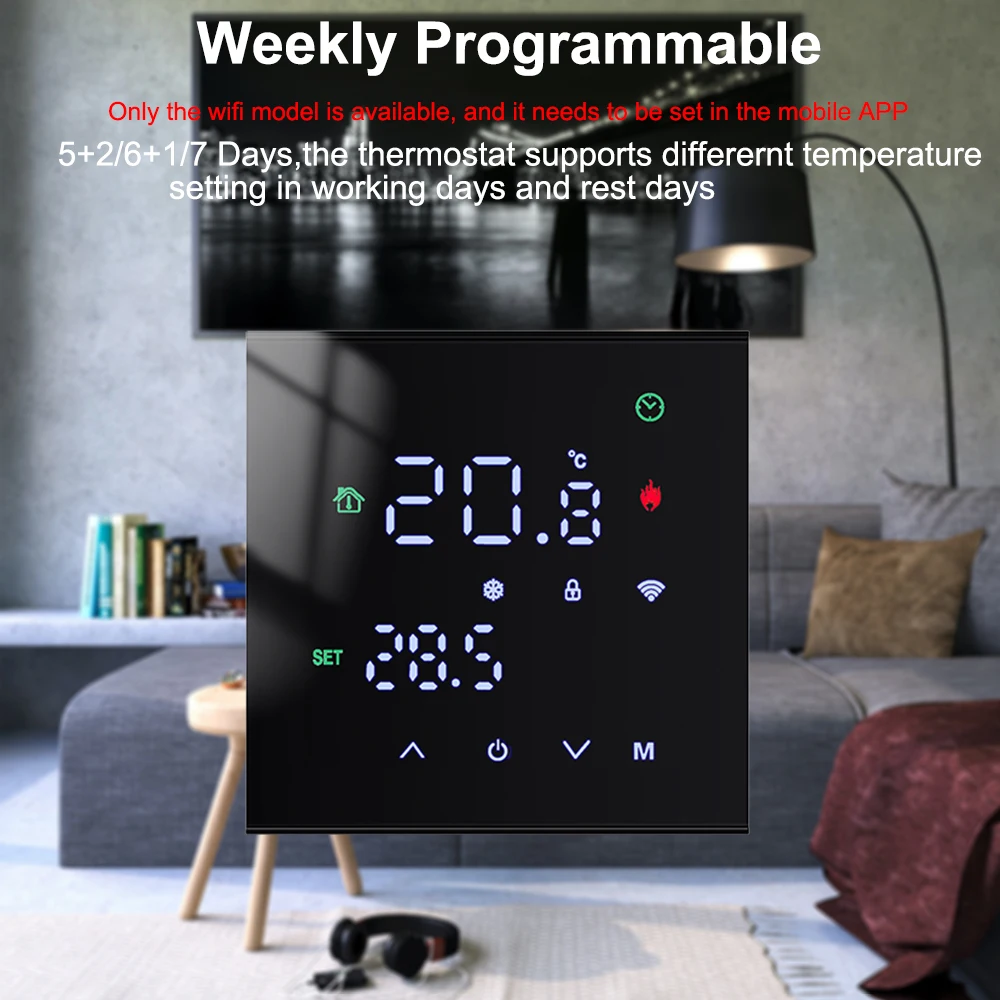

2. Programmable Function Support 5+2, 6+1 or 7 days Weekly Programmable, six periods programmable controlling temperature setting. (Only wifi models supports weekly program).

3. Children lock to avoid misoperation.

4. Wifi function The wifi thermostat can be controlled by Mobile APP wherever you are. (Only WiFi model).

5. Support to be voice control by Alexa. (Only WiFi model)

6. APP support most of Popular languages.

Powered By Tuya

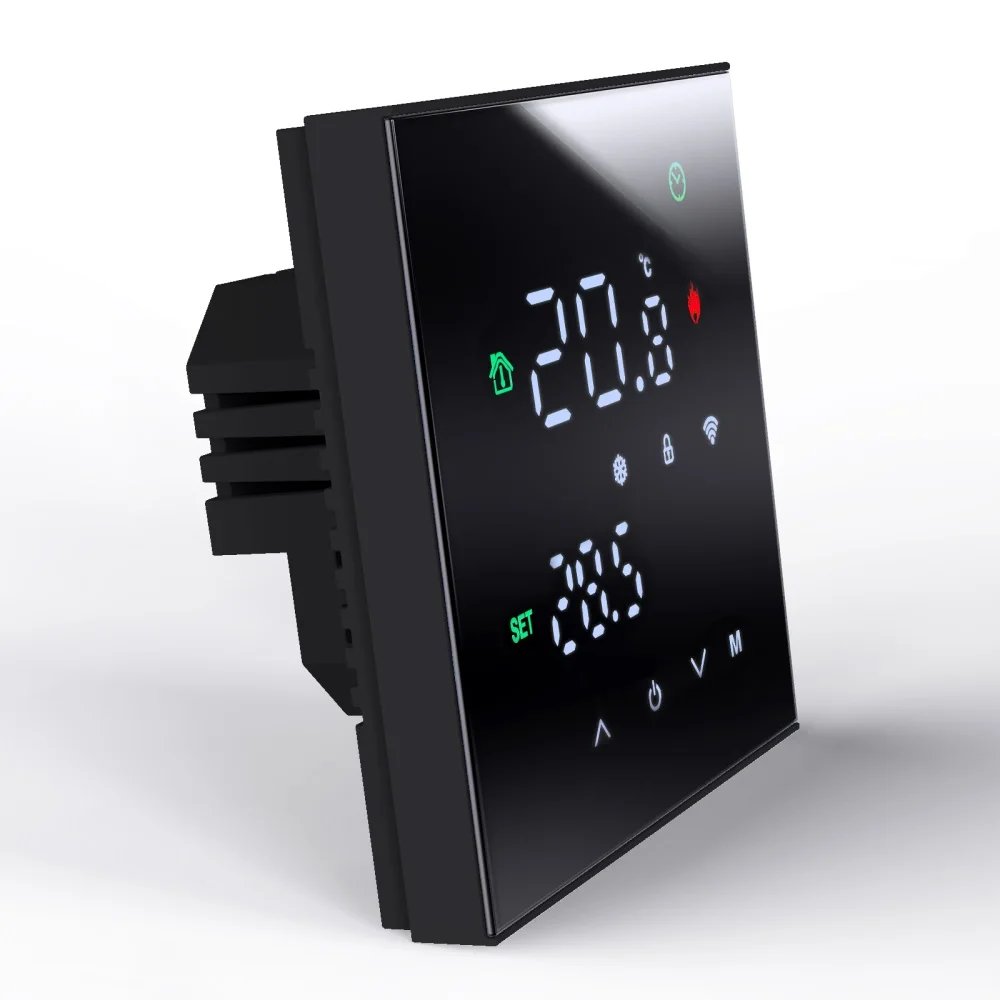

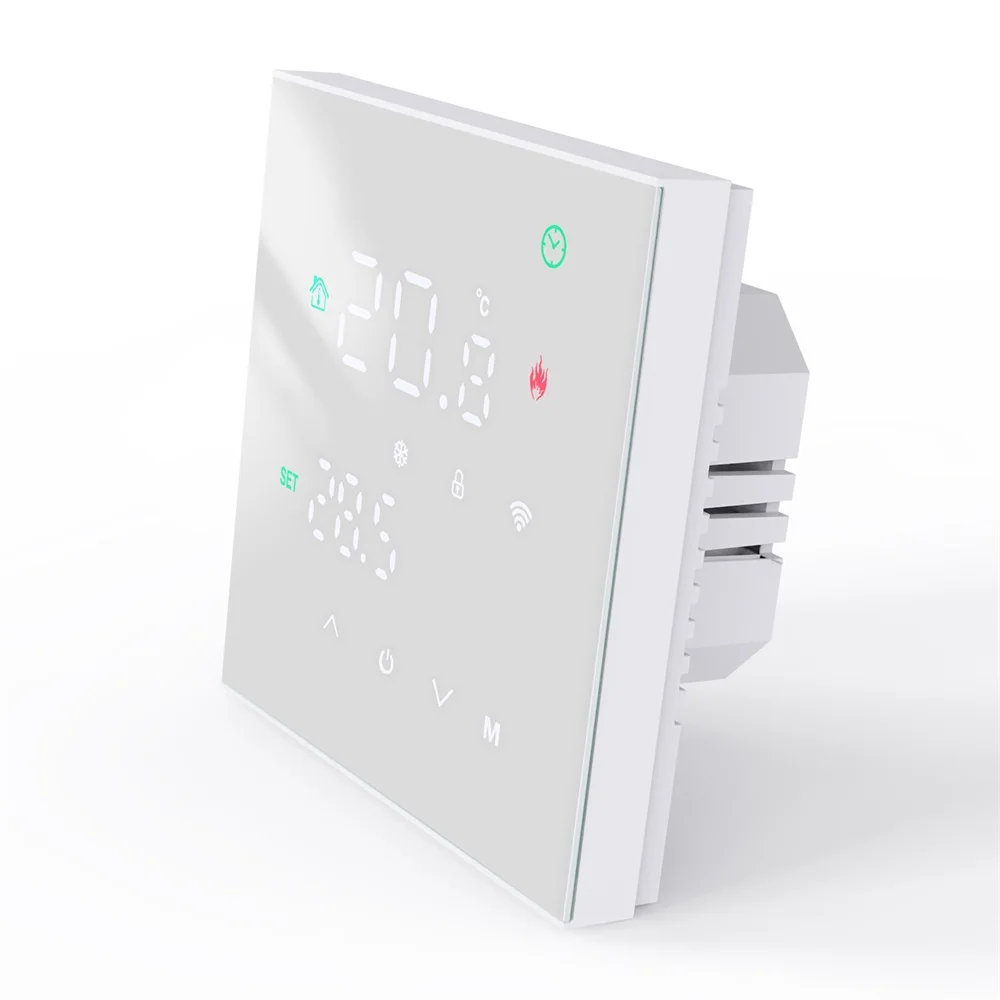

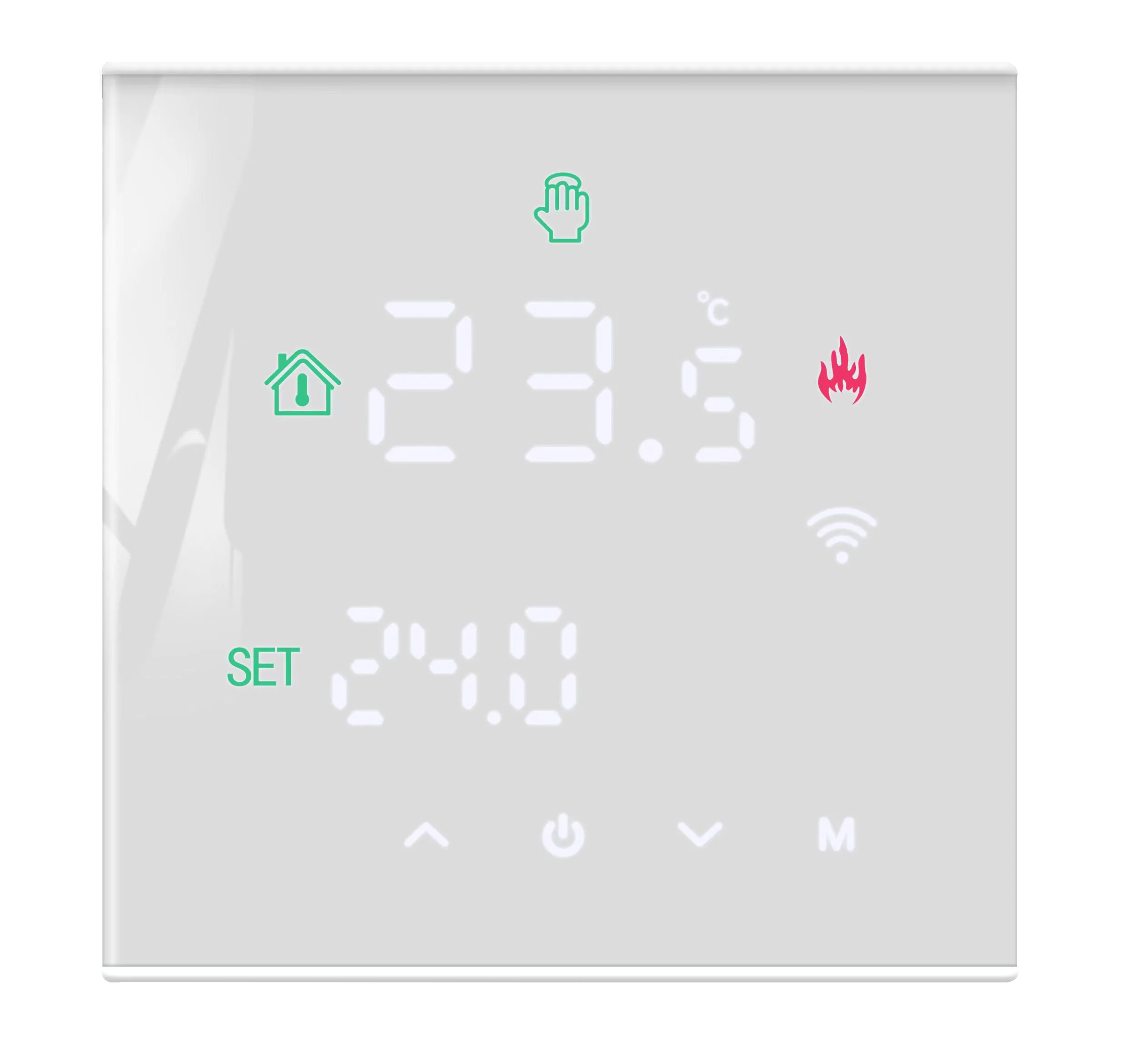

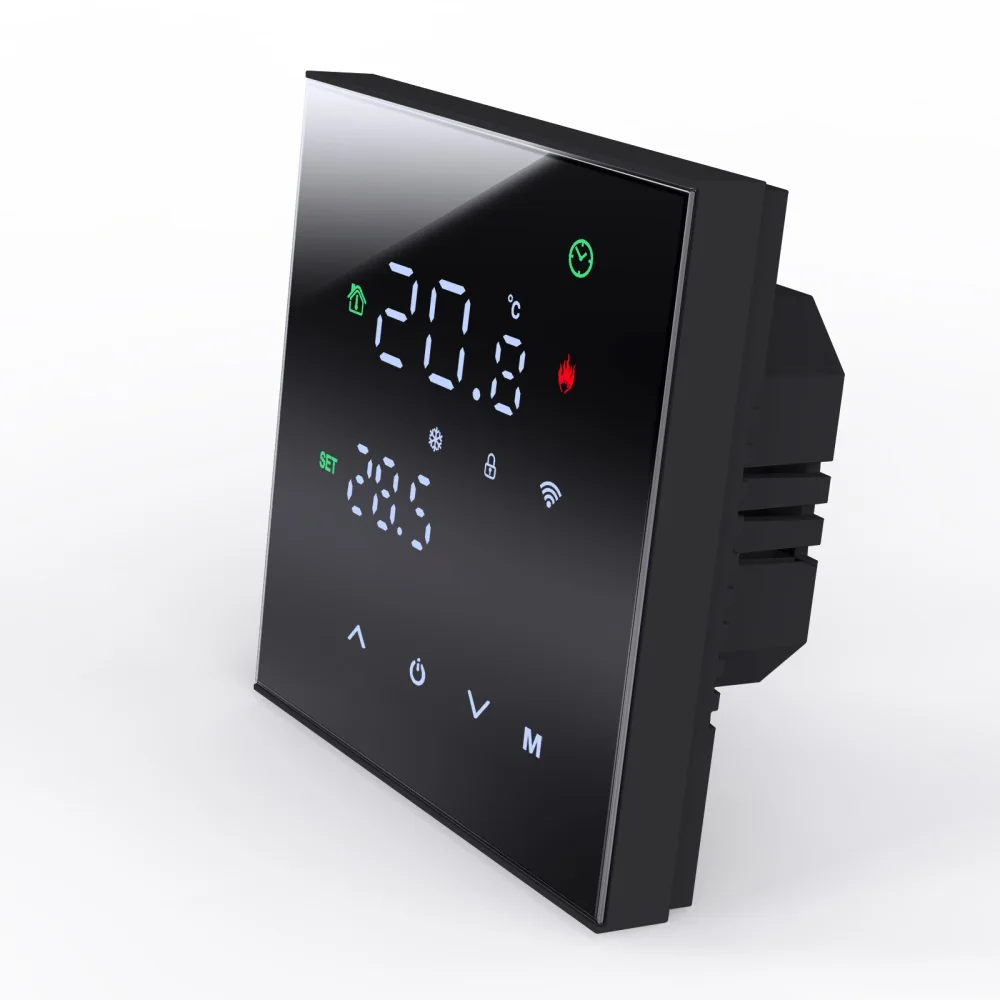

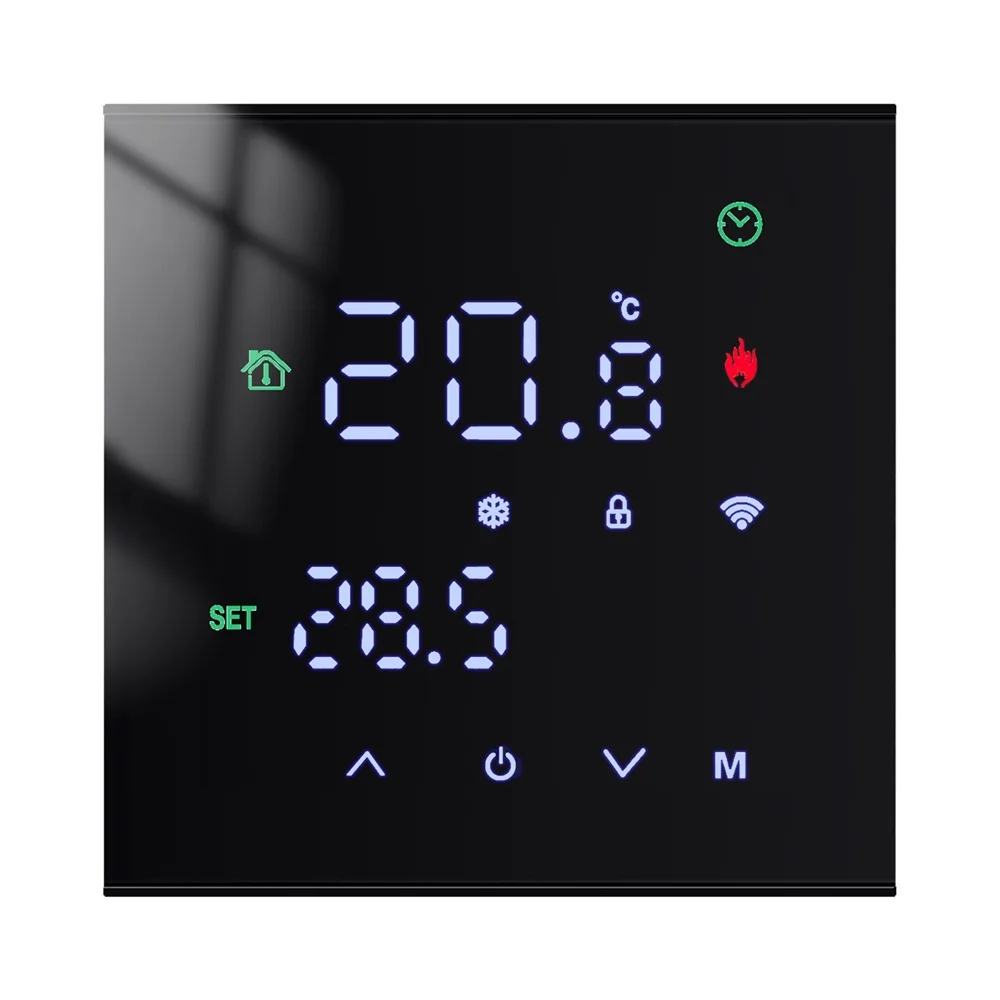

Product Image
