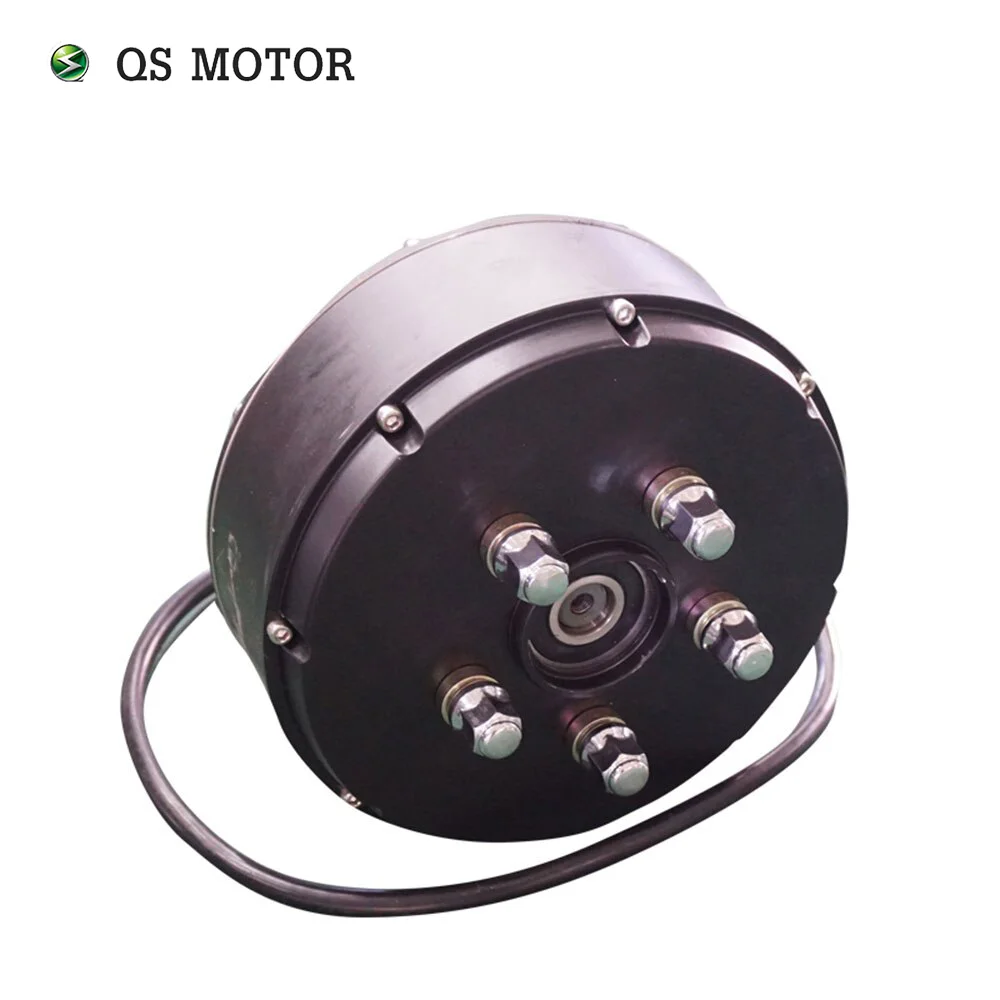

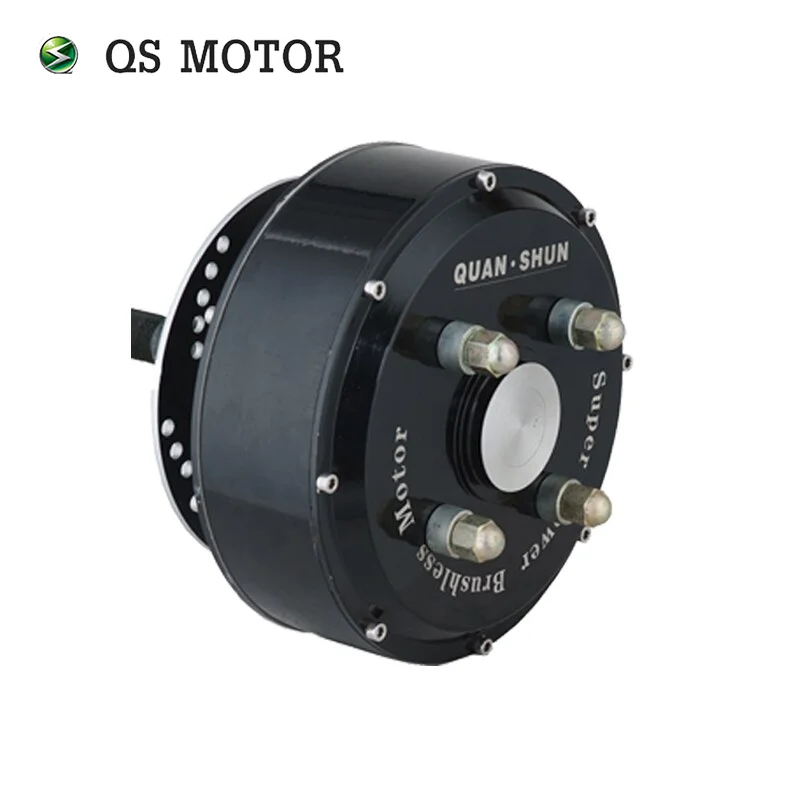

QS Motor 1000W 205 40H E-car V2 electric car hub motor
For 205 E-Car wheel hub motor, it could be used for electric scooter, tricycle, mini/golf car.
205 motor means the diameter of iron ring of rotor is 205mm, for all 205 motor, e.g. 10inch & 12inch 205 e-scooter hub motor,
205 spoke hub motor, 10inch & 12inch 205 single shaft hub motor, 205 E-car Hub motor etc., the configuration & performance is the same as 10inch 205 Hub Motor.
Optional Aluminium cover
Key Features
1). Simplify to make a light electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
PS.1). Above quotation base on 205 electric car hub motor, 48V~96V.
2). Above configuration is suggested for mass production.
for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).
Product description
Genearlly Spec:
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Single axle without moped rim (Integrated)
Matching Rim Size:12inch, 13inch & above wheel rim, CB ≥60mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default)
Magnet Height: 40mm, 23 pole pairs
Stator: Aluminum Core
Rated Power: 1000W
Speed: 24KPH-60KPH, it's customized, genearlly we will design as 72V40KPH.
Work Voltage range: 48V-96V, will be 72V as default.
Max Torque approx 135.0N.m
KV: 9.16/10.20/11.42(optional)
Thermic Probe: KTY83-122 (as default, optional)
Max Efficiency approx 84%
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Moped Disc brake (as default), PCD: 3*80mm, CB: 58MM
Dual Halls with waterproof connectors(One for using, one for spare
12mm axle flats
4mm² Cross Section of Phase Wire(not including insulation layer)
Waterproof Grade: IP54
Color: Black (As default)
N.W/ G.W: 17.0kg/18.5kg
Dimension Drawing:
QS 205 e-car hub motor(Iron cover)
QS 205 e-car hub motor (Aluminum cover)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Conversion kits for 205 3kW E-Car hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

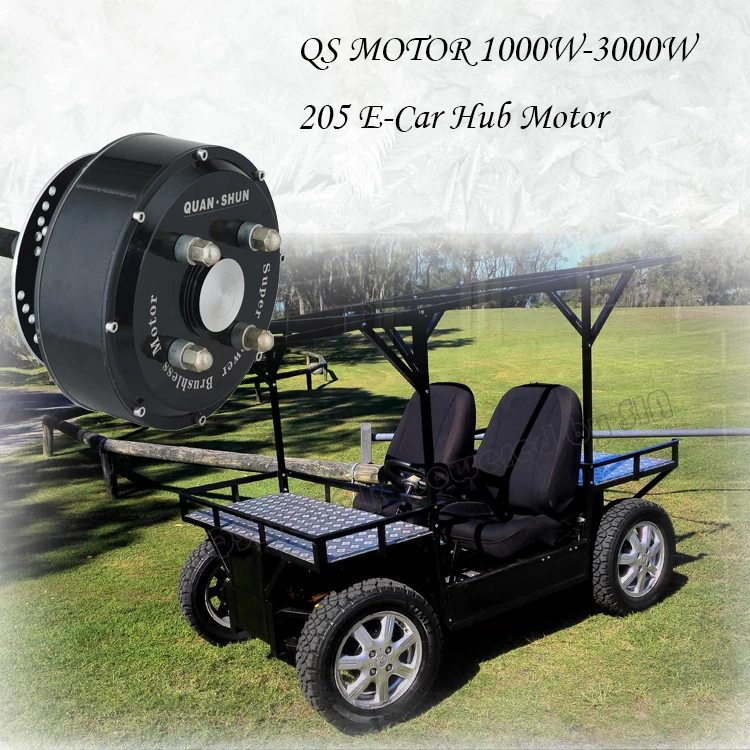

Application for E-Car hub motor
