Product Overview
Description
Replacement AC Furnace Pleated Panel Extended Surface Air Filter
Product Description
| Frame | Aluminum/ Galvanized Plate/ Stainless steel/ Cardboard | |||
| Media | synthetic fiber/ fiberglass/Carbon fiber | |||
| Proctective net | Aluminium mesh/ Galvanized mesh | |||
| Filtration class | EN779 G3-F9, MERV 5-15 | |||
| Size | Customization | |||
| Filter Rating | 1um-10um | |||
| Feature | 1.large dust holding capacity 2.environmental and easy recovery 3.Low initial pressure drop, long lifetime 4.Various thickness available: 21mm, 25mm, 46mm, 96mm, etc. | |||
| Application: | 1.heavy and metal industry 2.Chemical plants 3.Pharmaceutical and food industry 4.Gas trubo and Co-generation utility plants 5.Paint spray plants 6.HVAC,FFU,AHU,MAU 7.Air ventilation system | |||
| Specification | |||||
| Nominal Size | Actual Size | Rated Airflow (CFM) | Nominal Size | Actual Size | Rated Airflow (CFM) |
| WxHxD.inch | WxHxD.mm | WxHxD.inch | WxHxD.mm | ||
| 20x18x1 | 495x445x21 | 1500 | 20x20x2 | 495x495x46 | 2363 |
| 24x10x1 | 595x241x21 | 1000 | 24x20x2 | 595x495x46 | 2839 |
| 24x12x1 | 595x295x21 | 1190 | 24x24x2 | 595x595x46 | 3400 |
| 24x14x1 | 595x343x21 | 1394 | 25x14x2 | 619x343x46 | 2000 |
| 24x16x1 | 595x394x21 | 1650 | 25x15x2 | 619x368x46 | 2210 |
| 24x18x1 | 595x445x21 | 1785 | 25x18x2 | 619x445x46 | 2660 |
| 24x24x1 | 595x595x21 | 2380 | 20x20x4 | 495x495x96 | 2363 |
| 20x10x2 | 495x241x46 | 1200 | 24x16x4 | 595x394x96 | 2261 |
| 20x14x2 | 495x343x46 | 1658 | 24x18x4 | 595x445x96 | 2550 |
| 20x15x2 | 495x368x46 | 1777 | 24x20x4 | 595x495x96 | 2839 |
| 20x16x2 | 495x394x46 | 1870 | 24x24x4 | 595x595x96 | 3400 |

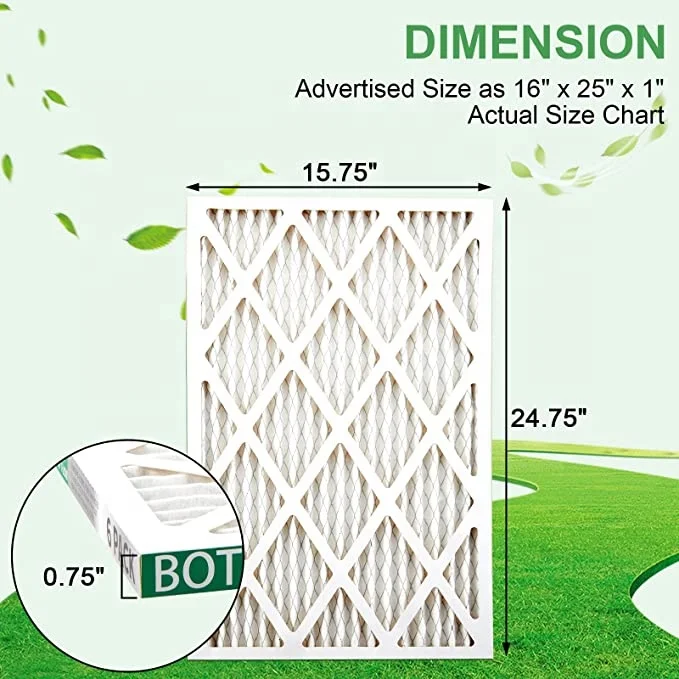

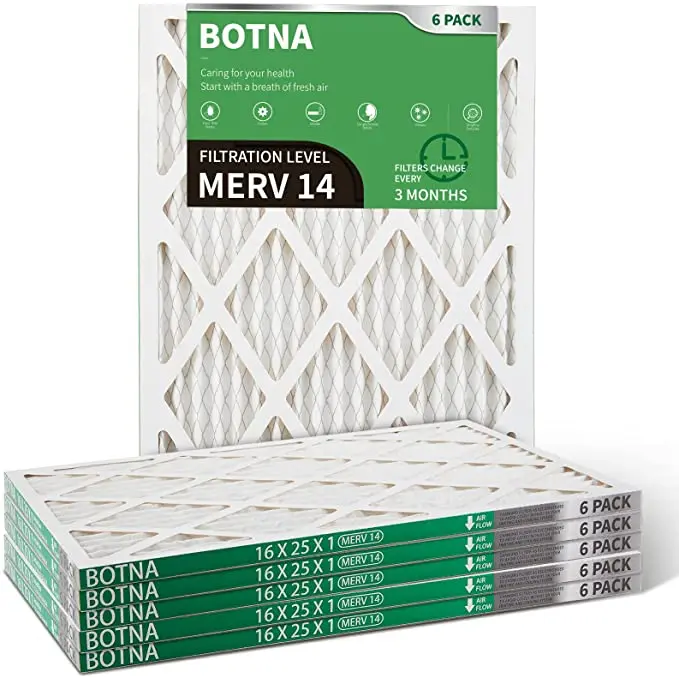

Product photo
