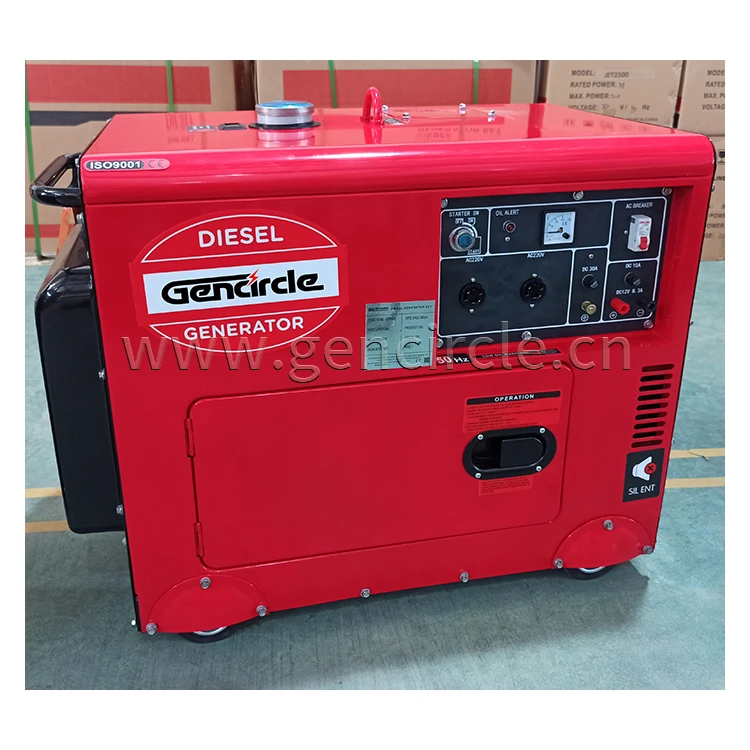

5KW Portable silent Japanese brand diesel generator
US $370.00-$585.00
Горячая Распродажа, портативный резервный домашний бесшумный дизельный генератор 7 кВт с воздушным охлаждением, цена/
- Category: Diesel Generators >>>
- Supplier: Fuan,Westin,Jet,Electric,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Technical Datasheet :
| Model | JDE3500SE | JDE6500SE | JDE7500SE | JDE8500SE | JDE9500SE |
| Rated frequency (Hz) | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 |
| Rated output (kVA) | 2.8 3.3 | 4.5 5.0 | 5.0 5.5 | 5.5 6.0 | 6.0 6.5 |
| Max. output (kVA) | 3.2 3.8 | 5.0 5.5 | 5.5 6.0 | 6.0 6.5 | 6.5 7.0 |
| Rated Voltage (V) | 230 120/240 | 230 120/240 | 230 120/240 | 230 120/240 | 230 120/240 |
| Rated current (A) | 12.2 27.5/13.8 | 19.6 41.7/20.8 | 21.7 45.8/22.9 | 23.9 50/25 | 26 54/27 |
| Rated rotation speed ) | 3000 / 3600 rpm | ||||
| Phase NO. | Single phase | Single phase | Single phase | Single phase | Single phase |
| Excitation mode | Self-excitation & constant voltage (AVR) | ||||
| Receptacle | Two receptacles | Two receptacles | Two receptacles | Two receptacles | Two receptacles |
| Noise level(7m)dB(A) | 60 | 60 | 65 | 65 | 65 |
| Structure type | Silent frame | Silent frame | Silent frame | Silent frame | Silent frame |
| Engine Model | KM178FG | KM186FAG | KM188FG | KM188FG | KM192FG |
| Engine Type | Single cylinder, vertical, four-stroke, direct injection,air-cooled | ||||
| Rated power [KW/(r/min)] | 3.68/3000 4.0/3600 | 5.7/3000 6.3/3600 | 7.5/3000 8.2/3600 | 7.5/3000 8.2/3600 | 8.0/3000 9.2/3600 |
| Compression ratio | 20:01 | 19:01 | 19:01 | 19:01 | 19:01 |
| Lubrication system | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed |
| Starting system | Electric Start | Electric Start | Electric Start | Electric Start | Electric Start |
| Fuel type | 0#(summer)-10#(winter)-35#(chillness)diesel | ||||
| Lube oil brand | CD grade or SAE10W-30,15W-40 | ||||
| Lube capacity (L) | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| Charging generator capacity (V-A) | 12V 3A | 12V 3A | 12V 3A | 12V 3A | 12V 3A |
| Battery capacity (V-Ah) | 12V 36Ah | 12V 36Ah | 12V 36Ah | 12V 36Ah | 12V 36Ah |
| Fuel tank capacity (L) | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| Continuous running time (hr) | 8.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Packing size MM | 930×530×740 | ||||
| G.Weight | 155 | 160 | 163 | 165 | 170 |
| Loading quantity @ 20GP | 72 pcs | 72 pcs | 102 pcs | 72 pcs | 72 pcs |
Engine and Alternator Deails :
Our Genreator is Easy Operated
Kinds of Certificate
