Fully Automatic Mig Welding Feed Roller Dc 24V 150Rpm Mag Wire Feeder for Welder Machine
- Category: >>>
- Supplier: Guangzhou Wewin Motor Co. Ltd.
Share on (1600550209142):
Product Overview
Description
Fully Automatic Mig Welding Feed Roller 24V 150Rpm Mag Wire Feeder for Welder Machine
Specification

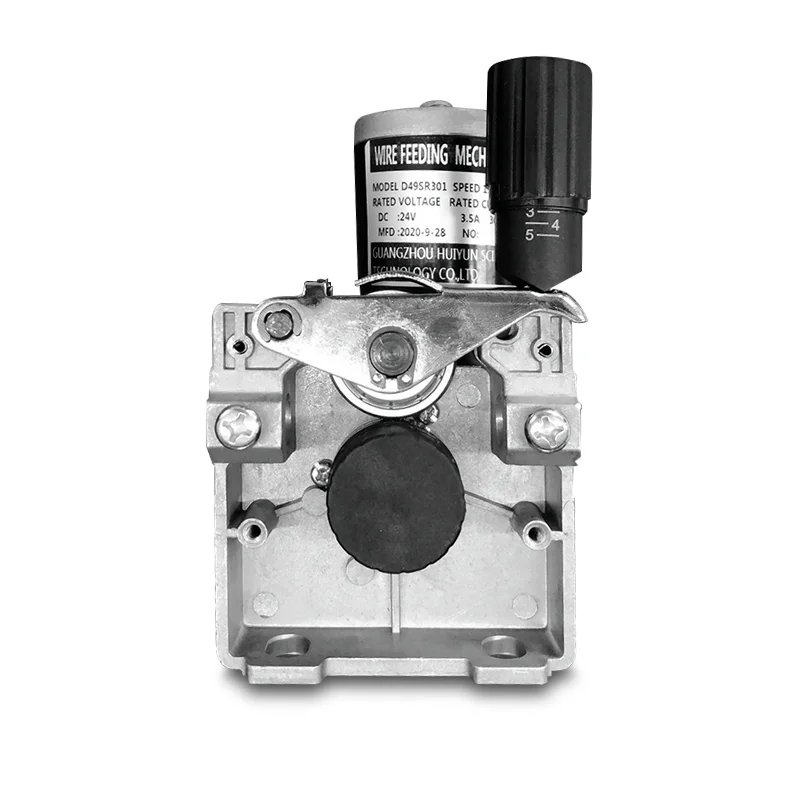

Wire Feeder for mig mag welding machine
Model number: D59R-2430-150-20L-AV0.6/0.8
This wire feeder can be use for the welding machine which the welding current is less than 200A,the welding machine can work at spot weld and continue weld.
WF4SR2-301D
Product Specialty
1.this wire feeder use our own designed motor which is special for welding machine with gear ratio is 20:1,it works at low noise and high torque.
2.The wire feeder frame is designed as the 40 series frame,so it can be exchanged for them.
3.Wire feeder motor can choose our another small motor D49R,D49L or D59R/L.
4.Feeder speed can required to 180rpm. that means the feeder speed will be at 16m/min.
5.Motor can be fixed encoder,hall sensor and opto-switch.
MOTOR | ||
Motor Type | D49SR | |
SIZE OF MOTOR | Diameter 49mm | |
VOLTAGE | DC24V | |
OUTPUT POWER | 20W | |
NO LOAD SPEED | 150RPM | |
NO LOAD CURRENT | 0.8A | |
Stall torque | 7.5N.M | |
Stall current | 8A | |
FRAME | ||
TYPE | 301D | |
WIRE FEEDER ROLL SIZE | 30mm*22mm | |
Apply for wire roll weight | 15kg,5kg | |
Feed wire diameter | 0.6mm 0.8mm 0.9mm 1.0mm | |
Maximum feed speed | 13m/min | |
Minimum steady operation voltage in load | DC4.5V | |
