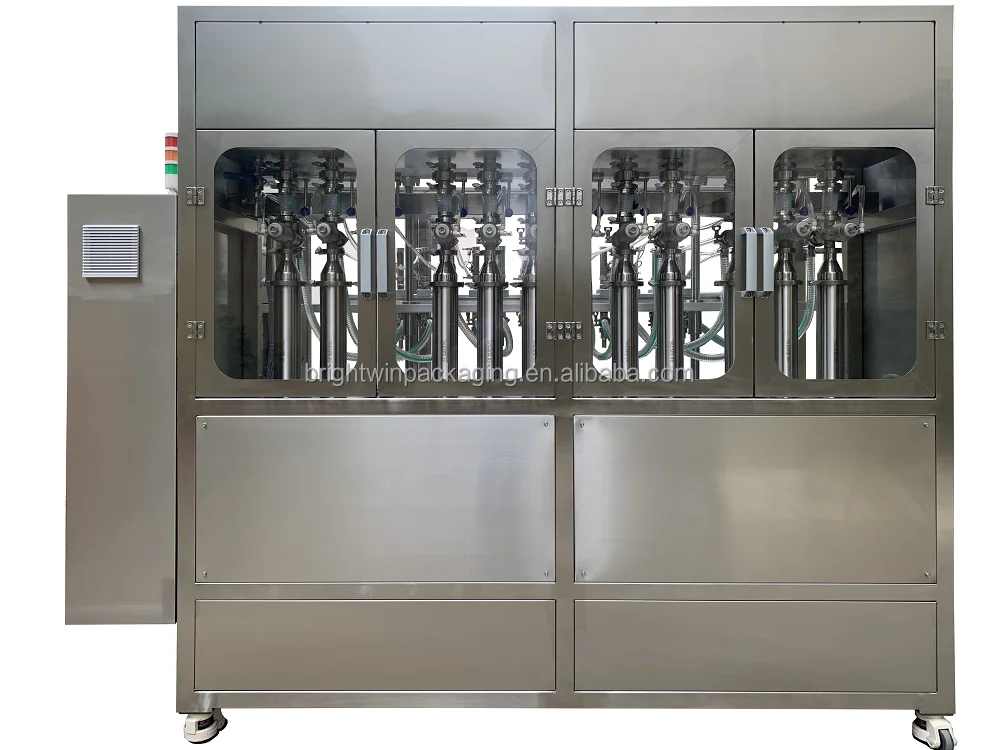

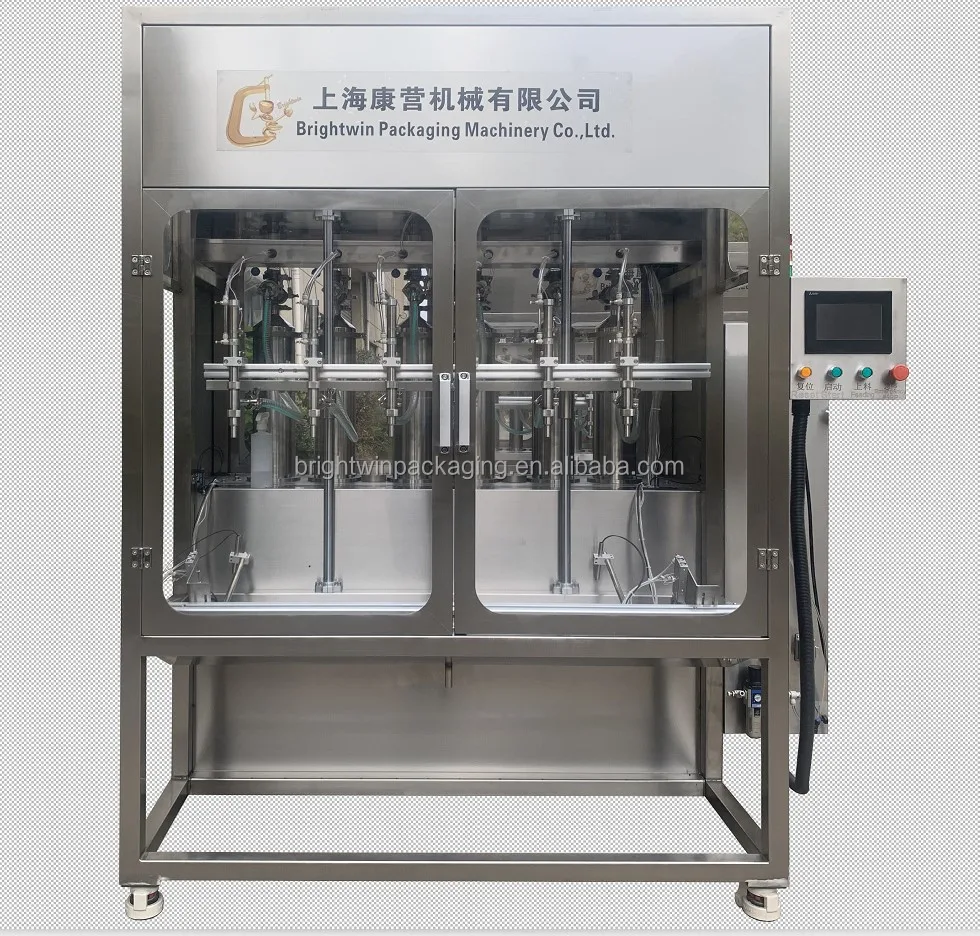

Automatic Servo Motor Diving Nozzle Car Oil Filling Machine/stainless steel machine
- Category: >>>
- Supplier: Brightwin packaging machinery Co. Ltd
Share on (1600550218496):
Product Overview
Description
Automatic Servo Motor Diving Nozzle Car Oil Filling Machine/stainless steel machine
Overview

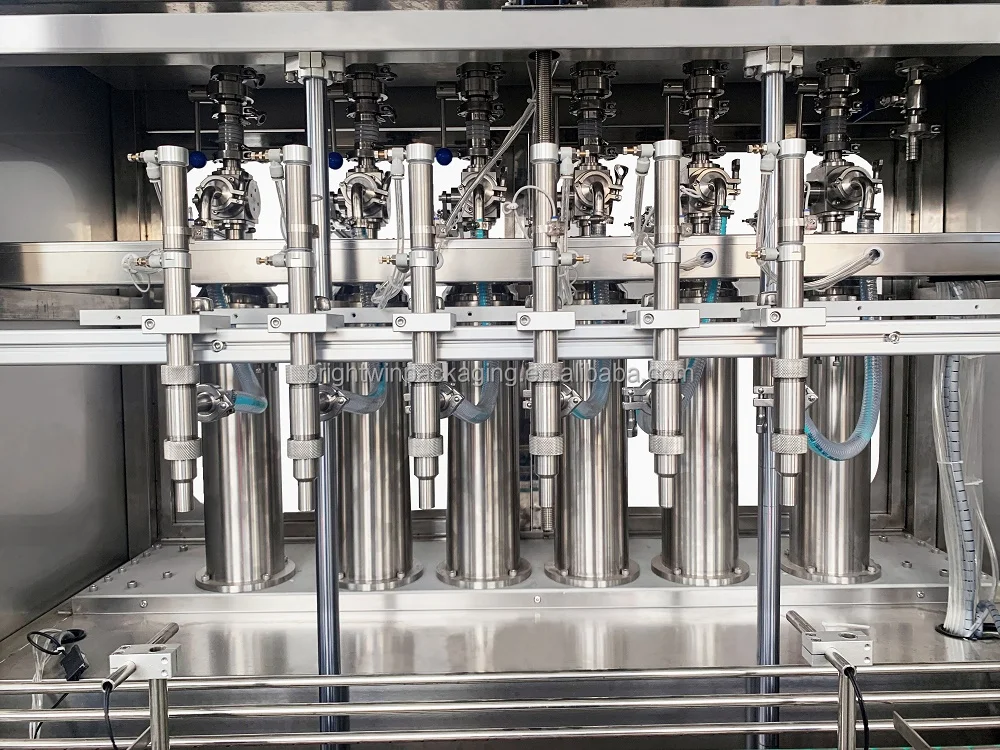

This machine is used to fill various liquid, viscous liquid or thick liquid products, like cooking oil, lube oil, beverage, juice, sauce, paste, cream, honey, shampoo, detergent, pesticides, and Liquid fertilizer etc as long as it can flow. It adopts piston pump filling with servo motor driven which is more accurate and easy to adjust the volume. With rotary valve for thick or viscous liquid products and non-rotary valve for liquid products.

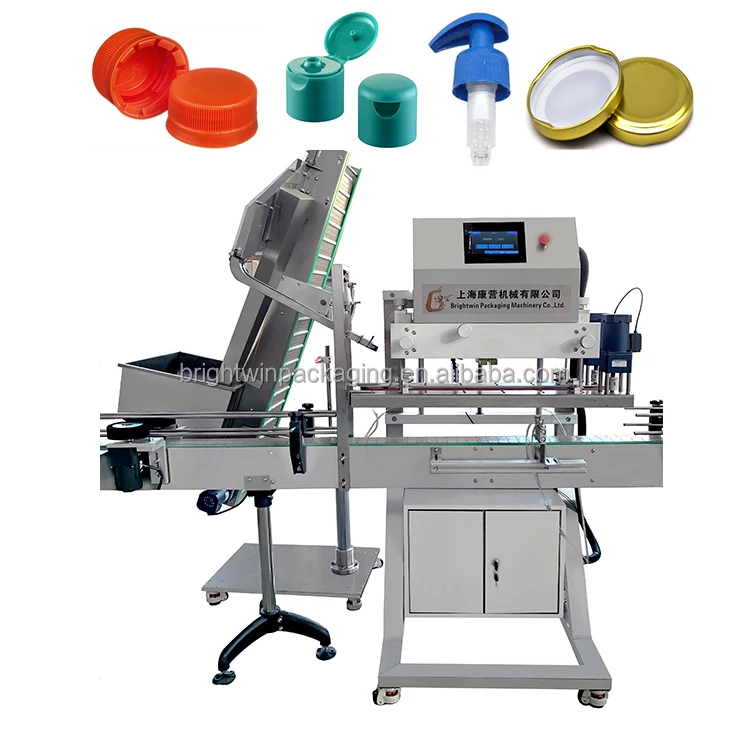

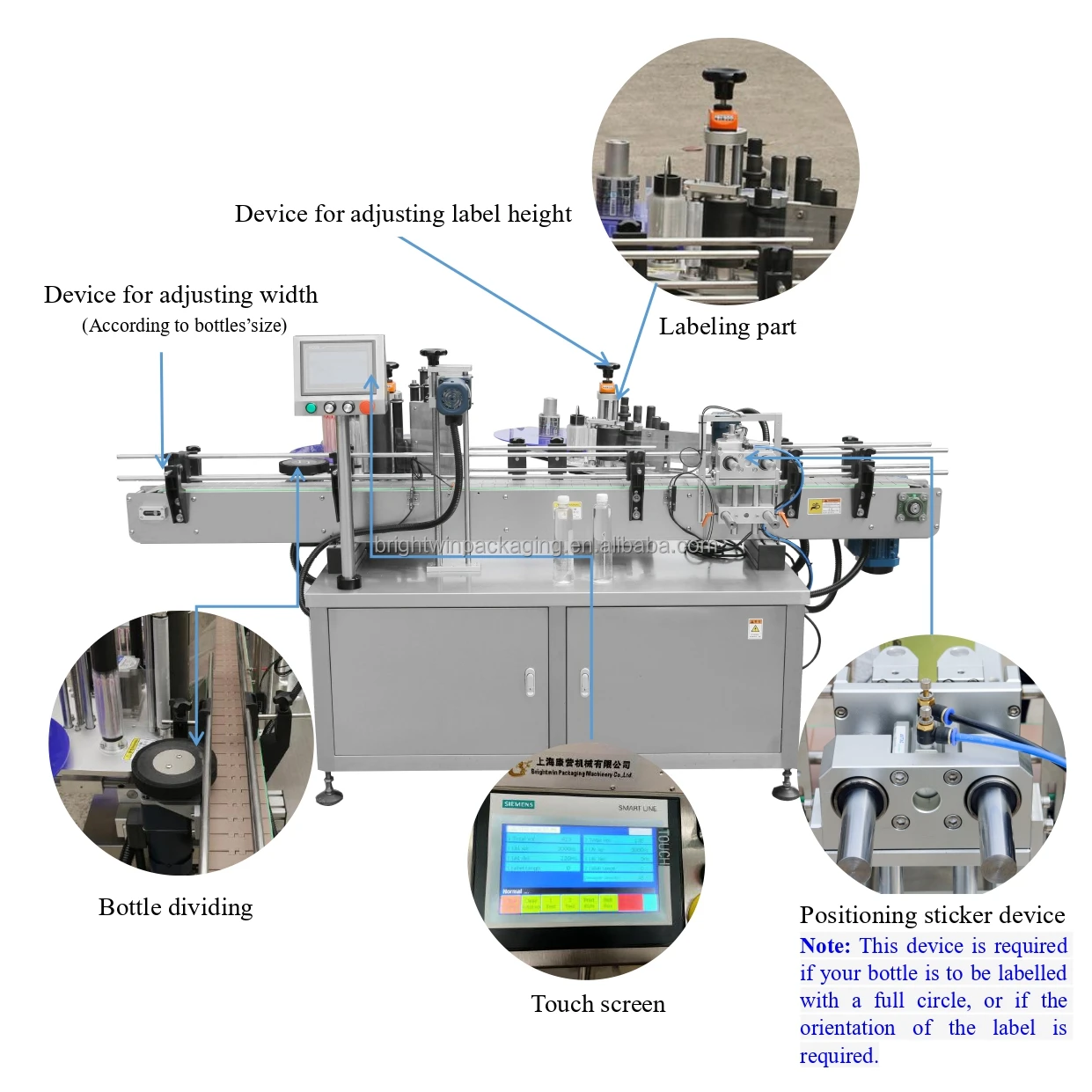

It can be connected with other automatic machines to compose an automatic filling and packaging line, as:
Main features:
2. Adopts Mitsubishi servo motor to drive piston pumps, with high speed and high filling accuracy; its also easier for adjusting volumes, only need to input the volume you want to fill from touch screen.
3. The filling nozzles can be with the function of anti-drip, anti-drawing, diving bottom up filling & bubble-kill etc according to the features of different products.
4. For hot filling, we make double jacket tank, which can be heated to keep temperature of products inside. Also with a mixer inside to stir it even.
5. There is a level controller in tank to control the pump to transfer product to the machine tank or stop transferring automatically.
1. With PLC + human-computer touch screen control system. The PLC can save the parameters for later use. Operators do not need too much complicated operation.
2. Adopts Mitsubishi servo motor to drive piston pumps, with high speed and high filling accuracy; its also easier for adjusting volumes, only need to input the volume you want to fill from touch screen.
3. The filling nozzles can be with the function of anti-drip, anti-drawing, diving bottom up filling & bubble-kill etc according to the features of different products.
4. For hot filling, we make double jacket tank, which can be heated to keep temperature of products inside. Also with a mixer inside to stir it even.
5. There is a level controller in tank to control the pump to transfer product to the machine tank or stop transferring automatically.
Technical Parameters
Filling nozzles' number | 1 | 2 | 4 | 6 | ........ | 20 | |||||
Capacity (For 1L bottles) | 6-8bpm | 12-16bpm | 24-32bpm | 36-48bpm | ........ | 120-160bpm | |||||
Filling volume range | 10-100ml, 100ml-1L, 1L-5L......(can be customized) | ||||||||||
Voltage | AC220/380V 50/60HZ (Can be customized) | ||||||||||
Our videos
Our service
Pre-Sales Service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.
* Machine testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
* Online technical support.
Company Profile
We are a premium manufacturer of washing machines, filling machines, capping machines, labeling machines and various packing machines etc in food, chemicals and other industries. Our CE and ISO9001: 2008 certification assures you that we supply premium quality equipments that you can trust. All our machines are customized to meet every customer's demands.
Our machines have been sold to North America, South America, Europe, Middle East, Africa, Asia and Australia etc. We are confident to be your trustworthy supplier in China.
Brightwin is a leader in customer support. Our customer service group and technical staff of professionals are always ready to answer customer questions and solve problems before or after sales.
Our machines have been sold to North America, South America, Europe, Middle East, Africa, Asia and Australia etc. We are confident to be your trustworthy supplier in China.
Brightwin is a leader in customer support. Our customer service group and technical staff of professionals are always ready to answer customer questions and solve problems before or after sales.
Contact us
Sales manager | |||||||
Responsible for the project | cubes pressing wrapping box packing tray packing transparent film 3d wrapping and sealing packing counting and filling bag packing machine line | ||||||
Responsible for the market | |||||||
Language ability | |||||||
FAQ
1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger
(Whatsapp/phone,We Chat).
2. How long can I get feedback after enquiry?
We will reply you within 10hrs.
3. Where is your factory located? How can I visit there?
Our factory is located in Shanghai. Welcome to visit our factory.
4. Delivery time
Machines &molds order usually takes 30 days after pre-payment received. Preforms orders depends on the qty. Please inquiry sales.
5. What is the package?
Machines will be packed by standard wooden case.
6. Payment term
T/T. Generally 40% deposits and balanced before shipment.
You can contact us by email, phone call, Instant Messenger
(Whatsapp/phone,We Chat).
2. How long can I get feedback after enquiry?
We will reply you within 10hrs.
3. Where is your factory located? How can I visit there?
Our factory is located in Shanghai. Welcome to visit our factory.
4. Delivery time
Machines &molds order usually takes 30 days after pre-payment received. Preforms orders depends on the qty. Please inquiry sales.
5. What is the package?
Machines will be packed by standard wooden case.
6. Payment term
T/T. Generally 40% deposits and balanced before shipment.
