5 50mm Heat Shield Fumed Silica Vacuum Insulated Board Vacuum Insulation Panel Vip For Medical Cooler Boxes
- Category: >>>
- Supplier: Shaanxi Junai Energy Saving Technology Co. Ltd.
Share on (1600550221564):
Product Overview
Description
Products Description

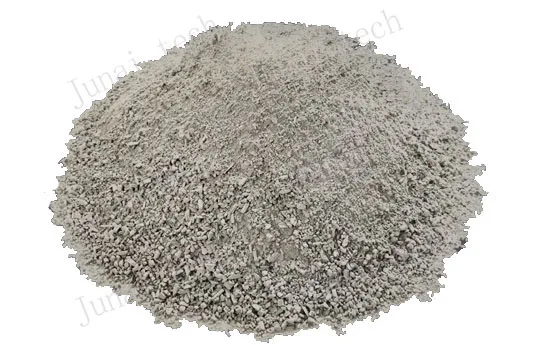

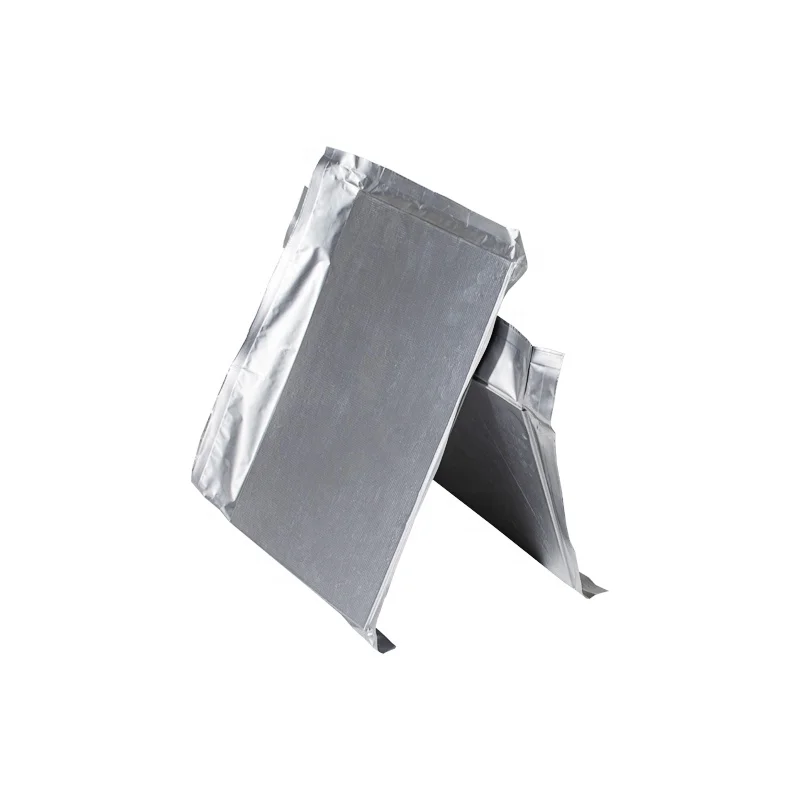

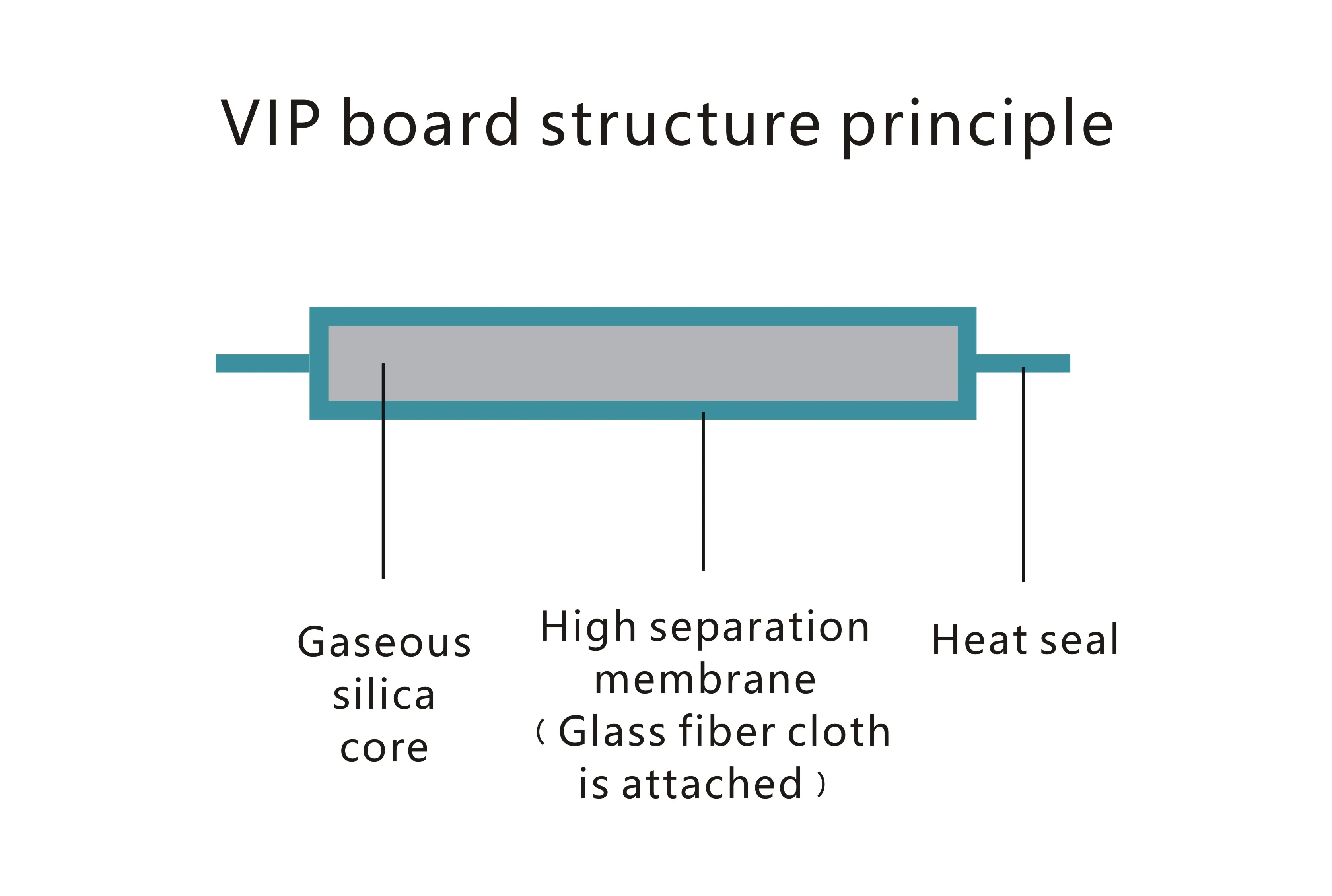

The cold chain VIP board is composed of an internal core material and an external integrated barrier, mainly using nano-scale fumed silica as the core material, which is packaged and processed by the separator after being evacuated.
All in one, it is a super thermal insulation material. Under normal temperature environment, the thermal conductivity is less than 0.0045w / (m.k), which is the best cold chain insulation material so far. Compared with other insulation materials, VIP can be thinner, save more space, and keep the insulation time longer.
Super insulation performance
The microporous core material itself has good insulation performance.
After vacuum sealing, its insulation performance is significantly improved. At a standard atmospheric pressure of 22.5 °C, the thermal conductivity can be as low as 0.005W/m·K, which is aerogel 4 times.

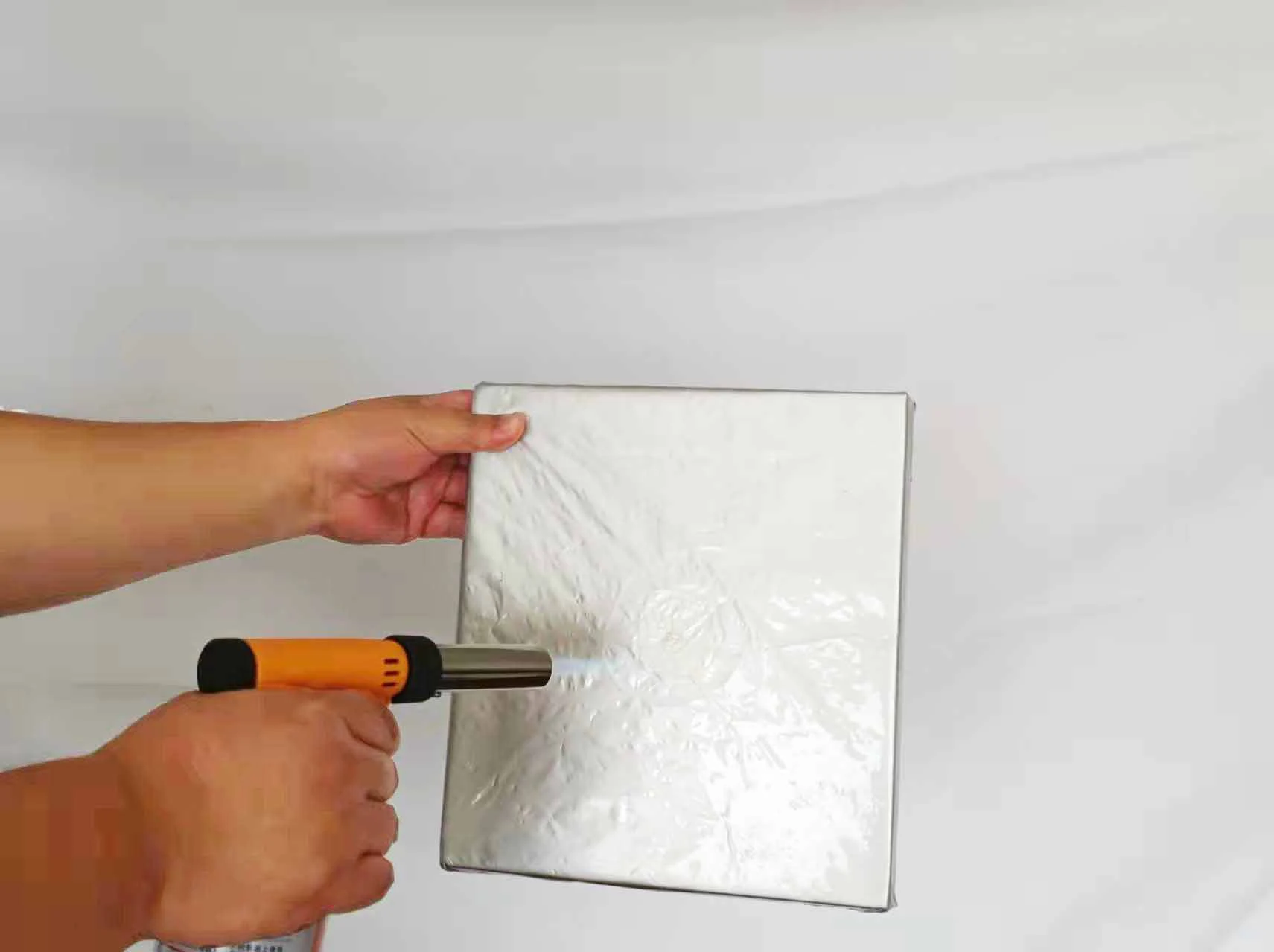

Heat and fire resistance

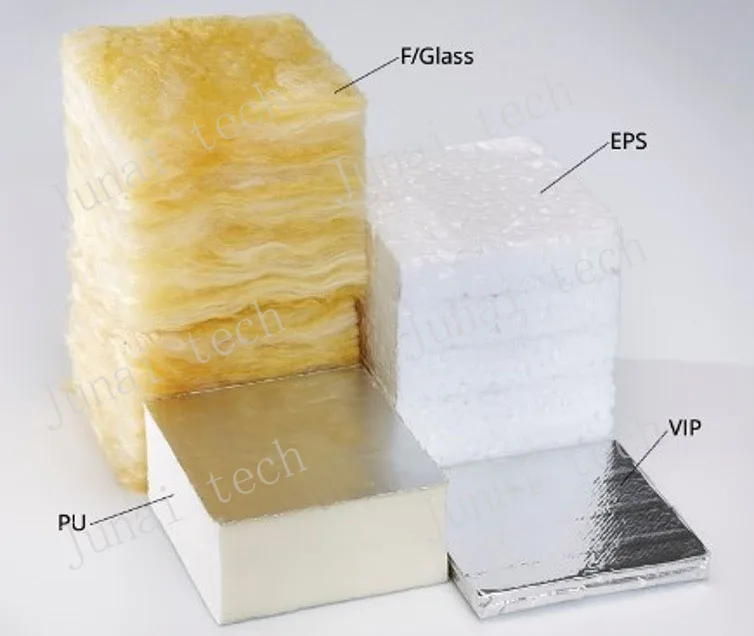

Since the main component of the vacuum insulation panel is fumed silica, a non-organic material, the fire rating of VIP can reach Class A. Compared with most organic materials such as XPS, EPS, or PU, vacuum insulation panel is safer in use.
Health, safety and environmental friendly raw materials
Since its main component is fumed silica, non-organic material, there is no toxic or polluting gas emissions. No ODS (Ozone Depleting Substances). We are certified by REACH and ROHS test report.

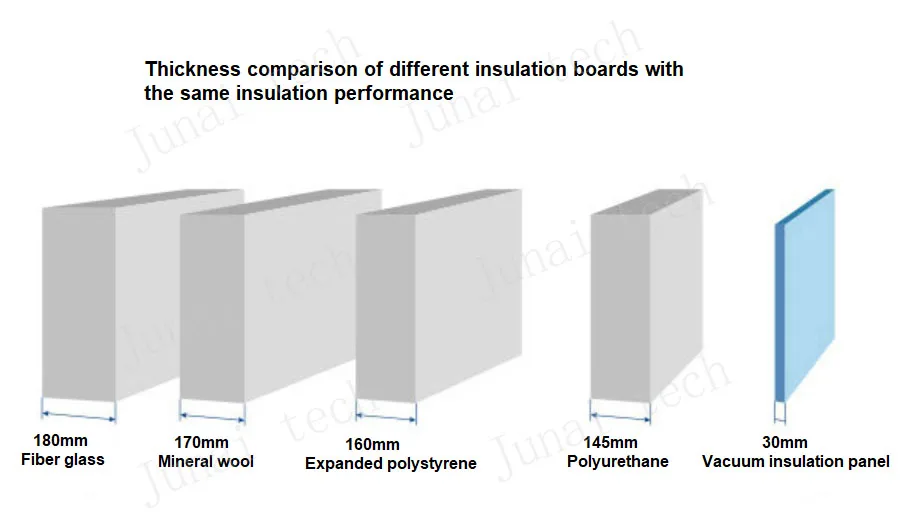

Space saving
Thanks to the super thermal insulation performance of VIP, in practical application, the thickness of thermal insulation can be greatly reduced, saving a lot of effective space.

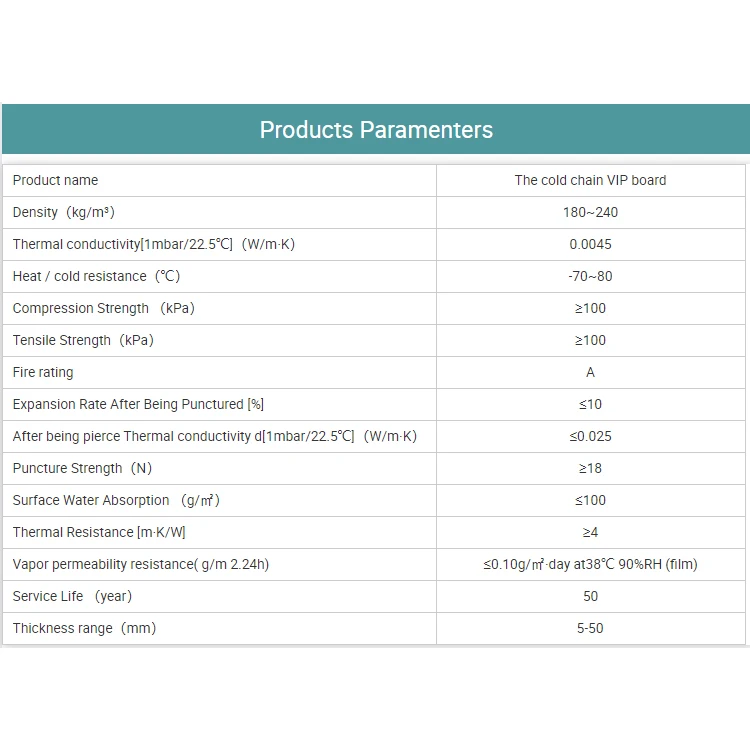

Products Paramenters
Product name | The cold chain VIP board | ||||||
Density（kg/m³） | 180~240 | ||||||
Thermal conductivity[1mbar/22.5℃]（W/m·K） | 0.0045 | ||||||
Heat / cold resistance（℃） | -70~80 | ||||||
Compression Strength （kPa） | ≥100 | ||||||
Tensile Strength（kPa） | ≥100 | ||||||
Fire rating | A | ||||||
Expansion Rate After Being Punctured [%] | ≤10 | ||||||
After being pierce Thermal conductivity d[1mbar/22.5℃]（W/m·K） | ≤0.025 | ||||||
Puncture Strength（N） | ≥18 | ||||||
Surface Water Absorption （g/㎡） | ≤100 | ||||||
Thermal Resistance [m·K/W] | ≥4 | ||||||
Vapor permeability resistance( g/m 2.24h) | ≤0.10g/㎡·day at38℃ 90%RH (film) | ||||||
Service Life （year） | 50 | ||||||
Thickness range（mm） | 5-50 | ||||||
Product Application
Our products are widely used and experienced in these industries.
We can provide the system solutions in the field of high and low-temperature industry energy-saving including project design, product supply, site instruction, and technical support.4e979d

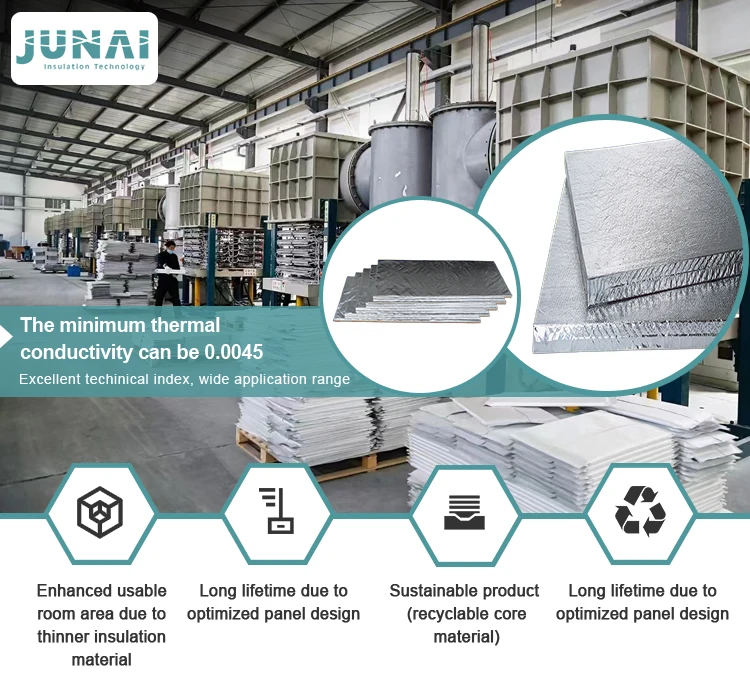

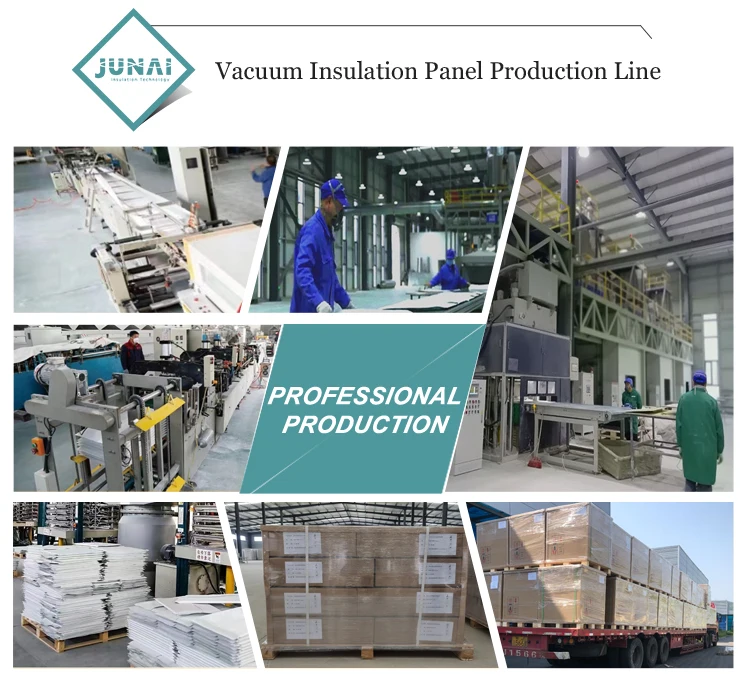

Production line
Company Profile
Shaanxi Junai Energy-saving Technology Co., Ltd
We are the overseas business division of Luoyang Naiyan Ceramic Fiber Co, Ltd, a subsidiary of Sinosteel Cooperation Luoyang Refractory Research Institute Co., Ltd. We are founded in 1963, and are recognized as the pioneer and forerunner in the field of refractory fiber and nano microporous thermal insulation material in China.

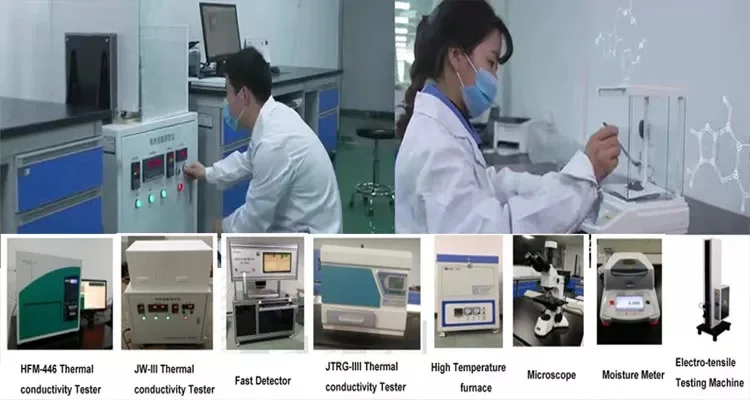

Professional Team
At present, we have 39 R & D personnel, including 17 scientific researchers with the title of the engineer or above. Over several decades focus on refractory, cold chain, energy saving, thermal insulation materials, and equipment R&D and manufacturing.
Certificate and Honor
We have the most authoritative certificate and honor system.
Packaging and Delivery
Payment and delivery
Payment can be done by T/T, Credit Card, Western Union, PayPal and more.
delivery：By sea/by air/by train/DHL/Fedex/ups/EMS/TNT etc.
FAQ
1.Are you a factory ？
We are a manufacturer founded in 1963, located in Henan China.
We also can offer system solutions including project design, site instruction, and technical support.
2.What is your main product?
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
3. Can I get free sample?
Yes, you only need to pay the fright and this fee will return to your formal order.
4. What is your MOQ?
No specific moq, but good price for large quantity.
5. Is there any discount?
5. Is there any discount?
Yes, it depends on the quantity.
6.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime !
