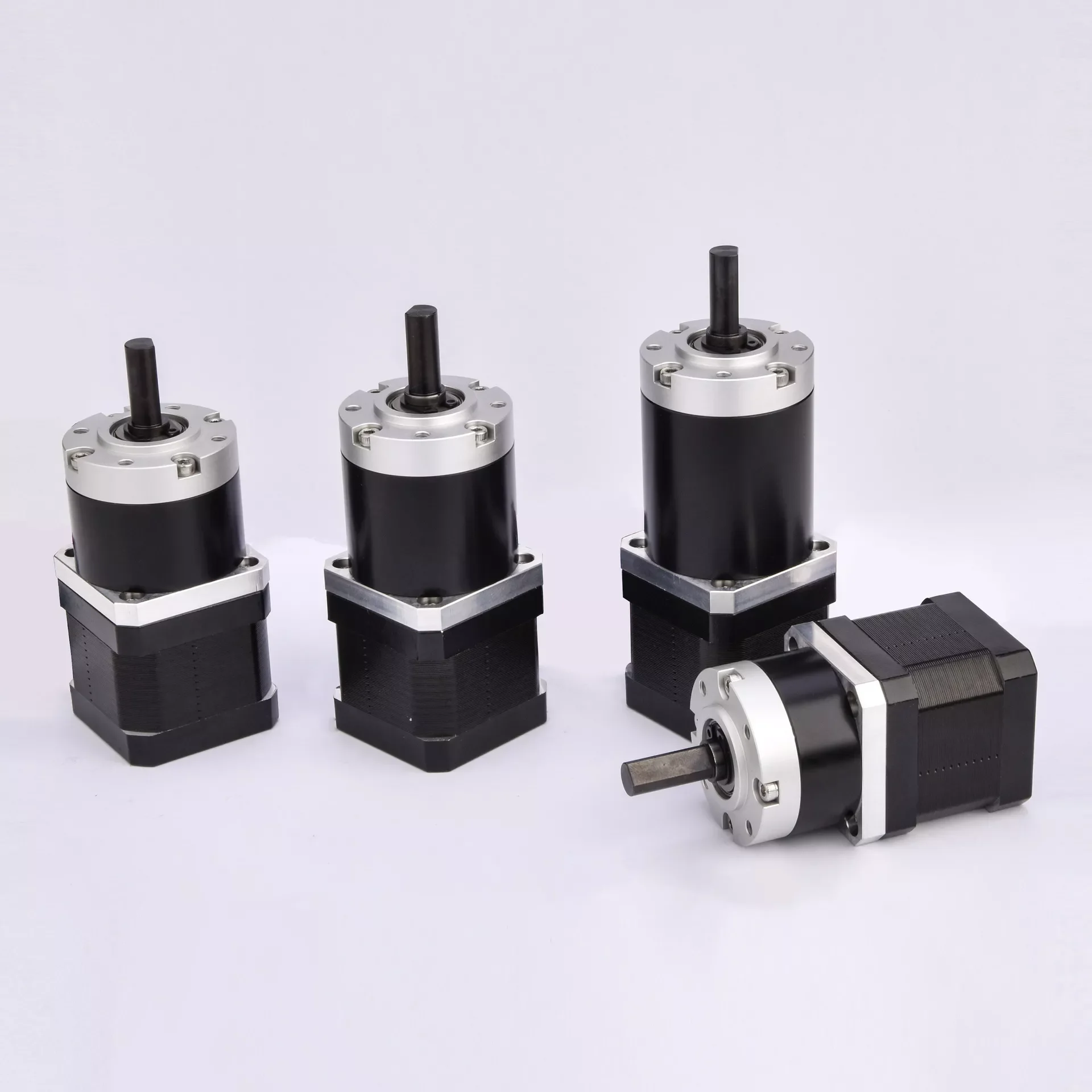

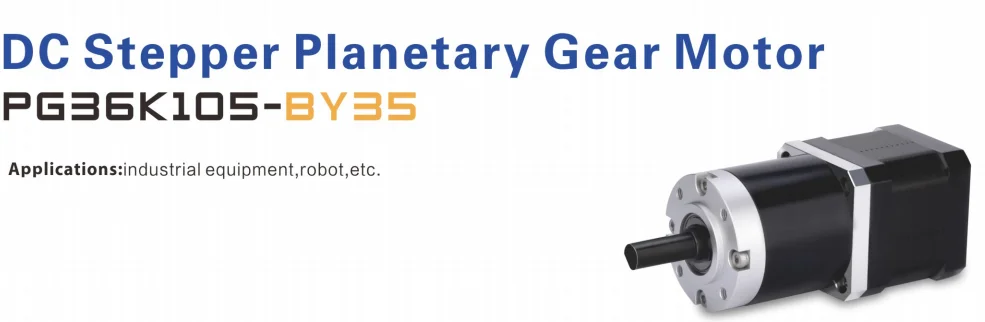

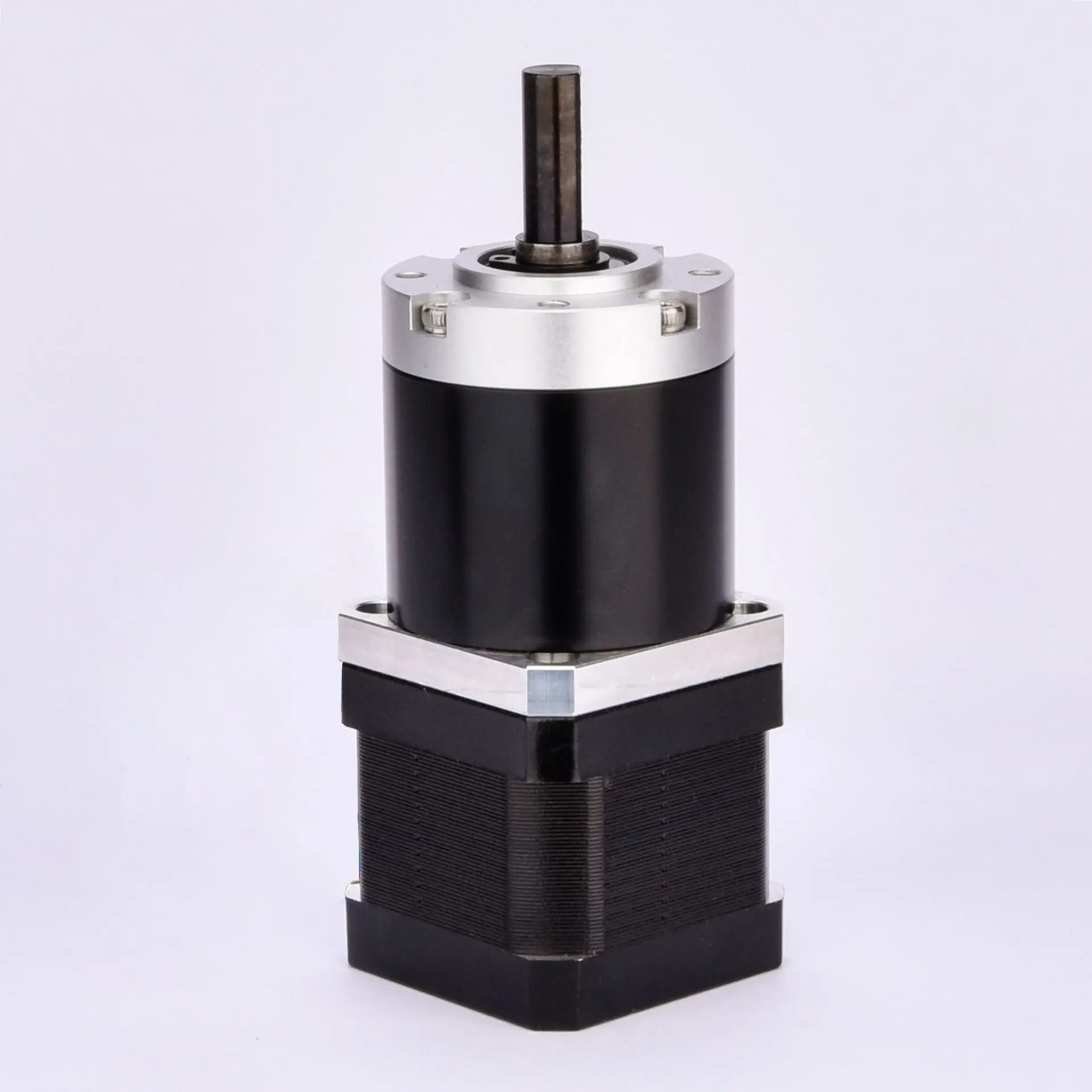

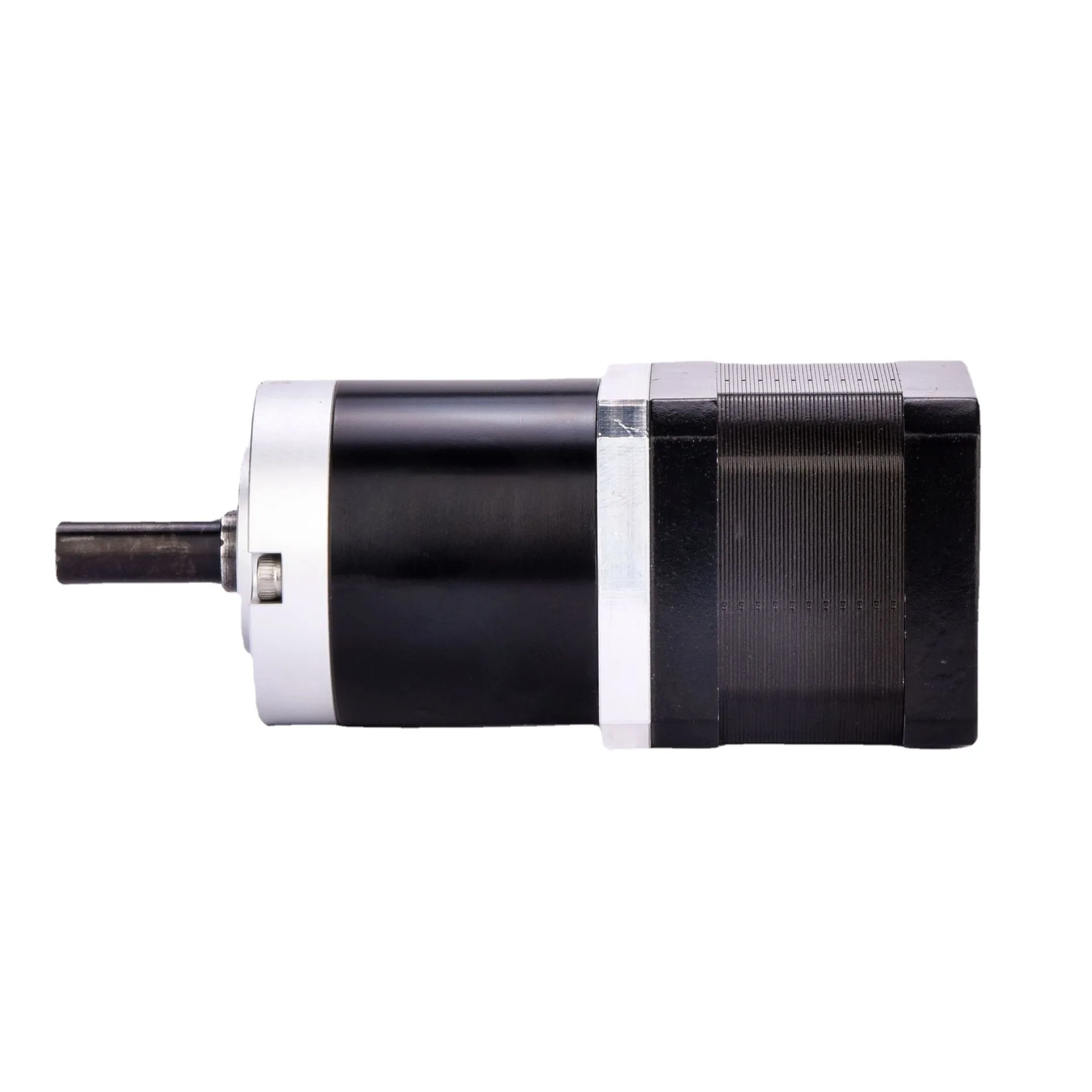

36mm Reducer High Torque Stepper Planetary Gear motor for infustrial equipment robot

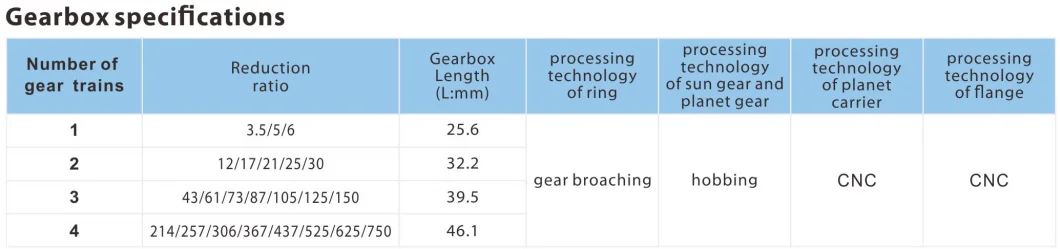

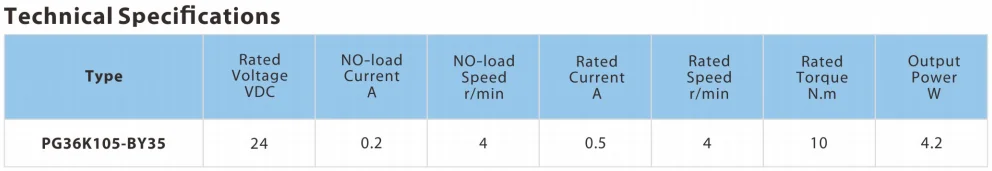

Note:The technical specifications just for reference,detailed configuration can according to customer requirements,such as reduction ratio,motor specifications(customer specified or recommend by us),shaft specifications(circular,single flat position,double flat position,slot,screw thread,etc),all can be customized.

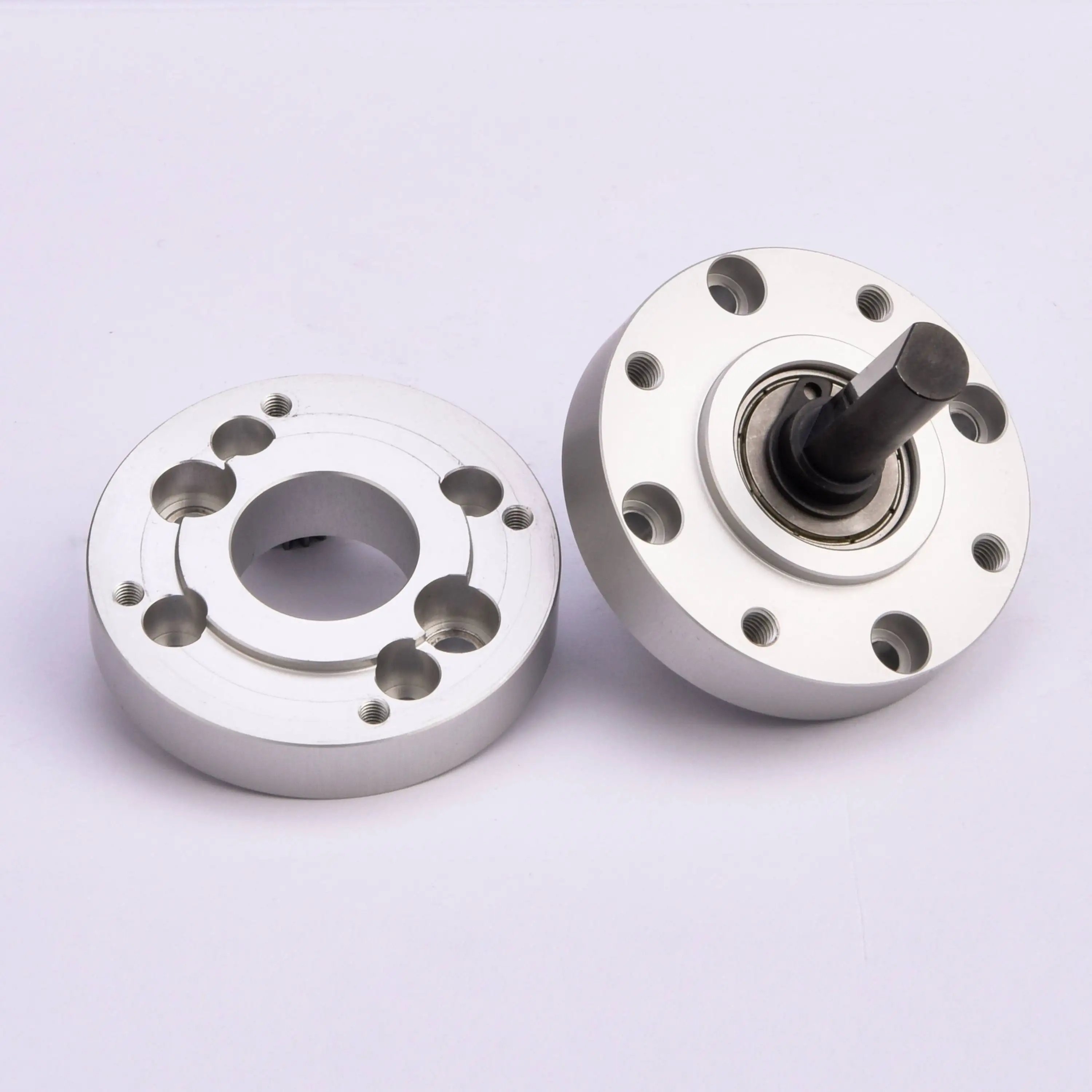

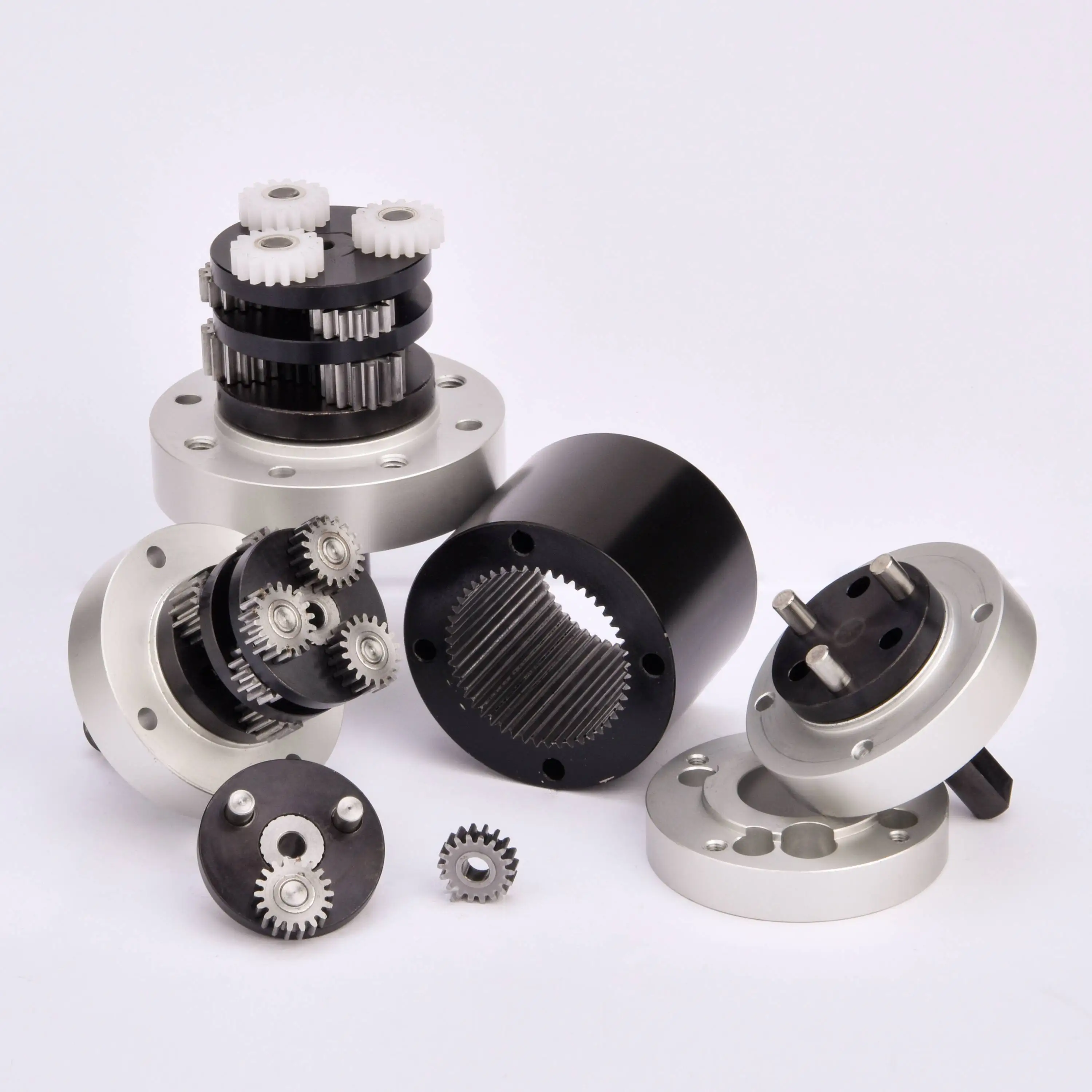

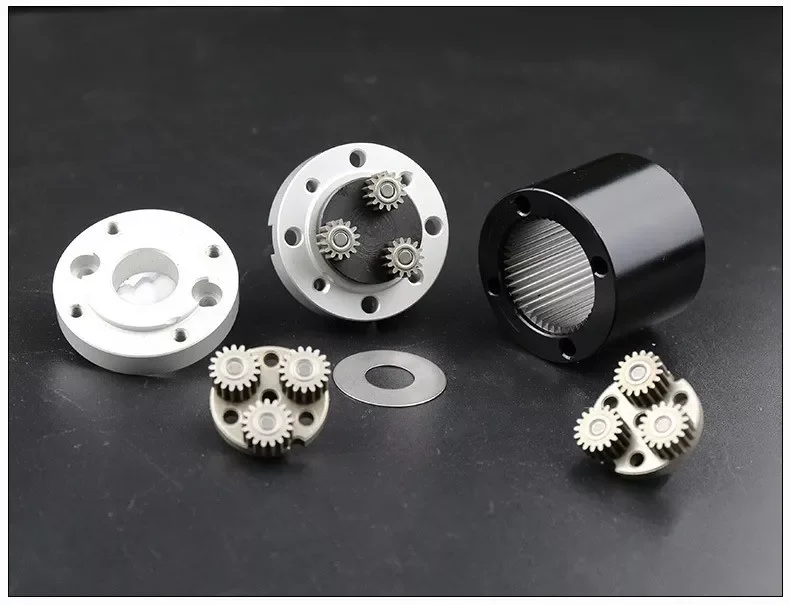

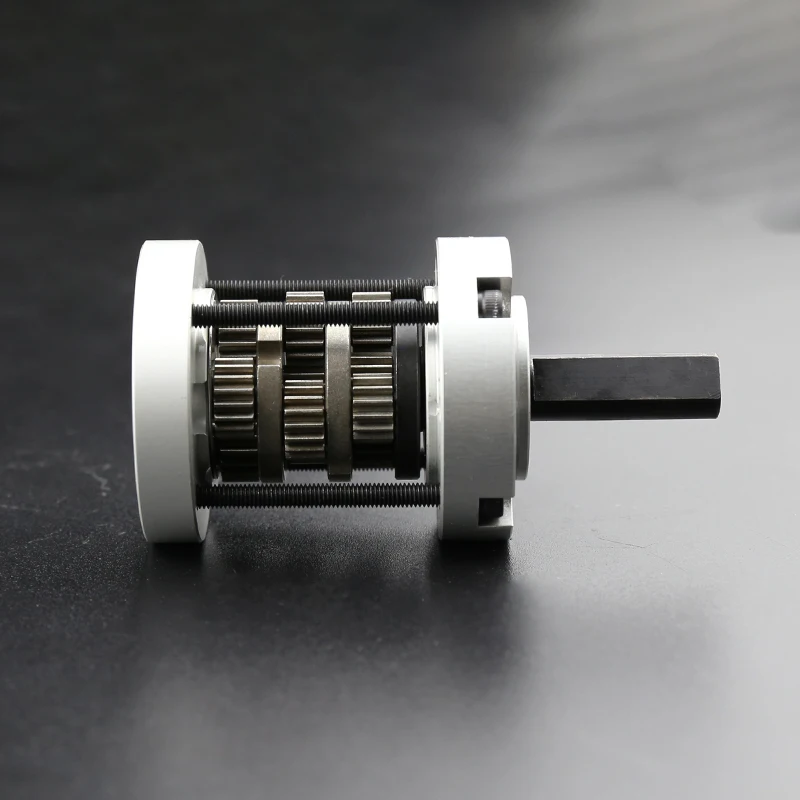

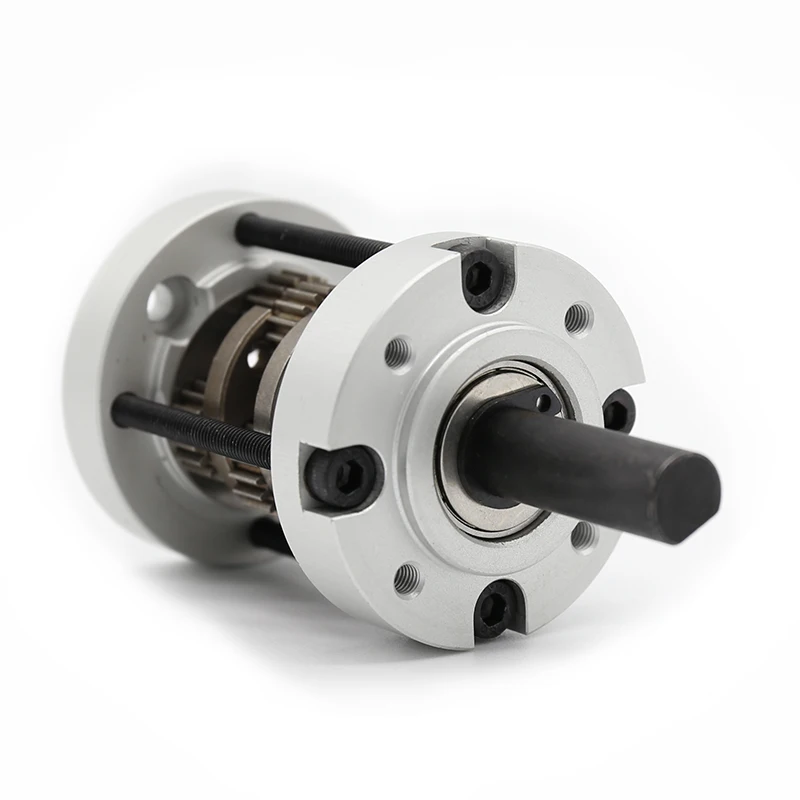

Note:The gearbox is made of steel,The blank is processed by CNC,Then, surface treatment,the last process is gear broaching,accuracy and strength are better than powder metallurgy.The sun gear and planet gear choose the rational HT according to strength of demand,Processing by hobbing(The customer has special requirements, can specify the choice of gear material, for example: multistage planets first stage is POM).Planet carrier is machined by the machining center with precision up to μm level.The top and bottom flanges are profile aluminum processed by CNC.Then, surface oxidation treatment.the appearance and strength, precision and so on are far more than die casting.Our aim is to provide quality products for quality customers,constantly strive for perfection.

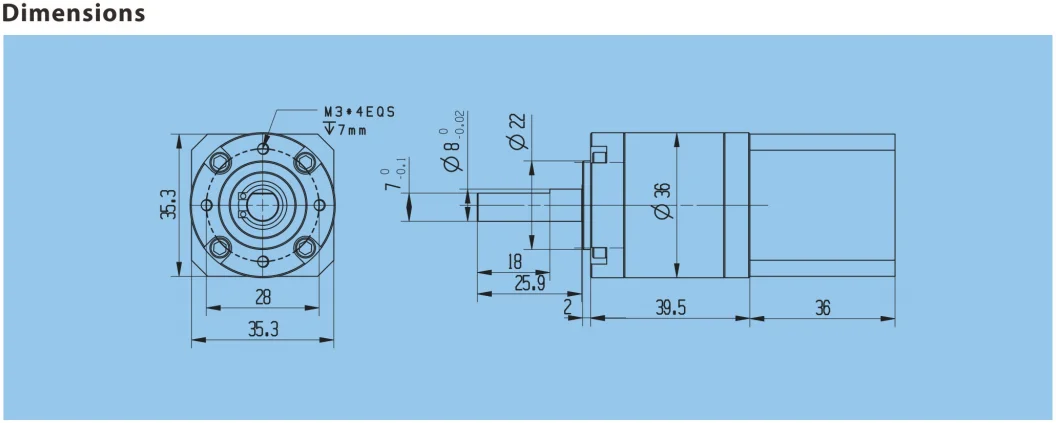

Note:The dimensions just for reference,the shaft specifications, motor specifications,stage of gearbox,all can be customized.La:Gearbox Length(optional);Lb:motor length(optional).

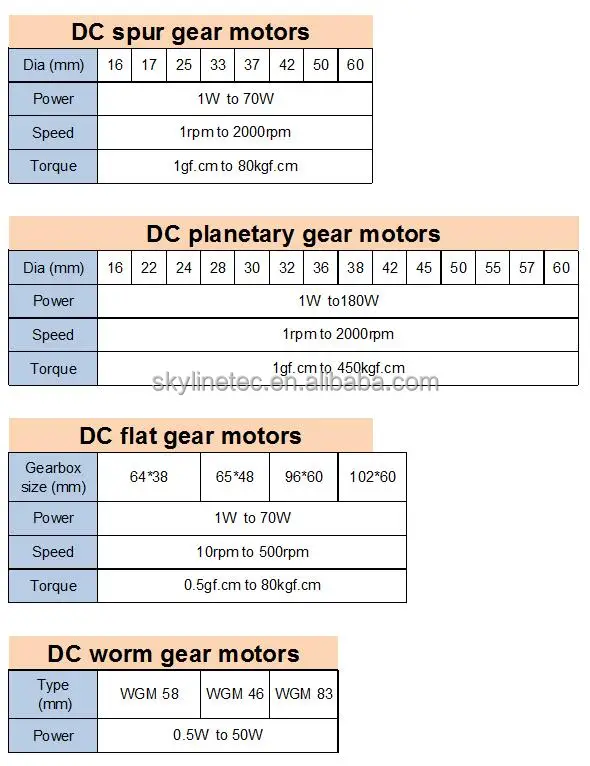

What gear motors do we produce?

We can OEM or ODM based on your exact requirments too.
