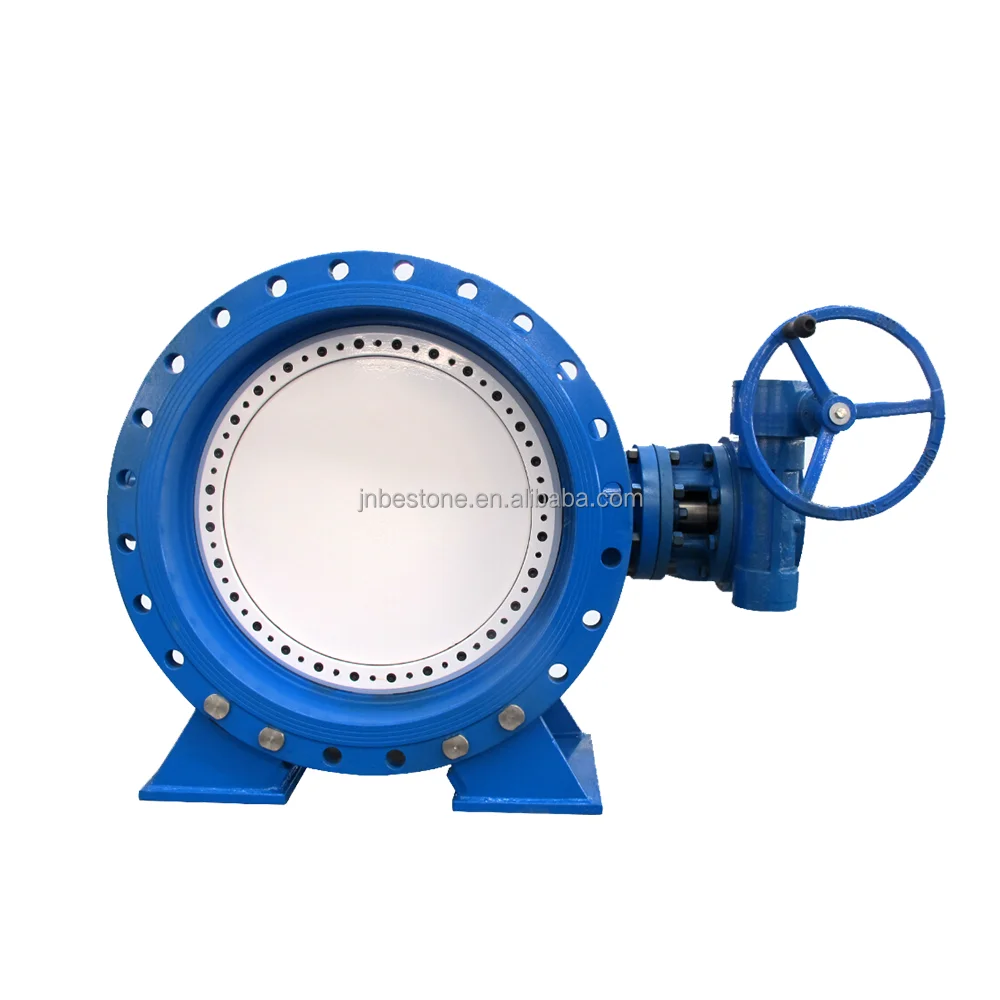

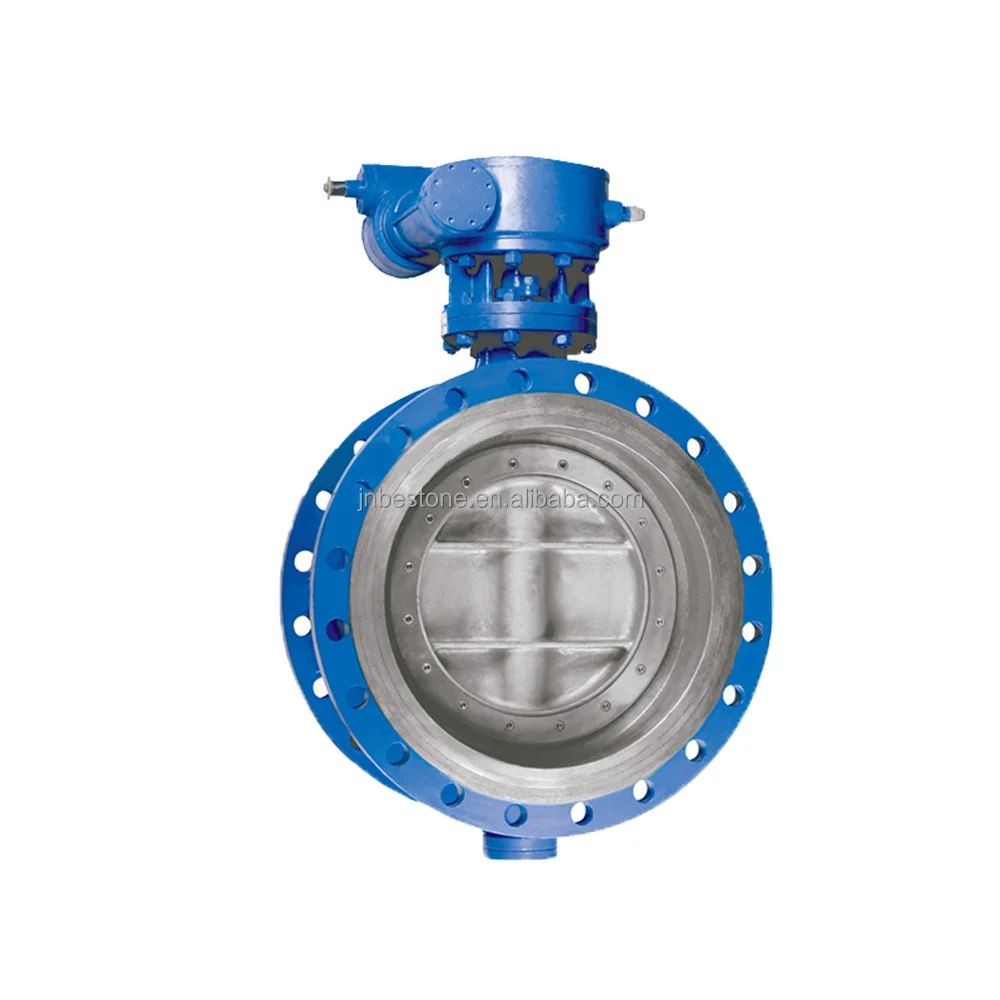

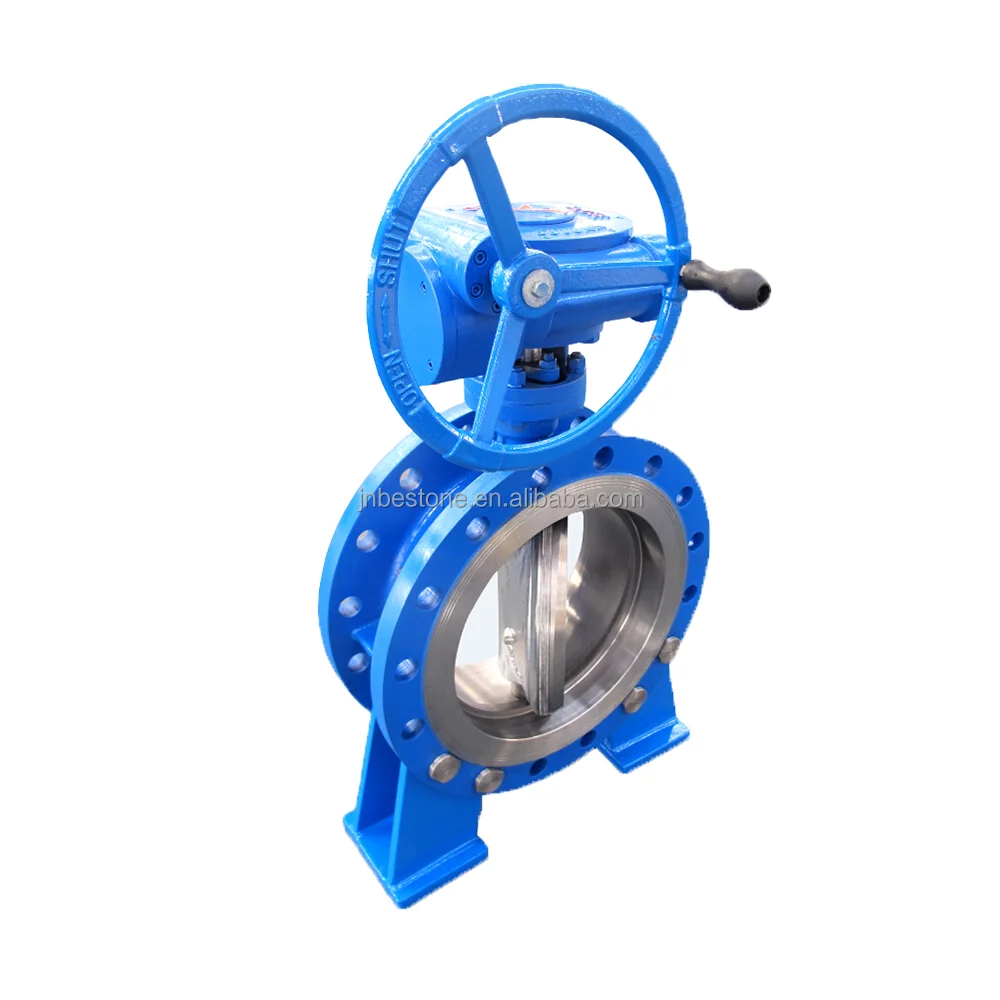

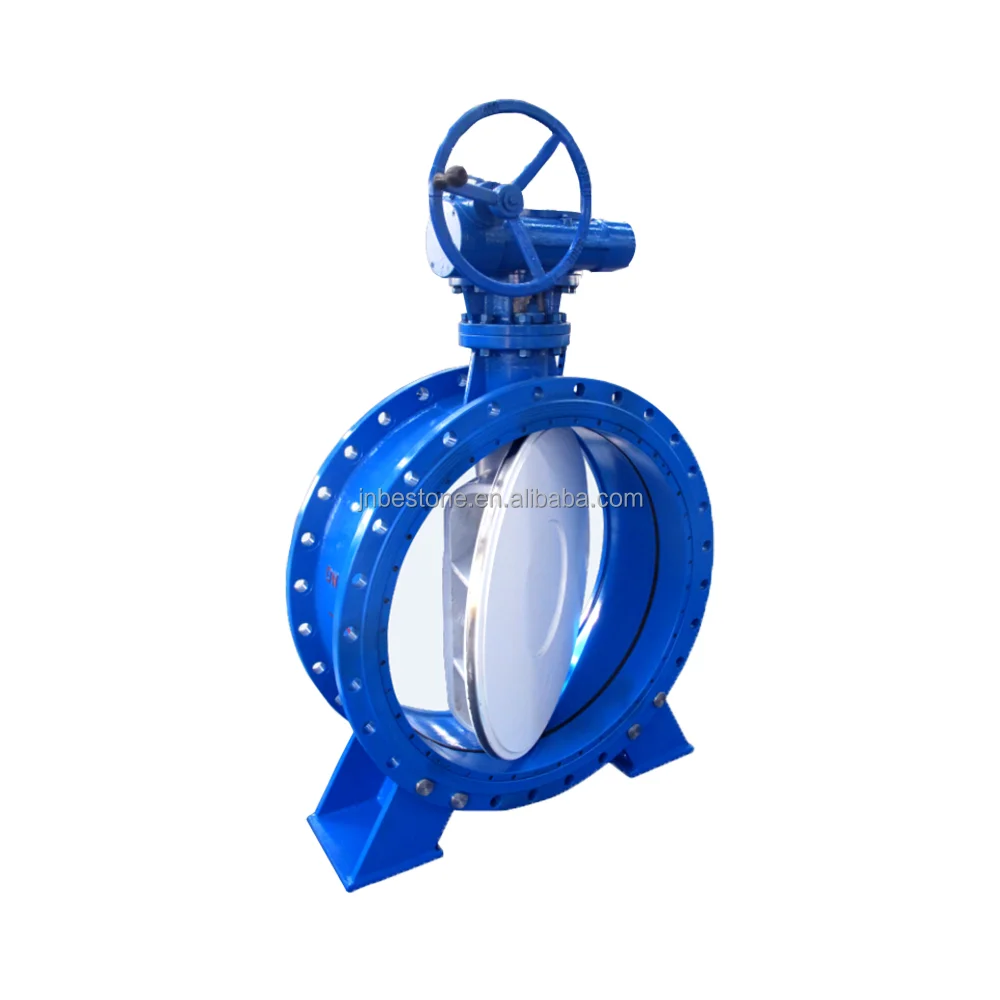

hot sale PN10 cast iron Flanged Extension Eccentric Butterfly Valve, Extension Flange Eccentric Butterfly Valve

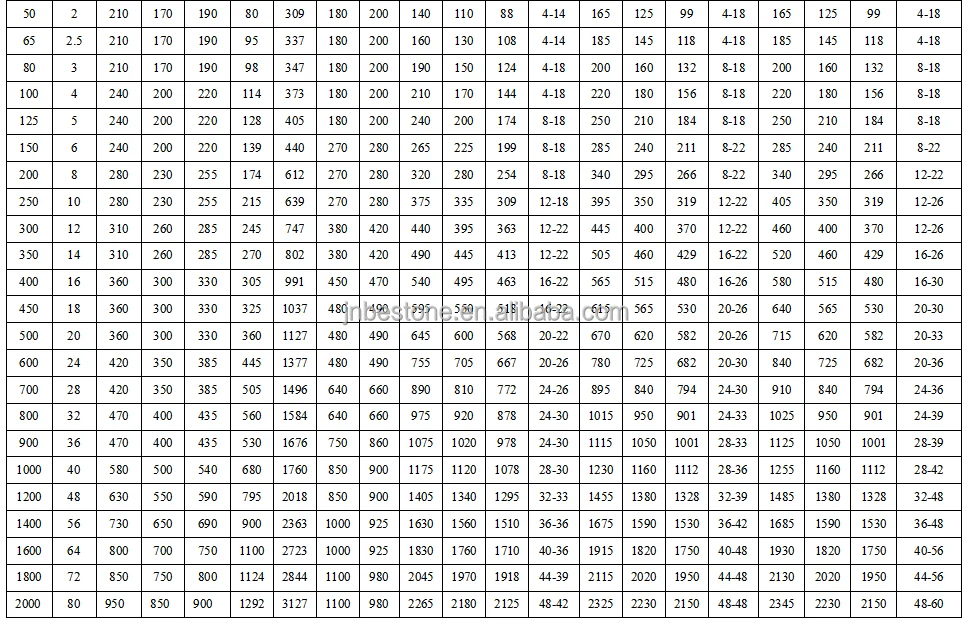

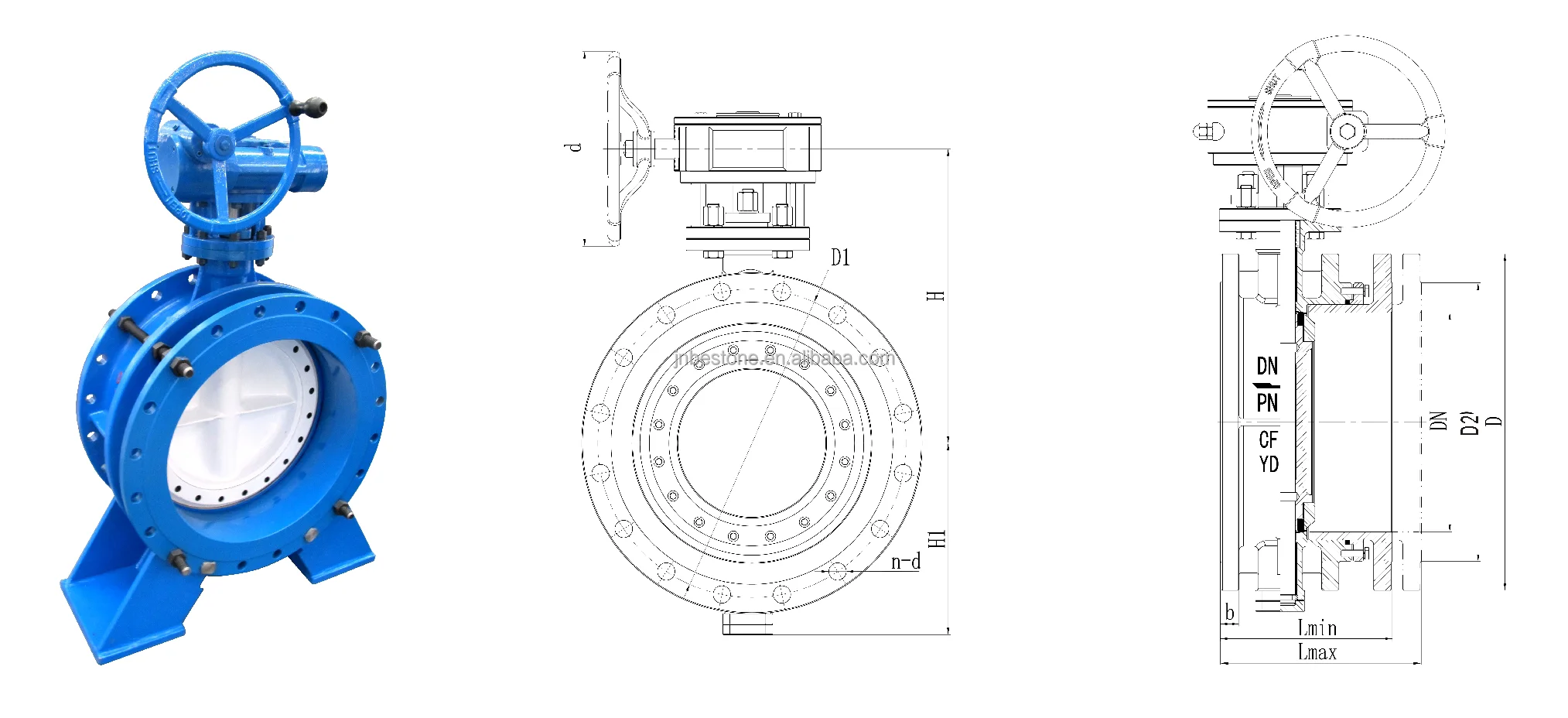

Connection dimensions

1)Place the flexible valve horizontally before installation, and it is not allowed to collide freely.

2)The face-to-face length is min dimension before out put, and extent to installment dimension(namely design length).

3)When the length between pipes is larger than installment length for flexible valve, please adjust the distance of pipes, but it is not allowed to extend the flexible valve to avoid the damage of flexible valve.

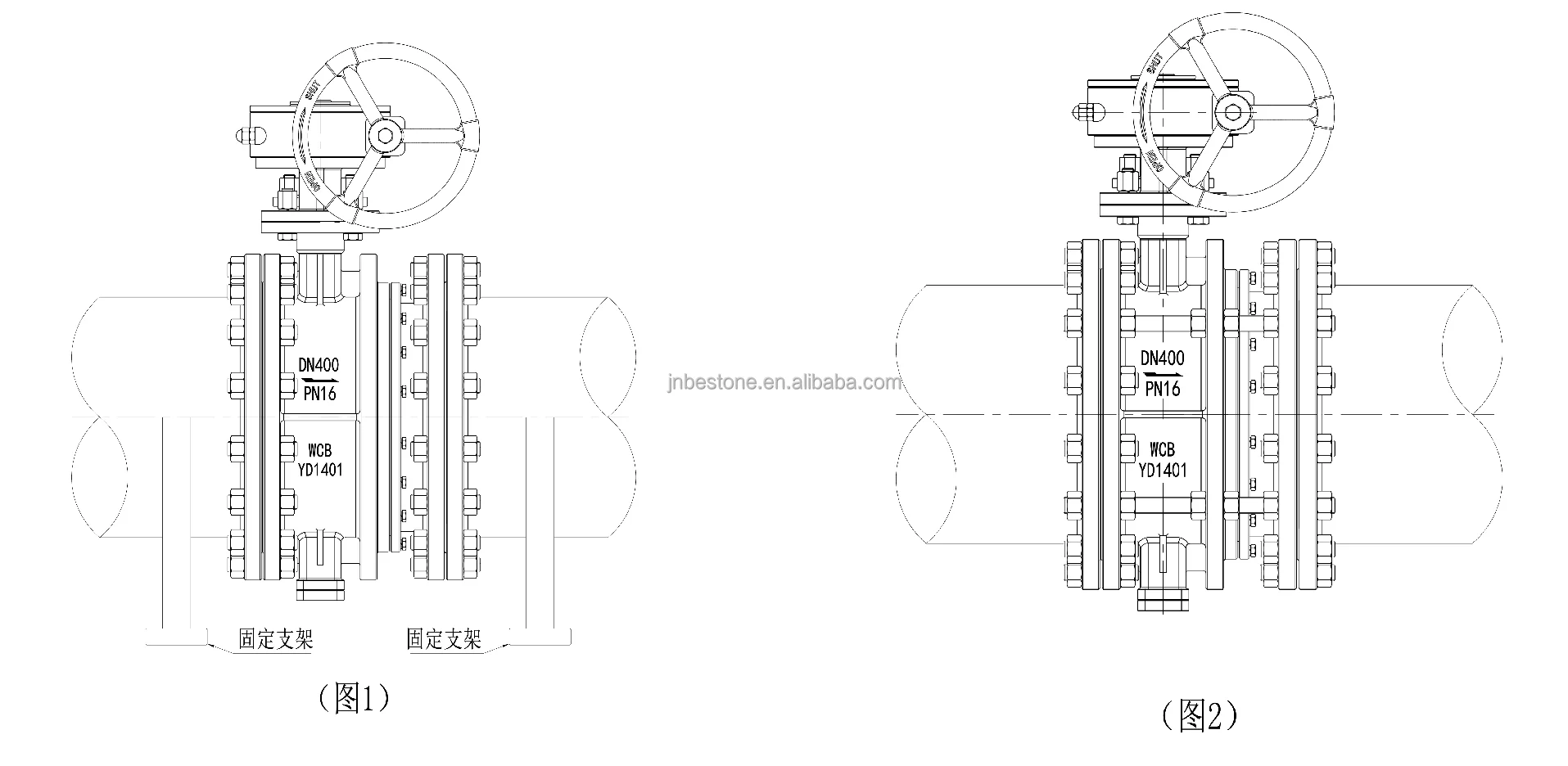

4)The butterfly valve maybe installed at any position. As perform the temperature compensation, put the yokes on both ends of axial pipes to avoid pulling out flexible pipes of valves, the yokes support force is calculated as below formula, and mustn’t dismantle the yoke during operation.

5) When not applicable to temperature compensation, but to install and repair the valves conveniently,instead, it will be positoned by bolting and tightened by symmetrical converging force to avoid pulling out of flexible pipes, damage the flexible butterfly valve, pipeline devices and buildings, bolting diameters conform to flange bolting diameter, which bolt intensity and support test pressure and pipeline allowed to remove in case of operation.(additional bolts).

6) With precision machining and strict completion, don’t extend and reduce the flexible butterfly valve on site freely. And it requests to get concentric at both ends and parallel flange face in pipelines.

7) The flexible section of valve is not allowed to install at corner or ends of pipelines.

8)Fixed bolt on flange should be symmetrical and clamped, shouldn’t clamp fixed bolt of flange on single side...

9)Telescopic tube should be installed behind the valve.

10)Telescopic part of telescopic valve shouldn’t be installed on corner of pipe of end of pipe.

 1.How to order samples?

We can provide samples, but you need to afford the sample charge and freight, for the big order we will return to you the sample charge, prepare time about 15days.

2.What about the warranty?

We are very confident in our products, we have special quality control department who will 100% check every goods before shipment,we make sure all the goods we sent out to customers are in good condition(Except for the damages caused by the uncontrolled factors during the transportation). when customers receive the goods in 15 days,if there are broken one,please tell us and show us the detail proof so we can check and give replacement in the next order.

3.What is your MOQ?

Our minimum order QTY at least one CBM or one ton. We can accept trial orders.

4.What certificate do you have?

Our valves have FM/UL Approval, ISO, CE, WRAS Approval, ACS Approval ect., all as customer’s requirement.

5.What is the delivery time?

Our production time based on order QTY, generally, one 20feet container need 20-35days, for the customized style or special material production time will be longer.

6.What is your payment term?

TT30% advanced, the balance TT70% before shipment loading. We will show you the copy of BL advanced. or from Alibaba on line.

7.What is your packing?

Our packages are wooden box , pallets, according to customer’s requirement.

8.How about the transportation?

We arrange shipments to any part of the world. Sea way, Air way, Rail way and Express all accept, according to customer’s requirement.
