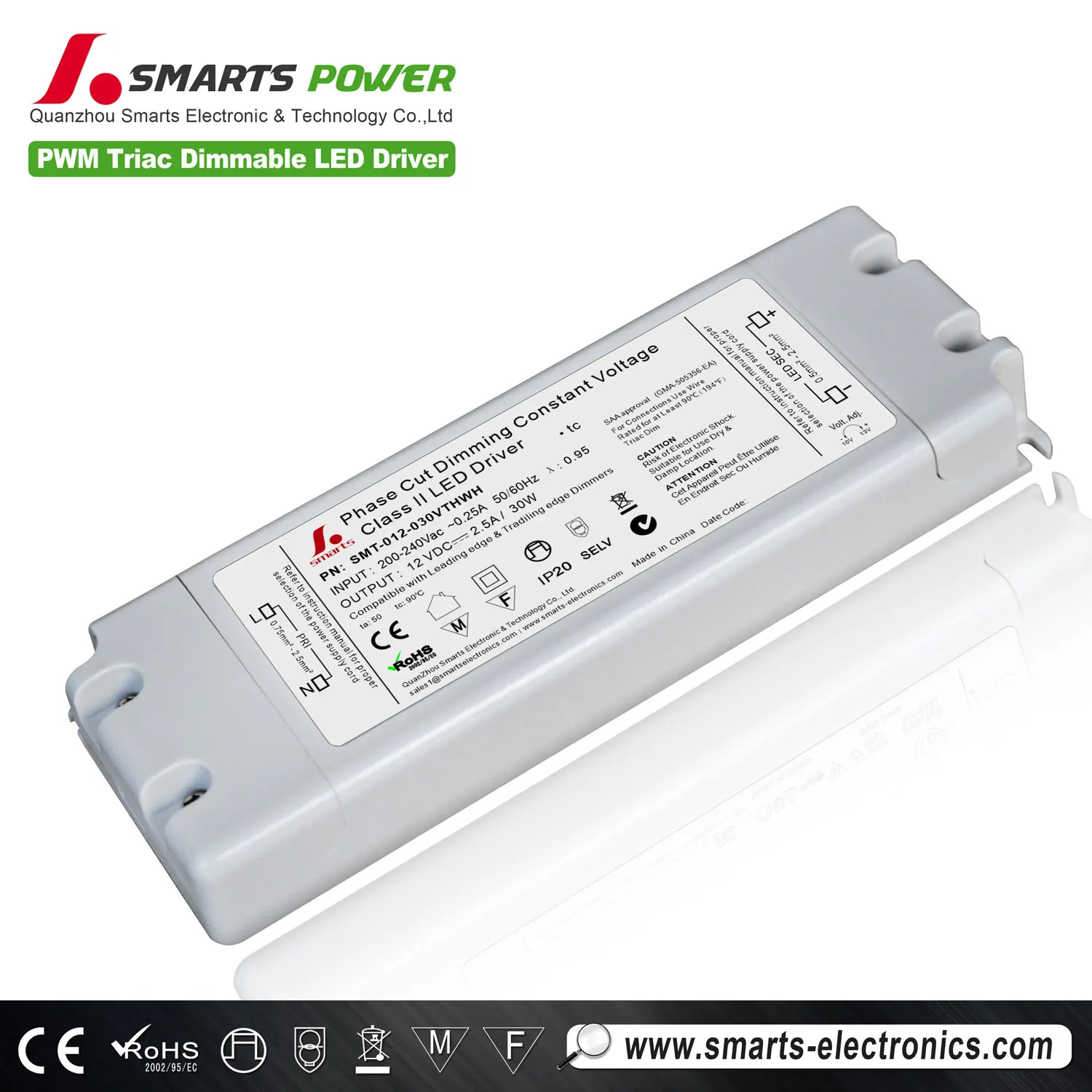

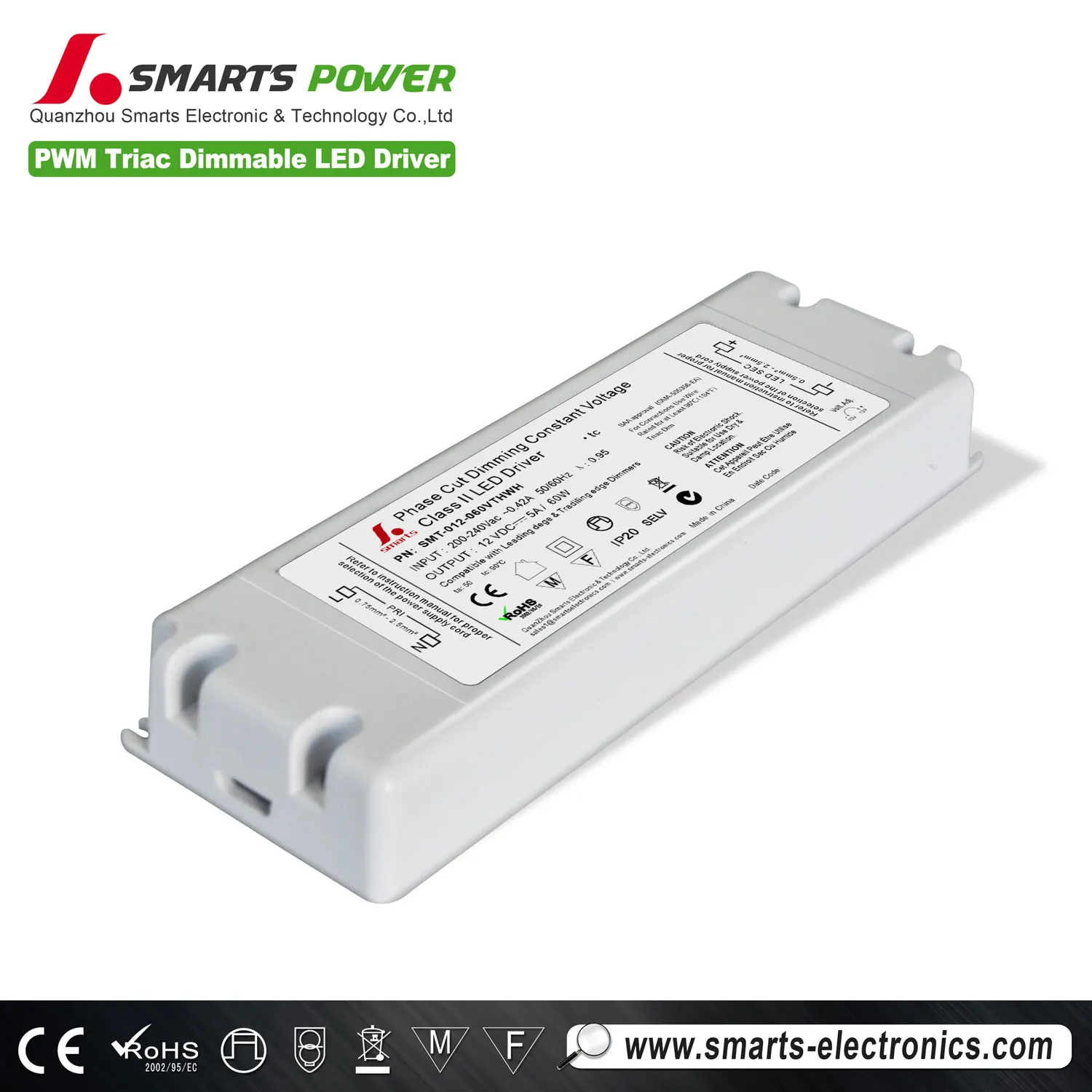

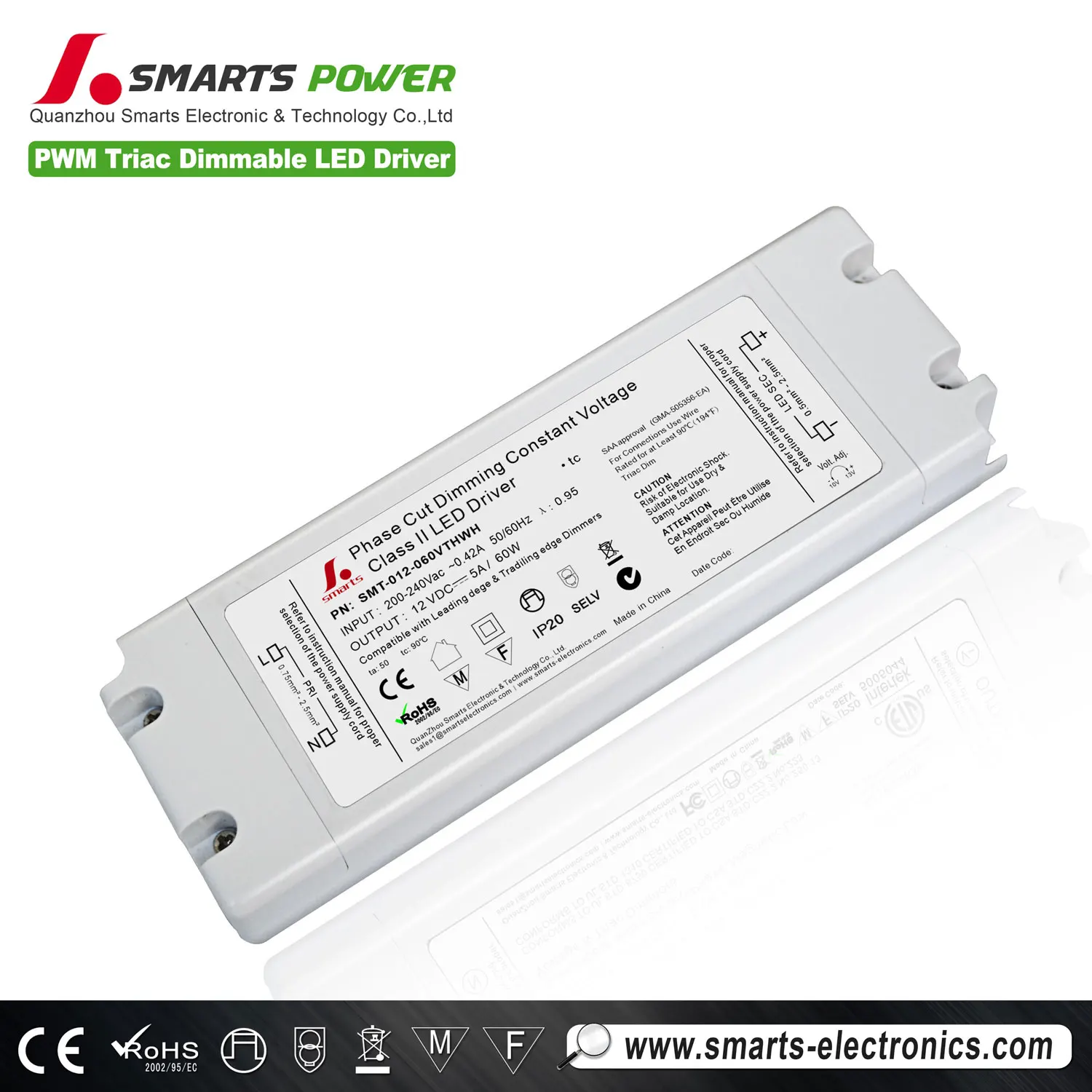

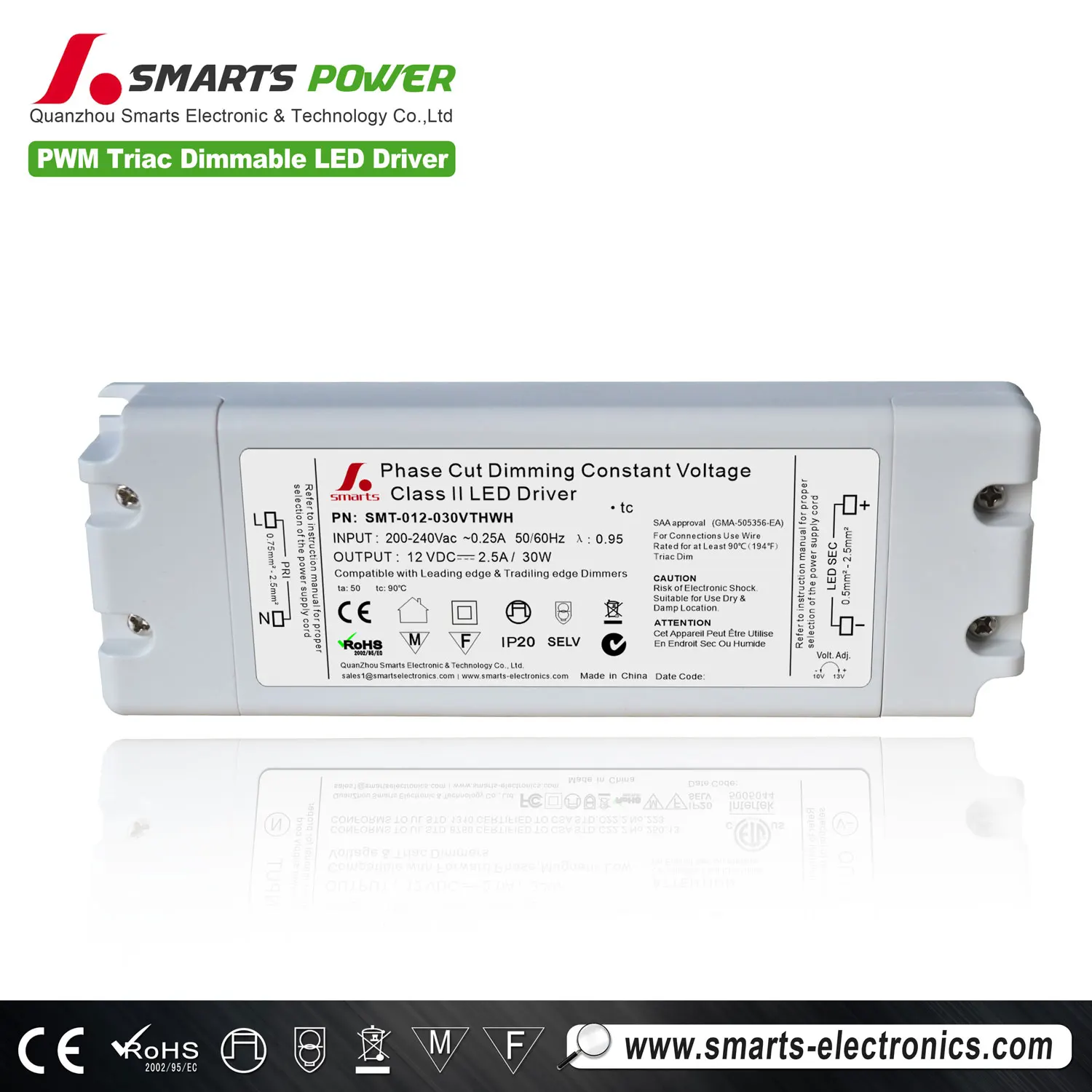

CE ROHS triac dimmable 12v 24v 30w 60w constant voltage led driver

model

SMT-012-030VTHWH

SMT-024-030VTHWH

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Rated current

2.5A

1.25A

Rated power

30W

Input

Voltage Range

200-240VAC

Frequency Range

47~63HZ

Power Factor

PF>0.97/200VAC  PF>0.97/230VAC PF>0.97/240VAC(Full loading)

Full Load Efficiency(Typ.)

79%

79%

AC Current (Max.)

0.22A

0.22A

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

<120% shut down o/p voltage, re-power on to recover

Over Current

< 1.2 *Iout

Over Temperature

100℃± 10℃ shut down o/p voltage ,re-power on to recover

Environment

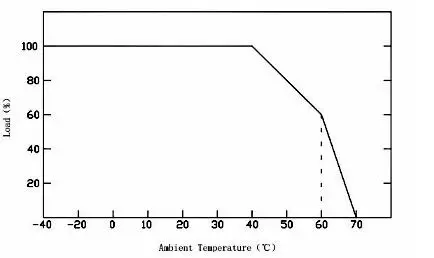

Working TEMP.

-40-+70℃

Working Humidity

20-90%RH, non-condensing

Storage TEM.,Humidity

-40~+80℃,10-95%RH

TEMP.coefficient

±0.03%/℃(0-50℃)

Vibration

10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes.

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015,EN61000-3-2,3 (>60%loading)

Others

Net.Weight

0.21KG

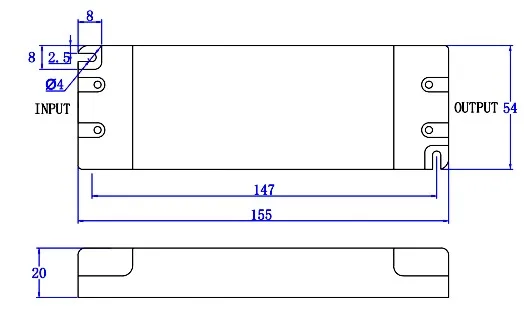

Size

155*54*20mm (L*W*H)

packing

160*60*23mm for inner box ; 350*240*130mm for carton 40PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again

4. Loading range from 10%  to 100%
