Factory Price Sewer Pipe Inspection Camera System With Fiberglass Push Rob Cable
- Category: >>>
- Supplier: Shenzhen Hivibel Technology Co. Limited
Share on (1600550256299):
Product Overview
Description

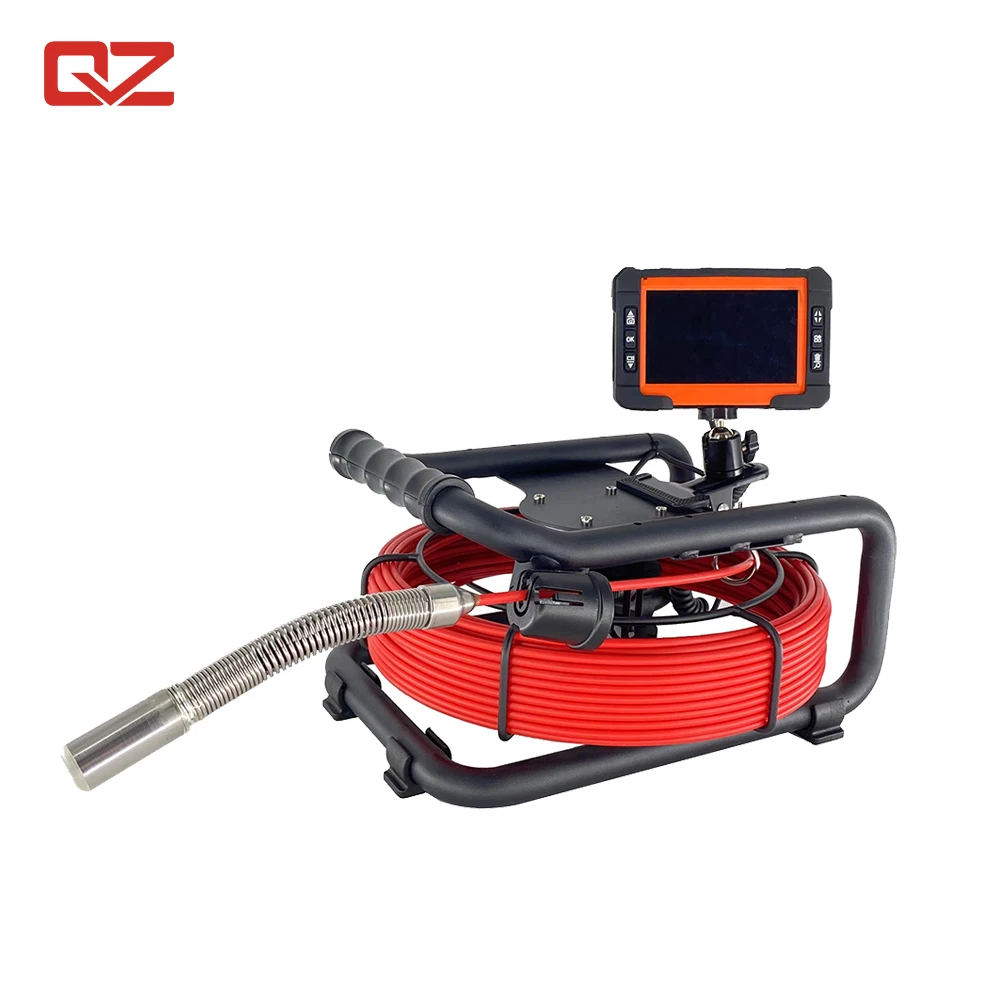

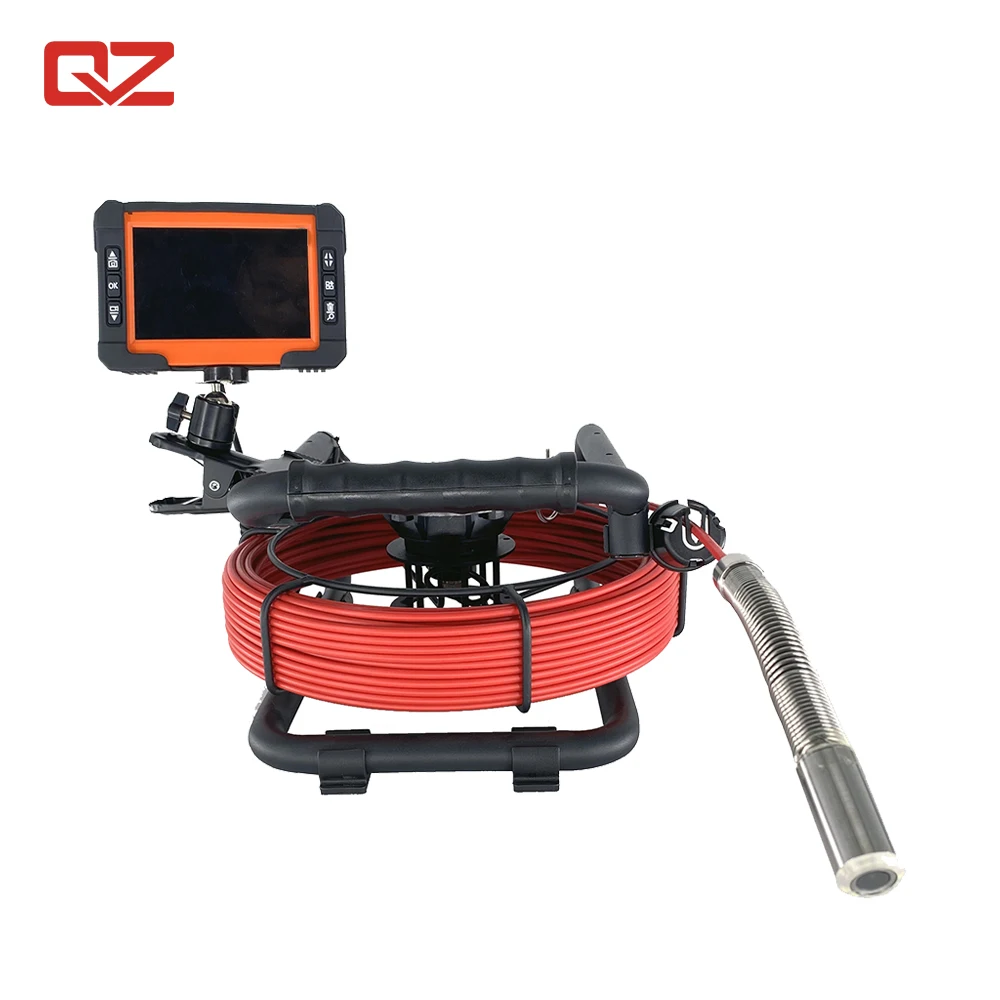

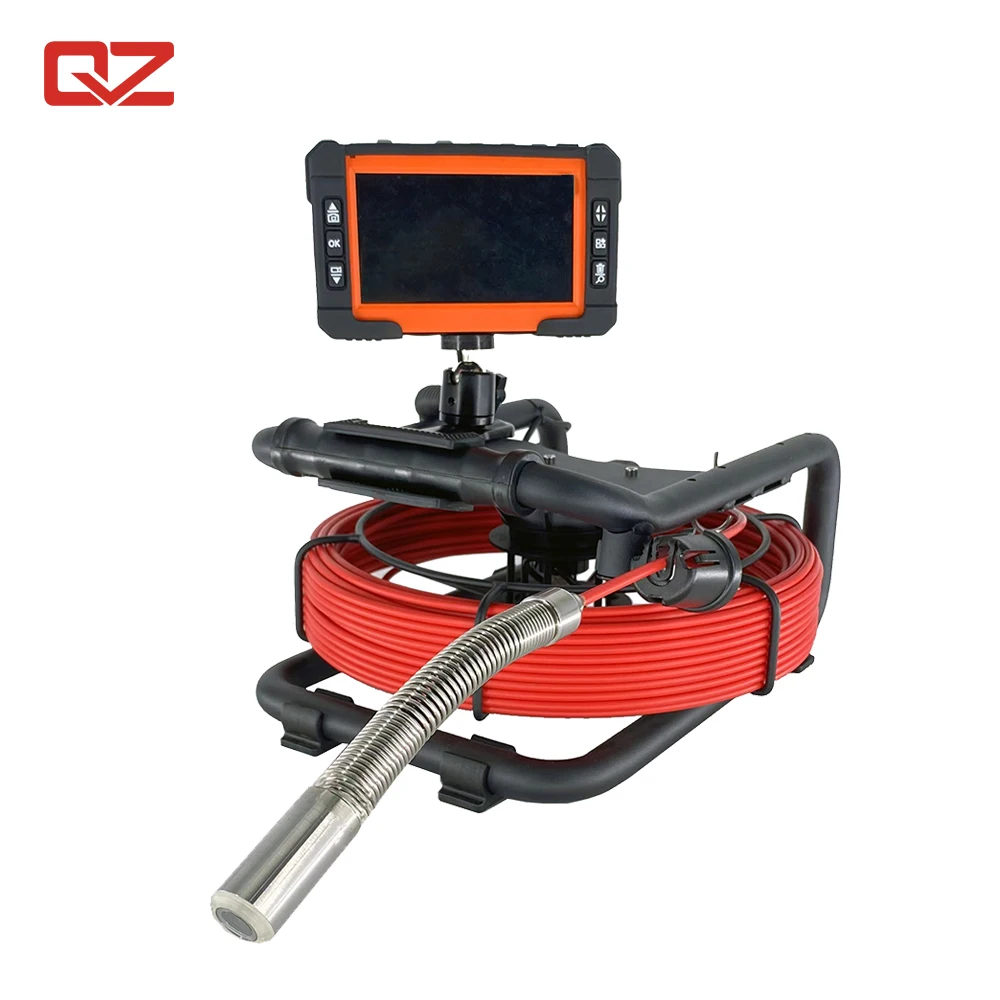

Factory Price Sewer Pipe Inspection Camera System With Fiberglass Push Rob Cable
Products Description
This pipe inspection camera system is designed as a real-time inspection camera and to unveil the internal objects and/or
structures with the illumination of the highlight LEDs, it is specially designed for pipeline, sewer, drain, duct, chimney,
plumbing, building, swimming pool, milk pipes, water mains, cable pipes, central air conditioning, pipes ventilation systems and other plumbing related sites, and many more where a pipe inspection camera system is required.
This system is suitable for pipes with inner diameter at 15mm-200mm (1/2''-4''). Ability to go through 90°bends in pipe with inner diameter at 50mm(for 21mm camera with 5.3mm push rod), 32mm(for 12.8mm camera with 4.8mm push rod).
structures with the illumination of the highlight LEDs, it is specially designed for pipeline, sewer, drain, duct, chimney,
plumbing, building, swimming pool, milk pipes, water mains, cable pipes, central air conditioning, pipes ventilation systems and other plumbing related sites, and many more where a pipe inspection camera system is required.
This system is suitable for pipes with inner diameter at 15mm-200mm (1/2''-4''). Ability to go through 90°bends in pipe with inner diameter at 50mm(for 21mm camera with 5.3mm push rod), 32mm(for 12.8mm camera with 4.8mm push rod).

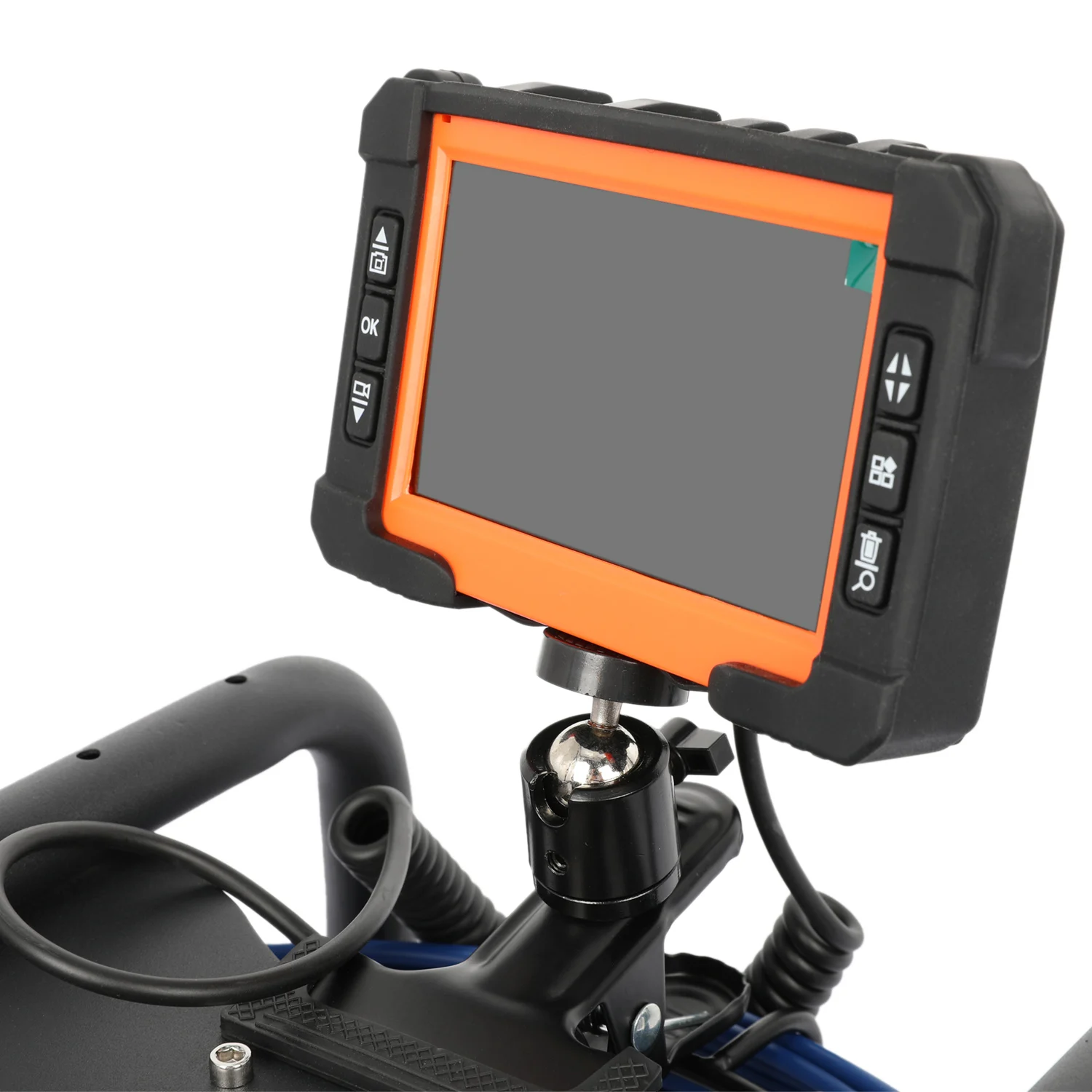

5 Inch Control Monitor

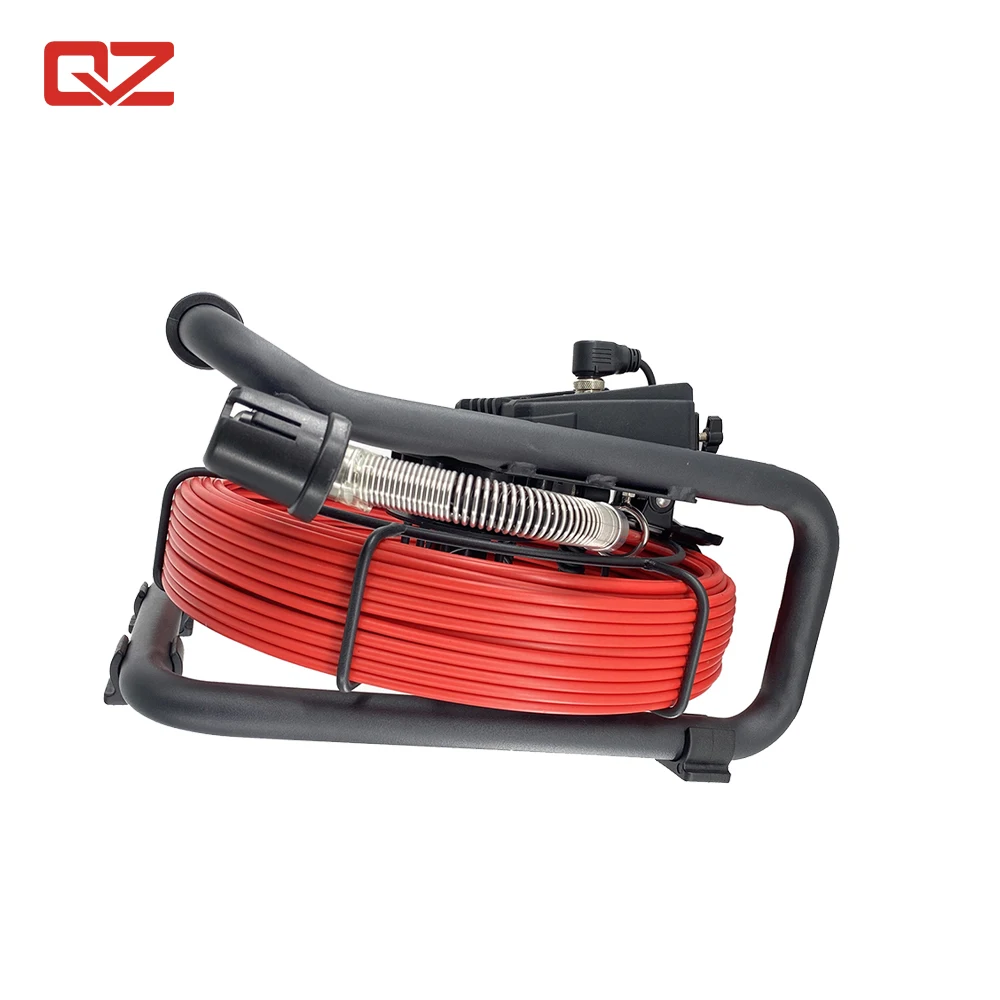

Cable Reel With Metal Frame

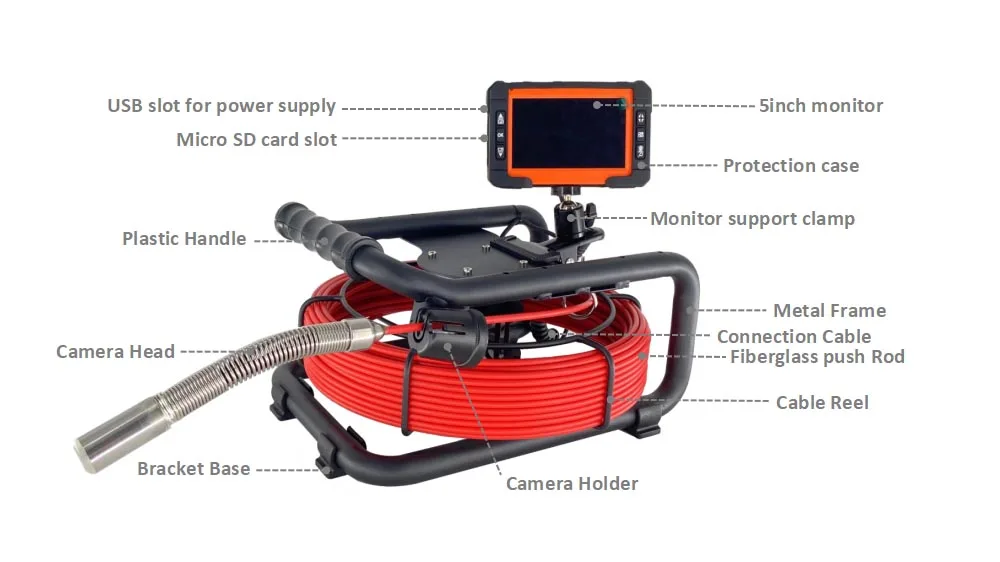

Combine Together
Features:
* Compact and Portable design for easy carry and storage;
* Detachable and collapsible monitor for adapt to various work angles;
* Camera head with sapphire glass lens cover and 304 stainless steel housing allow the camera to withstand repeated hits in various pipes;
* Rotatable cable reel mounted in metal frame for convenient operation;
* Waterproof level: IP67 (camera tube only);
* 5'' LCD color monitor to real-time inspecting and easy to take pictures or record videos;
* On-Screen date & time stamp;
* Support external storage TF Card, max storage up to 32GB;
* System supports two kinds of cameras:φ12.8mm(with 4.8mm push rod) and φ21mm(with 5.3mm or 12.8mm push rod)
are available;
* Push rod fiberglass cable length 10/20/30m for options;
* U-type metal frame make the cable reel easy to clean;
* 512Hz sonde could be optional for both camera heads.
Specifications
Item | 21mm camera | 12.8mm camera | ||
General | Operating Temperature | -10~50°C/+14~+122°F | ||
Operating Humidity | 30%RH~90%RH | |||
Storage Temperature | -20~60°C/+4~+140°F | |||
Power adapter | Input:110VAC~240V AC, Output:12V DC 2A | |||
Power Supply | DC 12 input | |||
Current Consume | 800mA Max | |||
Battery Capacity | 3800mAh Li-ion Battery | |||
A Single Charge Work Time | 3 Hours | |||
Charge Time | 5Hours | |||
Waterproof | IP66 ( Only the camera head insctalled and the metal frame with cable reel are waterprood ) | |||
MEA S. | 37*35*22CM | |||
Weight | Approx 5Kg (slight different from different length of cable) | QY6566:Approx 8.5Kg; QY6688:Approx 12Kg (slight different from different length of cable) | ||
Camera | Sensor | 1/ 3" CMOS | 1/ 4" CMOS | |
TV-Line | 700TVL | 600TVL | ||
View Angle | 90° | 60° | ||
Focus Distance | 15cm (approx) | 5cm (approx) | ||
Depth Of Field | 100cm(approx) | 100cm(approx) | ||
Camera Size | Φ21mm×45mm (Main body) | Φ12.8mm×12mm (Main body) | ||
Camera Length | 165mm | 135mm | ||
Front Lens | Sapphire | |||
Shell Material | 304#Stainless Steel | |||
Lighting | Built-in 12×LED (White) | Built-in 6×LED (White) | ||
LED Driver | Built-in Dimmer(Pulley button) | |||
Water-resistant | 20m water (Camera fix on Cable) | |||
5'' Monitor | Screen | 5inch high-definition color LCD | ||
Resolution | 800X3(RGB)X480 | |||
Mirror and Flip | Normal, 180° flip, mirror, mirror & 180° flip | |||
Video Resolution | 1020*508 | 752*582 | ||
Video Encoding | H.264 | H.264 | ||
Photograph | 1020*508 | 752*582 | ||
Out Put | TV output | |||
External Memory | Support MAX. 32G TFCard | |||
Play Back | Photo and Video | |||
Language | English, Deutsch, Français, Nerderlands, Simplified Chinese, traditional Chinese, Japanese, Español, Pусский | |||
Image Format | .JPG | |||
Video Format | AVI. | |||
Size | 157*100*36mm | |||
Color | Black+Orange | |||
Cable | Cable Diameter | Φ5.3mm | Φ5.3mm or Φ4.8mm | |
Cable Color | Φ5.3mm in red, Φ4.8mm in blue | |||
Cable Length | 5/10/20/ 30meter (Selectable) | |||
Application
Industrial inspection camera applications:
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Aviation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verification of standards protocols in small and tight areas.
Building appraisal applications
Construction, property managers and contractors
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Aviation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verification of standards protocols in small and tight areas.
Building appraisal applications
Construction, property managers and contractors
Packaging & Shipping

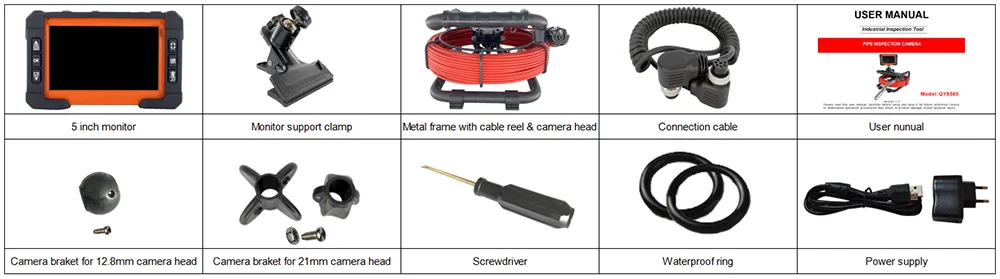

Packing List
