Original Gas Burner Riello RS 44/1 TC,RS 44 TC,RS 44/M TC Models All-In-One Gas Burners For Industrial
The RS burners series covers a firing range from 44 to 2290 kW, and it has been designed for use in low or medium
temperature hot water boilers, hot air or steam boilers, diathermic oil boilers.
temperature hot water boilers, hot air or steam boilers, diathermic oil boilers.
Operation is “two stage progressive”; the burners are fitted with a microprocessor-based burner safety control box
which supplies indication of operation and diagnosis of
fault cause.
which supplies indication of operation and diagnosis of
fault cause.
The elevated performance of the fans and combustion head, guarantee flexibility of use and excellent working at
all firing rates.
all firing rates.
The exclusive design ensures reduced dimensions, simple use and maintenance. Optimisation of sound emissions is
guaranteed by the special design of the air suction circuit and by incorporated sound proofing material. A wide range
of accessories guarantees elevated working flexibility.
guaranteed by the special design of the air suction circuit and by incorporated sound proofing material. A wide range
of accessories guarantees elevated working flexibility.
FEATURES AT A GLANCE
The RS/M burners series covers a firing range from 45 to 2650 kW, and it has been designed for use in low or medium temperature
hot water boilers, hot air or steam boilers, diathermic oil boilers.
Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and
respective probes.
RS/M burners series guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running
costs.
The exclusive design ensures reduced dimensions, simple use and maintenance. Optimisation of sound emissions is guaranteed by the
special design of the air suction circuit and by incorporated sound proofing material.
hot water boilers, hot air or steam boilers, diathermic oil boilers.
Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and
respective probes.
RS/M burners series guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running
costs.
The exclusive design ensures reduced dimensions, simple use and maintenance. Optimisation of sound emissions is guaranteed by the
special design of the air suction circuit and by incorporated sound proofing material.

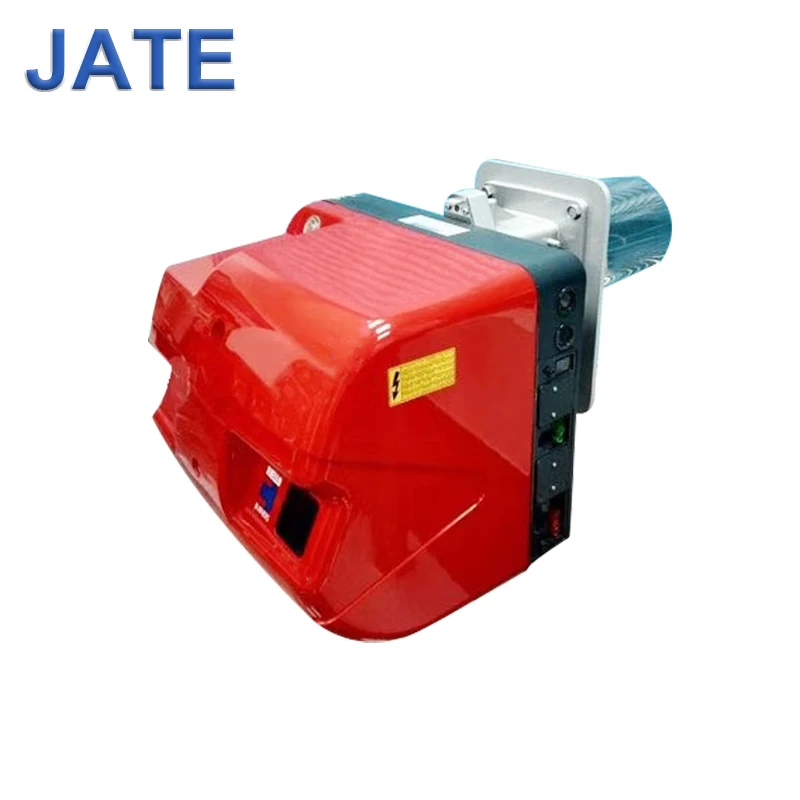

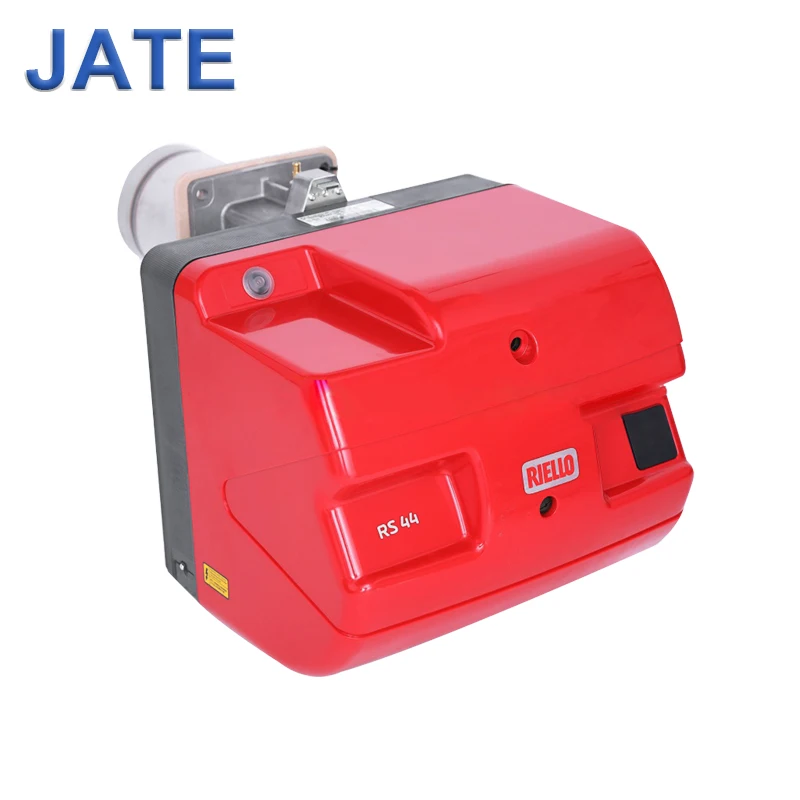

Front Image
Back Image
Real Image
Original Gas Burner Riello RS 44/1 TC,RS 44 TC,RS 44/M TC Models All-In-One Gas Burners For Industrial
The RS/M burners series covers a firing range from 45 to 2650 kW, and it has been designed for use in low or medium temperaturehot water boilers, hot air or steam boilers, diathermic oil boilers.
Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and
respective probes.
RS/M burners series guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running
costs.
The exclusive design ensures reduced dimensions, simple use and maintenance. Optimisation of sound emissions is guaranteed by the
special design of the air suction circuit and by incorporated sound proofing material.
A wide range of accessories guarantees elevated working flexibility.
Guidelines for installation of burners in conformity to EU Regulation:
A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW,
providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:
- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article
1, paragraph 2, point (G) of the EU Regulation No. 813/2013;
- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II,

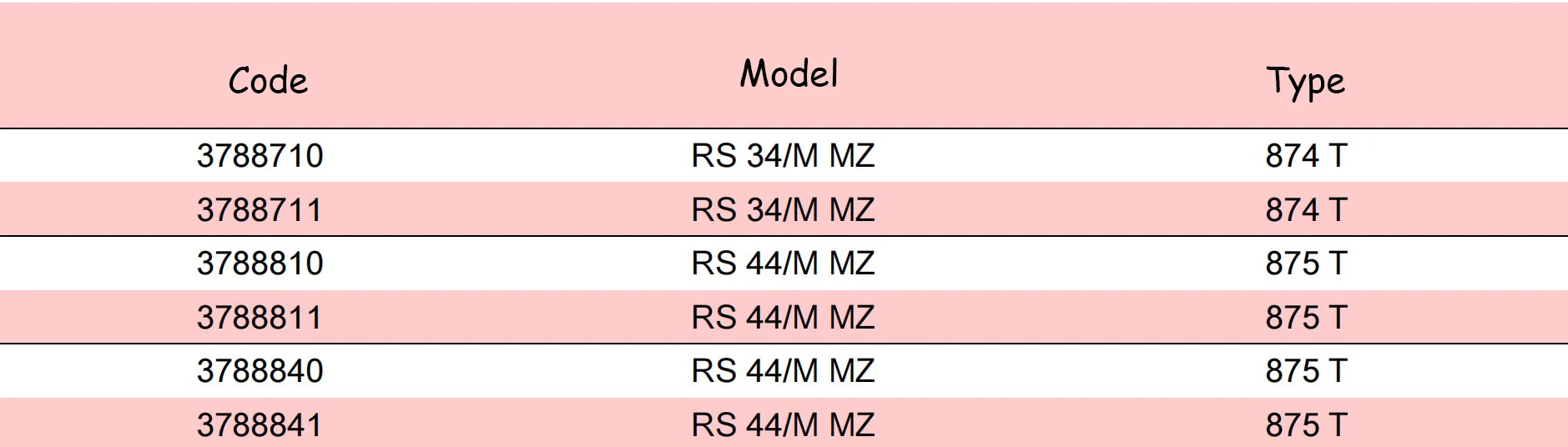

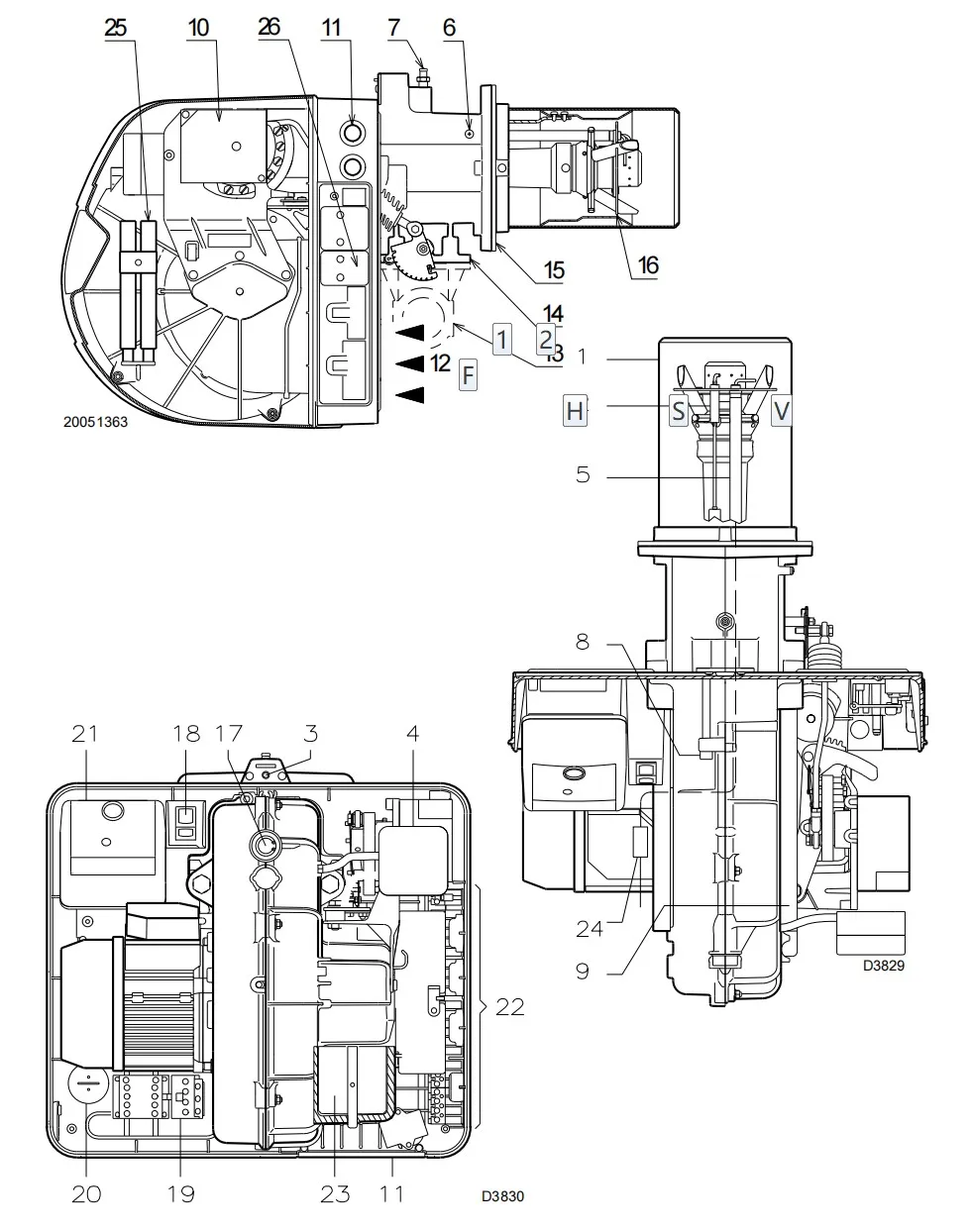

Burner Description：
Burner Description:
1 burner
2 ignition electrodes
3 Combustion head adjusting bolt
4 Minimum air pressure switch (different operating modes)
5 flame probe
6 Wind pressure measuring points
7 Gas pressure measuring points and fixing bolts
8 Bolts to secure the fan to the casing
9 Slide bar for opening the burner and servicing the combustion head
10 Servo motor that controls the opening of the gas butterfly valve and the opening of the damper (controlled by a mechanical cam
with variable shape) Of course, when the burner is stopped, the damper is fully closed, so that the Reduce the air drawn in by the
flue gas from the air inlet of the fan caused heat loss.
11 Areas where cables are routed
12 The air inlet of the fan
13 Gas inlet pipe
14 Gas Butterfly Valve
15 Flange for fixing the burner to the boiler 16 Flame stabilization plate
17 Fire viewing hole
2 ignition electrodes
3 Combustion head adjusting bolt
4 Minimum air pressure switch (different operating modes)
5 flame probe
6 Wind pressure measuring points
7 Gas pressure measuring points and fixing bolts
8 Bolts to secure the fan to the casing
9 Slide bar for opening the burner and servicing the combustion head
10 Servo motor that controls the opening of the gas butterfly valve and the opening of the damper (controlled by a mechanical cam
with variable shape) Of course, when the burner is stopped, the damper is fully closed, so that the Reduce the air drawn in by the
flue gas from the air inlet of the fan caused heat loss.
11 Areas where cables are routed
12 The air inlet of the fan
13 Gas inlet pipe
14 Gas Butterfly Valve
15 Flange for fixing the burner to the boiler 16 Flame stabilization plate
17 Fire viewing hole
18 Switches for different operating modes: Auto - Manual - Off button: Increase output - decrease output
19 Motor contactor and thermal protector with reset button (RS 44/M MZ three-phase power supply)
20 Motor capacitor (RS 34-44/M MZ single-phase power supply)
21 Control Box with Lockout Reset Button and Lockout Indicator
22 cable socket
23 Damper damper
24 Cable socket for ignition electrode
25 Slide bar extension (for lengthening the front burner)
26 4-Pole Socket Cover (see Appliance Panel Appendix)
19 Motor contactor and thermal protector with reset button (RS 44/M MZ three-phase power supply)
20 Motor capacitor (RS 34-44/M MZ single-phase power supply)
21 Control Box with Lockout Reset Button and Lockout Indicator
22 cable socket
23 Damper damper
24 Cable socket for ignition electrode
25 Slide bar extension (for lengthening the front burner)
26 4-Pole Socket Cover (see Appliance Panel Appendix)
Original Gas Burner Riello RS 44/1 TC,RS 44 TC,RS 44/M TC Models All-In-One Gas Burners For Industrial

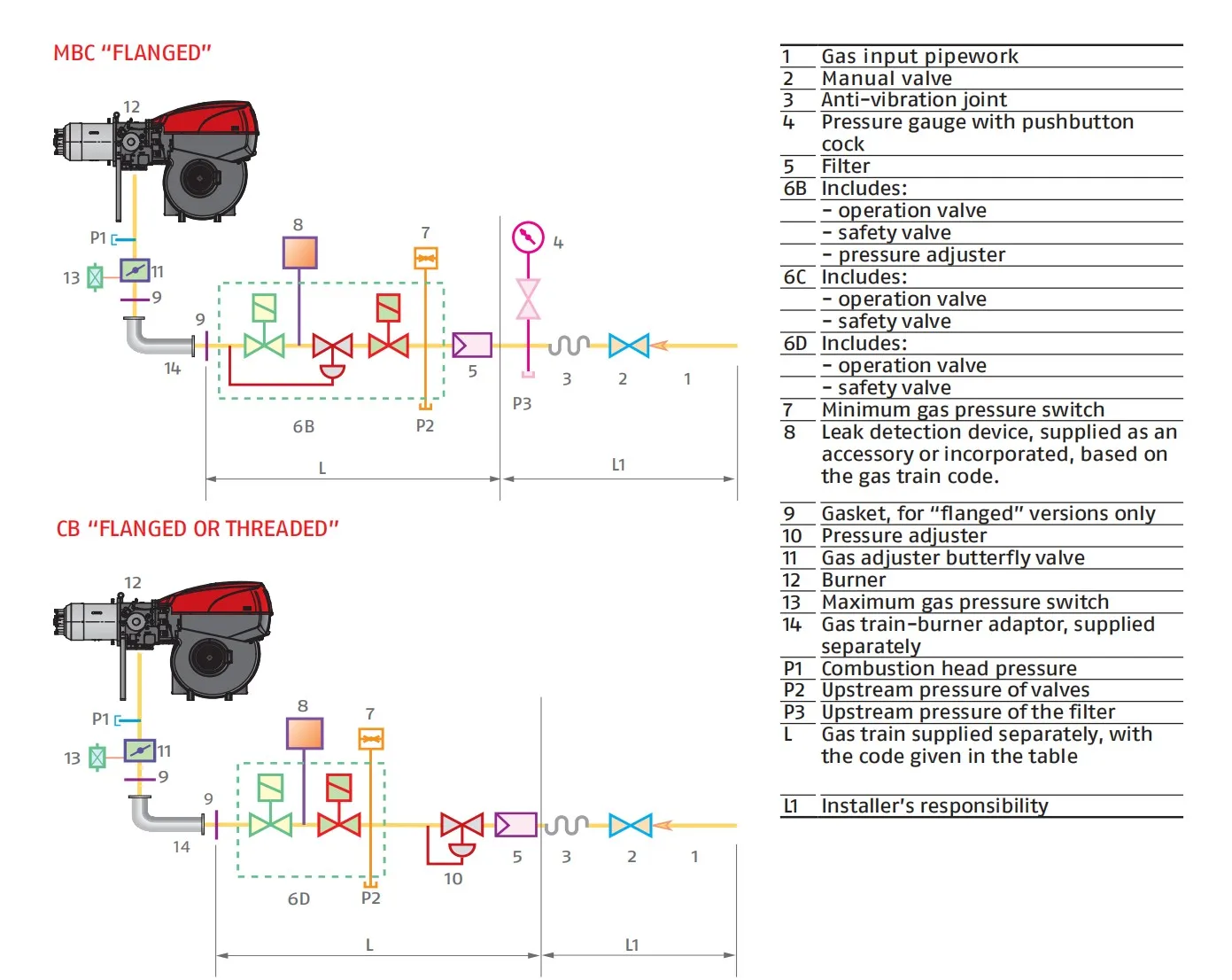

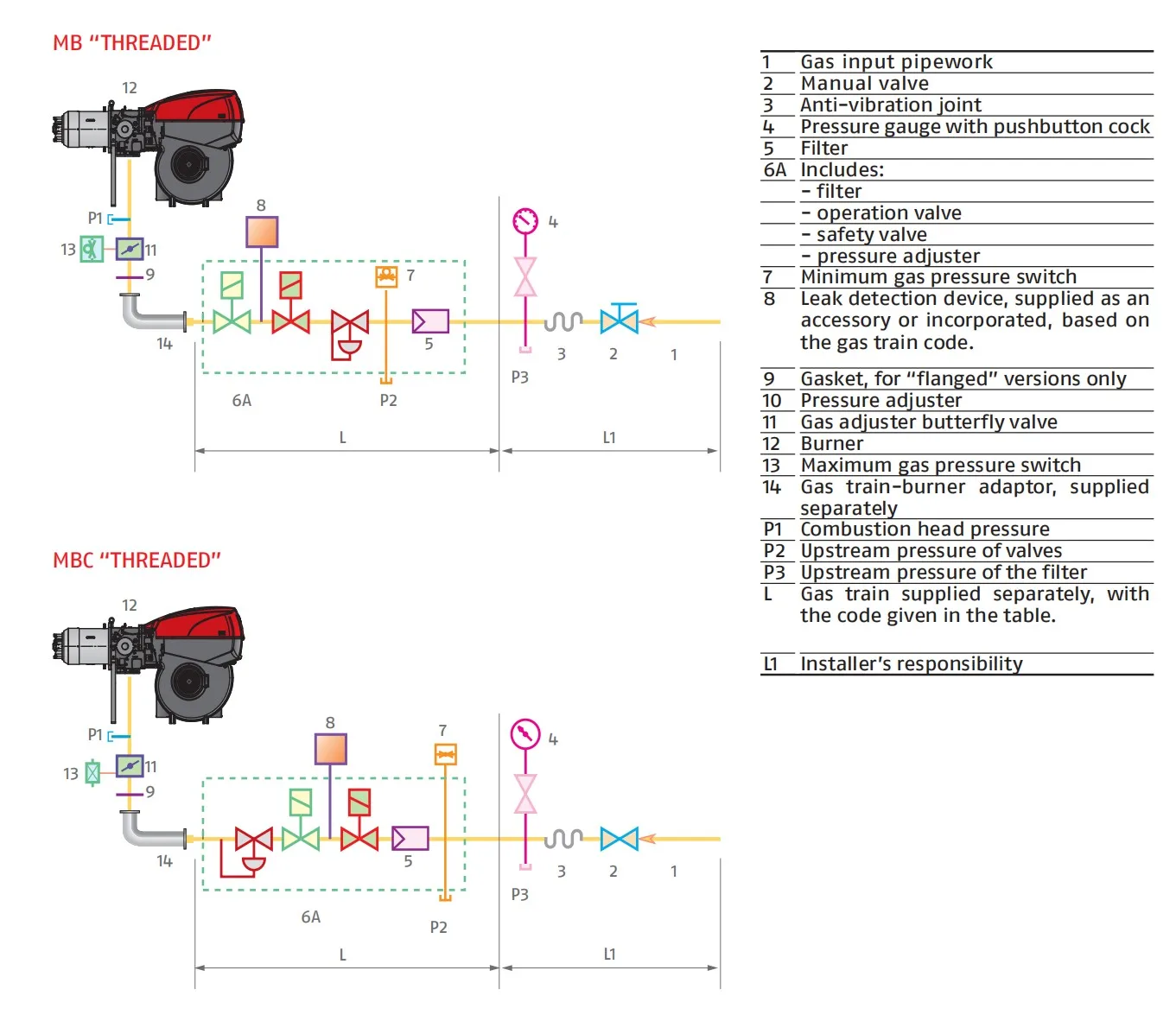

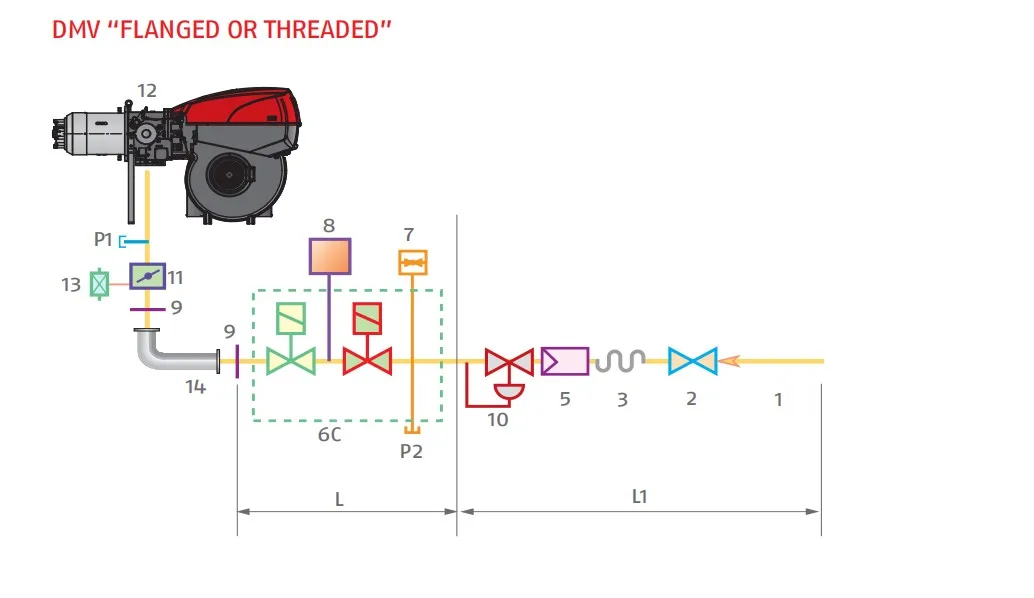

GAS TRAINS:
The burners are fitted with a butterfly valve to regulate the fuel, controlled by the main management module
of burner through a high precision servomotor.
Fuel can be supplied either from the right or left sides, on the basis of the application requirements.
A maximum gas pressure switch stops the burner in case of excess pressure in the fuel line.
The gas train can be selected to best fit system requirements depending on the fuel output and pressure in
the supply line.
The gas trains are with or without seal control.
of burner through a high precision servomotor.
Fuel can be supplied either from the right or left sides, on the basis of the application requirements.
A maximum gas pressure switch stops the burner in case of excess pressure in the fuel line.
The gas train can be selected to best fit system requirements depending on the fuel output and pressure in
the supply line.
The gas trains are with or without seal control.
Original Gas Burner Riello RS 44/1 TC,RS 44 TC,RS 44/M TC Models All-In-One Gas Burners For Industrial
Gas trains are approved by standard EN 676 together with the burner.

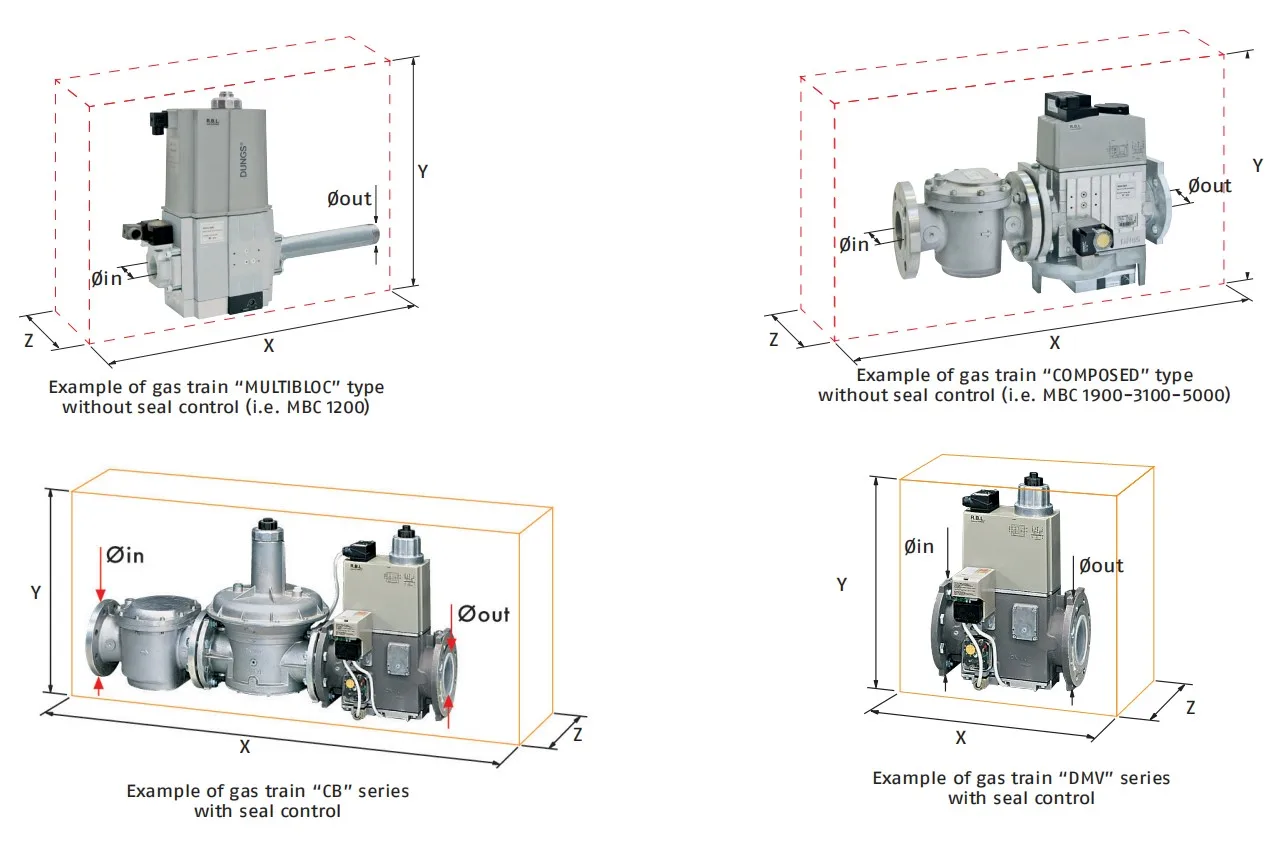

The overall dimensions of the gas train depends on how they are constructed. The following table shows the
maximum dimensions of the gas trains that can be fitted to RS 650-800-1000-1200/M BLU burners, intake and
outlet diameters and seal control if fitted.
The maximum gas pressure of gas train “MULTIBLOC” type is 360 mbar, and that one of gas train “COMPOSED”
type is 500 mbar.
“MULTIBLOC” guarantees a range of pressure towards the burner from 4 to 60 mbar. For version DN 65 and DN 80
is from 20 to 40 mbar. For version DN 100 is from 40 to 80 mbar. The range of pressure in the “MULTIBLOC” with
flange can be modified choosing the stabiliser spring (see gas train accessory).
The maximum gas pressure of gas train “CB” series is 500 mbar. “CB” gas train guarantees a range of pressure
towards the burner from 10 to 30 mbar. The range of pressure can be modified choosing the stabilizer spring
(see accessories).
The maximum gas pressure of gas train “DMV” series is 500 mbar. “DMV” gas train is supplied without pressure
governor.
The overall dimensions of the gas train depends on how they are constructed. The following table shows the
maximum dimensions of the gas trains that can be fitted to RS 650-800-1000-1200/M BLU burners, intake and
outlet diameters and seal control if fitted.
The maximum gas pressure of gas train “MULTIBLOC” type is 360 mbar, and that one of gas train “COMPOSED”
type is 500 mbar.
“MULTIBLOC” guarantees a range of pressure towards the burner from 4 to 60 mbar. For version DN 65 and DN 80
is from 20 to 40 mbar. For version DN 100 is from 40 to 80 mbar. The range of pressure in the “MULTIBLOC” with
flange can be modified choosing the stabiliser spring (see gas train accessory).
The maximum gas pressure of gas train “CB” series is 500 mbar. “CB” gas train guarantees a range of pressure
towards the burner from 10 to 30 mbar. The range of pressure can be modified choosing the stabilizer spring
(see accessories).
The maximum gas pressure of gas train “DMV” series is 500 mbar. “DMV” gas train is supplied without pressure
governor.
SIMILAR PRODUCTS
Successful Project
Project in Malaysia
Project in India
Project in Russia
