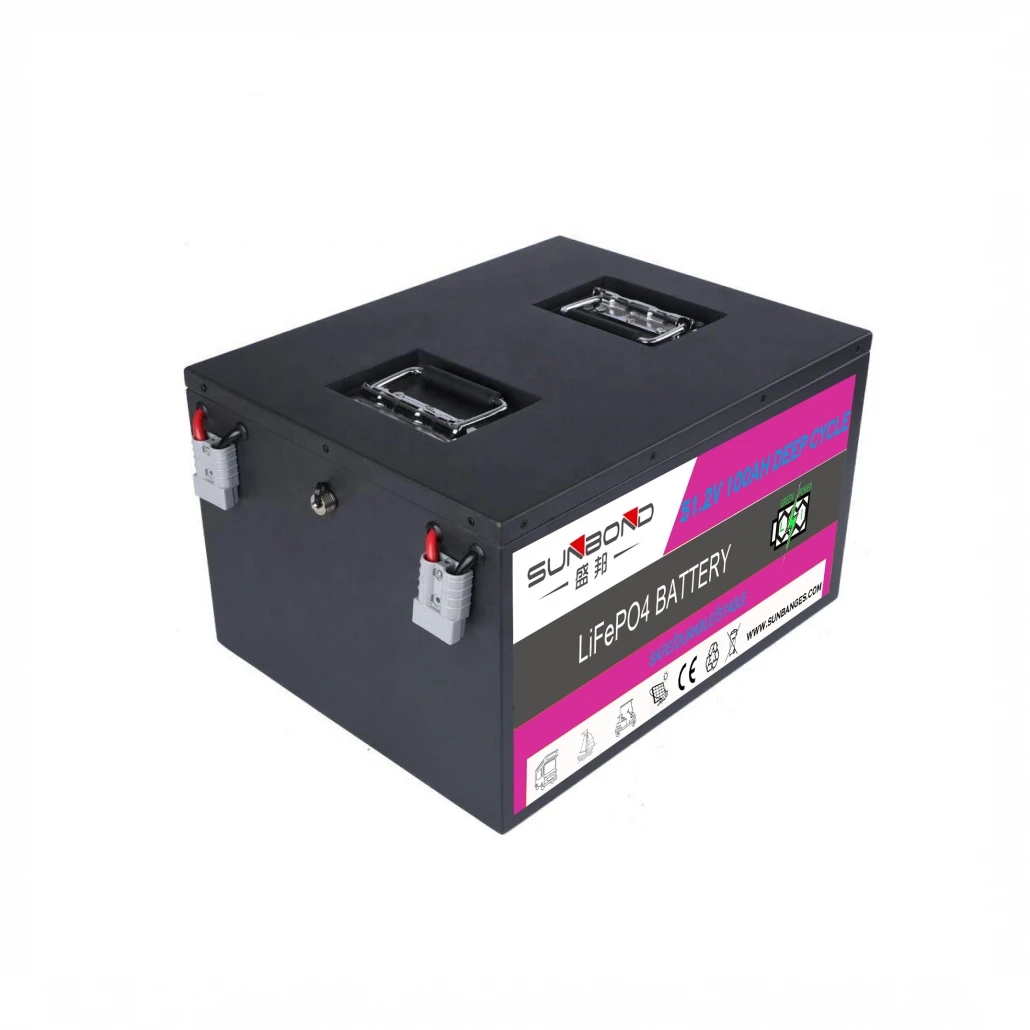

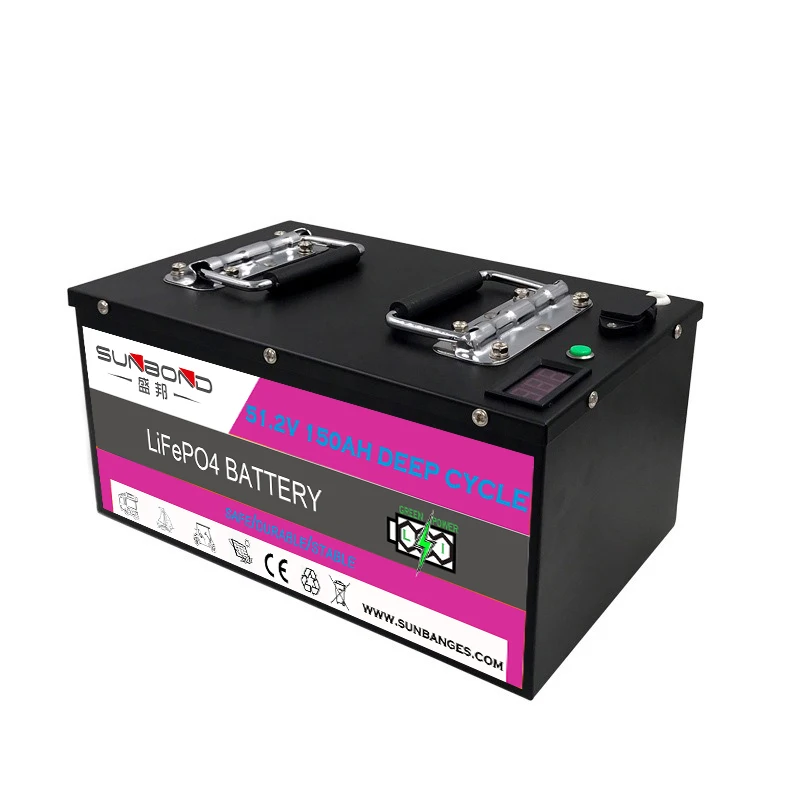

LiFePO4 24v 72v Lithium ion Battery Pack 20Ah 50Ah 60Ah 3000W 4000W 5000W Tricycle SOLAR Battery Motorcycle Golf Carts Battery
- Category: >>>
- Supplier: Shenzhen Sunbang Technology Co. Ltd.
Share on (1600550275532):
Product Overview
Description
72V 50ah 240AH 200AH LiFePO4 Battery Pack 25.6V 100% Capacity 5000+ Cycles RV Upgrade Cart Solar Lithium Ion Battery
Products Description

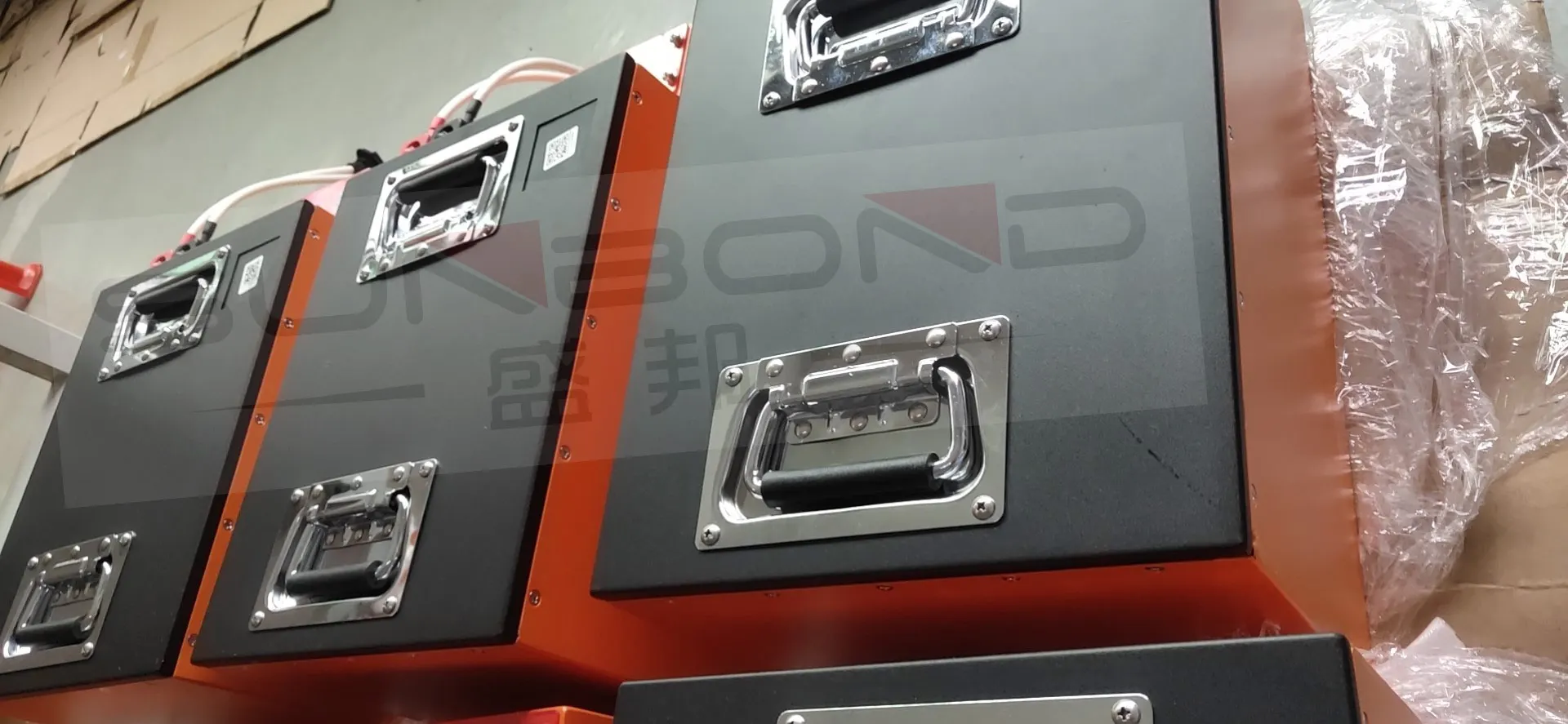

The battery (72V 50Ah) uses LiFePO4 material and can be cycled 4000-5000 times. The built-in battery management system (BMS) has the functions of preventing battery overcharging, overdischarging, overcurrent, short circuit, and equalizing battery cell, which can greatly extend battery life. The steel housing has IP65 dust and water resistance.
The battery can replace traditional lead-acid batteries, AGM, GEL, VRLA batteries.
Compared with traditional lead-acid batteries, LiFePO4 batteries have the following unique advantages:
1. Small size and light weight.
2. Ability to circulate deeply.
3. Maintenance-free, no maintenance hazard.
4. The cycle life is 2000-5000 times, which is 4-8 times that of lead-acid batteries.
5. The lifepo4 battery can be charged and used at any time.
6. Self-discharge. The lifepo4 battery self-discharges 3% per month, and the lead-acid battery is much higher.
7. Lead-acid batteries have the risk of electrolyte leakage.
8. The lifepo4 battery can work at -20-60°C and has a wider use environment.
Compared with traditional lead-acid batteries, LiFePO4 batteries have the following unique advantages:
1. Small size and light weight.
2. Ability to circulate deeply.
3. Maintenance-free, no maintenance hazard.
4. The cycle life is 2000-5000 times, which is 4-8 times that of lead-acid batteries.
5. The lifepo4 battery can be charged and used at any time.
6. Self-discharge. The lifepo4 battery self-discharges 3% per month, and the lead-acid battery is much higher.
7. Lead-acid batteries have the risk of electrolyte leakage.
8. The lifepo4 battery can work at -20-60°C and has a wider use environment.
Product Paramenters

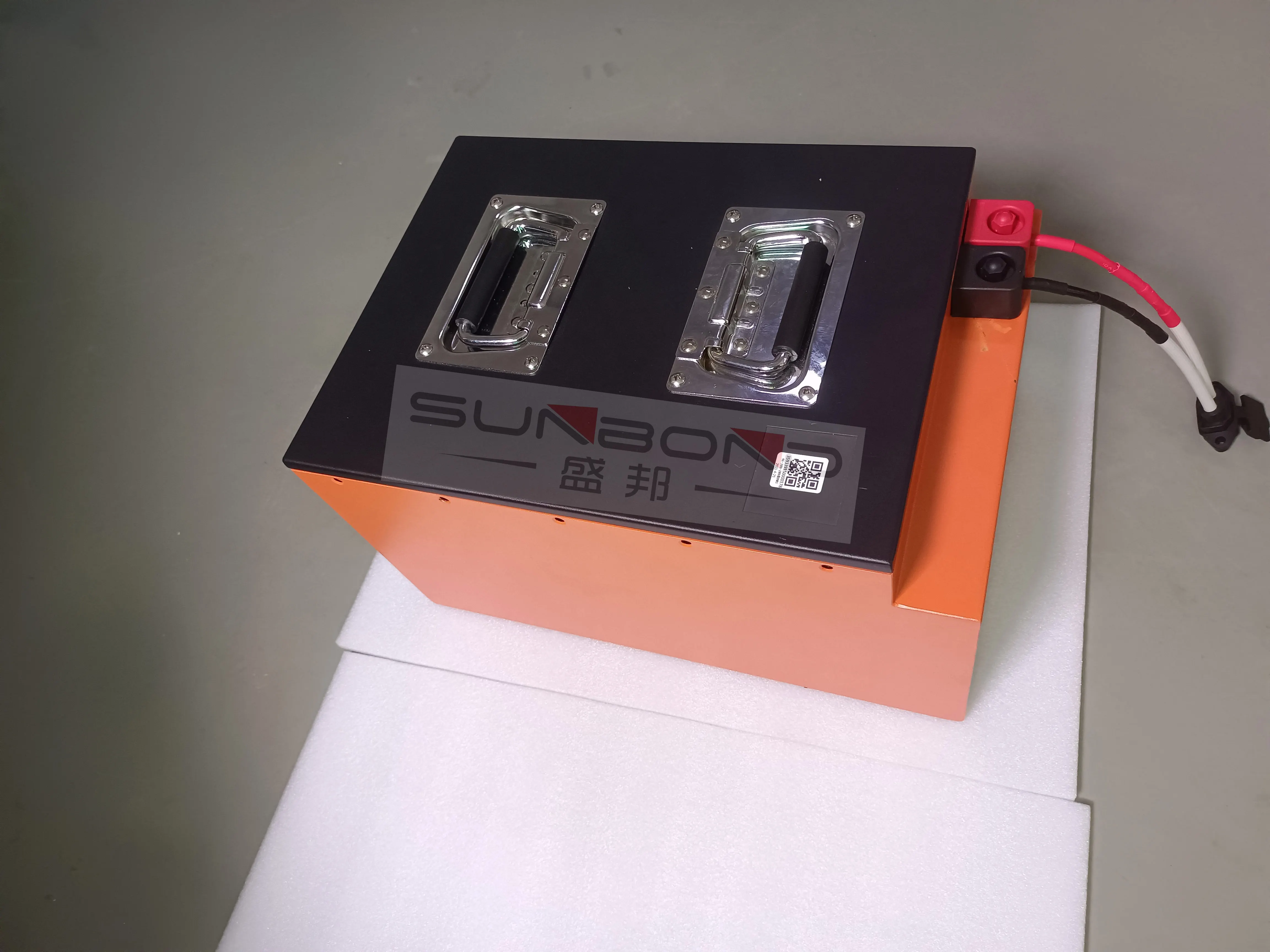

Product Name | 72V 50Ah Lithium Battery |
Applications | Motorcycle/Tricycle/Golf Cart |
Nominal Voltage | 73.6V |
Nominal Capacity | 50Ah |
Energy | 3680WH |
Battery Type | LiFePO4 |
Maximum Continuous Discharge Current | 50A |
Peak Current | 100A |
Charge Current | 10A/25A |
Charge Voltage | 83.9V |
Charging Cut-off Voltage | 83.9V |
Discharging Cut-off Voltage | 57.5V |
Weigh | 80KG |
Dimension | 380X265x215mm |
Terminal | Pin word interface/Custom |
Line Length | 100mm/Custom |
Operate Temperture | -20-60℃ |

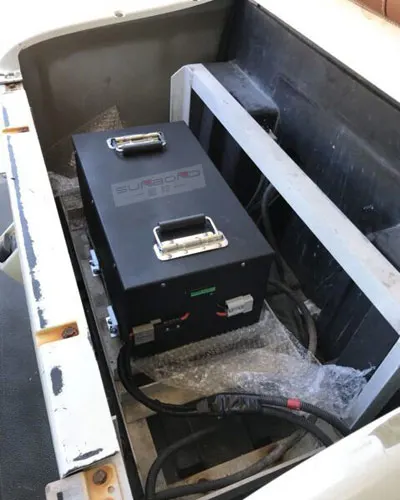

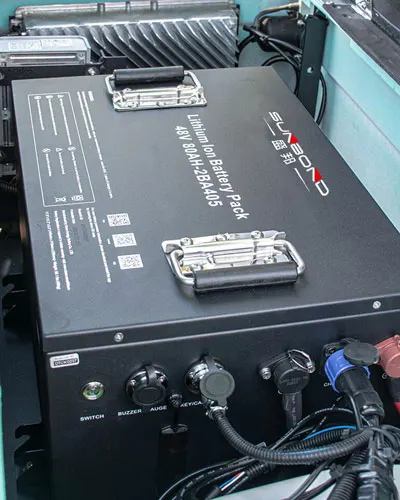

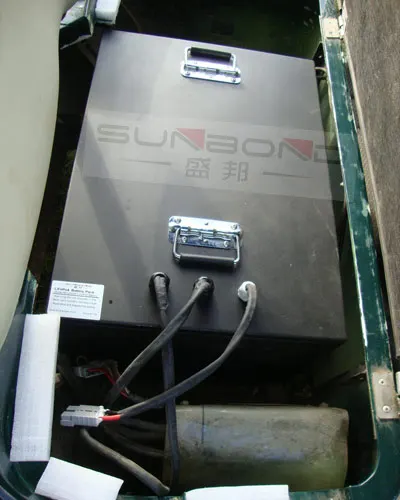

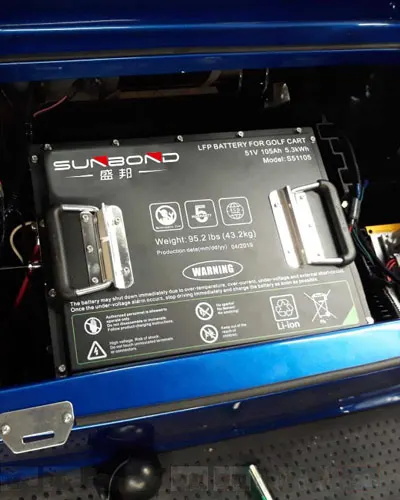

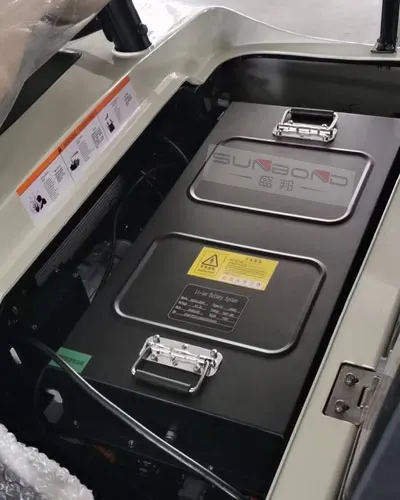

Product Application
Why Choose Us
ISO9001 Certified Factory
We are a real Chinese lithium-ion battery production plant with strong production capacity and customization capabilities. We have the ability to solve various battery solutions for you.

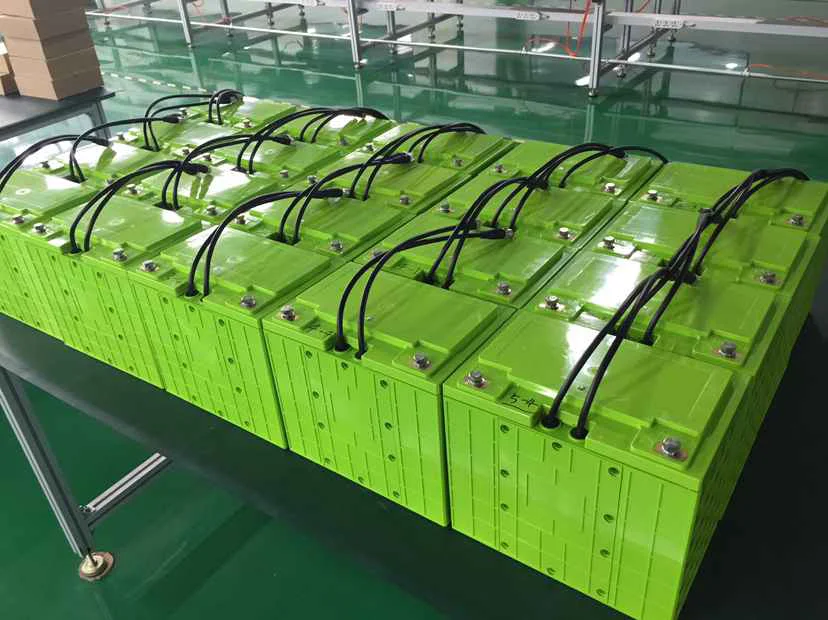

Consistency of Batteries
Before production, we will divide the battery cell voltage and test the resistance to ensure that all battery cells have the same voltage, capacity, and resistance.
If a single battery cell is inconsistent, it will affect the life of the battery. Our battery cell test will ensure the life and stable output of the battery to the greatest extent.
If a single battery cell is inconsistent, it will affect the life of the battery. Our battery cell test will ensure the life and stable output of the battery to the greatest extent.

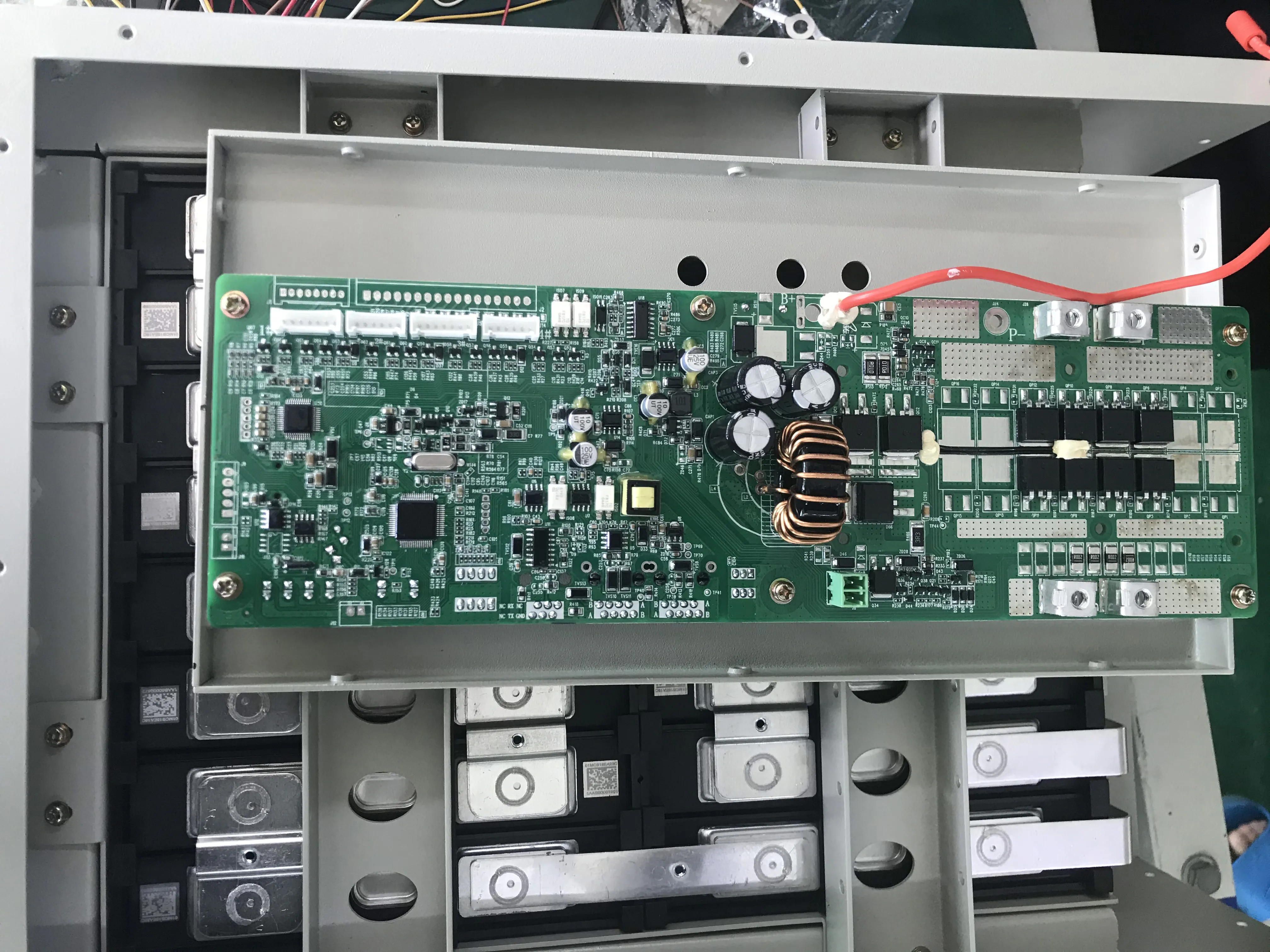

Smart BMS
Functions:overcharge protection, over discharge protection, over current protection, short circuit protection, balance function, disconnect protection.
BMS was be manufactured by high quality Mos and IC imported .
Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.
Extreme low power consumption.
PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating

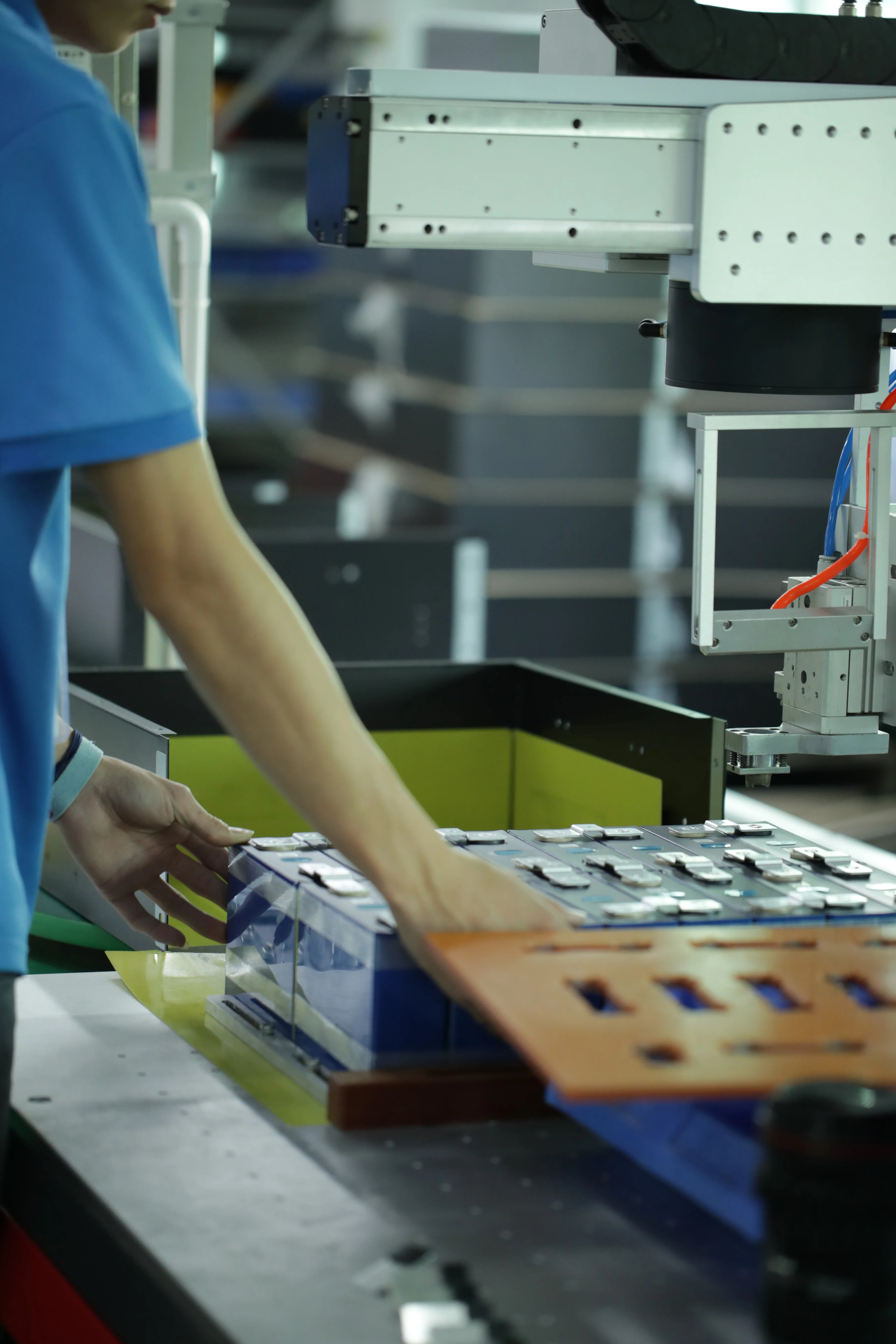

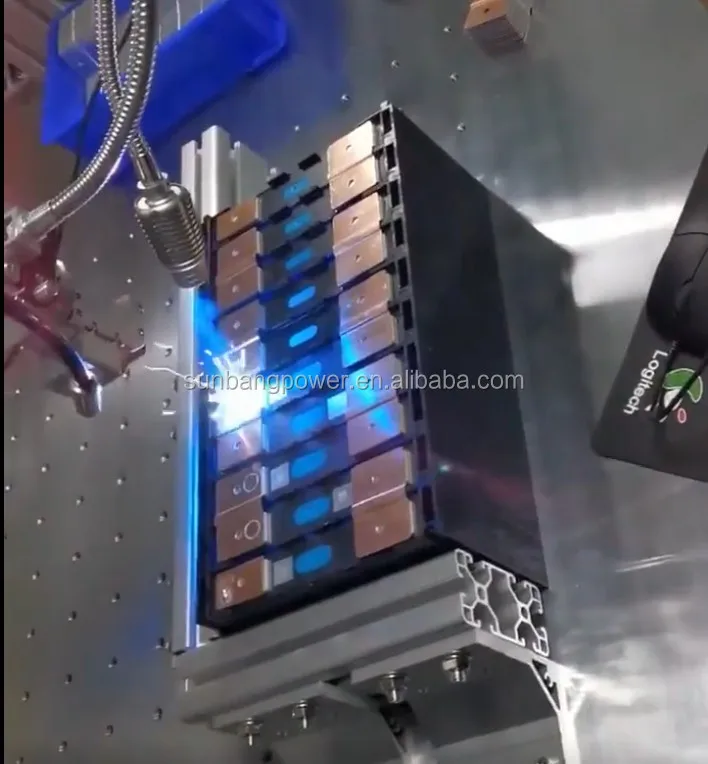

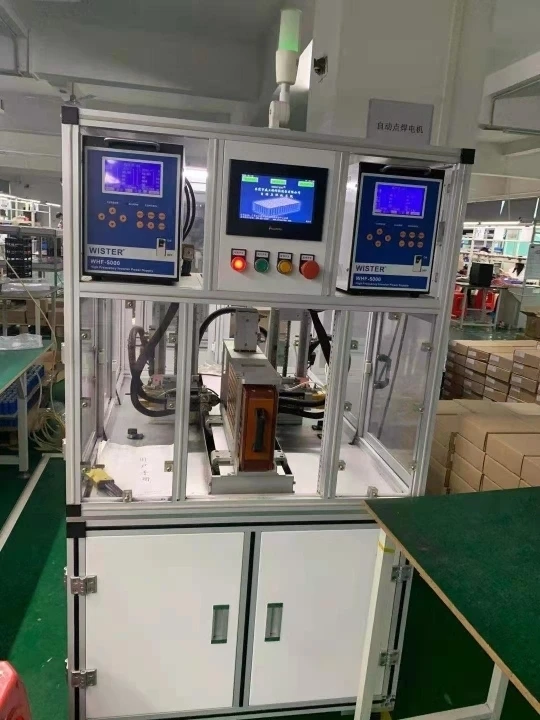

Laser spot welding
Fully automatic laser spot welding avoids process errors caused by manual spot welding.
We have produced a large number of energy storage batteries, and we have rich production experience and excellent craftsmanship in the production process to ensure that there will be no mistakes in the craftsmanship of the batteries.
We have produced a large number of energy storage batteries, and we have rich production experience and excellent craftsmanship in the production process to ensure that there will be no mistakes in the craftsmanship of the batteries.

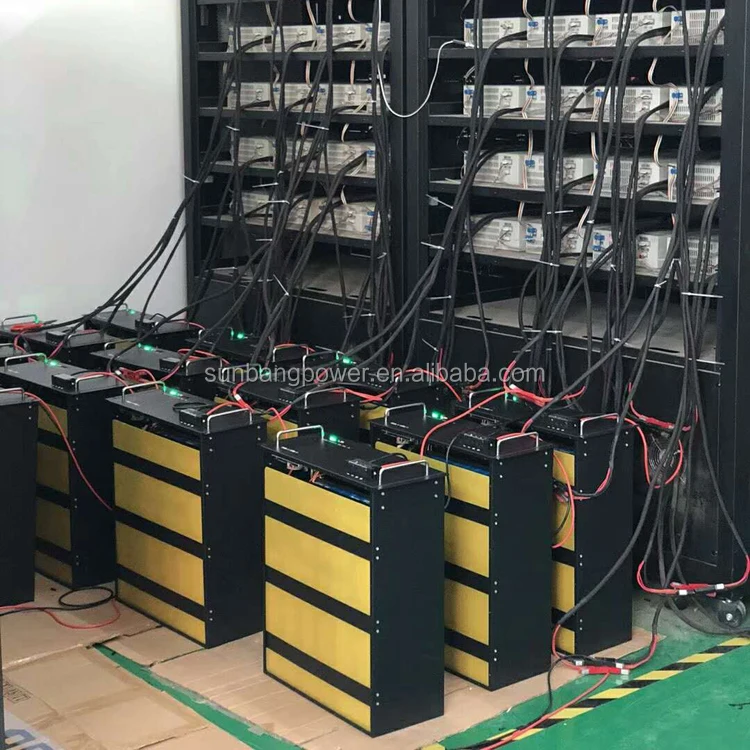

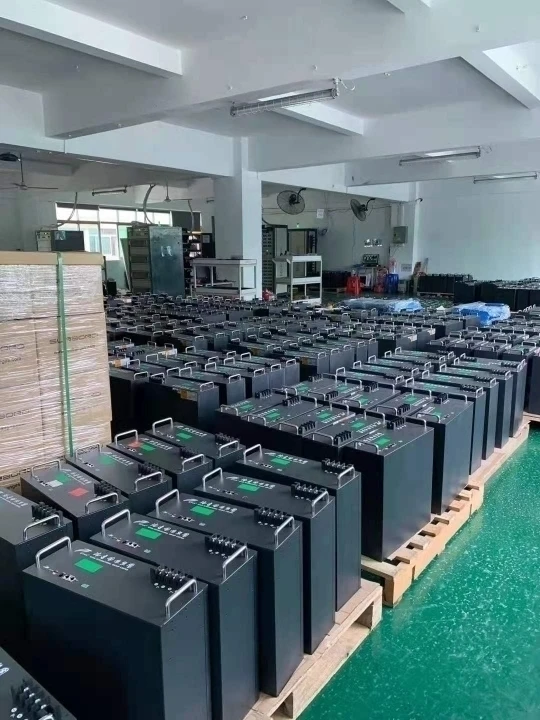

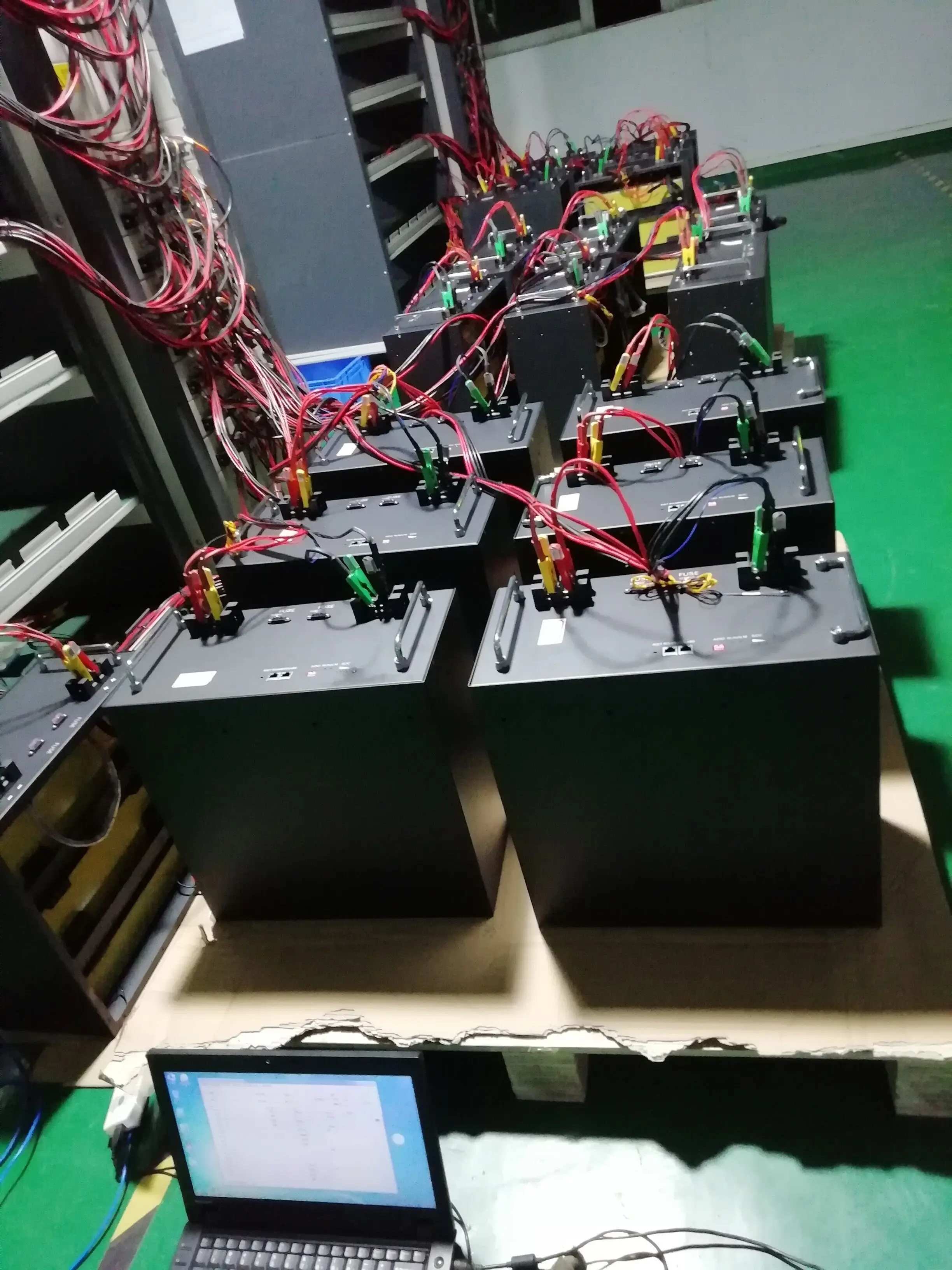

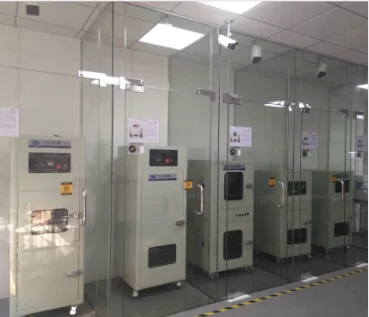

Aging test
How do we make sure that your battery has no problems?
Our company will go through strict product testing, aging test, charge and discharge test, high and low temperature test before each product is shipped to you, to ensure the quality of the product to the greatest extent.
Our company will go through strict product testing, aging test, charge and discharge test, high and low temperature test before each product is shipped to you, to ensure the quality of the product to the greatest extent.

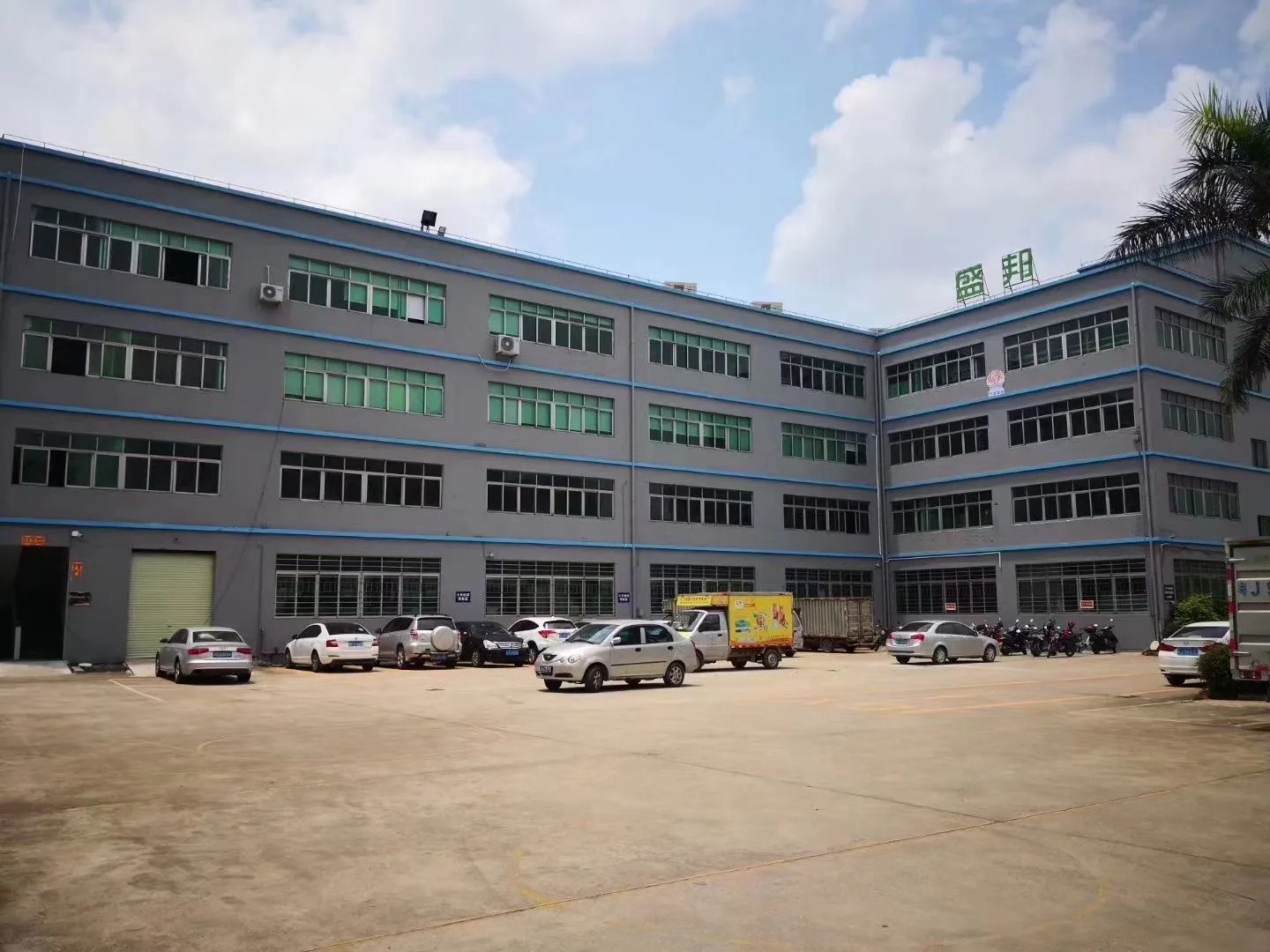

Our Company

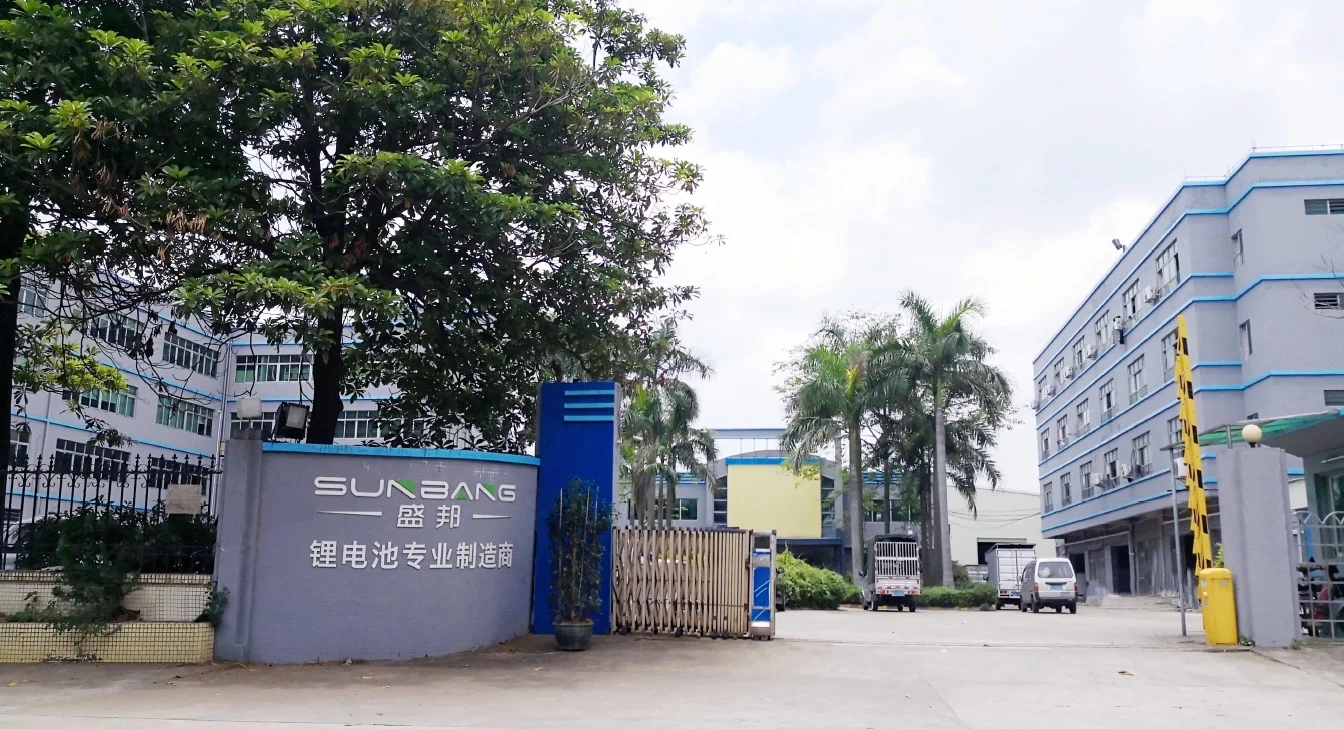

Shenzhen Sunbang Technology Co., Ltd.
Shenzhen Sunbang Technology Co., Ltd.is focused on manufacturing, R&D and selling high quality lithium iron phosphate (LiFePO4) battery, lithium polymer battery, NCM lithium battery and power solutions, striving to grow into a global leading lithium battery supplier.
With the registration and certification of CE,UL, MSDS, UN38.8, the company has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.

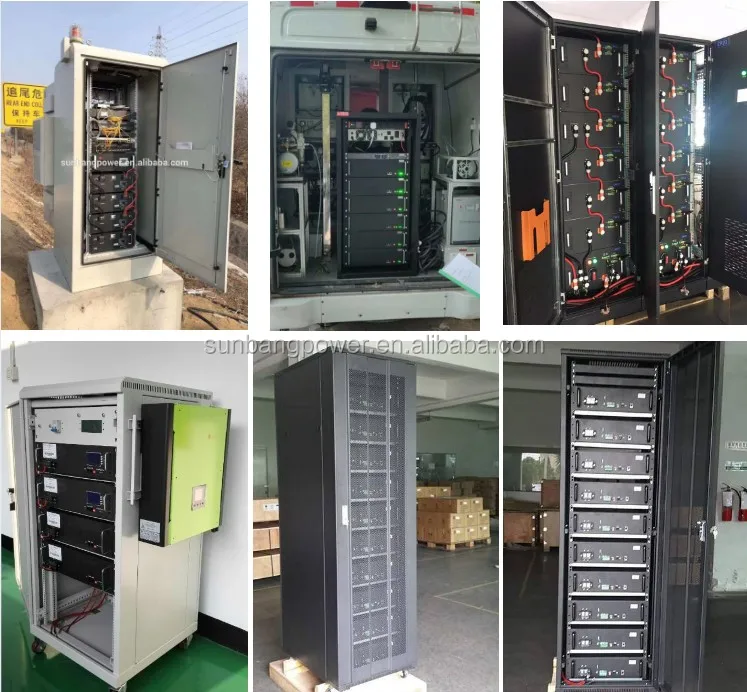

Our Company Project
48V 200Ah
Solar Energy Storage Project
48V 100Ah
Solar Energy Storage Project
48V 50Ah
Communication Base Station Project
12V 200Ah

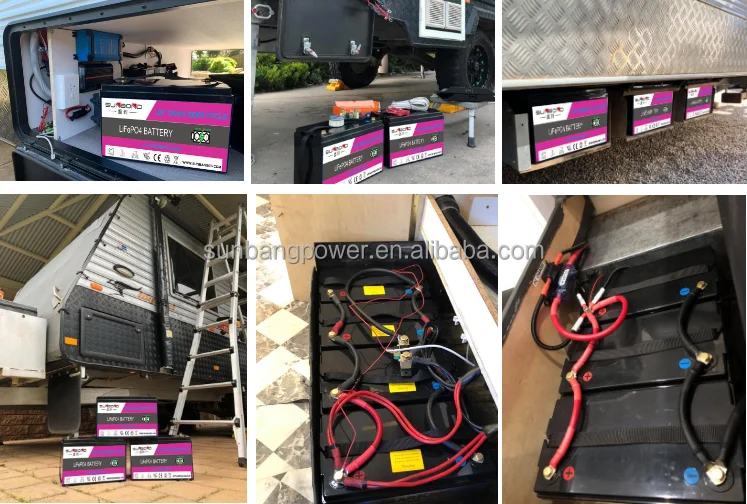

RV Project
24V 100Ah
Solar Energy Storage System Project
12V 100Ah
Solar Lighting System Project

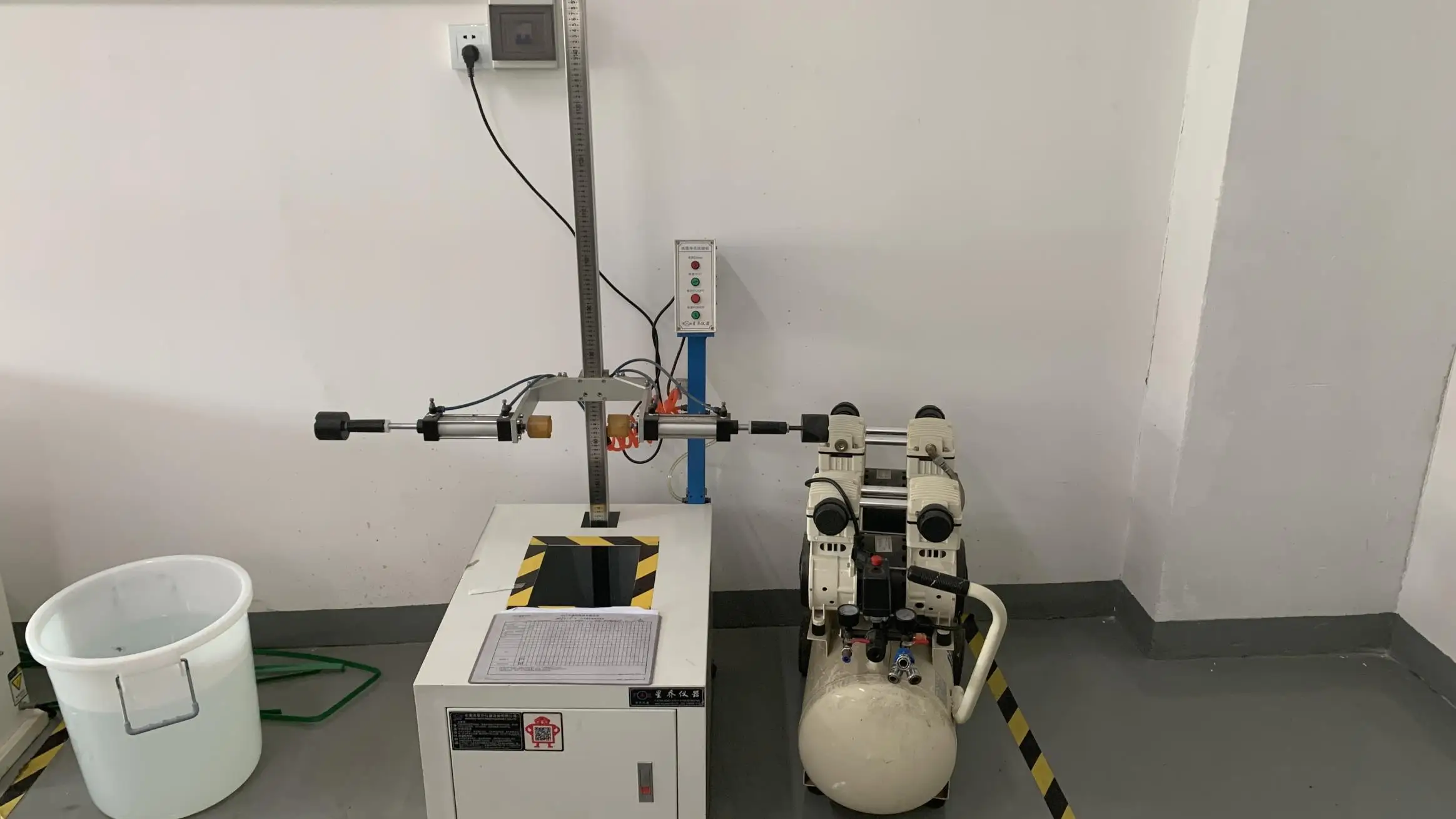

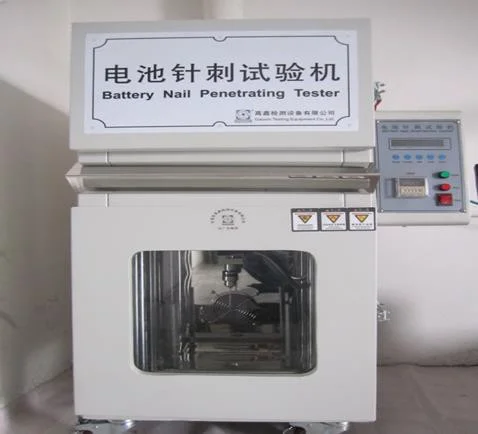

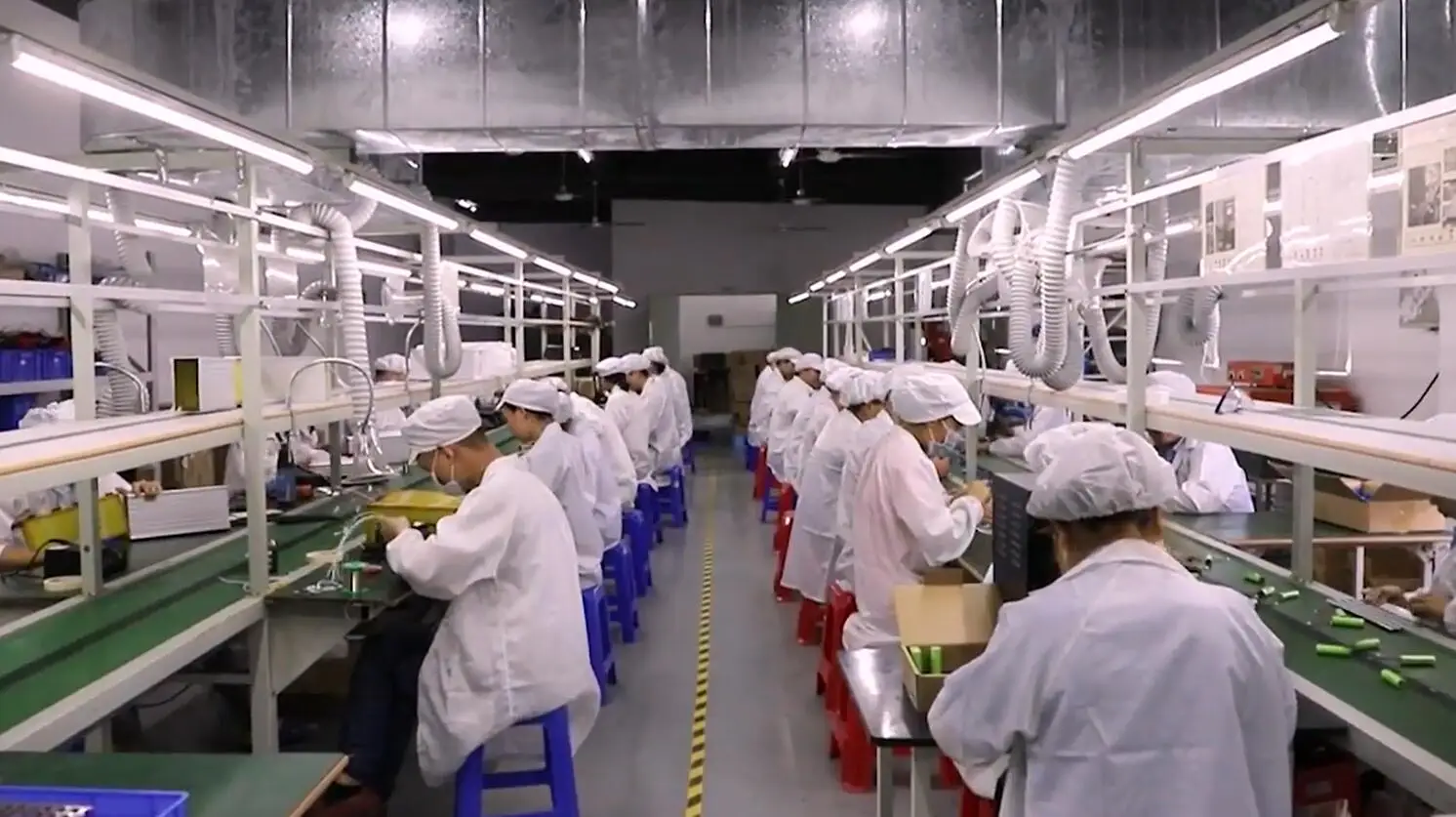

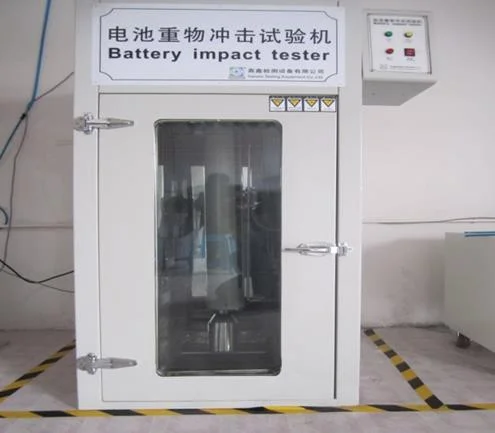

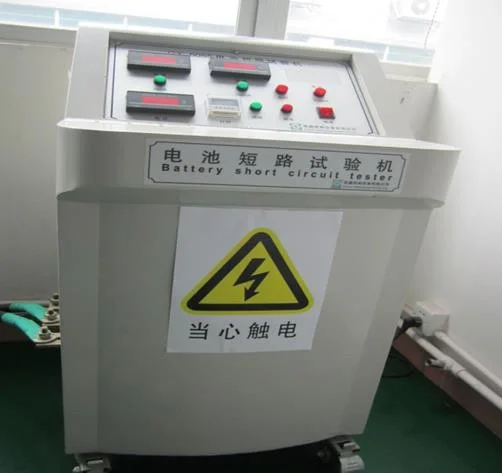

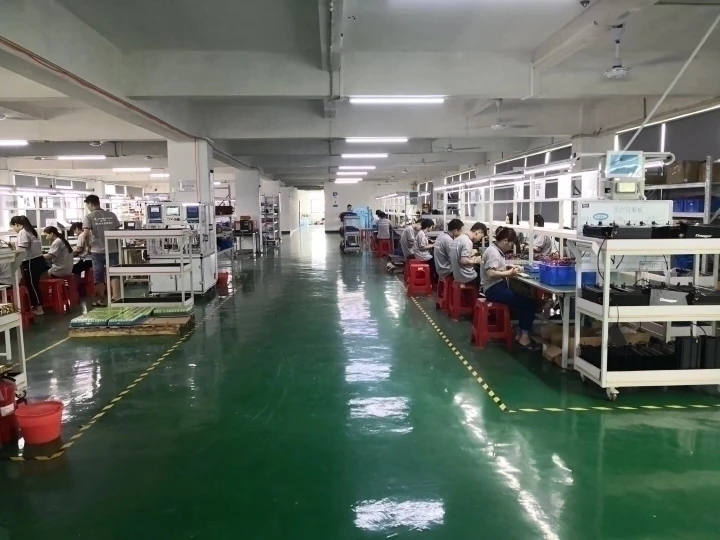

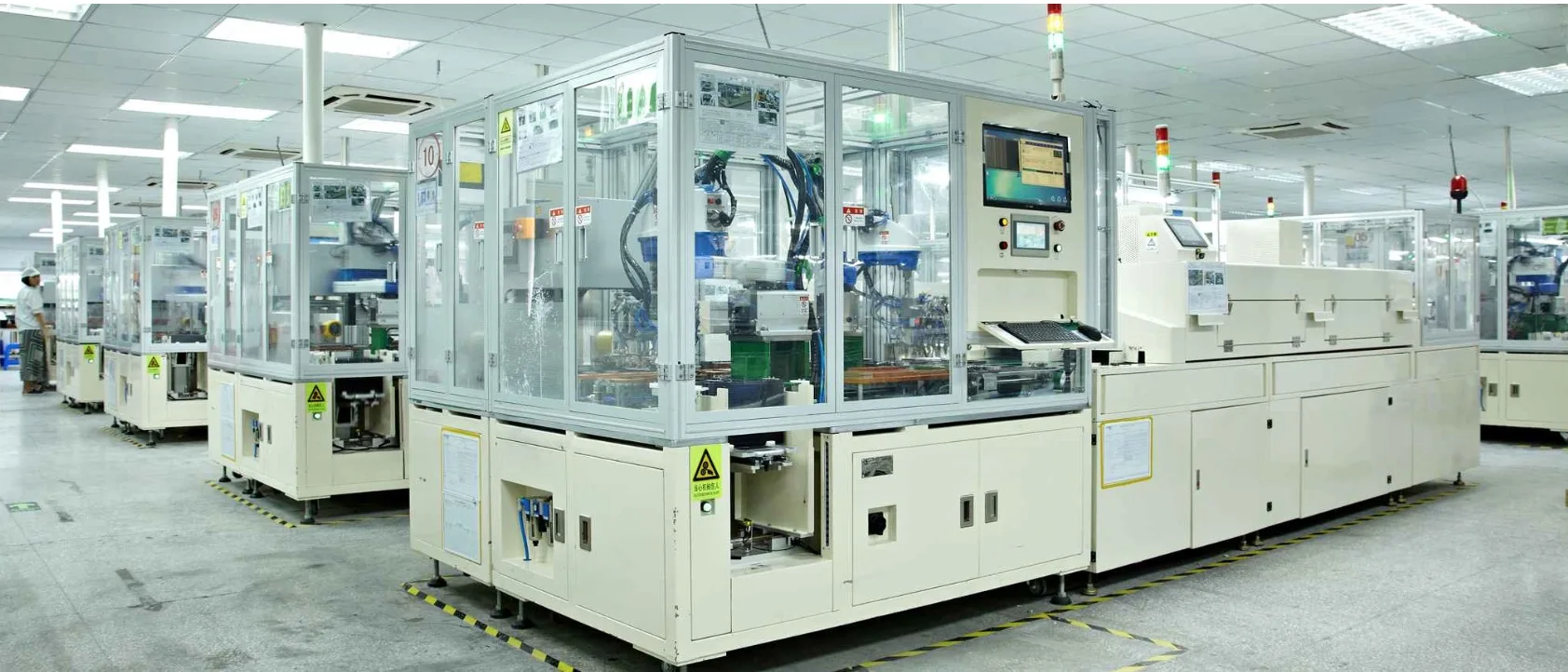

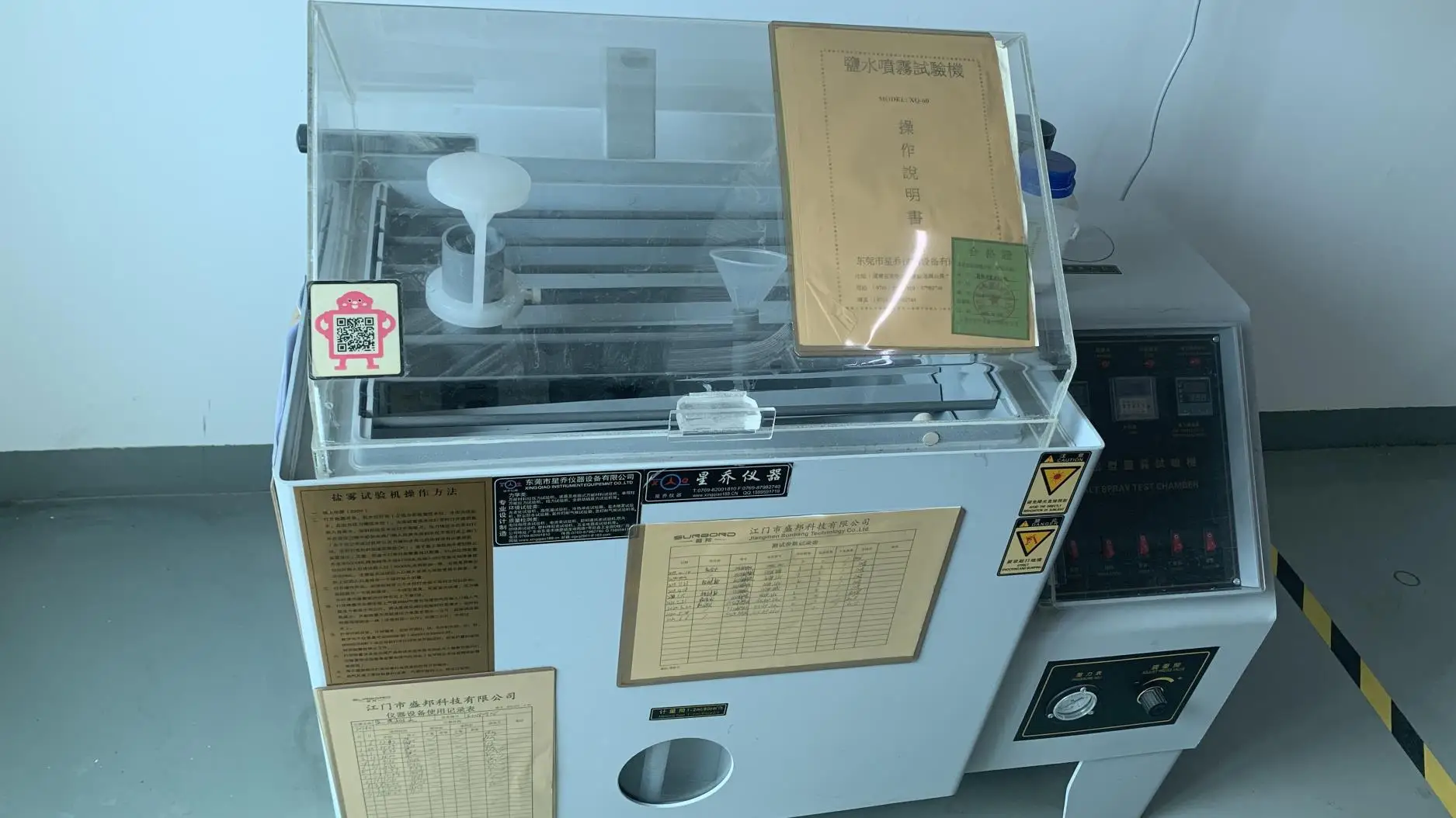

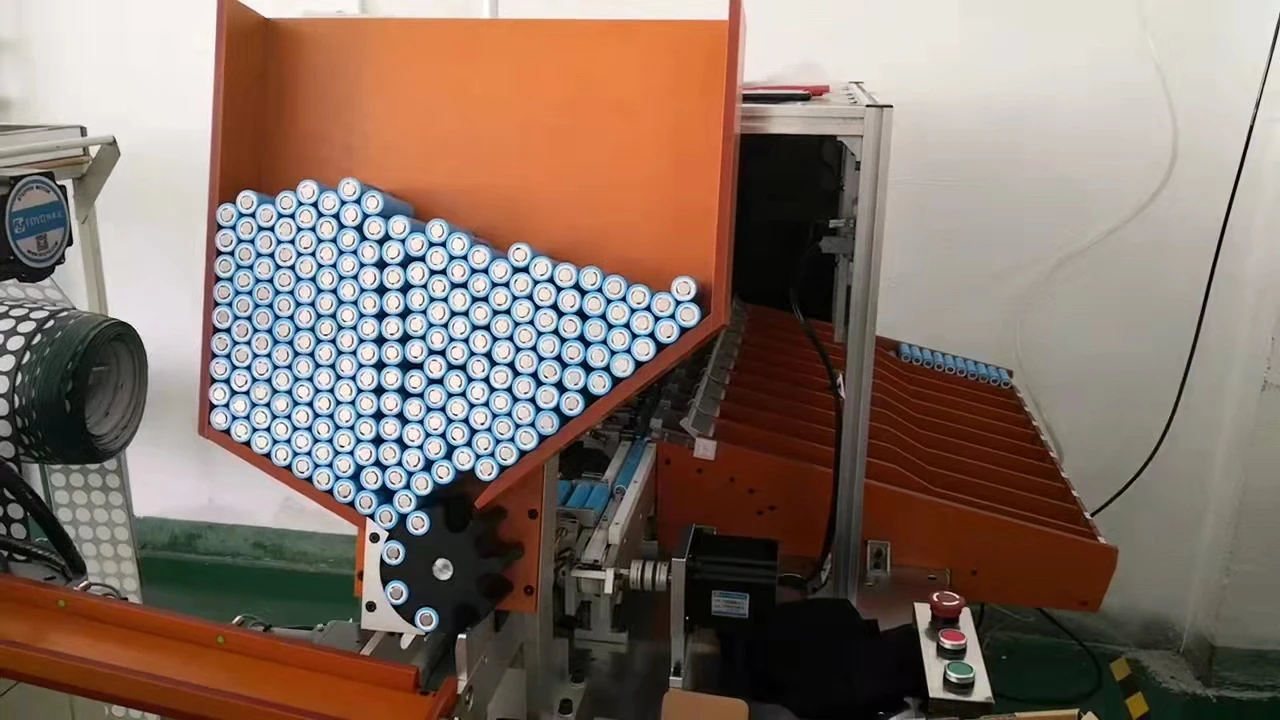

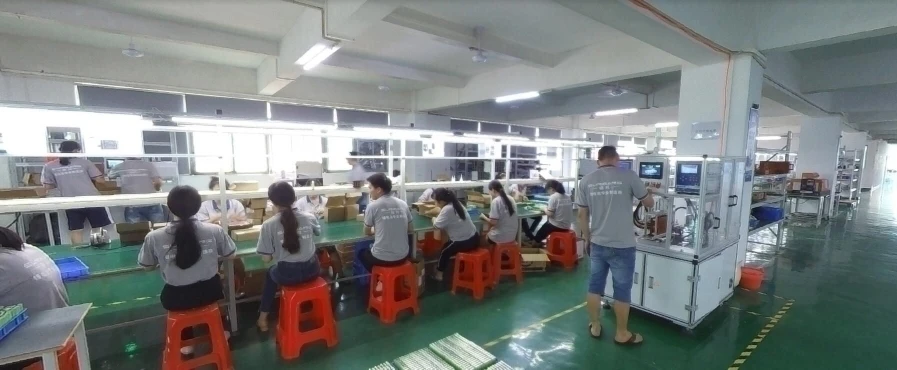

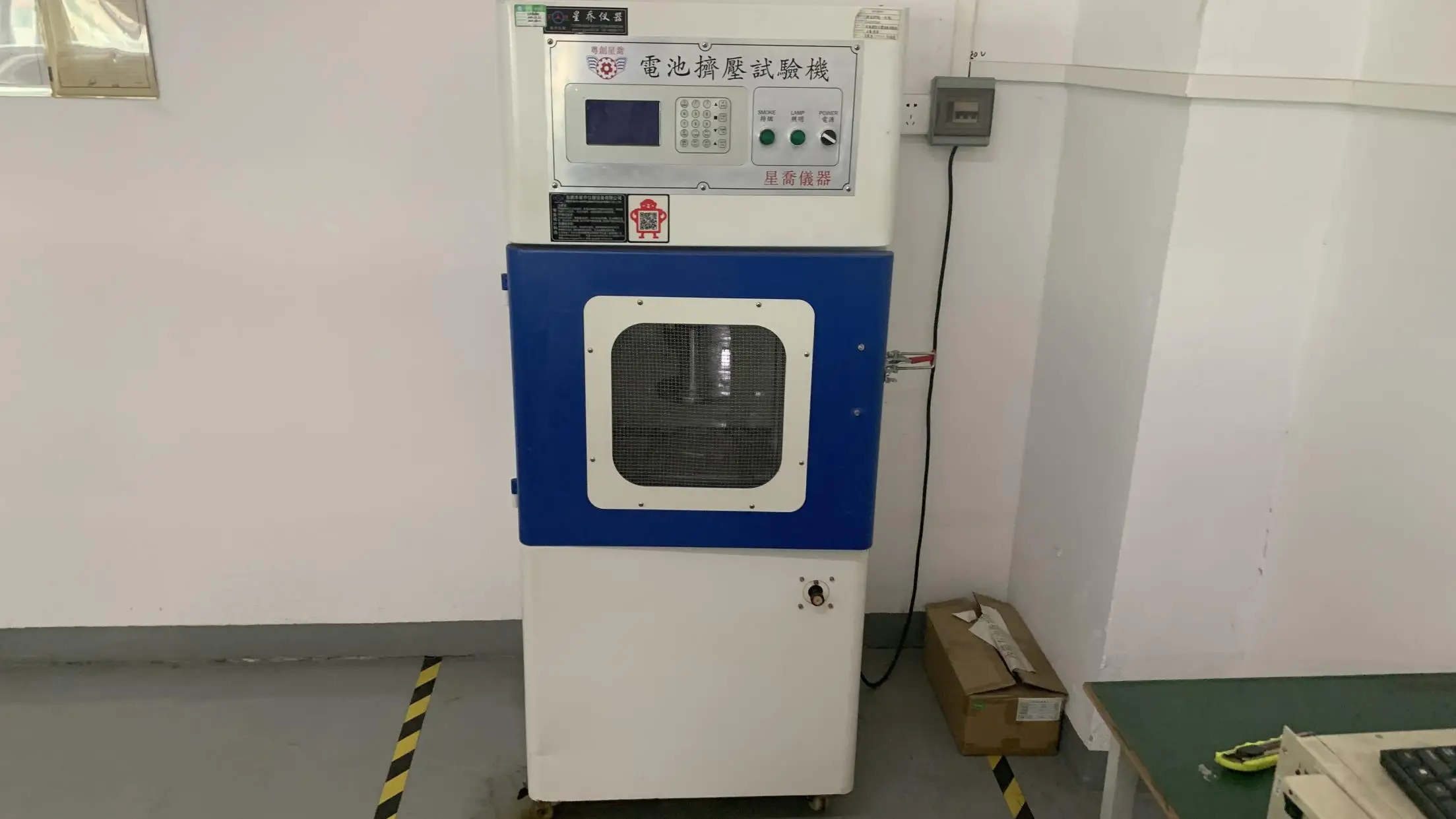

Production Equipment and Test Equipment
Certification

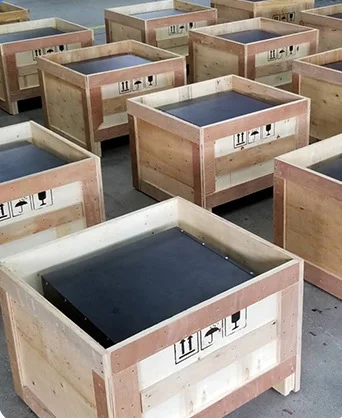

Product Packing
