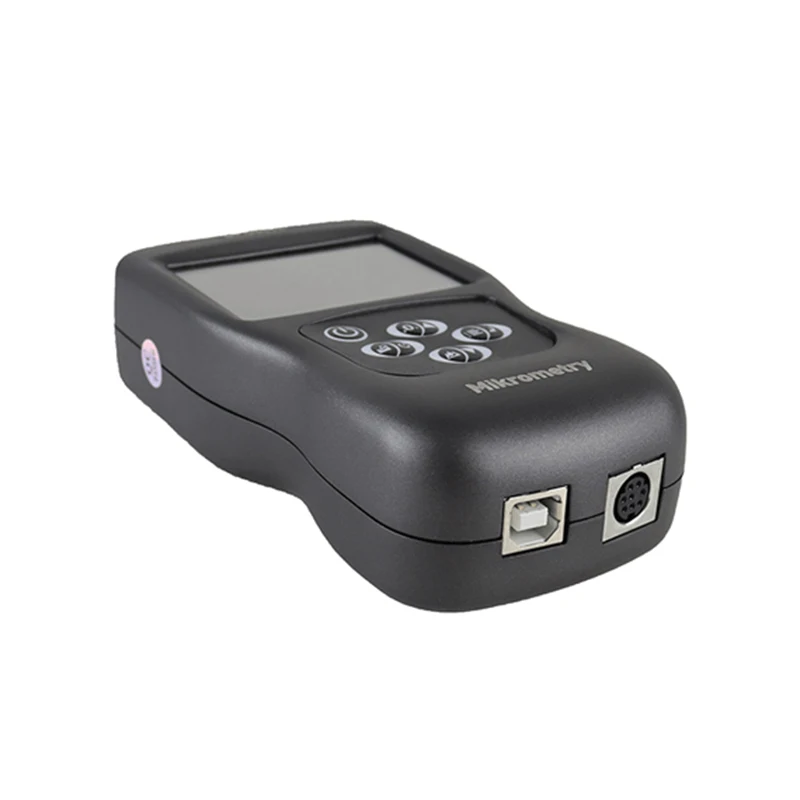

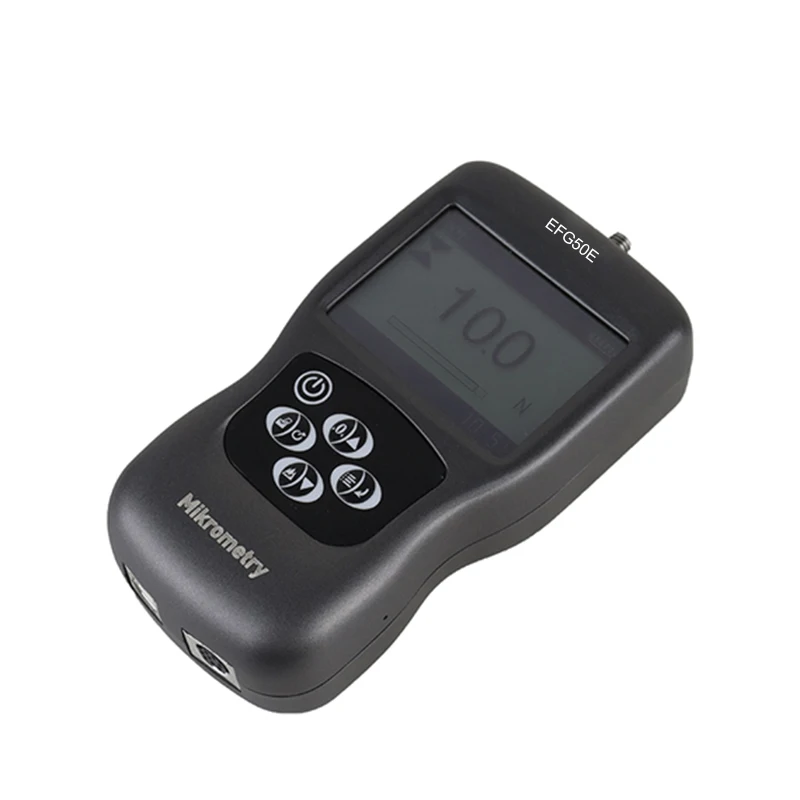

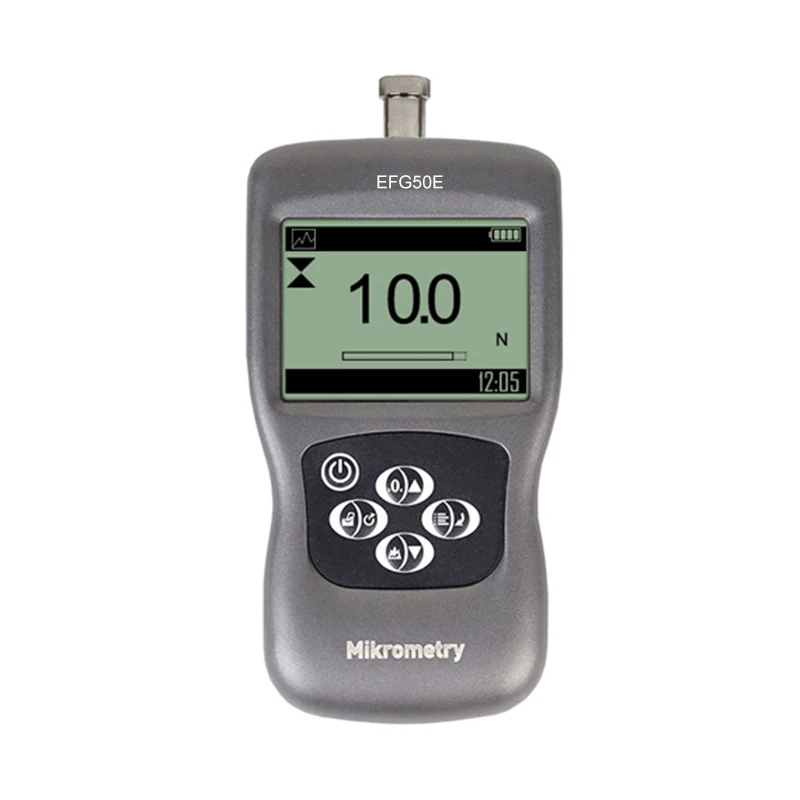

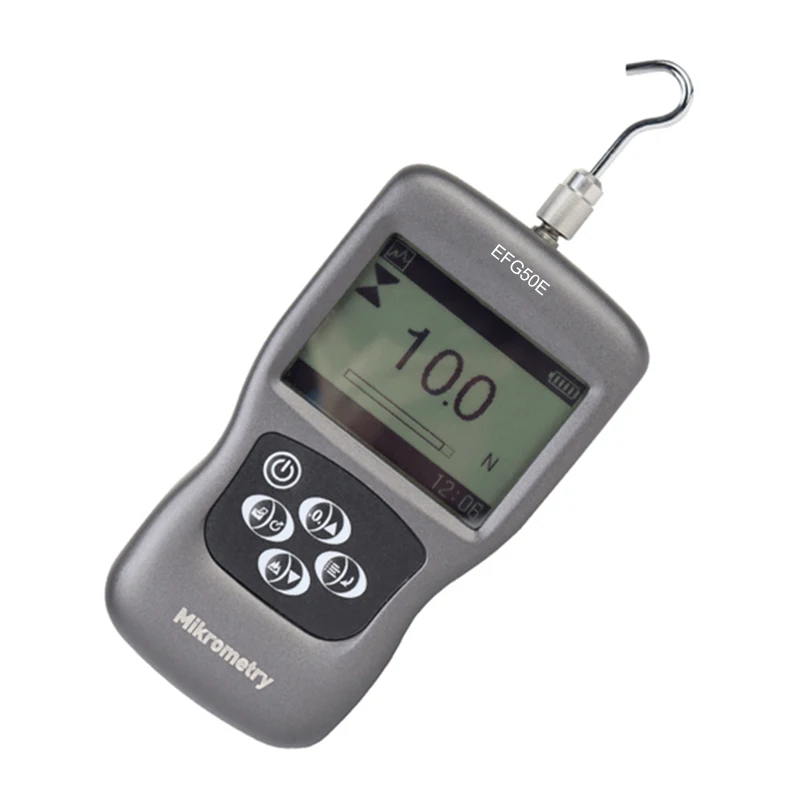

Digital Dynamometer Force Measuring Instrument 50N 100N Hand Held Digital Force Gauge
- Category: >>>
- Supplier: Mikrometry instruments limited
Share on (1600550280608):
Product Overview
Description
Features
Small Digital Dynamometer Force Gauge with compact size, high accuracy, they are easy to operate and handy to carry out. Widely
applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light
industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive
experience. This digital force gauge is new generation pulls the pressure measuring instrument.
applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light
industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive
experience. This digital force gauge is new generation pulls the pressure measuring instrument.
Features:
Durable metal case
Reverse display setting
Mechanical overload protection
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Support low battery alarm
Accuracy: ± 0.3% FS
Sampling Rate: up to 1KHz
Durable metal case
Reverse display setting
Mechanical overload protection
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Support low battery alarm
Accuracy: ± 0.3% FS
Sampling Rate: up to 1KHz
Models | Capacity/Resolution | ||||||||
N | kgf | lbf | Ozf | gf | |||||
EFG10E | 10/0.01 | 1/0.001 | 2.2/0.001 | 35/0.01 | 1000/1 | ||||
EFG50E | 50/0.01 | 5/0.001 | 11/0.01 | 180/0.1 | 5000/1 | ||||
EFG100E | 100/0.1 | 10/0.01 | 22/0.01 | 350/0.1 | - | ||||
EFG500E | 500/0.1 | 50/0.01 | 110/0.1 | 1800/1 | - | ||||
EFG1000E | 1000/1 | 100/0.01 | 220/0.1 | 3500/1 | - | ||||
Product Description
Accuracy | ± 0.3% F.S. |
Selectable Units | N、gf、 kgf、 ozf and lbf |
Display | 160*128 dot matrix LCD(2.8 inch) with LED Backlight |
Overload Capacity | 150% of F.S. (LCD blinks beyond 110%) |
Overload Protection | Overload Protection Mechanism to prevent to be damaged |
Measurement Mode | Track 、Peak、Preset Peak |
Data Sampling Rate | 1KHz |
Display Update Rate | 10 times/second |
Memory | 500 data |
Set Point | Programmable high and low limits |
Battery Indicator | Display flashes battery icon when battery is low |
Power | 3.6VDC 400mAH Ni-Mh rechargeable batteries |
Battery Life | Approx. 7 hours per charge |
Charger / Adaptor | Universal USB/BM charger, Input:110~240VAC |
Temperature Effects | <0.03% FS per °C |
Communication | USB or RS-232 |
Software | Free software for USB communication |
Outputs | RS-232, "Within" set point output， "Under or over" set point output |
Operating environment | Temperature: -10 to 40°C |
Relative Humidity: 20 to 80% | |
Storage environment | Temperature: -20 to +50°C |
Relative Humidity: 5 to 90% | |
Dimensions | 150*72*33mm |
Weight: | 0.45 kg (1 lb) |

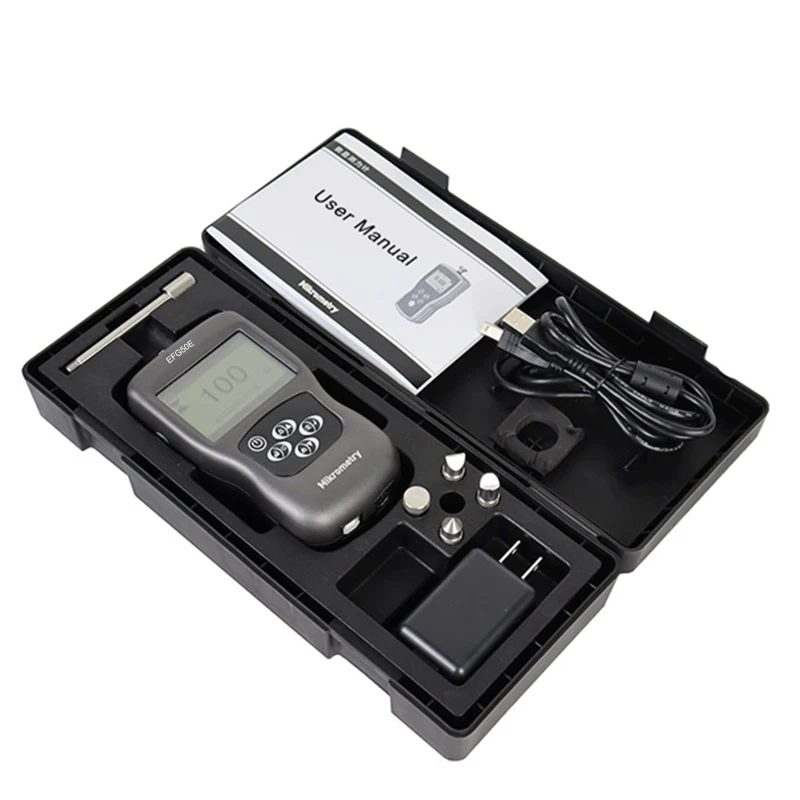

Accessories | AC adapter/charger，6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft |
Options | Mini-printer, Measuring Adapter, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit. |
