Lithium Ion Battery Current Collector Raw Material Copper Foil For Battery
- Category: >>>
- Supplier: Linyi Gelin New Energy Co. Ltd.
Share on (1600550295110):
Product Overview
Description

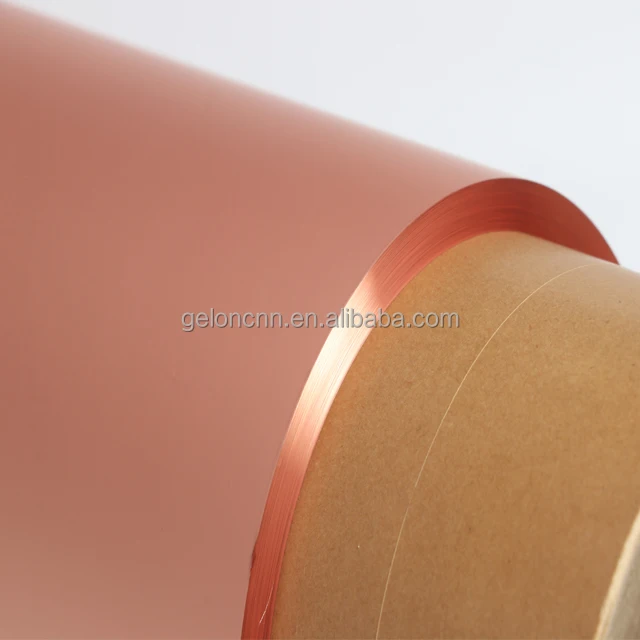

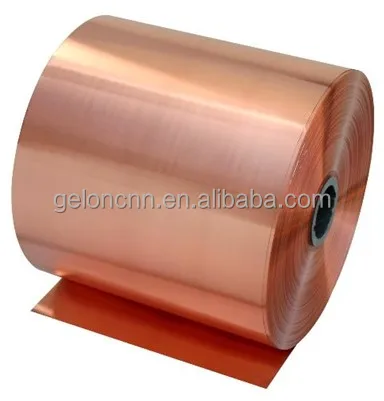

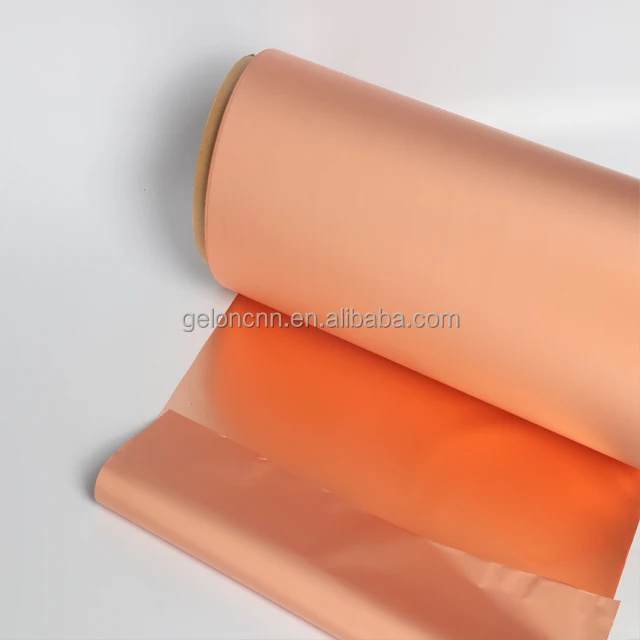

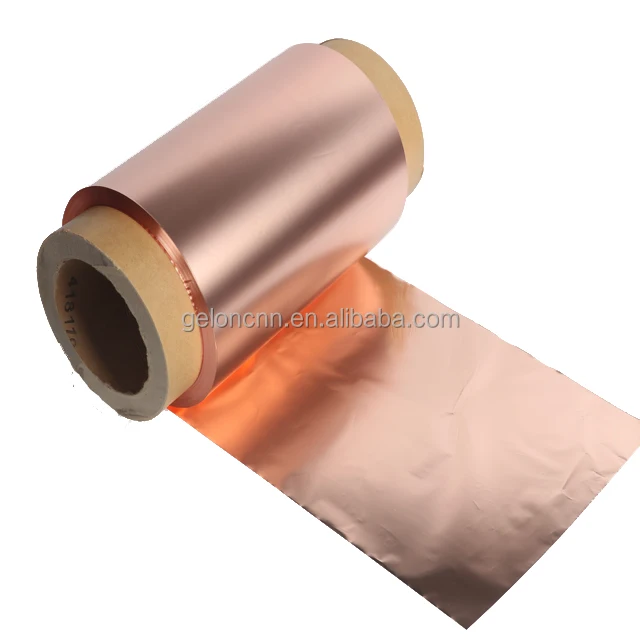

0.01mm Battery Copper Foil Manufacture Carbon Coated Copper Foil Lab Li-ion Battery Copper Foil Sheet
Product Description
Specification：
1. copper purity ≥99.8%
2. several thickness type: 9um, 10um, 12um, 15um, 16um
3. width can be customized
Product Paramenters
No. | Test Items | Unit | Standard | |||
1 | purity | % | ≥99.8 | |||
2 | osmotic pores | 个 | 无渗透孔 | |||
3 | area quality | g/㎡ | 51-56 | |||
4 | Mass resistivity | Ω.g/㎡ | ≤0.17 | |||
5 | Thickness tolerance | um | 0-3 | |||
6 | tensile strength | kg/㎡ | ≥35 | |||
7 | Room temperature elongation | % | ≥3.5 | |||
8 | High temperature elongation | % | ≥4.0 | |||
9 | Roughness (RA) | um | ≤0.4 | |||
10 | Glossy Roughness (RZ) | um | ≤3.0 | |||
11 | Roughness (RA) | um | 0.35-0.75 | |||
12 | Roughness (RZ) | um | ≤3.0 | |||
13. | Antioxidant (130℃ 10min) | OK | ||||
Note: Specification values refer to IPC-4562, which is a general industry standard. | ||||||
