MeritSun Power Energy Storage Battery 48V 300AH LiFePO4 Lithium Batteries 15Kwh Lithium ion battery For Solar System
- Category: >>>
- Supplier: Guangzhou Meritech Power Co. Ltd.
Share on (1600550299330):
Product Overview
Description
48V Lithium ion battery Lifepo4 Battery Tesla powerwall home battery
Product Detail
ESS/BESS/Solar Wind Energy System Application
1. Lithium Iron Phosphate Battery Pack：95% DOD , More than 8000 cycle times
2. Long warranty period：12 years
3. Higher energy density,smaller volume for household.
4. Long Life and Safety.
5. Photovoltaic system：this battery pack is designed for household photovoltaic systems.
6. Battery management system(BMS)：the battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
7. Expand ability： this battery pack can be easily expanded by adding expansion battery packs in parallel connection.
Model | LPF300-48/51.2 |
Capacity | 48V 15KWH |
Voltage | 48V |
Rated Voltage | 51.2V |
Charging Voltage | 59.2V |
Rated Capacity | 300Ah |
Combination method | 16S3P |
MAX.Charge&Discharge Current | 150A |
DOD | 95% |
Modeles Connection | 1-6 in parallel |
Ingress protection | IP21 |
Cycle Life | >8000, @25°C |
Working Temperature Range | -15-55°C |
Weight(kg) | 165KG |
Dimension(MM) | 600*1100*230 mm |
Volumetric specific energy | 102WH/L |
Gravimetric specific energy | 93WH/KG |

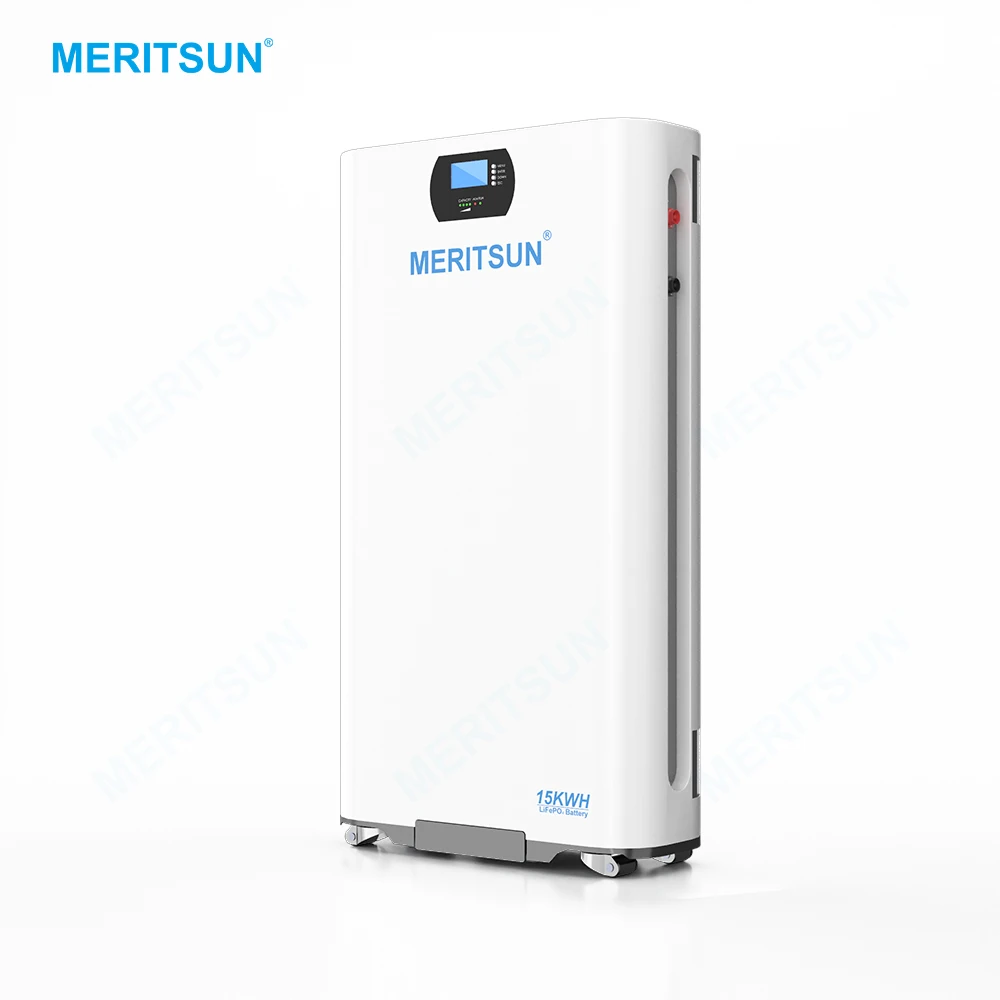

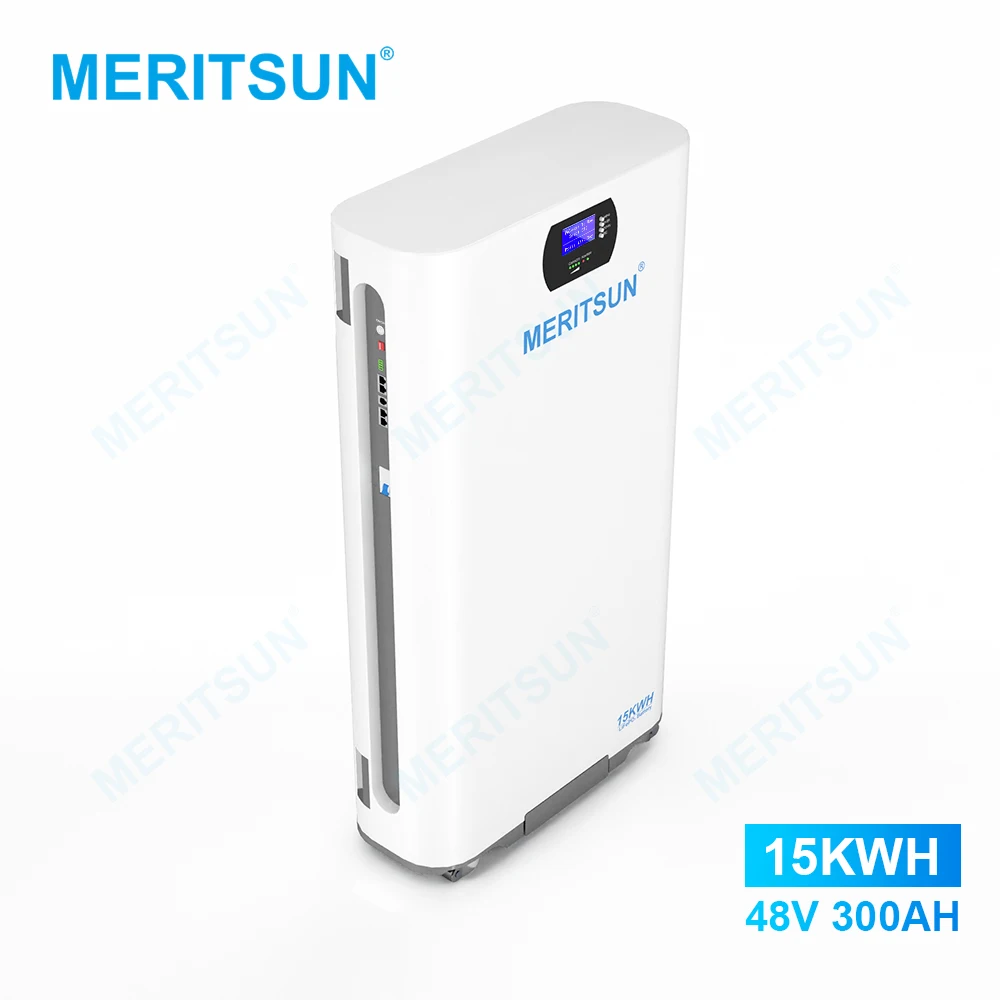

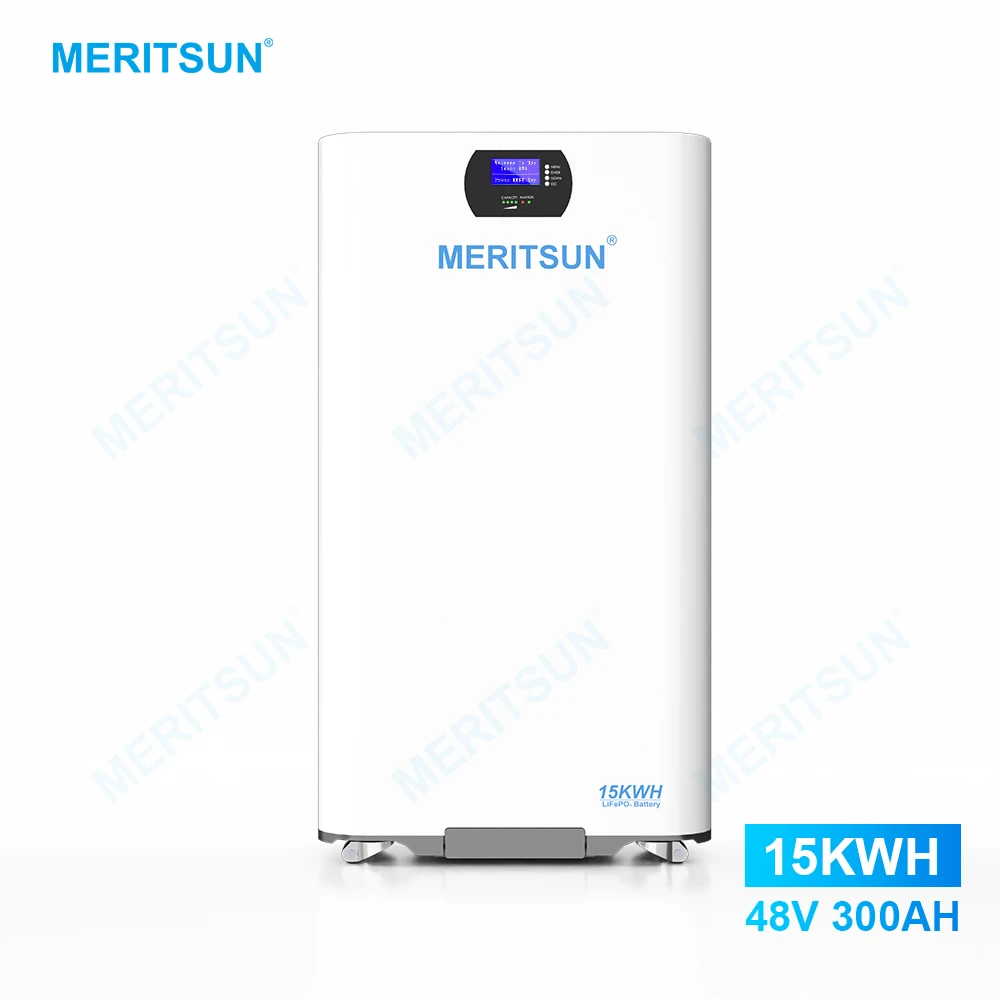

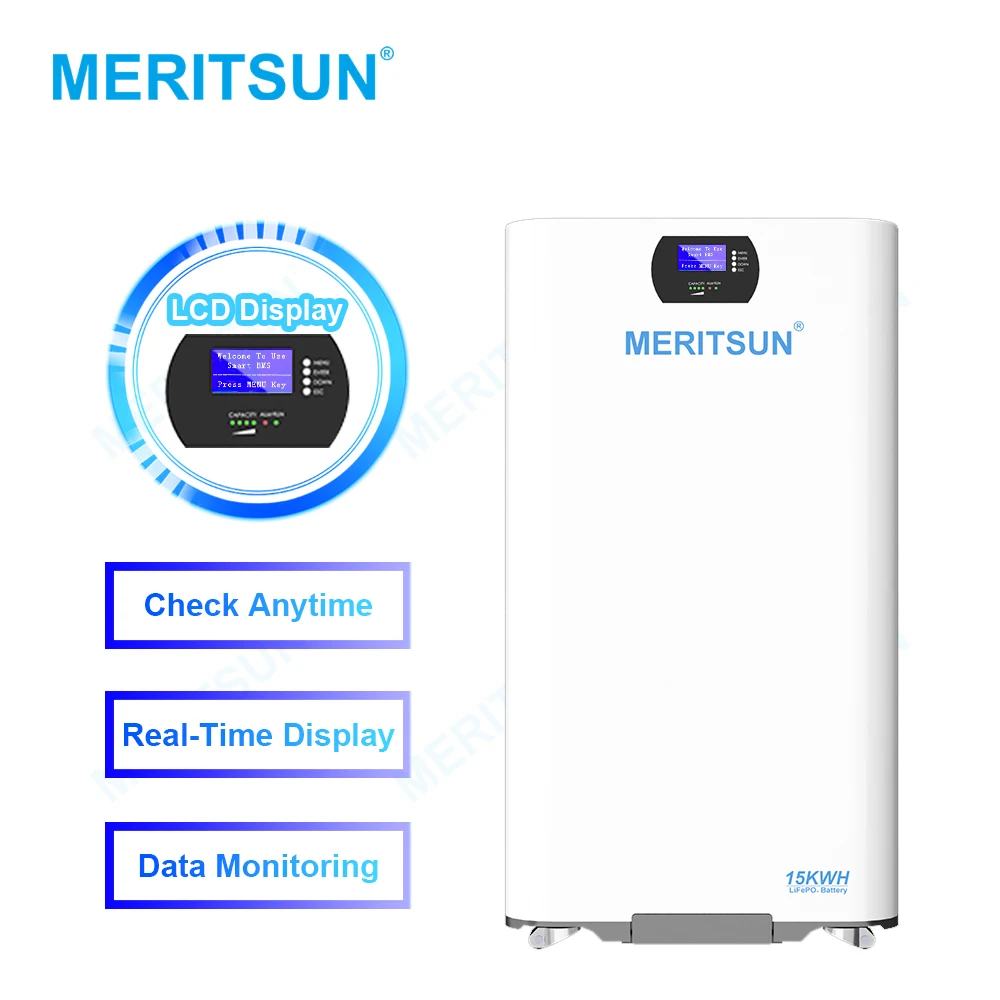

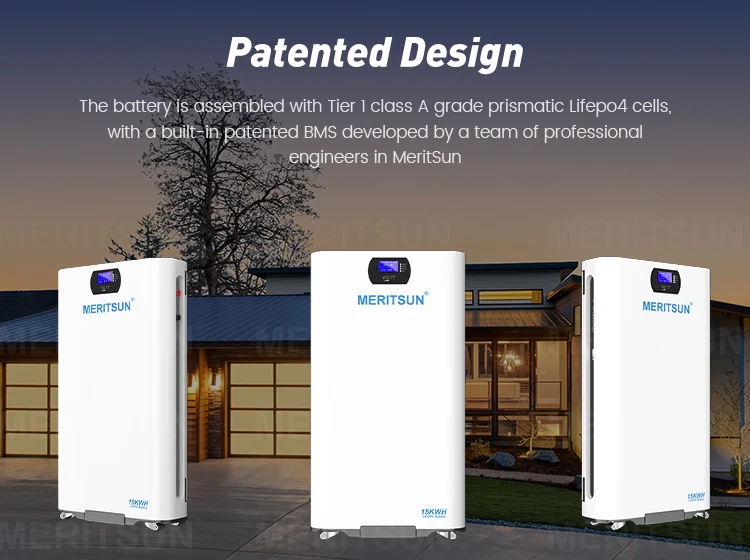

MeritSun 15Kwh Home Energy Storage Lithium battery has LCD screen, convenient setting buttons,
APP Monitor on your smartphones, and cables&accessories ready for installation.
To welcome the world cooperation we accept OEM with your logo design!
FAQ
Q1: What’s the life of meritsun wall mounted battery?
A: 95% DOD more than 8000 cycles
Q2: Can the battery be connect in parallel?
A: Yes,support in parallel for more than 16pcs
Q3: Can the wall mounted battery work with my hybrid inverter?
A: Yes, the wall mounted battery suitable for all off grid and hybrid inverter
Q4: What’s the warranty of wall mounted battery?
A: 12 years,we support extended warranty services
Q5: What is the battery output power?
A: 95% DOD more than 8000 cycles
Q2: Can the battery be connect in parallel?
A: Yes,support in parallel for more than 16pcs
Q3: Can the wall mounted battery work with my hybrid inverter?
A: Yes, the wall mounted battery suitable for all off grid and hybrid inverter
Q4: What’s the warranty of wall mounted battery?
A: 12 years,we support extended warranty services
Q5: What is the battery output power?
A: 150A
Q6: Does the wall mounted battery including inverter?
A: No, is battery only, so it is more flexible to work with different brand of inverter preferred by customer.
Q7: Does the wall mounted battery with communication function?
A: Yes, meritsun wall mounted battery with RS232&485 communication with PC and smart LCD for monitoring.
