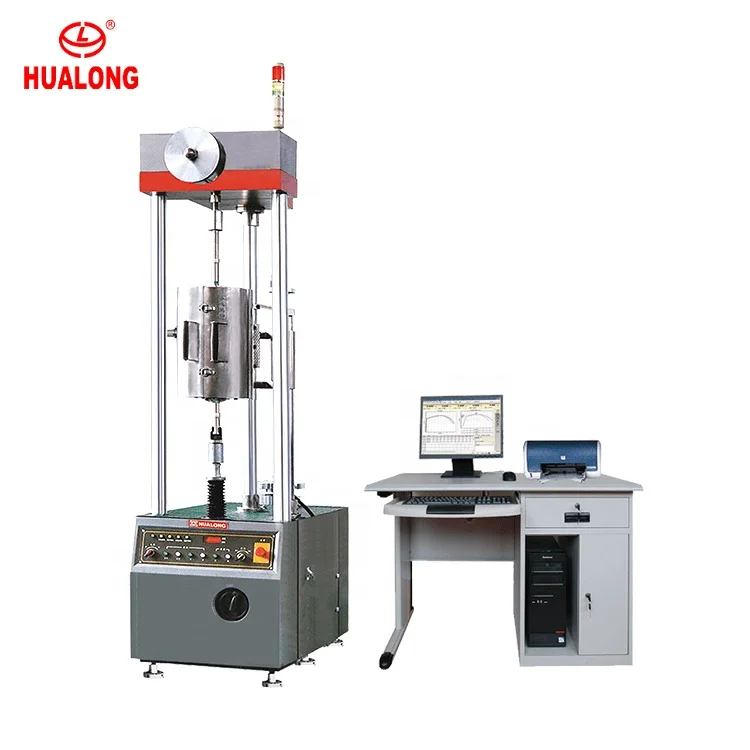

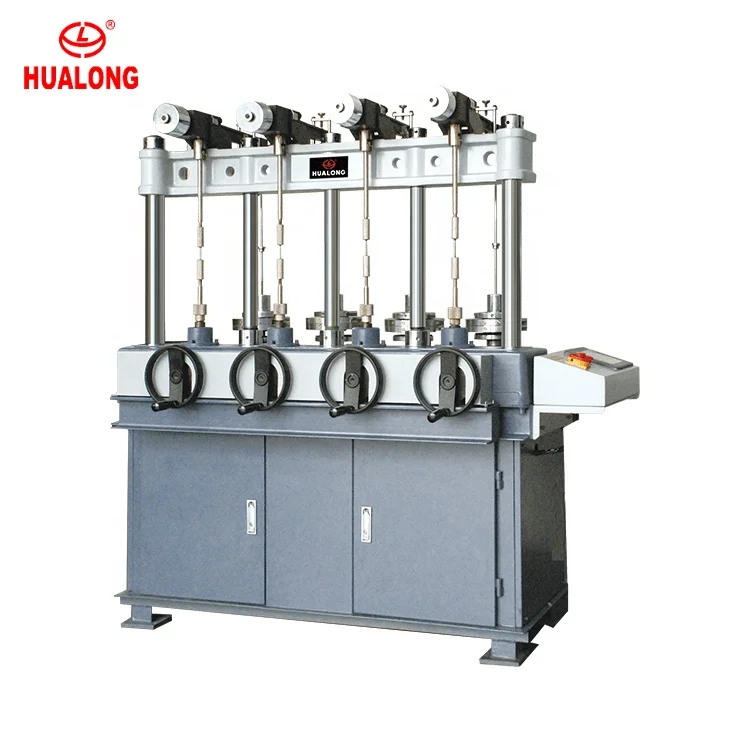

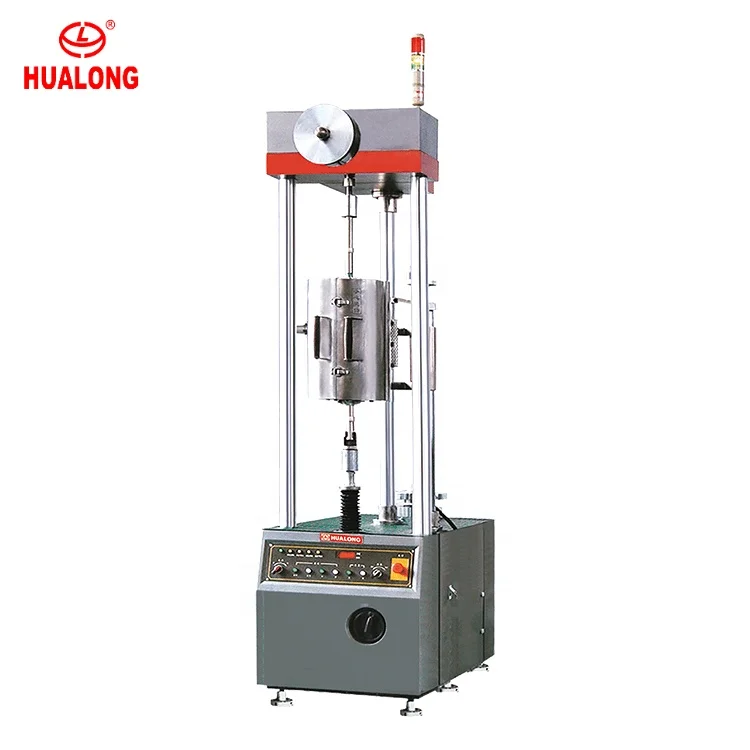

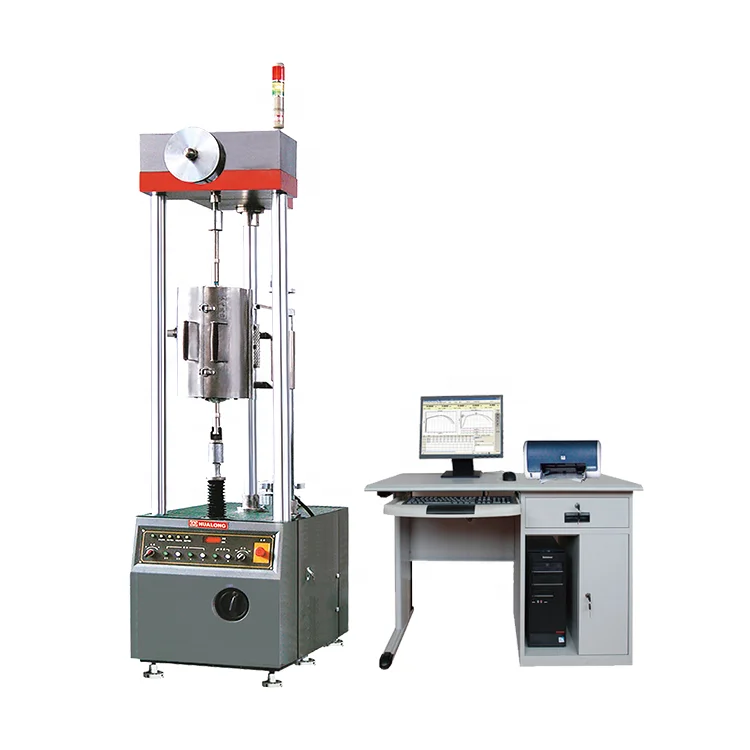

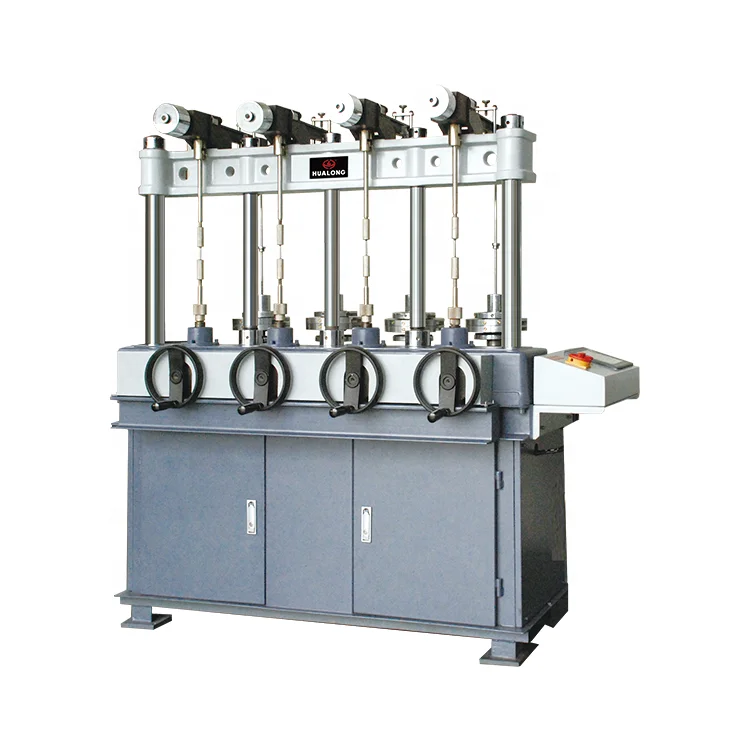

Laboratory Use High Quality High Temperature Chamber Creep Stress Rupture Testing Machine
Product Description
Introduction:
HUALONG RCW Series Creep and Stress Rupture testing machine is mainly designed to perform Creep
and Stress Rupture testing of a wide variety of materials to both standard and customized specifications such as
ASTM E139, ISO 204, ISO/R 206and similar international standards. These machines are capable of covering the
determination of the amount of deformation as a function of time (creep test) and the measurement of the time for
fracture to occur when sufficient force is present (rupture test) for materials when under constant tensile forces at constant temperature.
HUALONG offers three models electronic high temperature creep testing machine with full closed-loop servo-control in capacities from 10kN to 500kN.
Application:
ASTM E139 Standard test methods for conducting creep, creep-rupture and stressrupture test of metallic materials.
ISO 204 Metallic materials uniaxial creep testing in tension.
ISO/R 206 Creep stress rupture testing of steel at elevated temperature.
Technical Parameter
| Model | RCW-10/20 | RCW-30 | RCW-50 | RCW-100 | RCW-300 | RCW-500 |
| Load | 10kN/20kN | 30kN | 50kN | 100kN | 300kN | 500kN |
| Load accuracy | <=0.5% of indicating | |||||
| Deformation accuracy | <- 0.5% of reading | |||||
| Lower loading bar travel | 200mm | |||||
| Loading speed | 0.01-50mm/min | |||||
| Loading frame dimension | 210*71*54 | 220*71*54 | 239*73*54 | 320*95*74 | ||
| Load frame weight | 400 | 500 | 1000 | 1200 | ||
