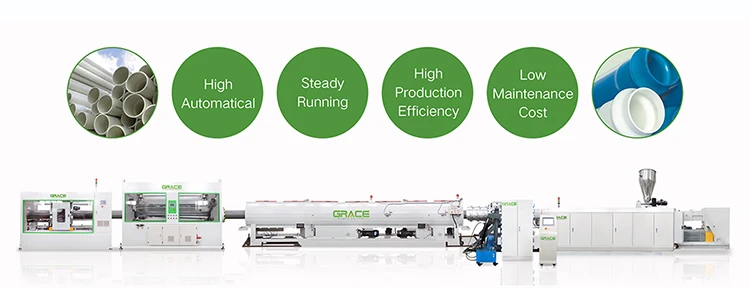

PVC pipe extrusion line
PVC Plastic pipe extrusion line is mainly used in Water supply pipelines, Sewage pipelines & Rainwater drainage pipelines & Air conditioning condensate water systems & Electrical conduit pipelines etc. The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine. And the line can be equipped with Comptroller thickening instrument, computer ink-jet printer, crusher, shredder, Pulverizer ,water chiller, air compressor etc. to achieve the production and manufacture of high-grade tubing. Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.
Process Flow:
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank →
Haul-off → Planetary Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing
PVC Plastic pipe extrusion line is mainly used in Water supply pipelines, Sewage pipelines & Rainwater drainage pipelines & Air conditioning condensate water systems & Electrical conduit pipelines etc. The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine. And the line can be equipped with Comptroller thickening instrument, computer ink-jet printer, crusher, shredder, Pulverizer ,water chiller, air compressor etc. to achieve the production and manufacture of high-grade tubing. Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.
Process Flow:
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mould → Vacuum Calibration Tank →
Haul-off → Planetary Cutter → Belling machine/ Tripping Table → Final Product Inspecting &Packing
What pipe we can do?
PVC pipe diameter range:16-1000mm
PE pipe diameter range:16-1600mm
Diameter Range(mm) | Extuder Type | Extusion Power(KW) | Max.Capacity(KG/H) | Max.Haul OffSpide(m/min.) |
φ16-40Dual | GMTE51/105-VA18.5 | 18.5 | 120 | 10 |
φ20-63Dual | GMTE65/132-VA37 | 37 | 250 | 15 |
φ20-63 | GMTE51/105-VA18.5 | 18.5 | 120 | 15 |
φ50-160 | GMTE65/132-VA37 | 37 | 250 | 8 |
φ75-160Dual | GMTE92/188orGMTE80-150-VA110 | 110 | 450 | 6 |
φ63-200 | GMTE65/132-VA37 | 37 | 250 | 3.5 |
φ110-315 | GMTE80/156-VA55 | 55 | 450 | 3 |
φ315-630 | GMTE92/188-VA110 | 110 | 800 | 1.2 |
φ510-1000 | GMP130/26 | 160 | 100 | 1.3 |
Details Images

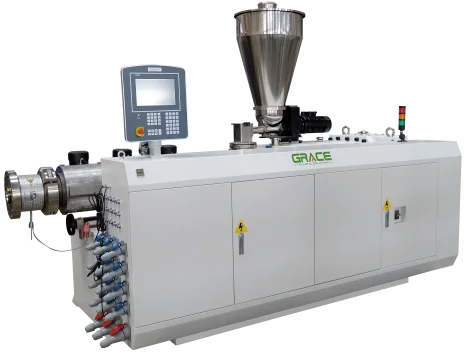

- High-speed extrusion, with high capacity and low power consumption
- Barrier design screw with asymmetric slotted barrel design
Motor
- Top brands: Siemens
Standard Electrical Part
- Siemens.ABB,Schneider,Dynisco,
Omron, etc.
Twin-screw Feeder
- Prevent from material bridge
Siemens PLC Control System
- Intelligent & centralized control
- Automatic preheating
-Diagnose function
- Remote monitoring
- Multiple-language
-Intelligent alarm system
- Formula management.
lntegrated vertical type gearbox
- High assembling precision
- High transmission efficiency
- High load capacity
- NSK/SKF bearing, ensure stabilization
- Oil temperature control
- Compact structure
- High transmission efficiency
- High load capacity
- NSK/SKF bearing, ensure stabilization
- Oil temperature control
- Compact structure
Nickel-coating treatment Flange surface
- Avoid material leakage
- after long time usage
- after long time usage
- Spacious flow channel design to guarantee highextrusion capacity and good melt.
- Optimized temperature control and flow channeldesign, precise melt temperature control.Vacuum Tank

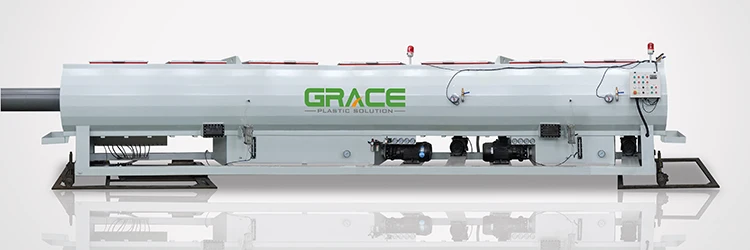

Advanced pipe line layout design and adjustable spray angle for better cooling effect,
dense pipe line in the first zone for fast cooling.
Two-loop Big Volume Filter
Gas, Water Separator
Danfoss Expansion Valve
Point Contacting Type Water Level Control System
Water Inflow control
Spary Cooling System

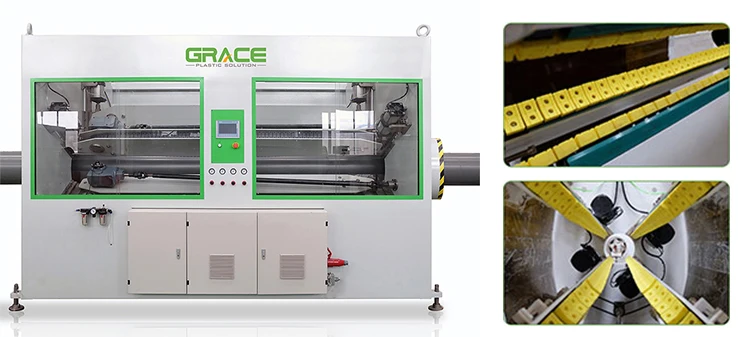

Haul-off Unit
For the different pipe size and different speed requirement, Grace developed kinds of haul-off unit accordingly.
The haul-off unit equiped with single motor drive or every caterpilar with seperate motor drive ,
there is the belt tyope haul-off unit,stable hauling.
For the large diameterpipe, a pipe winch device is equipped to the production line to reduced the waster material.

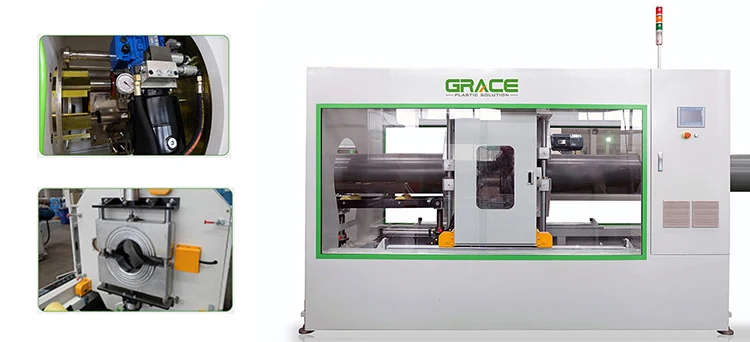

Cutter
New model of planetary cutting design, endurable, dust-collecting efficiently, and quiet
ltalian hydraulic system
Eccentric wheel Chamfering function
Eccentric wheel Chamfering function

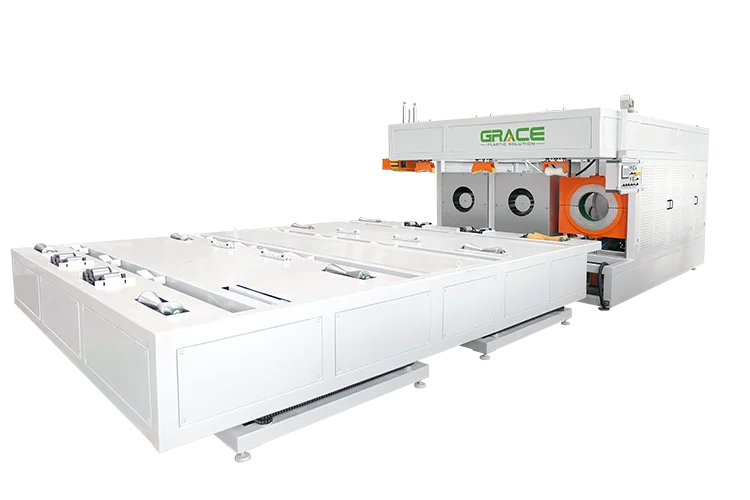

Belling Machine ( Option )
Automatic Online Socketing
High-efficiency Heating And Cooling
Belling
