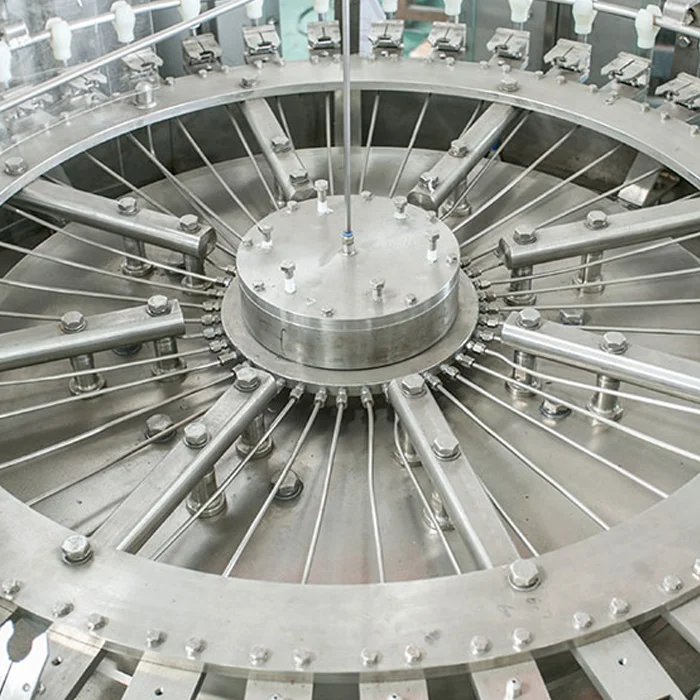

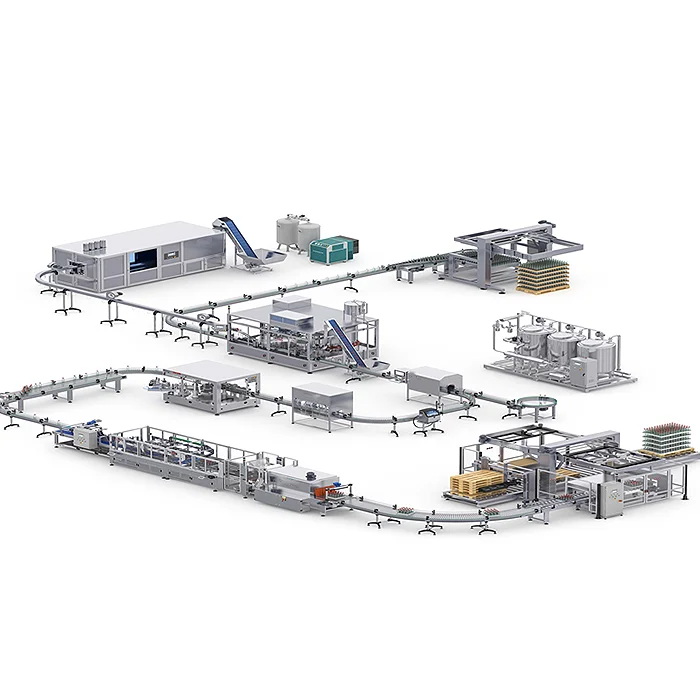

full automatic small mineral water production line 10000bph
- Category: >>>
- Supplier: Shanghai Jinben Industrial Co. Ltd.
Share on (1600550335246):
Product Overview
Description
>> Products Description
/ APPLICATION /
Our beverage and water production line with CE is widely application to make water, juice, soft drink, milk, carbonated drink and so on. welcome to contact us for more information.
Model（V1) | XGF24-24-8 | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-12 | |||||
Capacity | 2000 B/H | 5000B/H | 8000B/H | 12000B/H | 18000B/H | 24000bph | |||||
Washing head | 8 | 14 | 18 | 24 | 32 | 40 | |||||
Filling head | 8 | 12 | 18 | 24 | 32 | 40 | |||||
Capping head | 3 | 5 | 6 | 8 | 10 | 12 | |||||
Power supply | 3.5KW | 4.5KW | 5.5KW | 6.5KW | 7.5KW | 9.5KW | |||||
Voltage | 380V 50HZ | ||||||||||
Air pressure | 4-6 bar | ||||||||||
Control system | HMI + PLC | ||||||||||
Alarm function | Lack of water / bottle / cap | ||||||||||
Clean cap | Optional： cap online cleaning and disinfection system | ||||||||||
lubrication | Manual lubrication | Automatic lubrication | Automatic lubrication | ||||||||
Air consumption | 0.2m3/min | 0.2m3/min | 0.3m3/min | 0.3m3/min | 0.4m3/min | 0.4m3/min | |||||
Size （m） | 1.8*1.5*2.2 | 2.3*1.7*2.3 | 2.6*1.9*2.3 | 3.0*2.0*2.3 | 3.4*2.2*2.3 | 3.8*2.2*2.3 | |||||
Weight（kg） | 1600 | 2200 | 2800 | 4200 | 5500 | 6800 | |||||

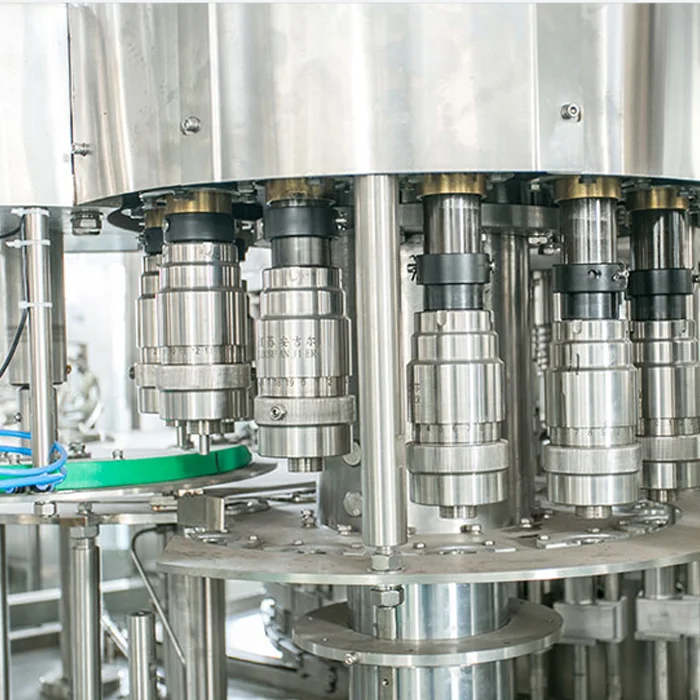

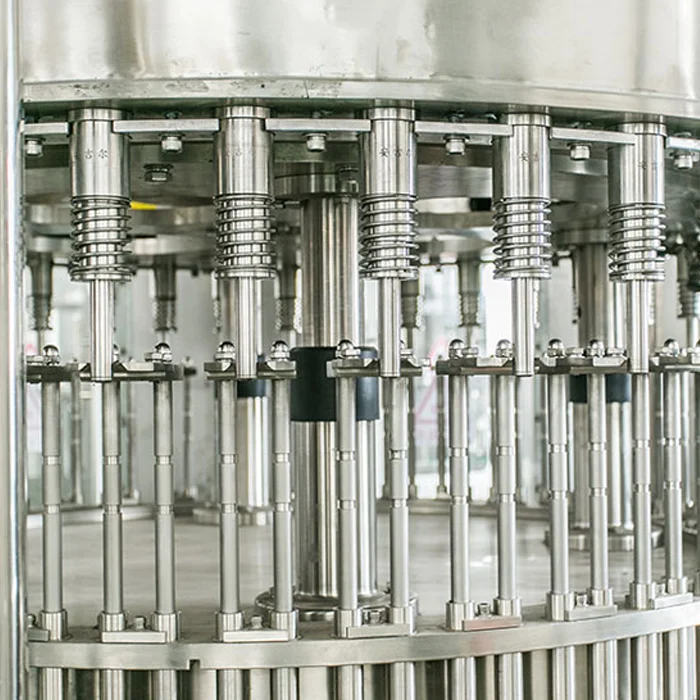

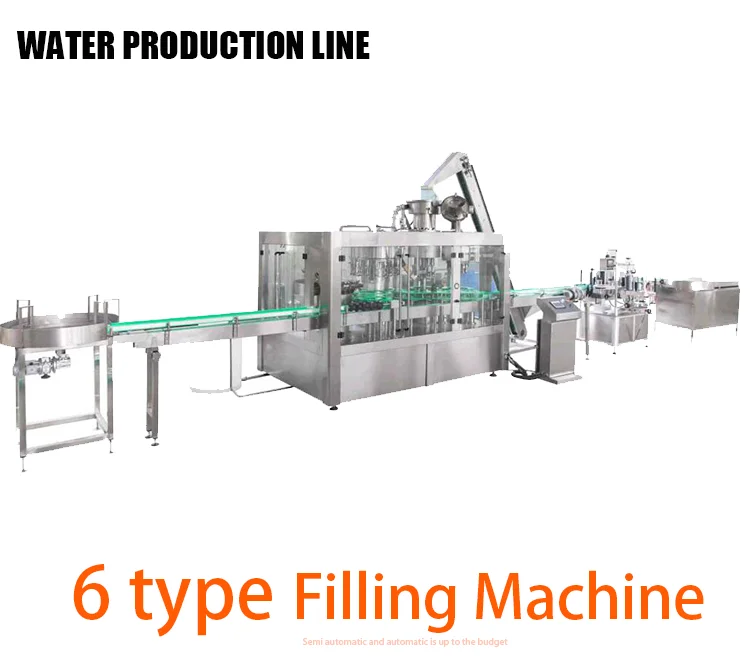

Rotary filling machine for regular bottle
Linear filling machine for irregular bottle
Can filling machine for can
Alumimum foil sealing machine for sealing bottle
Sachet filling machine for sachet
Cup filling machine for cup
>> Details Images
>>Recommend Products
>>Why Choose Us
>>Customer feedback
>> Our Service
>> Packing & Delivery
>> FAQ
Q: How Much To Bulid A Water/Milk/Juice production line ?
A: It is according to your capacity and your budget . we will arrange reasonable line for you .
Q: Do You Support Overseas Installation ?
A: Yes. We have professional installtion team that can provide overseas installation and repair services.
Q: What Is the Warranty Time ?
A: 1 years. but our services is life-long
Q: How should i do if meet some trouble while using?
A: Don't worry about that, our professional solution and video will send to you immediately.
Q: What about payment term?
A: T/T usually. L/C we also can do
Q: What products does your company offer by yourself?
A: We are specialized in water/beverage/milk production line, Plate/tubular sterilizer, water treatment equipment,bottle blowing machine, bottle filling machine etc.
Q: Do You Support Overseas Installation ?
A: Yes. We have professional installtion team that can provide overseas installation and repair services.
Q: What Is the Warranty Time ?
A: 1 years. but our services is life-long
Q: How should i do if meet some trouble while using?
A: Don't worry about that, our professional solution and video will send to you immediately.
Q: What about payment term?
A: T/T usually. L/C we also can do
Q: What products does your company offer by yourself?
A: We are specialized in water/beverage/milk production line, Plate/tubular sterilizer, water treatment equipment,bottle blowing machine, bottle filling machine etc.
