Lubricating oil and detergent automatic packaging production line

Share on (1600550582966):


Price:$8,400.00 - $12,000.00

Quantity:


Product Overview

Description













Overview:

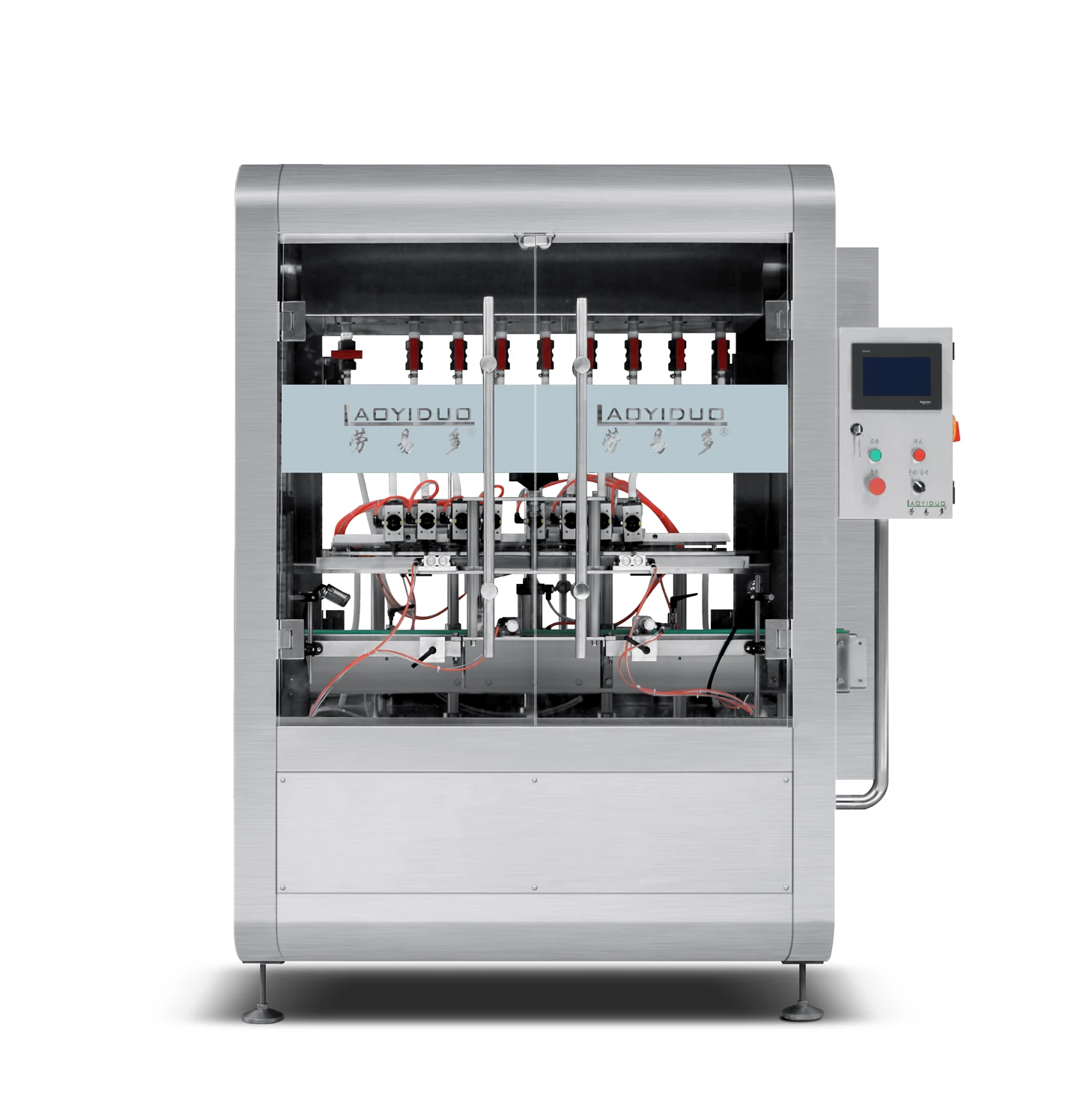

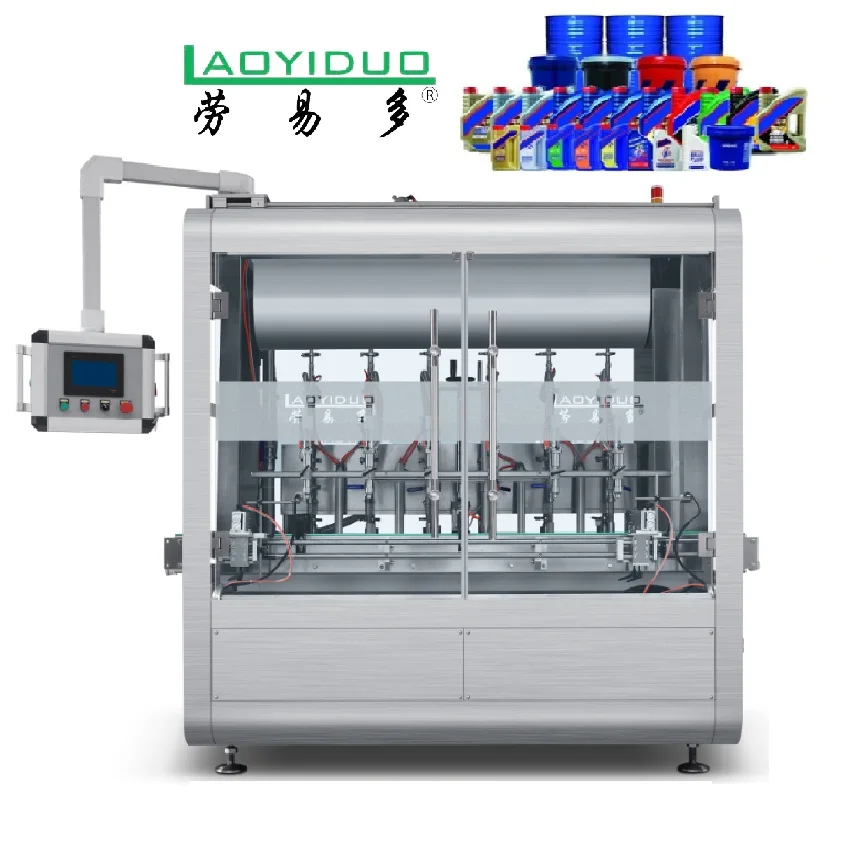

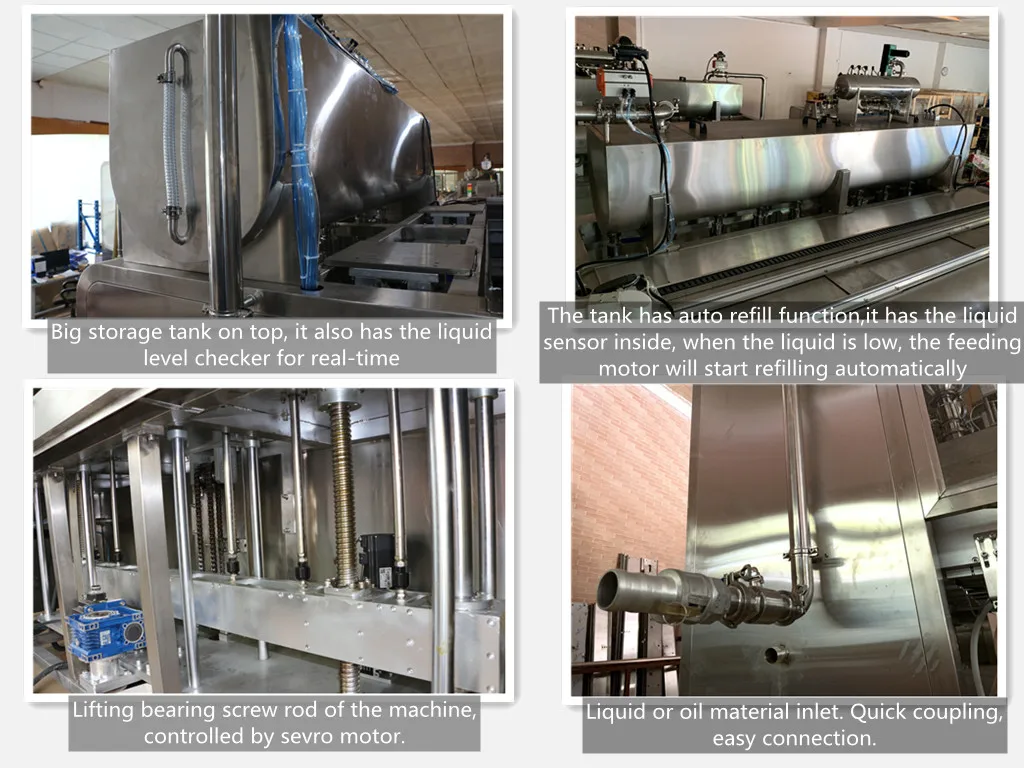

The self-flow filling machine adopts a liquid level gauge to stabilize the liquid level of the high-level tank of the filling machine, and uses a stable liquid level difference for self-flow filling to control the filling volume with 0.1 milliseconds as a unit time, so as to achieve precise filling. Pack. The self-flow filling machine is mainly for filling materials with good fluidity. The connection points of each pipeline are installed with quick joints, which is more convenient and quick to clean and replace parts. Anti-drip and anti-drawing filling nozzles are used to ensure no dripping. The whole machine is equipped with a cleaning function, and is equipped with a special cleaning tank, which saves time when changing products. Schneider microcomputer PLC control, Schneider intelligent touch screen, changing specifications, filling volume adjustment, parameter setting, automatic cleaning, manual operation, etc. are evenly completed on the touch screen. Photoelectric sensor and pneumatic door control, automatic protection for bottle shortage and bottle pouring.


No.
Item
Specification
1
Mansure way
Self-flow filling
2
Filling nozzles
4
6
8
10
12
3
Filling speed
960BPH
1400BPH
1900BPH
2400BPH
3500BPH
4
Filling range
50ml-2000ml
5
Accuracy
±2g (100ml)
6
Power supply
AC380V-415V/50Hz / 1KW


No.
Item
Brand
1
PLC
Schneider
2
HMI
Schneider
3
Inverter
Schneider
4
Power switch
Schneider
5
Air power
Airtac

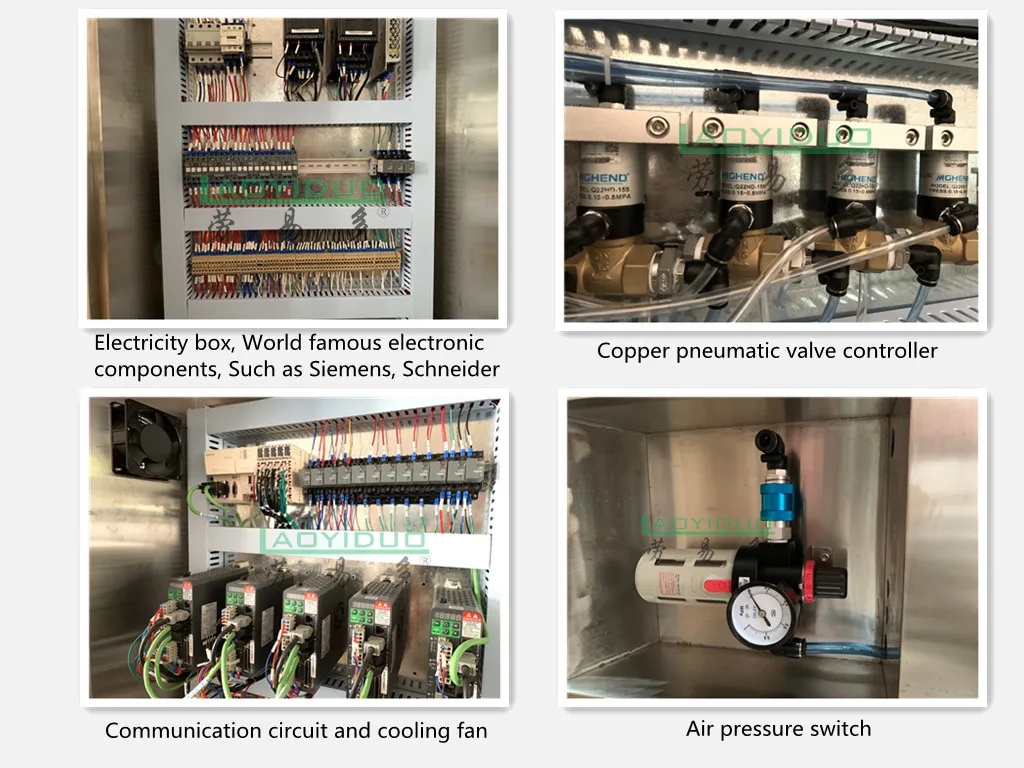

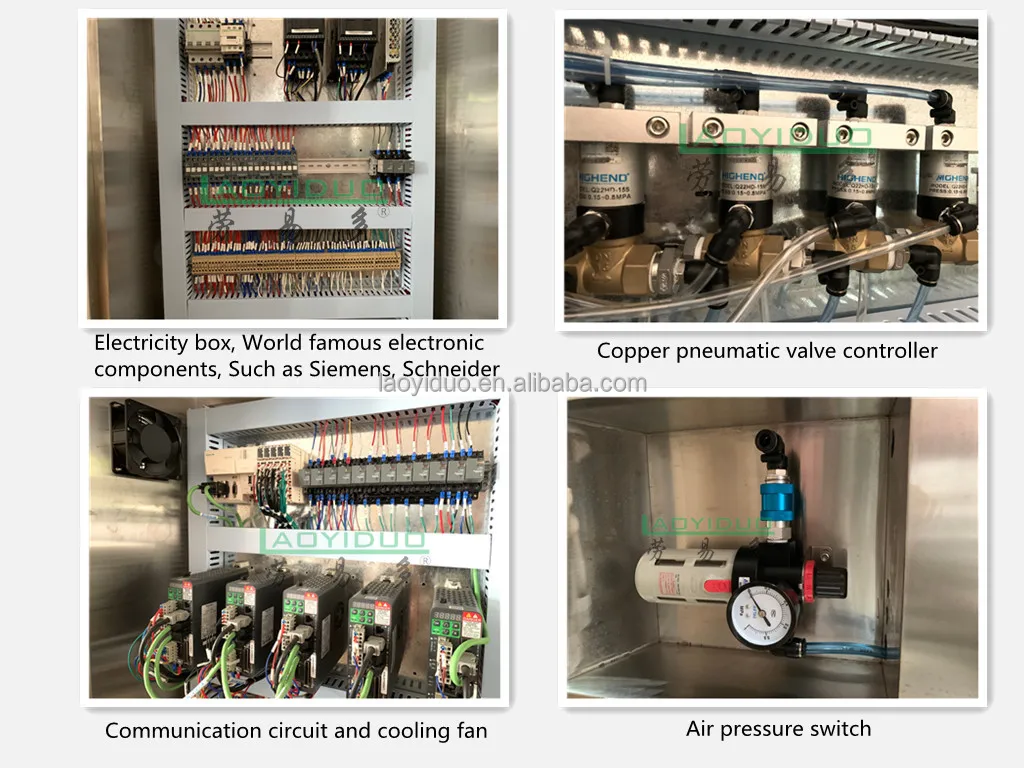

The control system adopts the high-end electrical parts such as programmable controller I/O PLC module, which has reliable performance and low maintenance cost.
The sealing and soft connection uses Teflon, which is solvent resistant, acid and alkali resistant and has long service life.
The system adopts two-stage adjustable filling mode for the large and small materials, which improves the accuracy and productivity.
The filling quantity can be set freely, which is suitable for quantitative filling in various weight ranges.
Full Touch Screen is English Animation Operation, Full Teaching Mode Operation Guidance, Display Target Quantity, Filling Quantity, Bucket Number, Cumulative Quantity and so on.

The system uses all-English guided operation to memorize working group parameters and formulas. Maximum storage of 100 sets of parameters.

The device can extend the Ethernet interface/DP/NET interface to facilitate centralized control and integrated monitoring of factory data in the later stage.
