Fully Automatic Liquid Latex Paint Water Paint Solvent Intelligence Filling Line
- Category: >>>
- Supplier: Wuxi Mido Intelligent Technology Co. Ltd.
Share on (1600550602790):
Product Overview
Description
Product Information

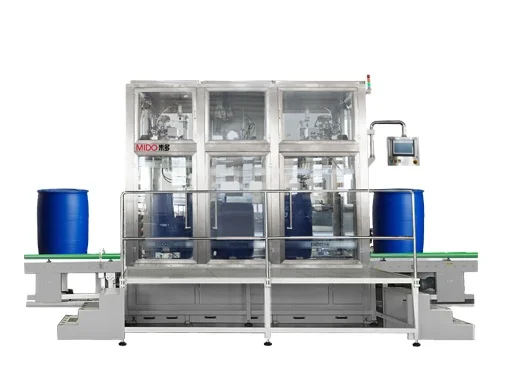

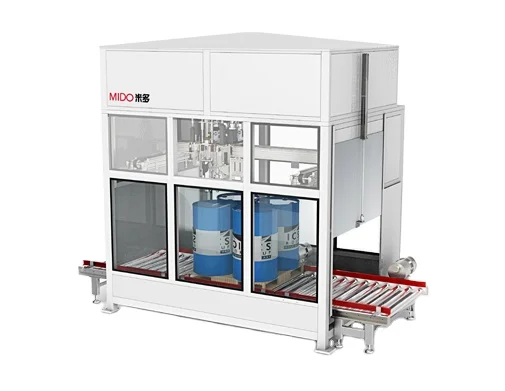

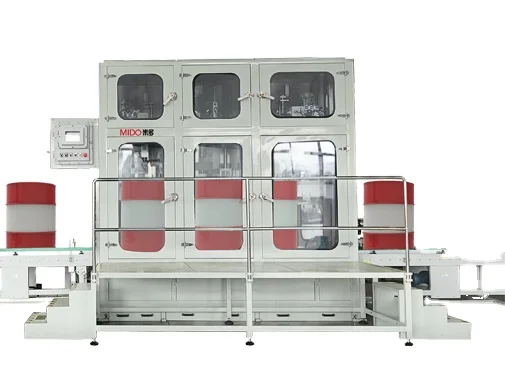

Automatic Liquid Filling Packing Machine
Three stations: positioning and opening-automatic filling-automatic cap opening and capping This machine is an intelligent packaging system specially designed for the packaging of liquid drums of 50-300kg. The main machine part of the filling adopts a stainless steel environmental protection frame, with a window, automatic sliding door, and a closed type during filling; the entire line automatically completes the drum. The sliding door opens and closes,automatic identification of the drum mouth,automatic alignment of the drum mouth, automatic cap opening, automatic filling, and automatic capping at the end of filling. This machine adopts programmable logic controller (PLC) for control and touch screen operation.
Number of filling head | 1 head or customized |
Explosion-proof type | Exd II BT4 |
Applicable container type | 200L plastic drum |
Production capacity | ≥40 drums/hour (depending on the viscosity, flow, pressure and other factors of the incoming material) |
Bearing weight | 500.00Kg |
Conveying form | double-row chain |
Minimum weighing value | 50g (0.05Kg) |
Station function | cap opening, filling, capping |
Filling range | 100.00∼300.00Kg |
Filling speed | ≥40 drums/hour (depending on the viscosity, flow, pressure and other factors of the incoming material) |
Filling type | filling above the liquid surface |
Filling error | ±200g |
Filling contact material | SUS316 |
Main body material | SUS304 |
Gasket | PTFE |
Pump body | equipped by the user (the supplier's filling equipment controls the operation of the pump) |
Air pressure | 0.6MPa clean and stable air source |
MOQ | 1 set |

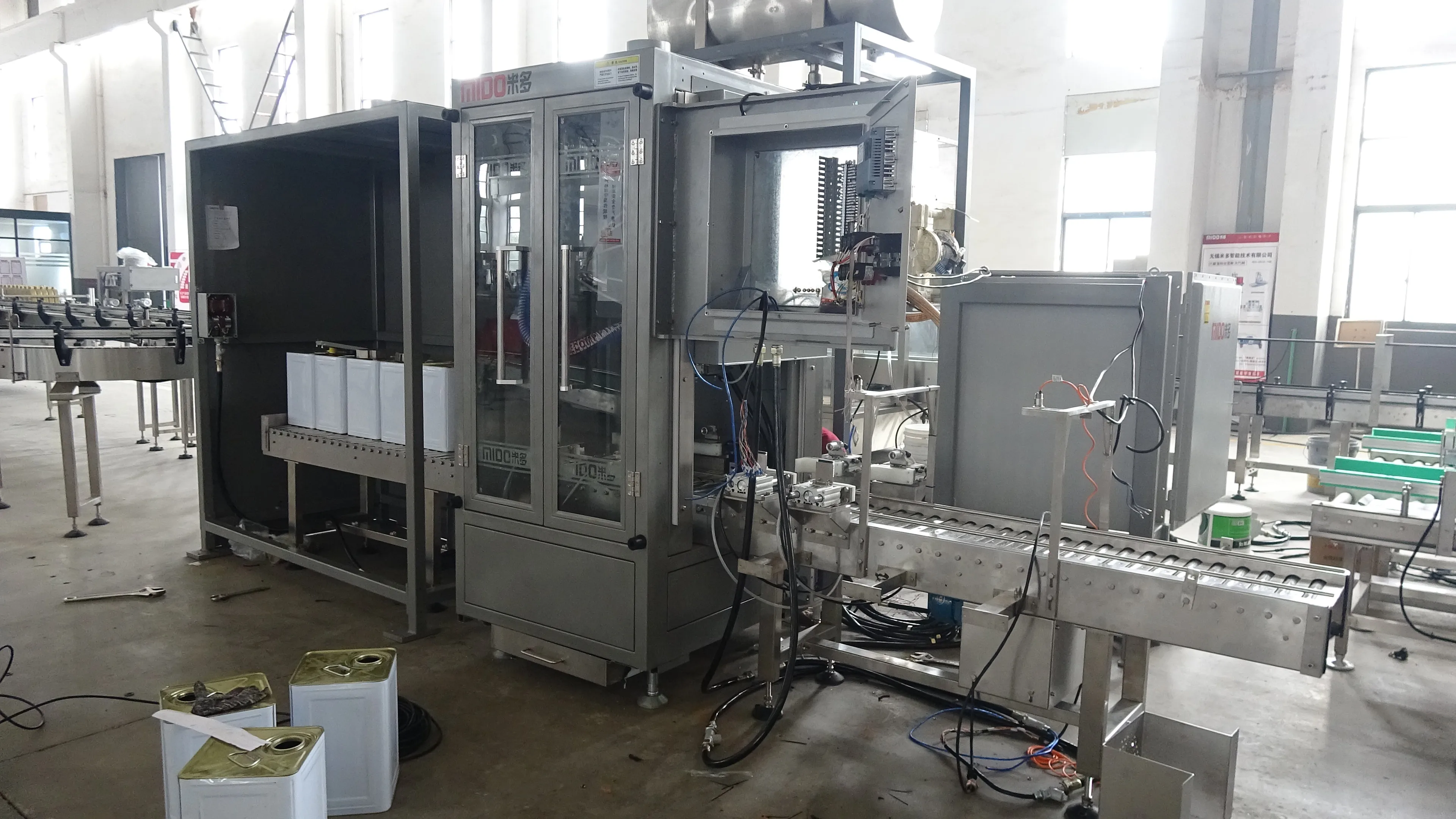

Product Display
Company Profile
Certification
Exhibition
FAQ
Q1: Are you factory or only company?
We are factory manufacturing automatic filling machines,automatic capping machine, robot palletizers and so on.
Q2: Do you have any reference project?
We have reference project in many countries, and you can visit their factories if we get the permission of the customer.
Q3: What's your guarantee of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee . And we will give u free technical support all life , after the
guarantee, we would supply the spare parts with cost prices.
Q4: Do you provide customized service?
We are factory manufacturing automatic filling machines,automatic capping machine, robot palletizers and so on.
Q2: Do you have any reference project?
We have reference project in many countries, and you can visit their factories if we get the permission of the customer.
Q3: What's your guarantee of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee . And we will give u free technical support all life , after the
guarantee, we would supply the spare parts with cost prices.
Q4: Do you provide customized service?
We will customize the machine according to your needs, material ,power,filling type,the
kinds of the bottles and so on.
Q5:When can we get the machine after we paid?
kinds of the bottles and so on.
Q5:When can we get the machine after we paid?
We will rely on our contract and deliver the machines after we tested.
Q6:How can i install my machine when it arrives?
Q6:How can i install my machine when it arrives?
We will send our engineer to your side to help your technicians install and debug the machines, and teach you how to operate the machines.
