Neoprene or natural rubber bridge elastomeric bearing
- Category: >>>
- Supplier: Hongrui Boya (Tianjin) Trading Co. Ltd.
Share on (1600550620878):
Product Overview
Description
Product Description

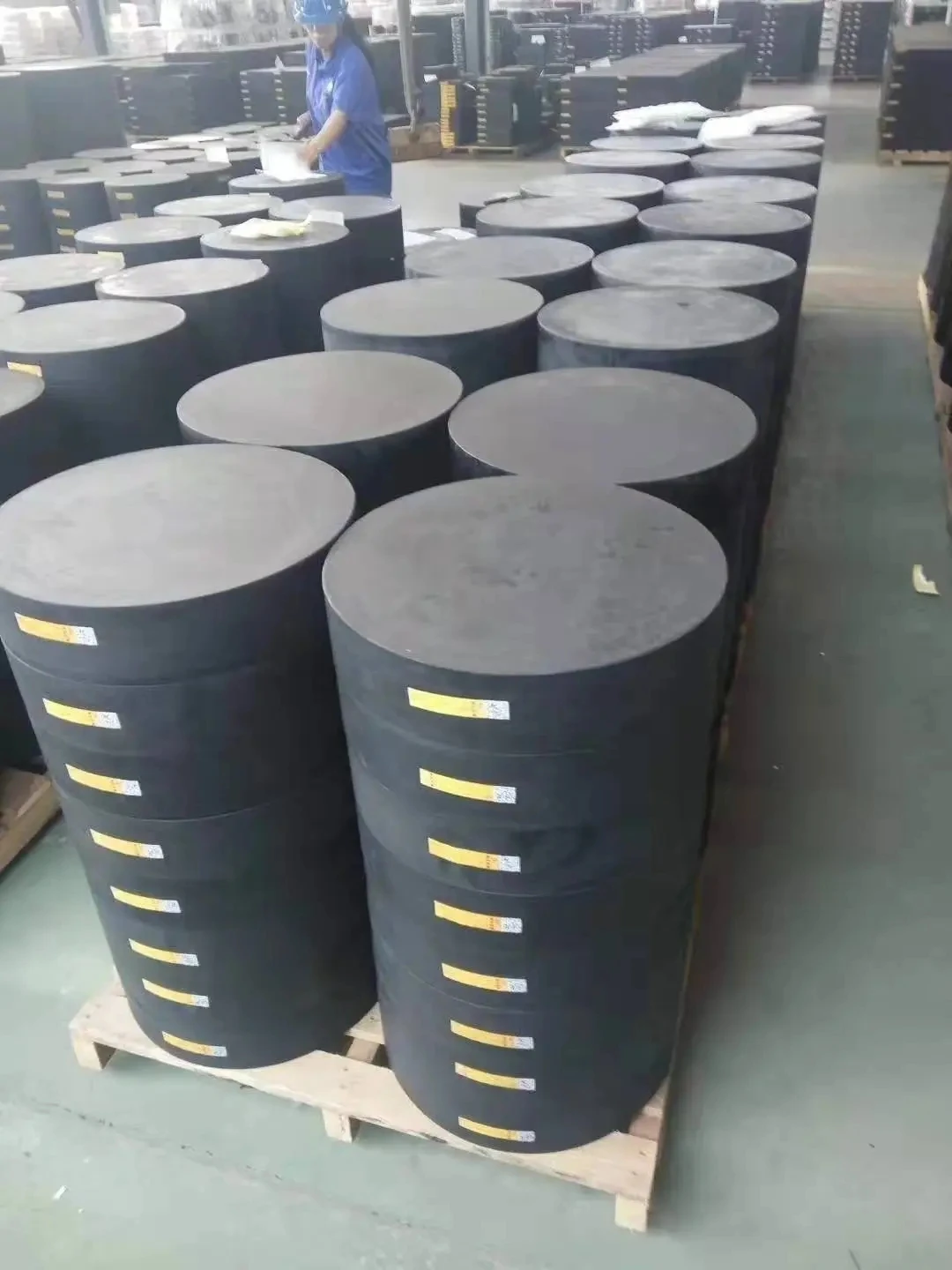

Neoprene or natural rubber bridge elastomeric bearing
Introduction.
Rubber Bridge Bearing Pads is made of multilayer Neoprene/EPDM/natural rubber with or without sheet steel after inlay, conglutinate, vulcanization. It has enough vertical stiffness to support vertical load, and it could deliver the pressure of superstructure to abutment.
Rubber elastomeric bearing pad is finding ever increasing application in today's construction industry-as local load carrying components.
Rubber elastomeric bearing pad is finding ever increasing application in today's construction industry-as local load carrying components.
Applications.
Rubber Bridge Bearing Pads can be used for steel structures, pre-cast concrete structures, standard concrete slabs, etc. This type of bearing is particularly effective in the presence of camber and rotation causing high stress loading on the bearings. This type of bearings provide an excellent economic solution for applications where structure movements, longitudinal, transverse and rotational are small, provide vibration isolation and are generally simple to install.

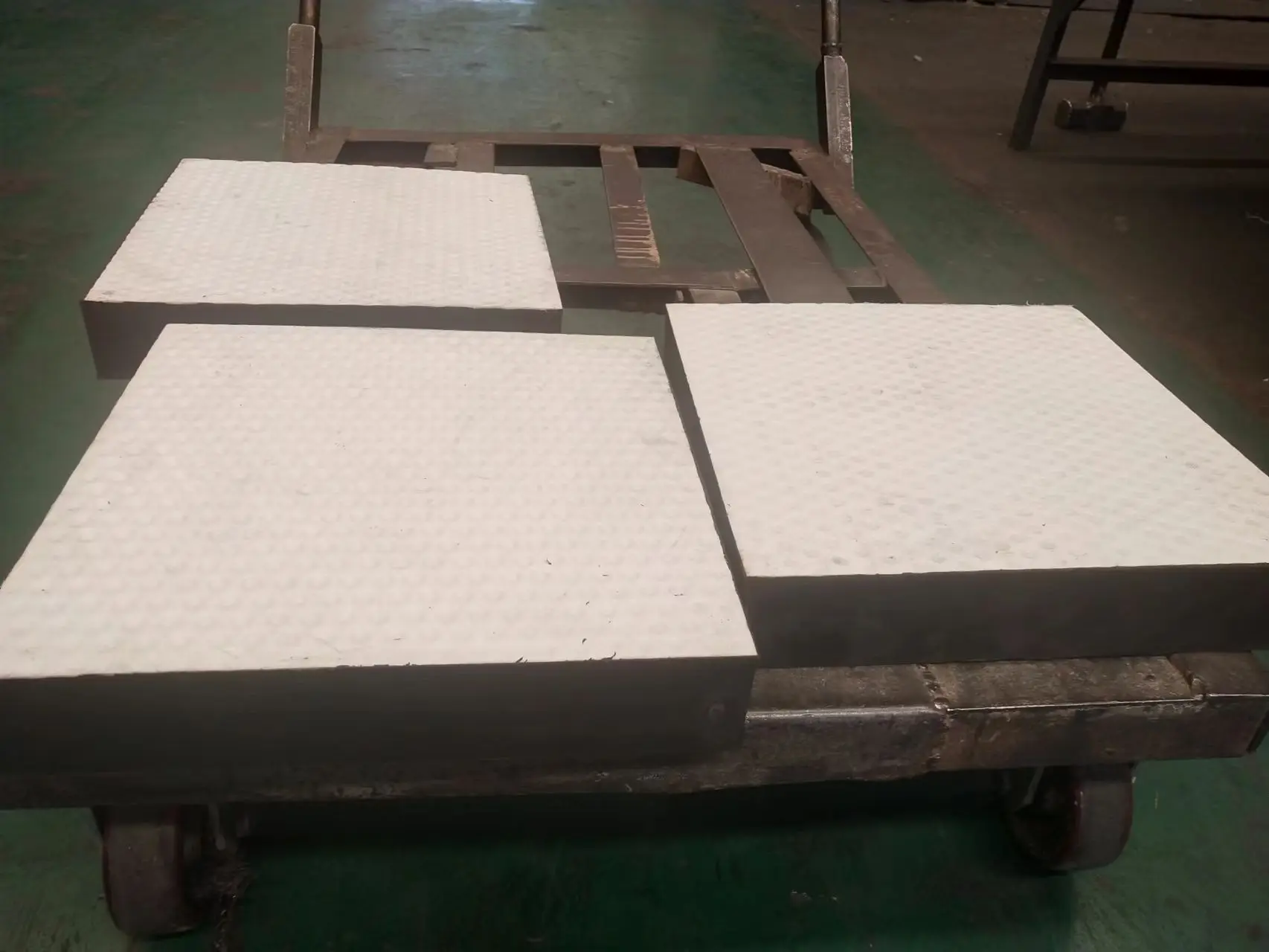

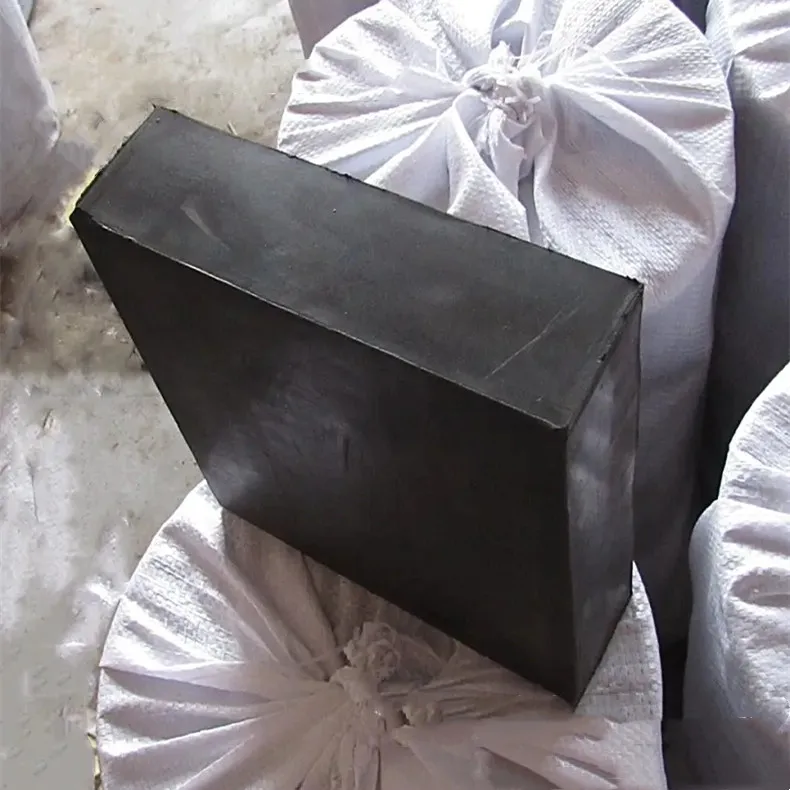

Neoprene or natural rubber bridge elastomeric bearing
Technical performance.
Item | Index | ||
Ultimate compression strength Rd /MPa | ≥60 | ||
Compression modulus of elasticity E1/ MPa | E±E×20％E | ||
Shear modulus of elasticity G1 / MPa | G±G×15％G | ||
Allows maximum shear deformation tg α | ≤0.7 | ||
shear deformation produced by fast loading tg α | ≤0.25 | ||
Anti-sliding friction coefficient | Against steel | 0.2 | |
Against concrete | 0.3 | ||
Anti-seismic elastomeric slide bearing for bridges compression modulus of elasticity E
And bearing form factor S should be calculated as : E=5.4GS 2
E- plate bearing compression modulus, MPa
G - plate bearing shear modulus, MPa
S - plate bearing form factor
Contact us for details.

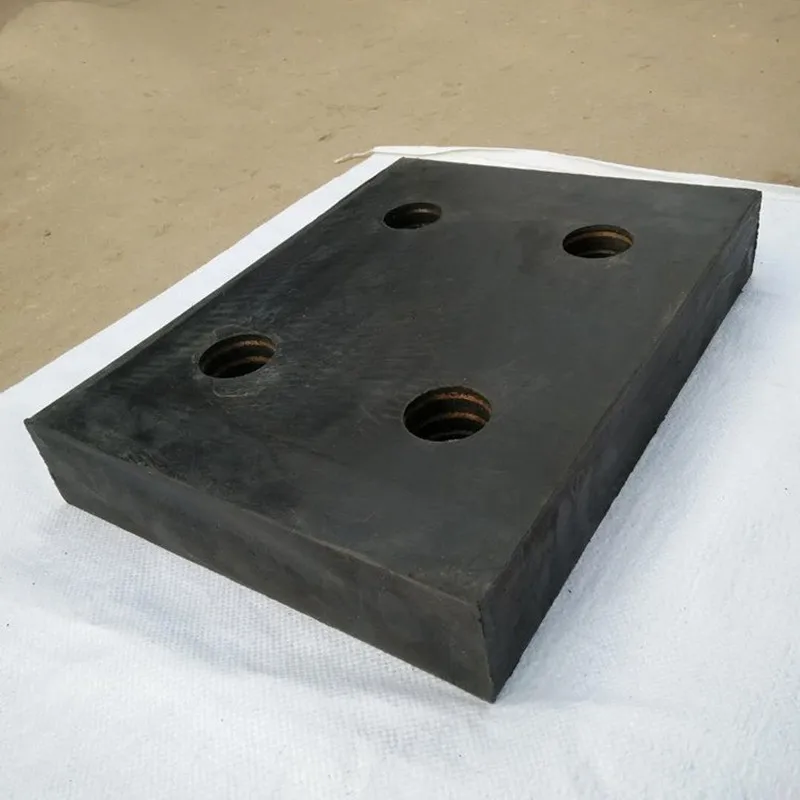

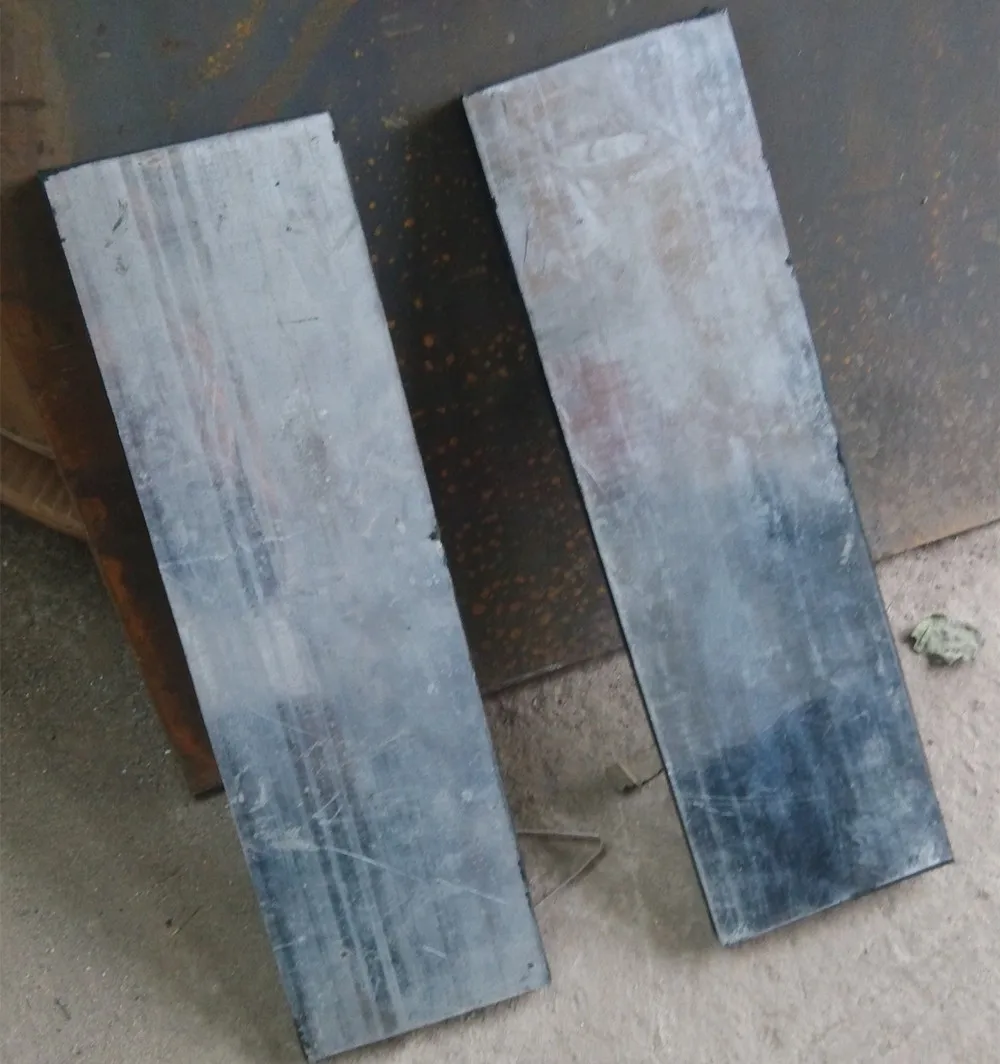

Neoprene or natural rubber bridge elastomeric bearing

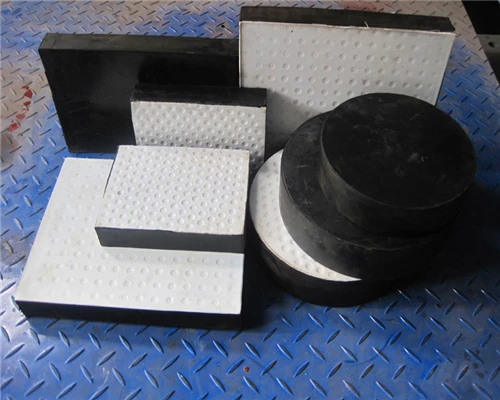

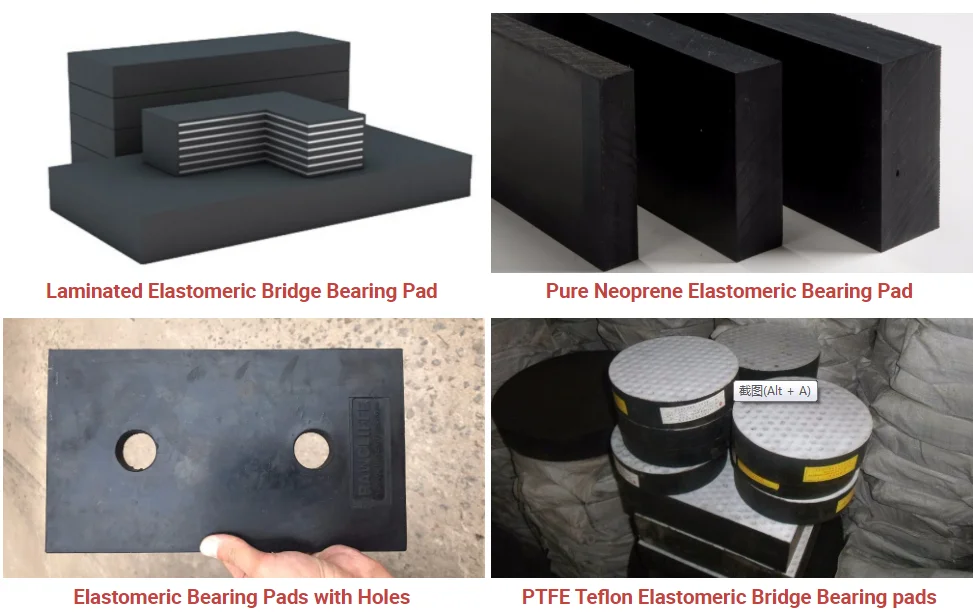

Products Show
Contact us for details.

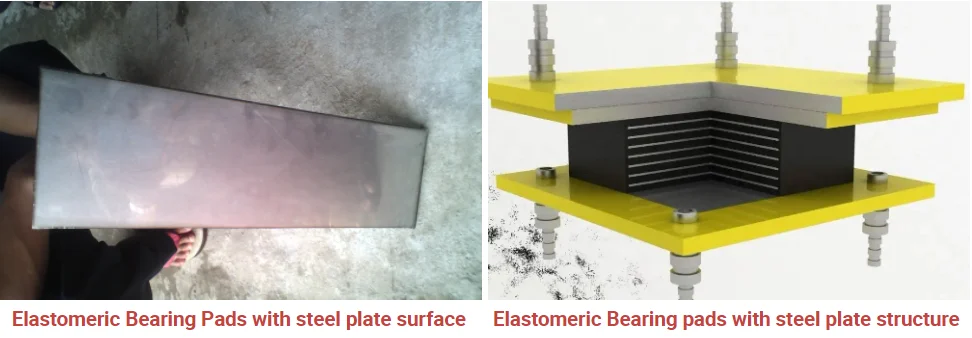

EN standard high quality bridge bearing manufacturers

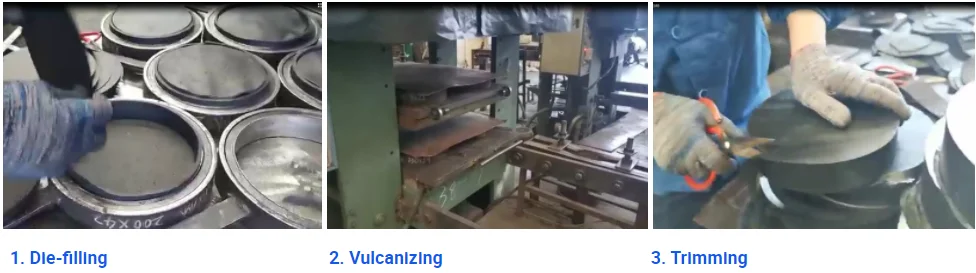

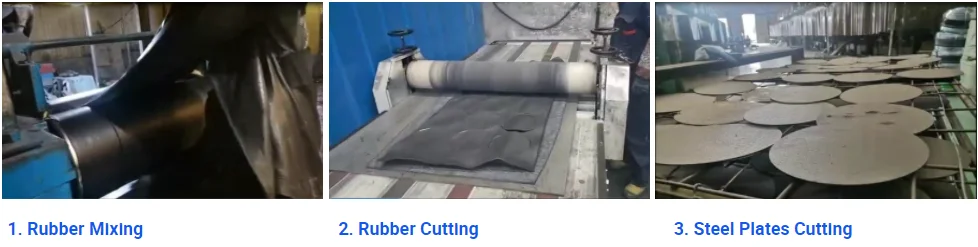

Production Process

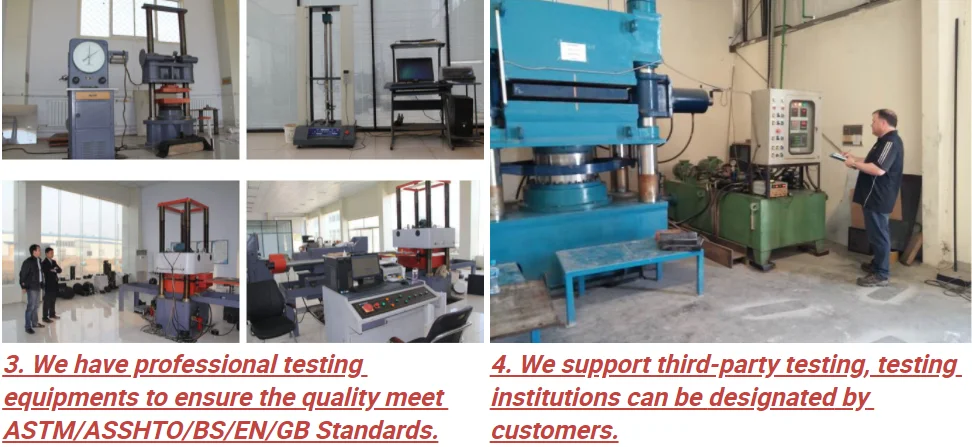

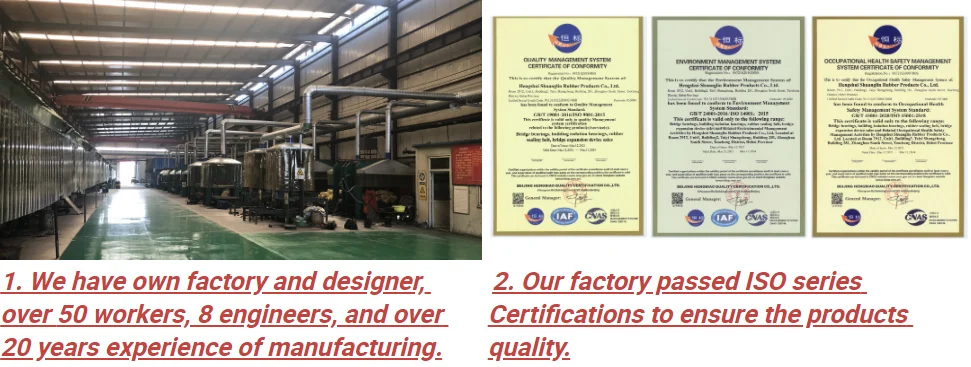

Why Choose Us

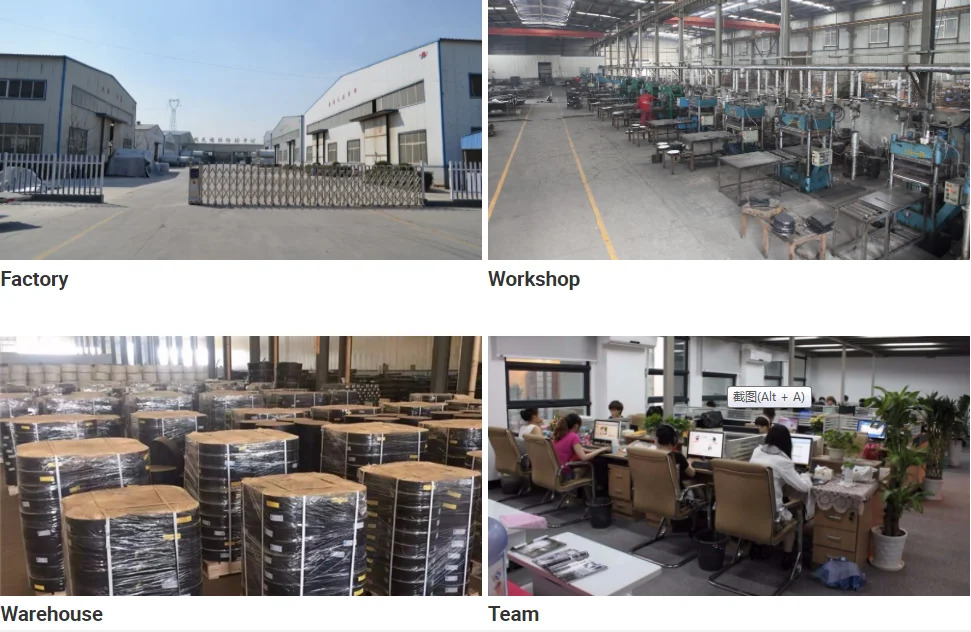

Our Company
Hongrui Boya (belongs to Shuanglin Group) professionally supplys Road, bridge and building support, expansion joint, waterproof materials.
It has one factory, three companies for domestic and foreign markets. 50 workers, 8 enginnerings, and over 20years experience of manufacture.
Main products are Bridge bearings, bridge expansion joint, concrete waterstop products, rubber air bag, polysulfide sealant etc.
ISO certification, CE standard, AASHTO, and SGS test, with a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in infraconstruction and other industries.
Contact us for details.

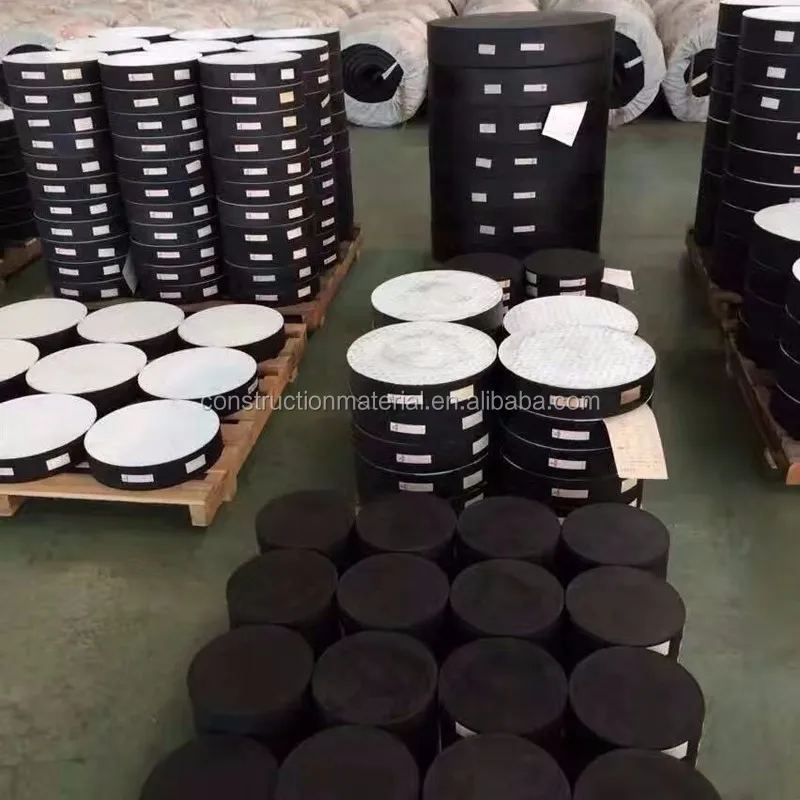

Natural Rubber Bridge Bearing Pads

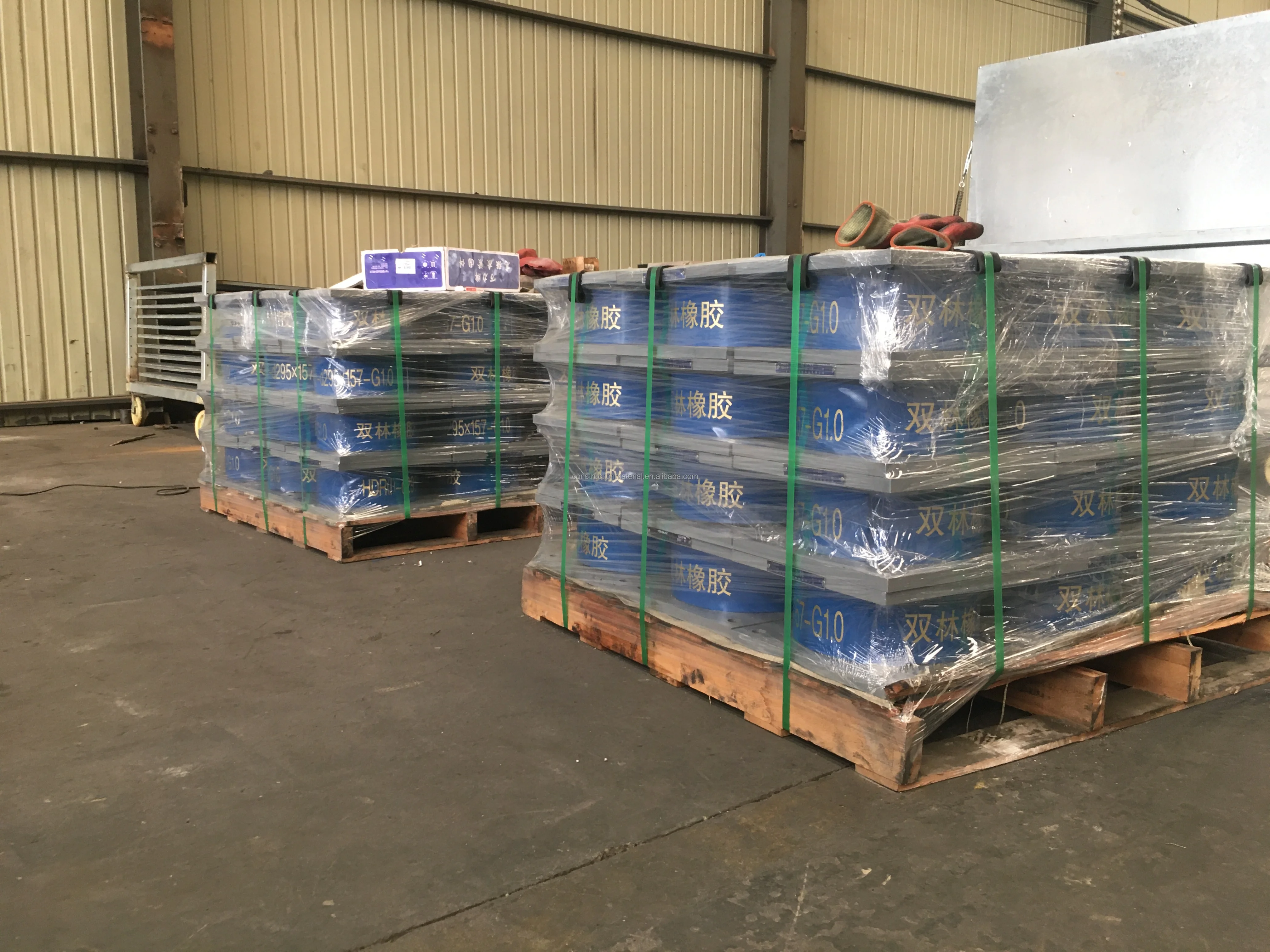

Packing & Delivery

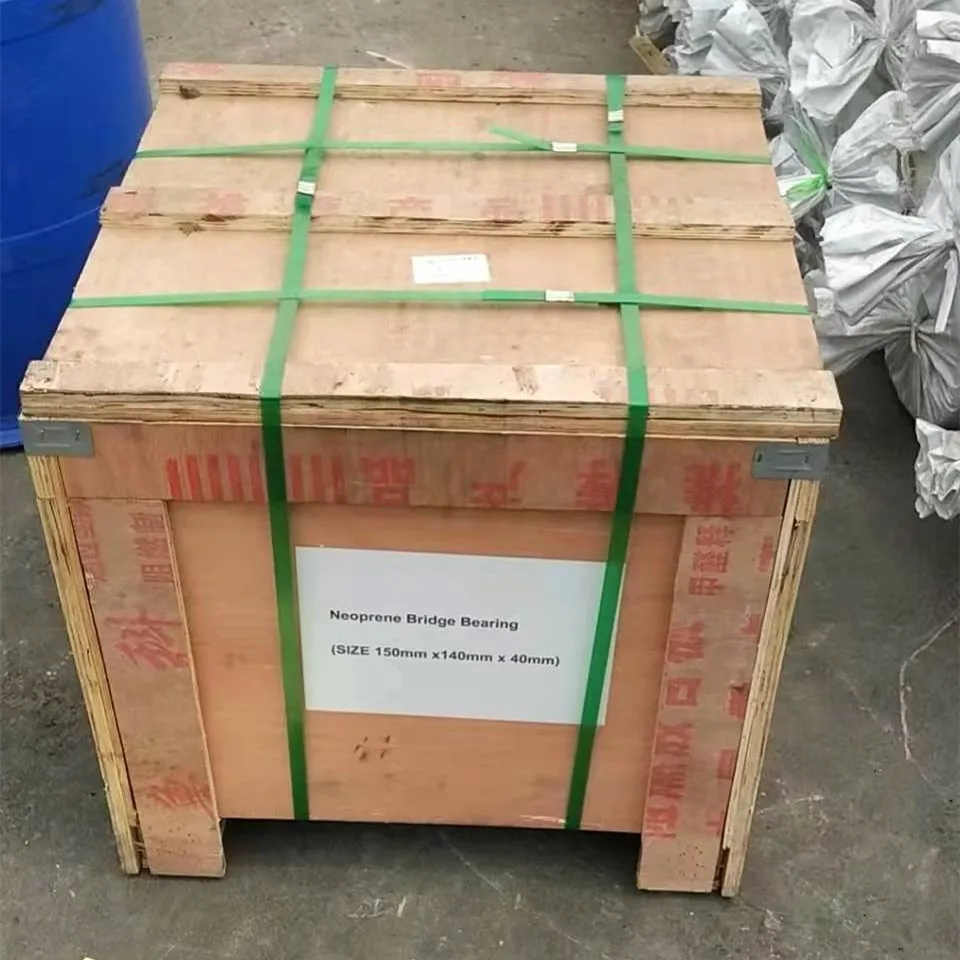

Packing Details: Wooden boxes or pallets.
Delivery Details: 10-30 days after deposite.
Related Products
Bridge Rubber Pot Bearing
Pot type rubber bridge bearing is more suitable for long-span bridges.
Spherical PTFE Bridge Bearing
Spherical rubber bridge bearing is more suitable for wide bridge and curved bridge.
Lead Core Rubber Bridge Bearing
Lead rubber bearings were installed under the girders of the isolated bridges.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
