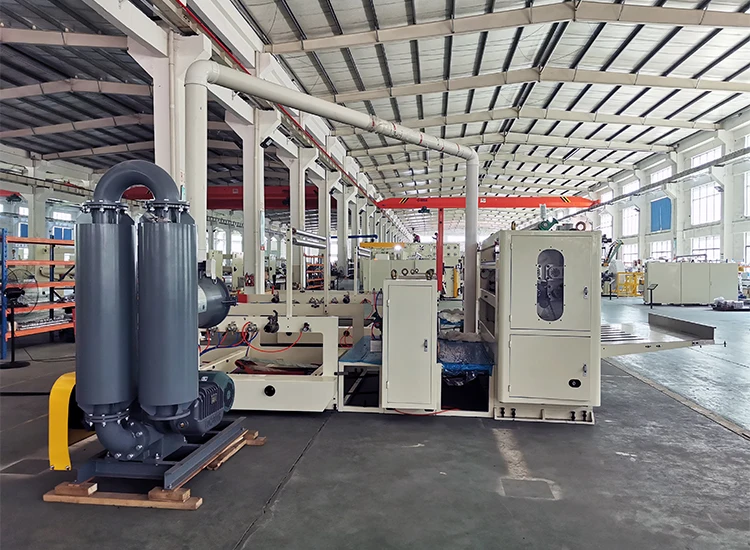

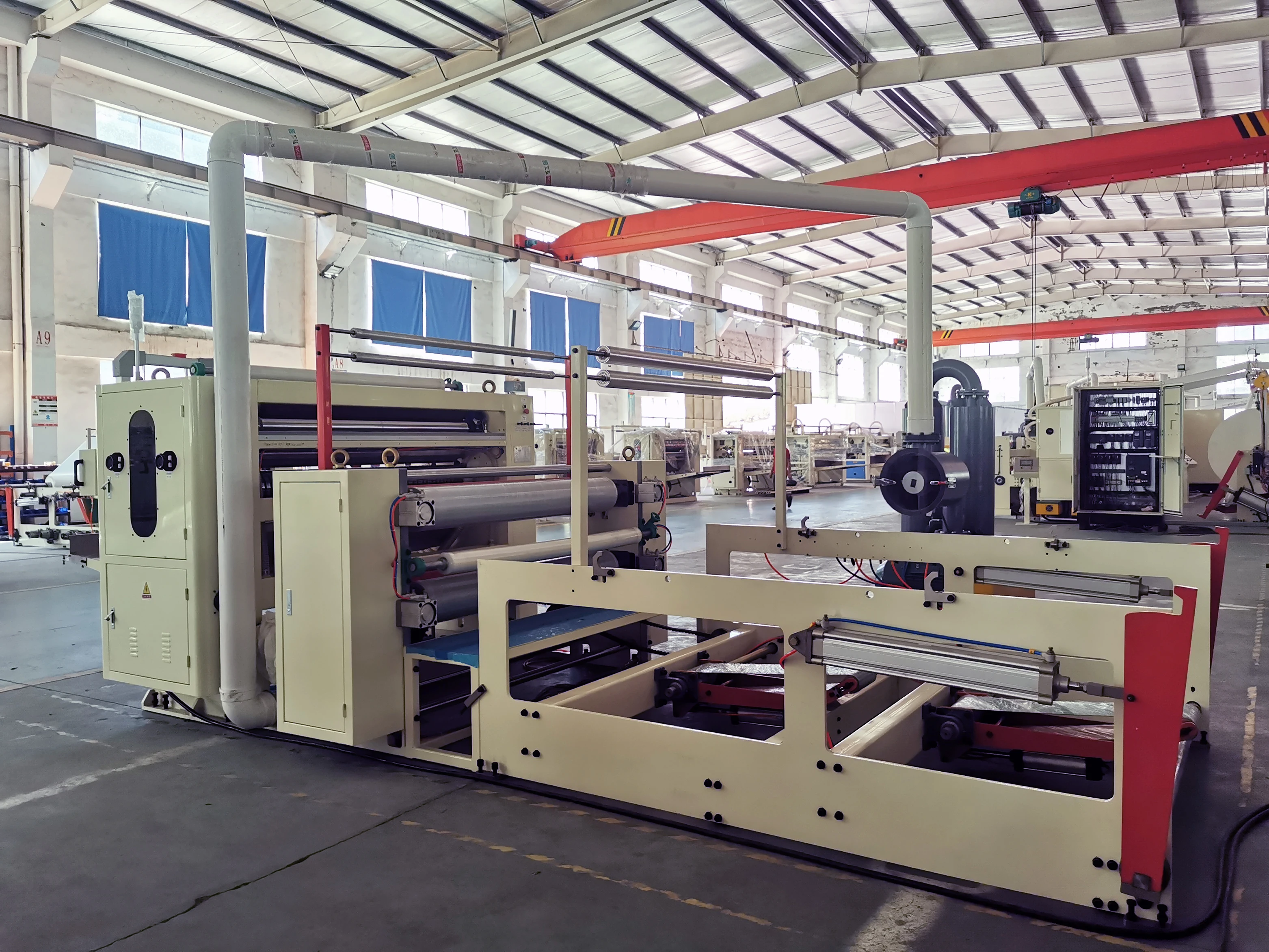

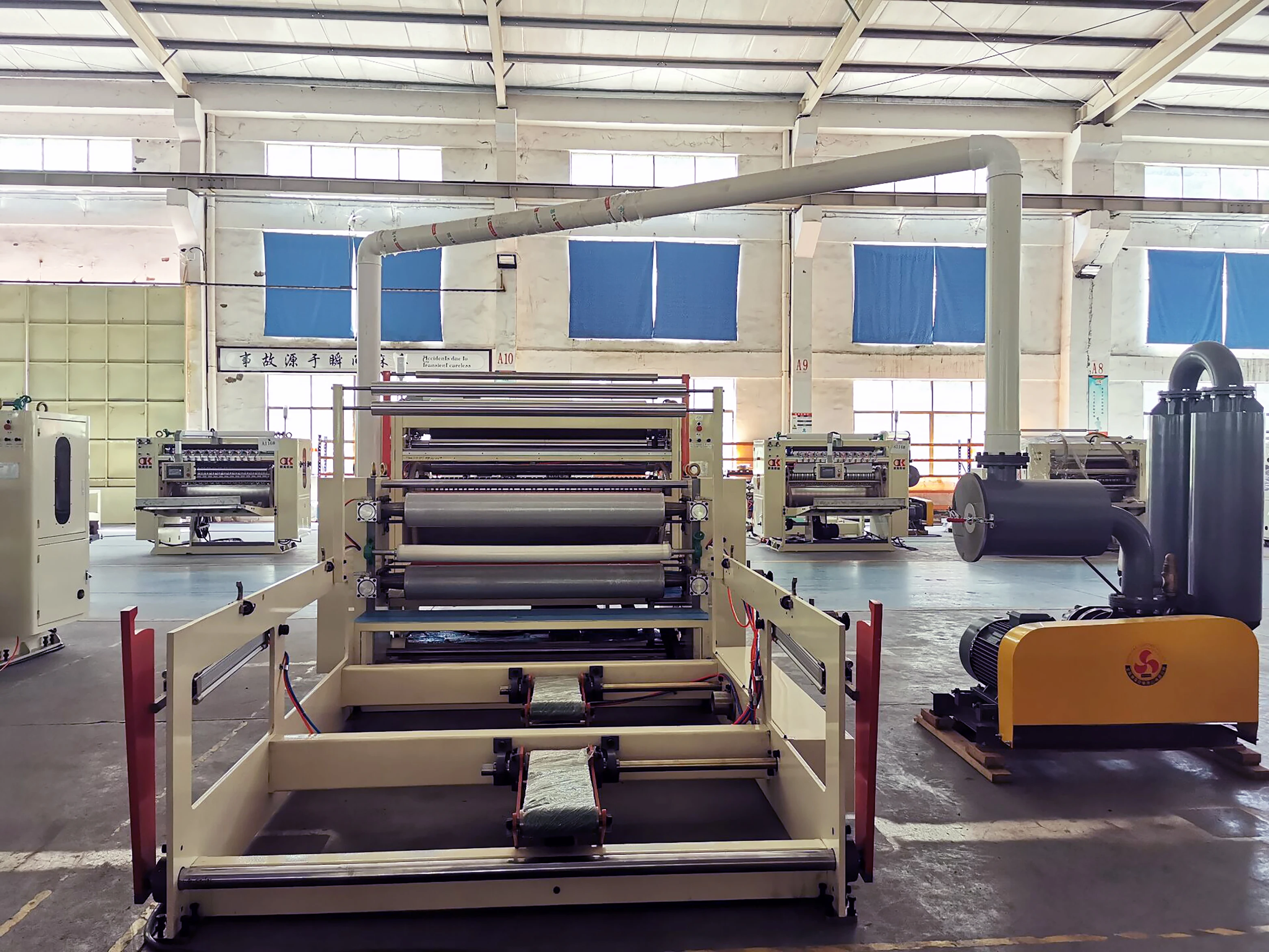

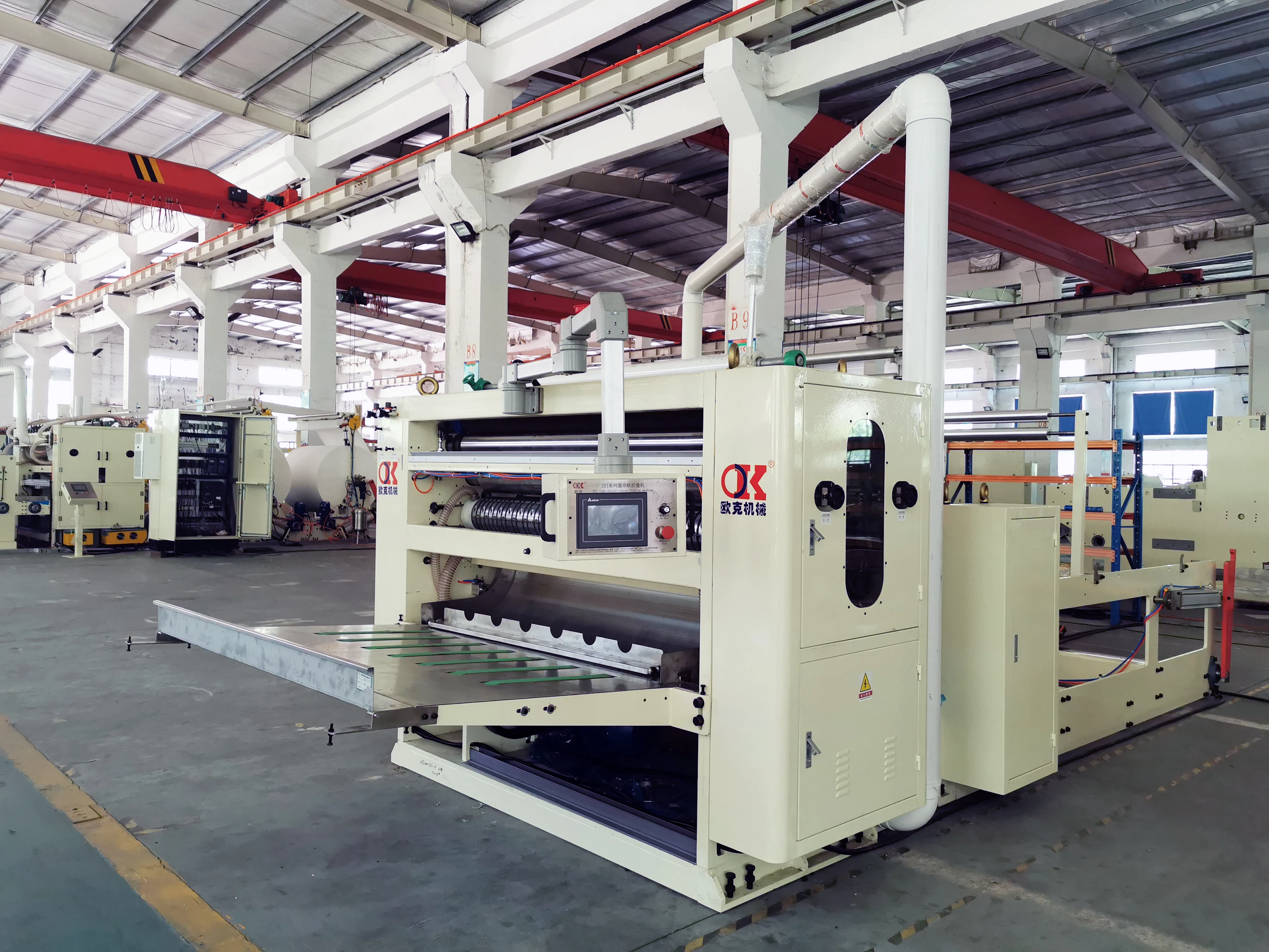

Paper Product Making Machinery Full Automatic 6 lines Facial Tissue Making Machine

Product Overview

Description

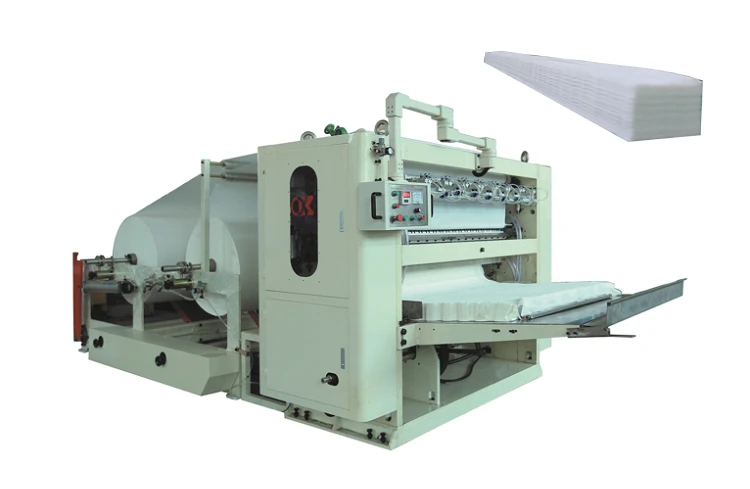

Paper Product Making Machinery Full Automatic Facial Tissue Making Machine

6 Lines



More Details:

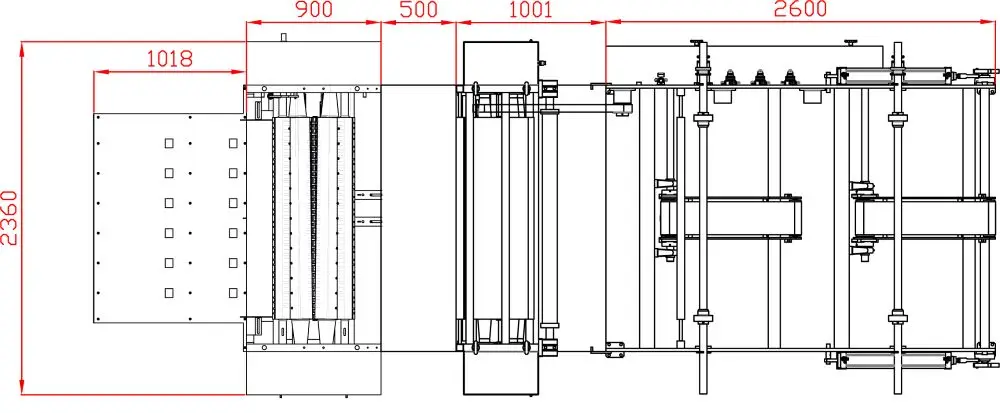

6 Lines Folding Machine with Full Embossing Layout

Technical Specification:

Folding Unit:

1.  Size of folding roller :1350mm (width)

2.Applicable roll quantity:13~25 GSM(2 ply)tissue paper

3.Finished product open size:customer specify±2mm, optional width175,180,185,190,200,210mm

4.Sheet Folded size:customer specify±2mm, optional width 87.5, 90, 92.5, 95,100,105mm

5.Folding type:V fold

6.Speed of folding:800~1000sheet/min/line

7.Cross cut:2 sheet high speed steel top blade,6 sheets high speed steel underside blade

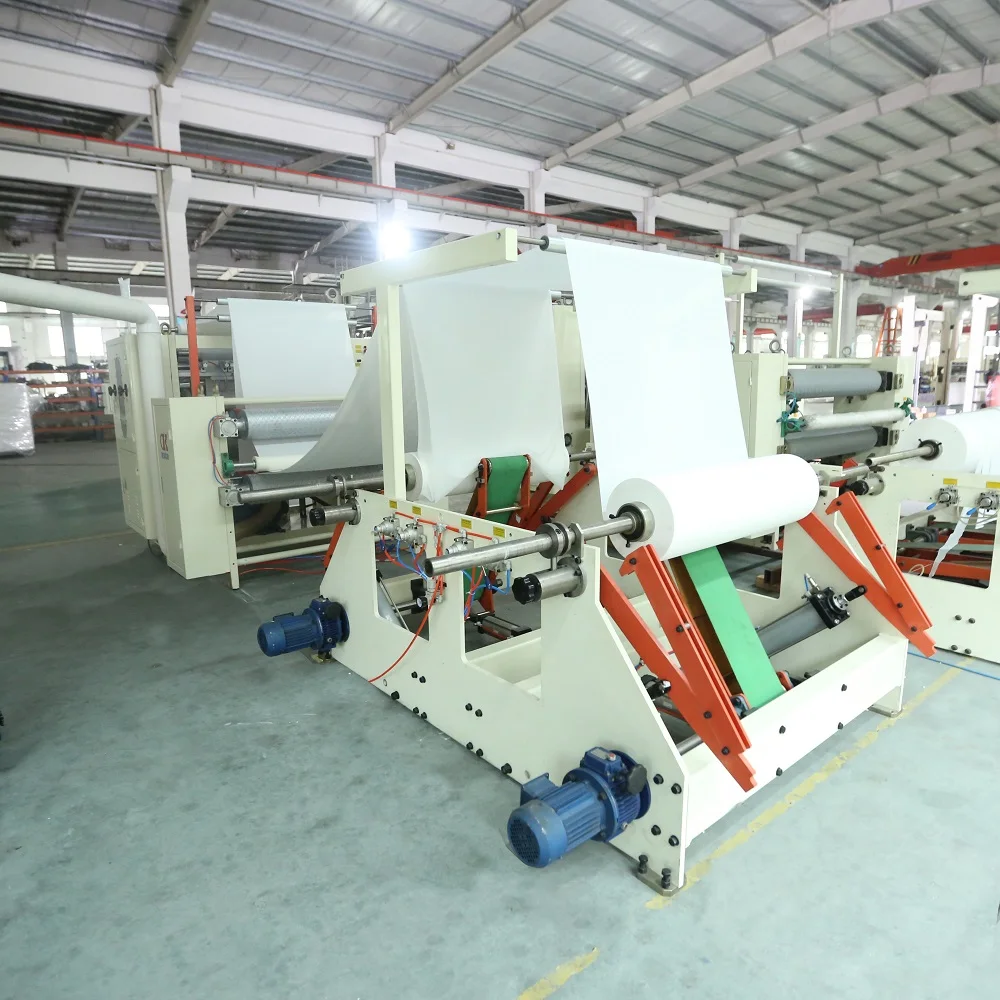

Unwind Unit:

1.Maximum Width of parent paper:1300mm

2.Max diameter of parent paper:1200mm

3.Core inside diameter:76.2mm(3”)

4.2 parent paper roll,pneumatic loading unit

5.Web tension controlled:manually

6.Parent roll axes regulation:manually

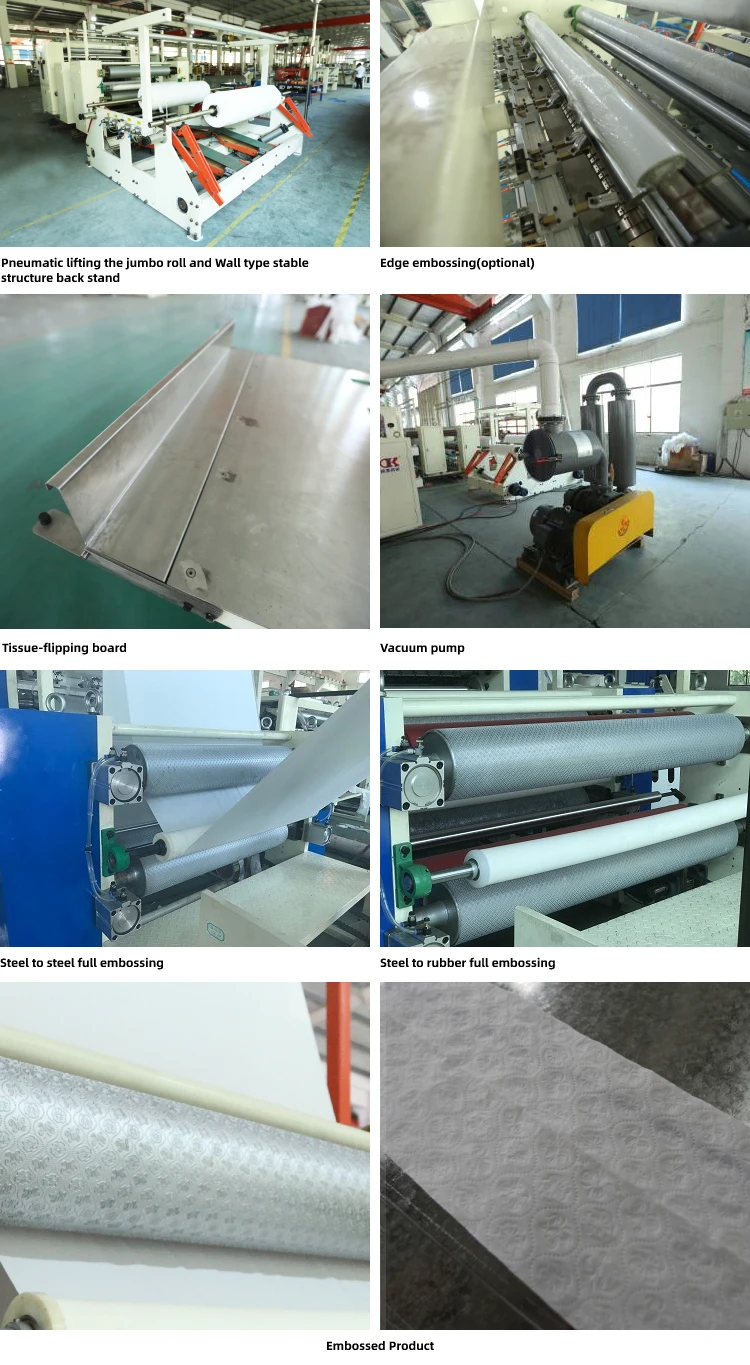

Embossing Unit- Will be charged additionally

Steel to Rubber type, Steel to Steel type

Transmission:

1.By gear and simultaneous belt

Control Unit:

1.Main motor power: 5.5kw

2.Speed adjusted:by inverter(5.5kw)for integral type back stand

3.Counting system:counter adjusted

4.Jogging button and emergency button installed on machine

Vacuum System:1 set vacuum pump 18.5KW

Compressed Air: 1.Air pressure:> 4kg/cm2 (provided by buyer)

Other Matched Machines for Facial Tissue Making

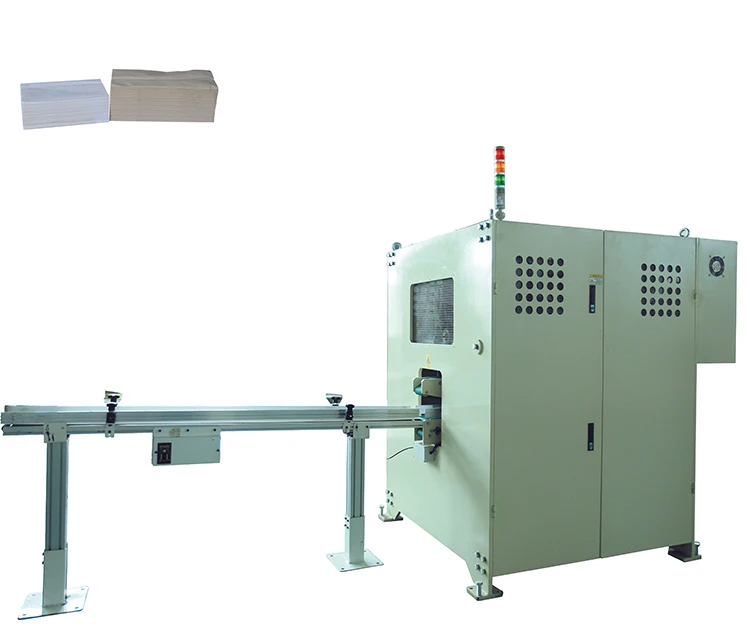

-Log Saw Cutting Machine

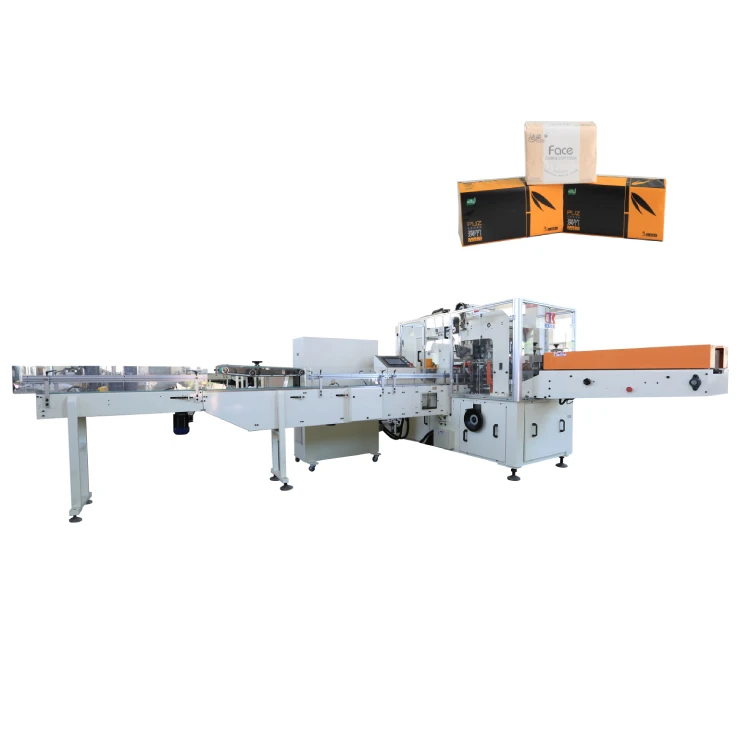

 -Facial Tissue Single Packing Machine
